Lynn Robinson 4" water bowser

Post  lynnr on Thu 28 Jul 2011, 10:49 am

Hi All.

Just received the kit for the water bowser so thought I would start another thread here for it. Pictures will start to come tomorrow.

Who else has got one? Very Happy

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

First pictures and progress

Post  lynnr on Fri 29 Jul 2011, 8:58 am

Hi All

New water bowser starting to take shape.

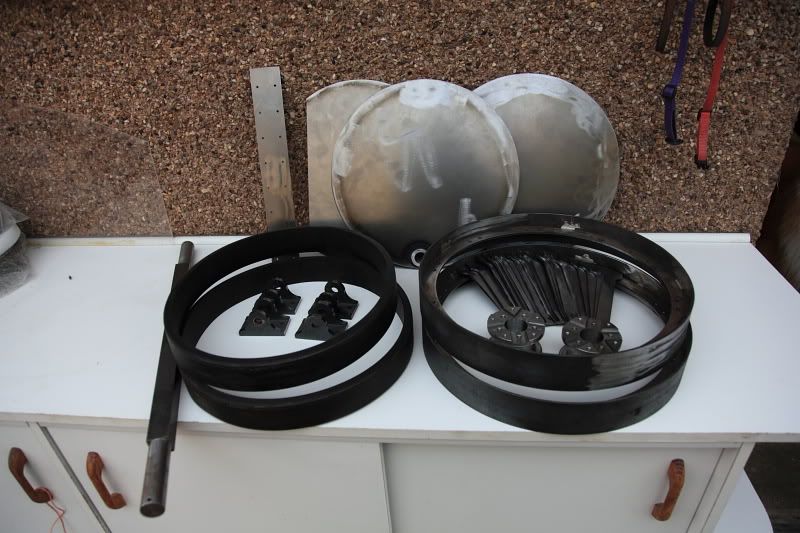

Checking the parts in to inventory



Trying bits for size. The usuall STW precision.

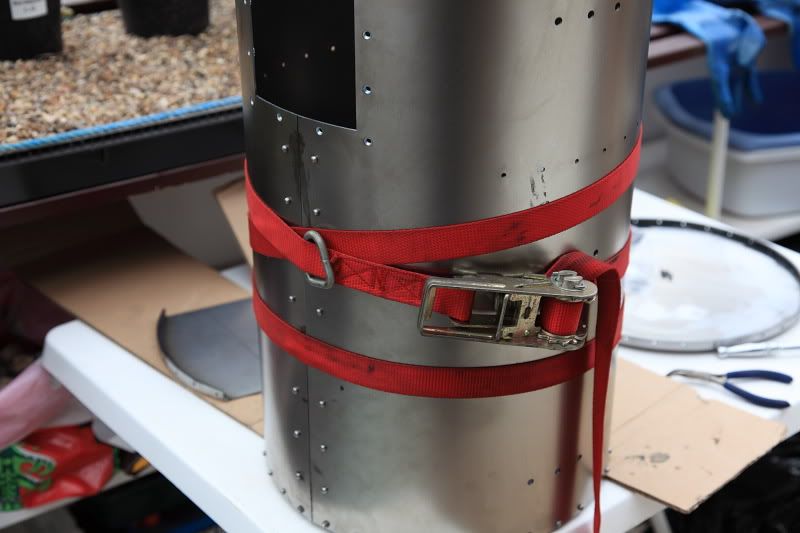

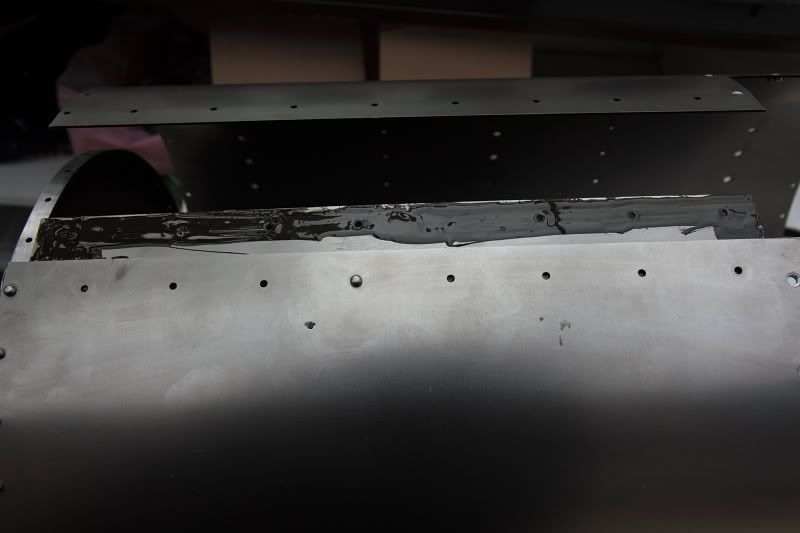

Just using a strap to help get the seam tight. Coated the seam plate with Heldite then cinched up the bolts.

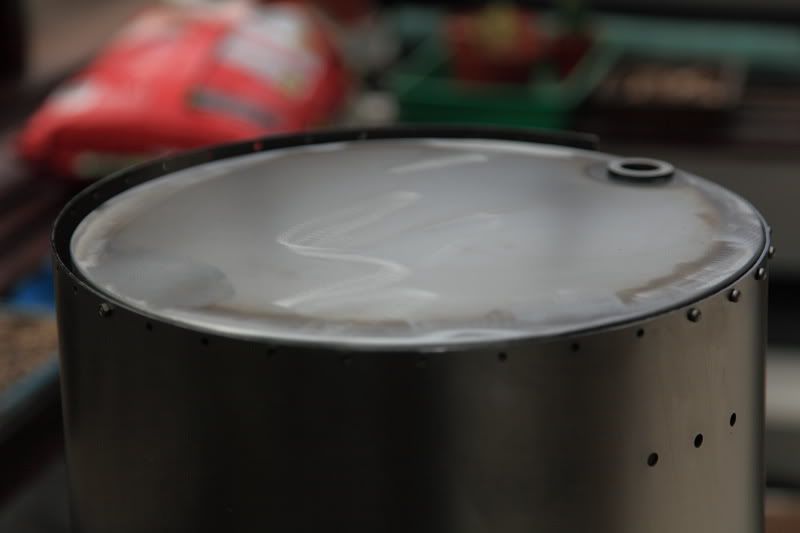

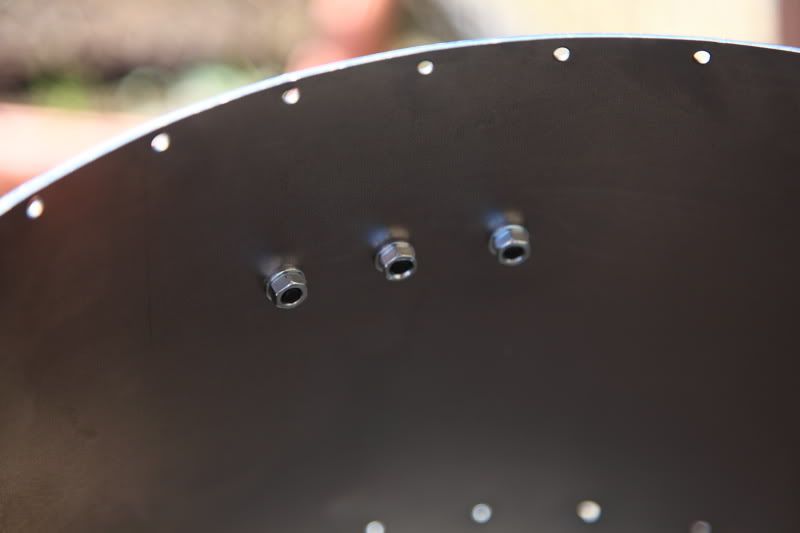

Just an idea. I welded the nuts for the hangers into the barrel as this allows the brackets to be fitted after the tank is closed up and painted. As the area just behind the bracket where it curves away could be a problem to paint.

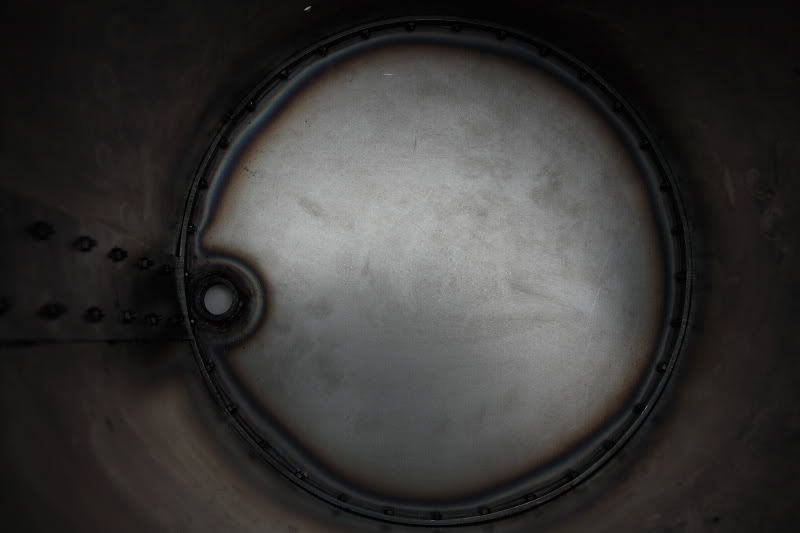

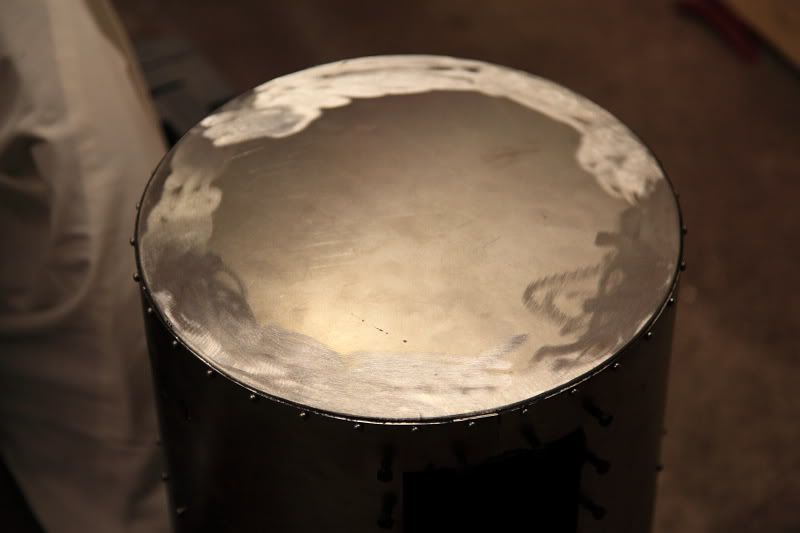

That is one end done.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Nuts

Post  lynnr on Fri 29 Jul 2011, 8:59 am

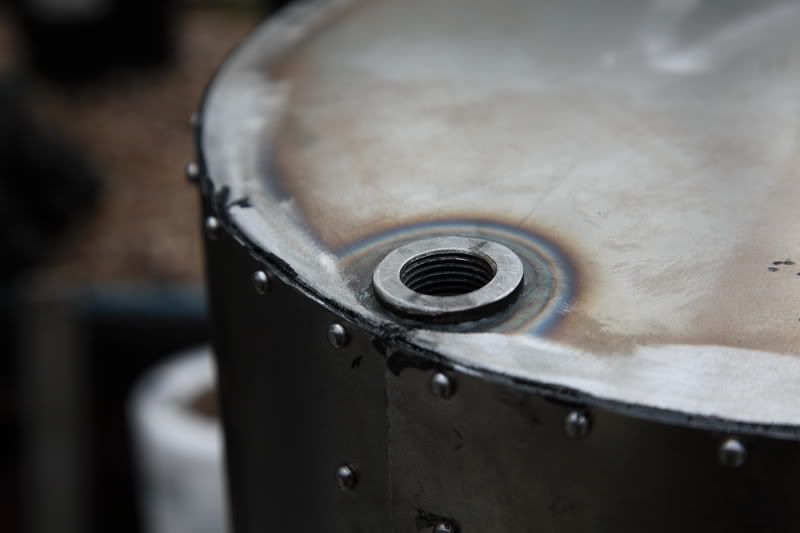

Missed the nuts welded



lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Bowser

Post  Tony King on Fri 29 Jul 2011, 9:21 am

Blimey Lynn, you're not hanging about!!!
Good to see lots of pics though!!
Welded nuts is a good idea!!................ to late for me I'm afraid, as mines all done, I'll try & get a picture up later!!
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: Lynn Robinson 4" water bowser

Post  craig@STW on Fri 29 Jul 2011, 9:34 am

yeah come on Lynn, give us a chance to keep up Neutral Neutral

may i suggest Lego next time you get "the urge to build" Laughing


Wink

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Need more building

Post  lynnr on Fri 29 Jul 2011, 11:08 am

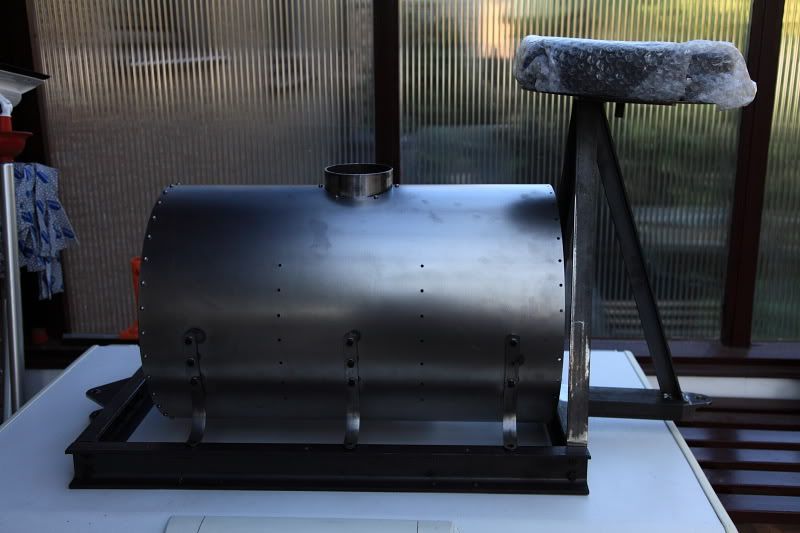

Just a mockup of the cart

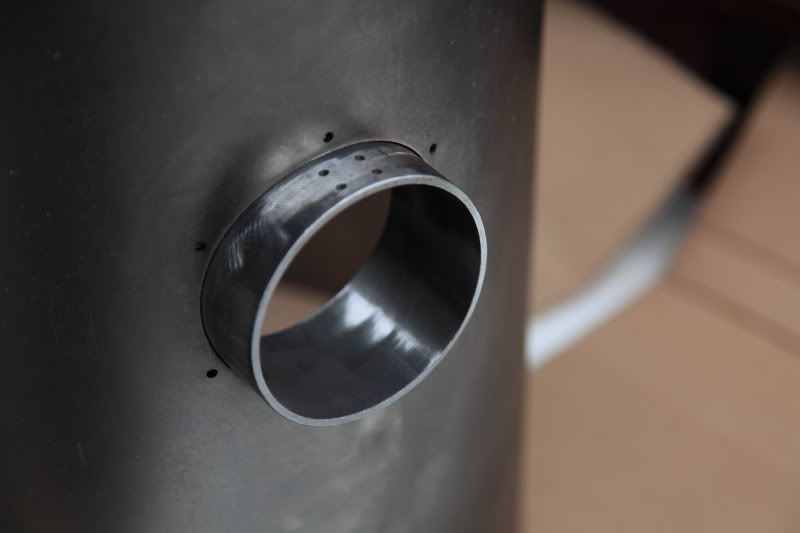

Still need to do the baffles as one is missing. Got the tap end plate all tightened up. So going to paint the bottom 1/3 with Isoflex, upto the baffle plate. Paint the 1st baffle plate on the non flanged side and insert. Once in place and buttoned up. Run some isoflex behind it to coat the corner and contact area. Then paint the front of the baffle and the next 1/3 of the tank ready for the 2nd baffle plate. And as they say repeat if required. I will then paint out to 1/2" from the blank end plate. Fit the end plate having painted this to the edge of the flange. So it only leaves the 1/2 inch flange to paint up via the hole.

Sounds like a plan


lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Bowser

Post  Tony King on Fri 29 Jul 2011, 12:44 pm

As promised, pics of my bowser!!











regards
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Green goddess?

Post  lynnr on Fri 29 Jul 2011, 12:50 pm

Hi Tony
Is your engine the "Green Goddess" as the colour is very much like the military fire engines.

Nice on the bowser. Also spy a wagon behind as well. Looks like we have a road train Very Happy

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Bowser stuff

Post  Tony King on Fri 29 Jul 2011, 1:10 pm

Well spotted Lynn,
Wish I could get another wagon but I'm having to rein myself in, not least, due to lack off space!!
If you look under the wagon on the floor, you'll see the beginnings of an "organ grinders" fair ground organ starting to take shape.... It's the bellows!! (there's the first set of melody pipes sitting inside the trailer!!)
It's my intension to convert the wagon into a minature organ trailer which will be powered by.................. yep you guessed it, the Showmans engine, thus music while you drink!!
How good does it get?
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Progress and interuptions

Post  lynnr on Sat 30 Jul 2011, 9:47 am

Progress today was not as planned.

Started painting and fitting the baffles.





Then had to go fetch a new Rotary dryer as the old one fell over. The base snapped.

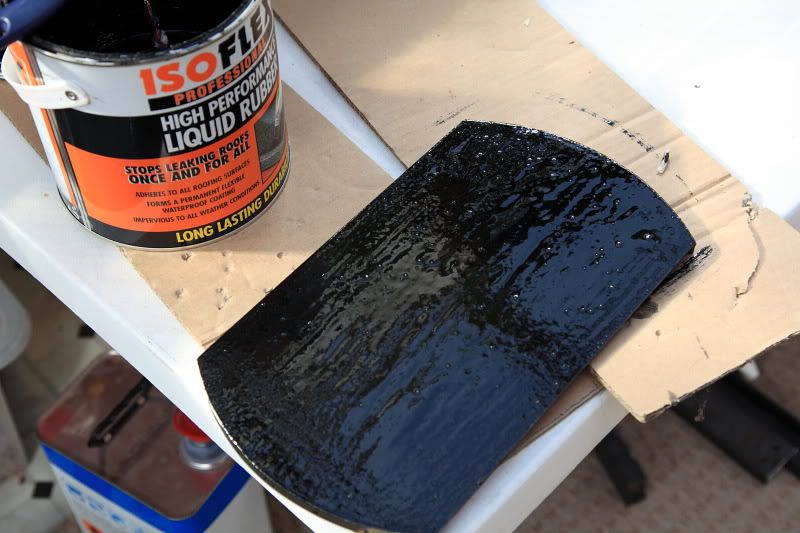

Done some more coating



End plate ready for installation once the isoflex dries


Went to get some postcrete.

Went back to get more!!!

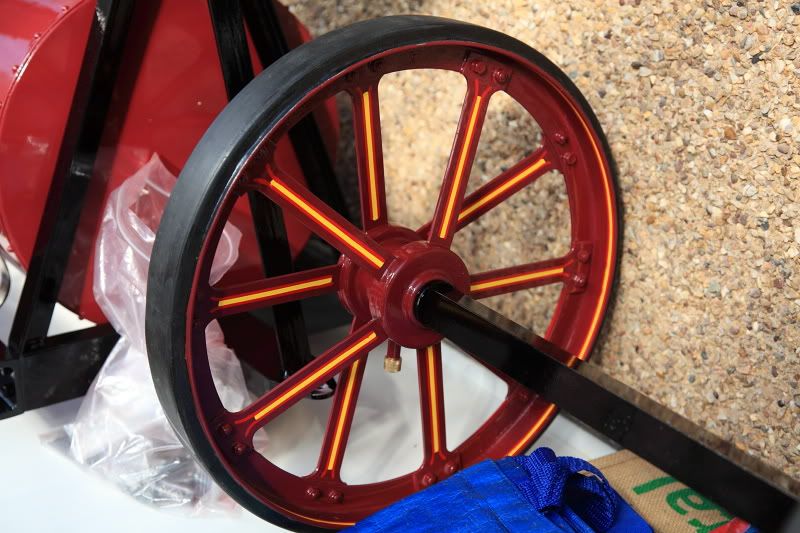

While the isoflex is drying thought I would start on the wheels.

Fillets done

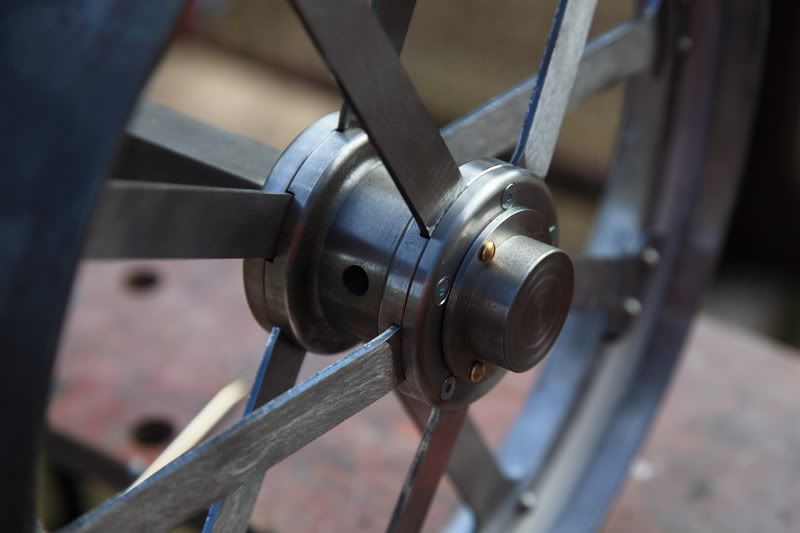

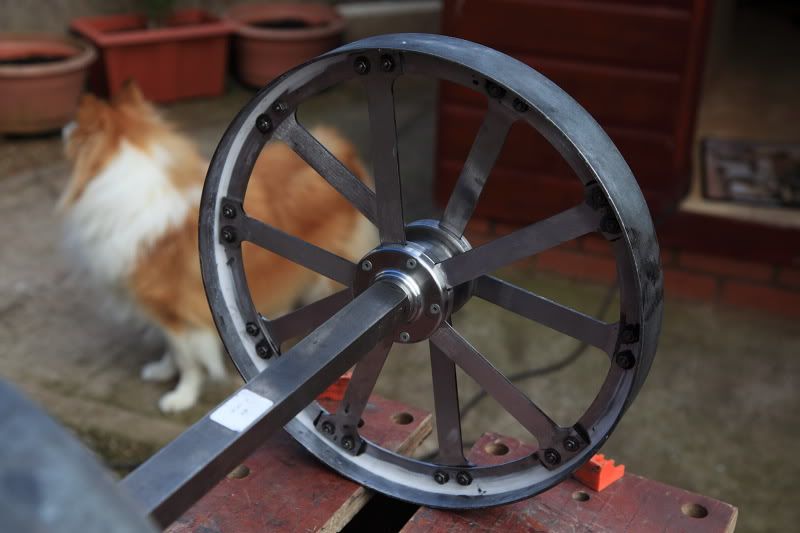

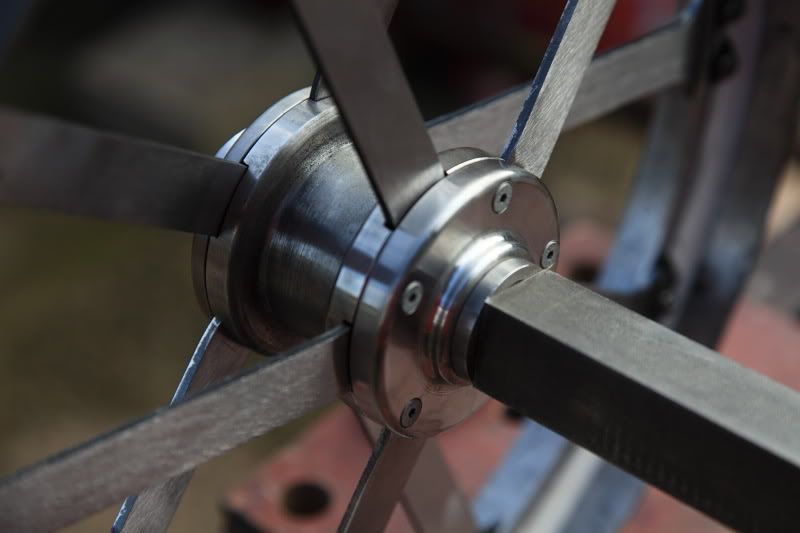

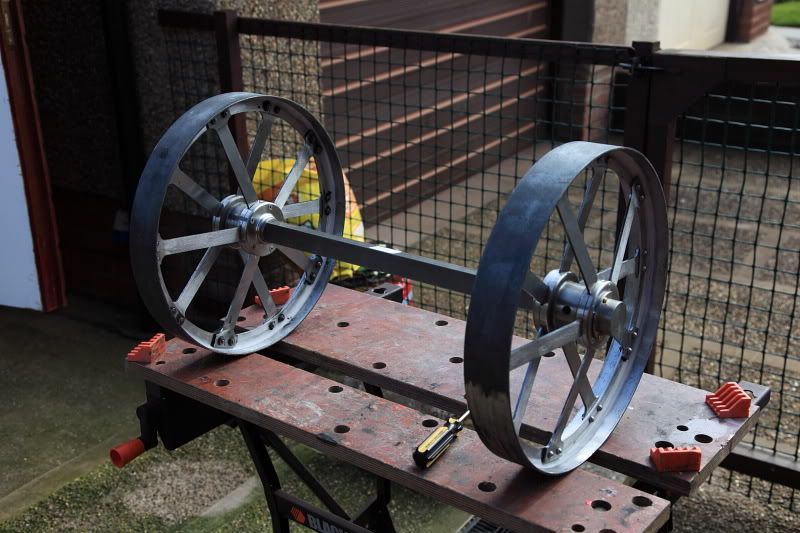

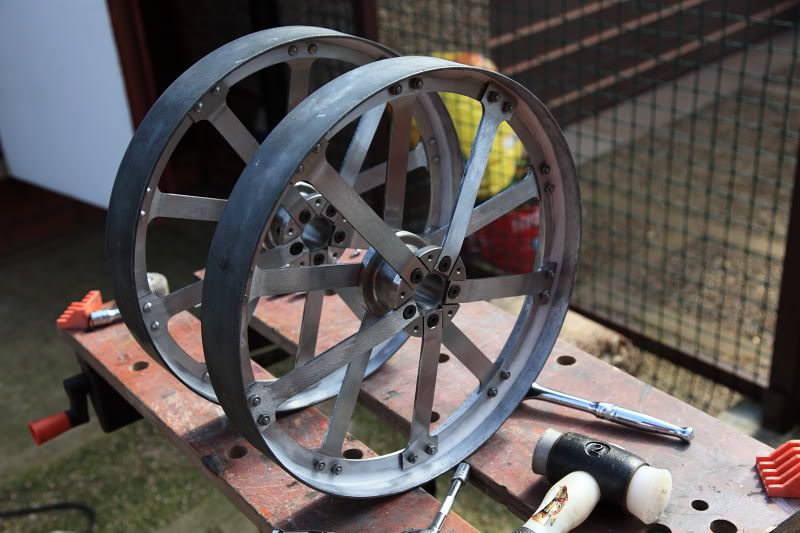

Wheels dry fitted to make sure all is OK. Need to grind down 1 screw in the hub.










She is there again.

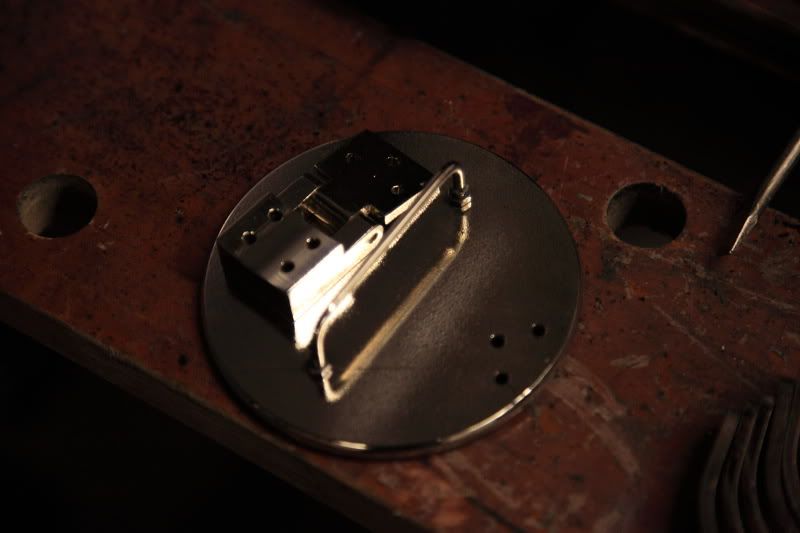

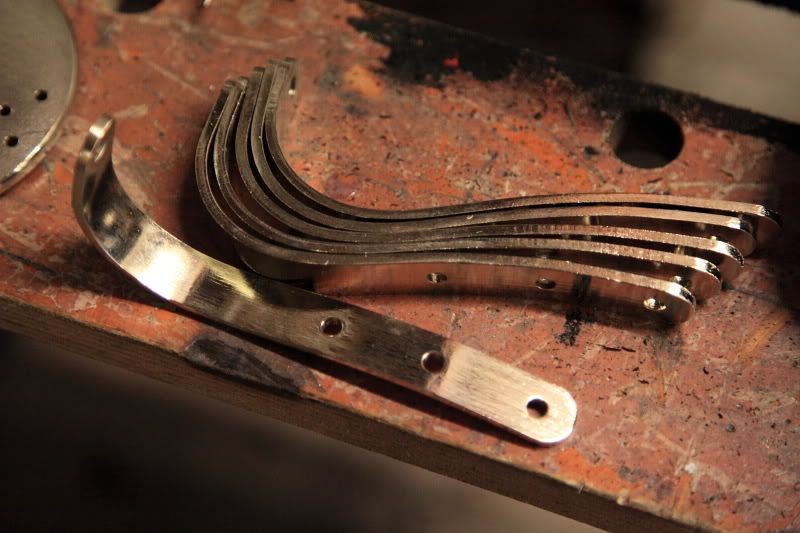

Should get the barrell finished tomorrow. Going to do some polishing tonight. Filler lid and hinge, handle, the 6 tank supports, the rear tow hitch and the eye of the front drawbar ready for Bright Nickle platting tomorrow.

Chassis has already been dry fitted but can not do much more on that until the springs arrive.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Sunday's work

Post  lynnr on Sun 31 Jul 2011, 9:29 am

Hi All

Good progress today. Got the blank end on the tank and the inside isoflexed. Tank support brackets are now plated after a good polishing.

Needed to nip down town to get more isolflex, 50 minutes round trip. Never mind. Got the rubber on to the rims so sitting on the axil supported on a block so the rubber is not taking weight. Put the rubbers on as a dry run, then went for the full hog. Took 5 minutes a wheel to do the final. Not overly messy either.

Pictures later on this evening.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Progress pic's

Post  lynnr on Sun 31 Jul 2011, 11:23 am

New Pics

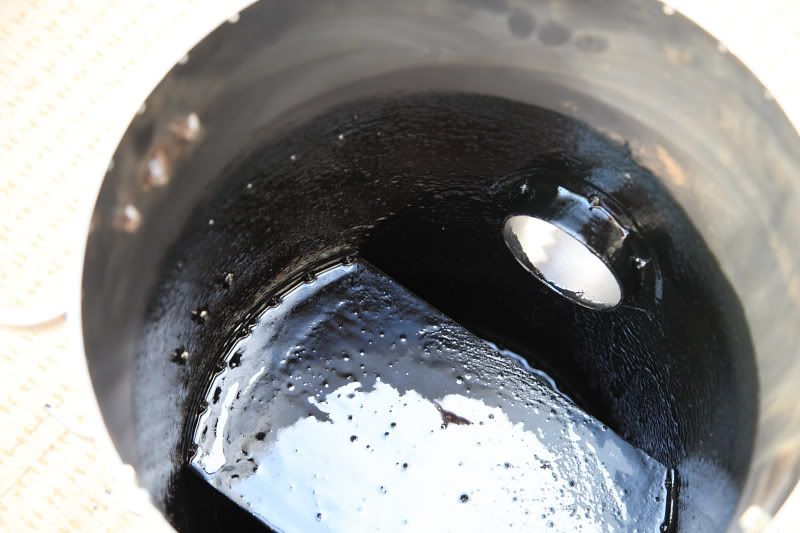

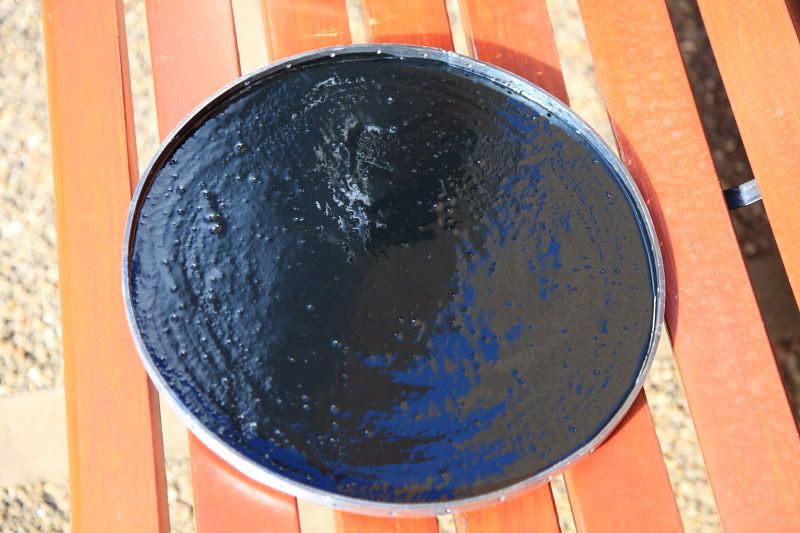

Isoflex looks dark in there.






Nickle plating out again.

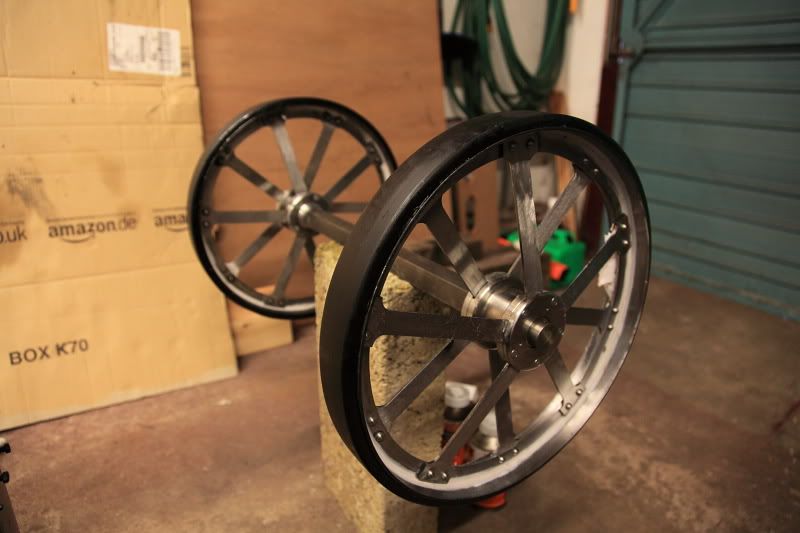

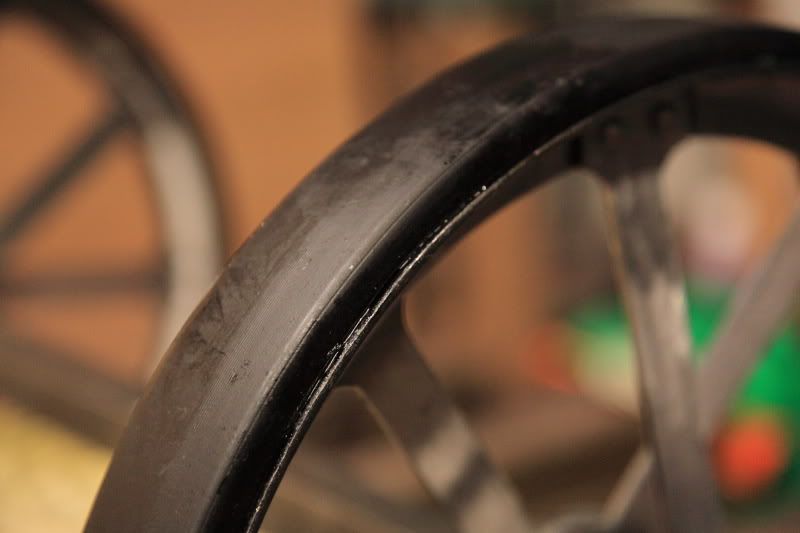

Wheels with the rubbers on

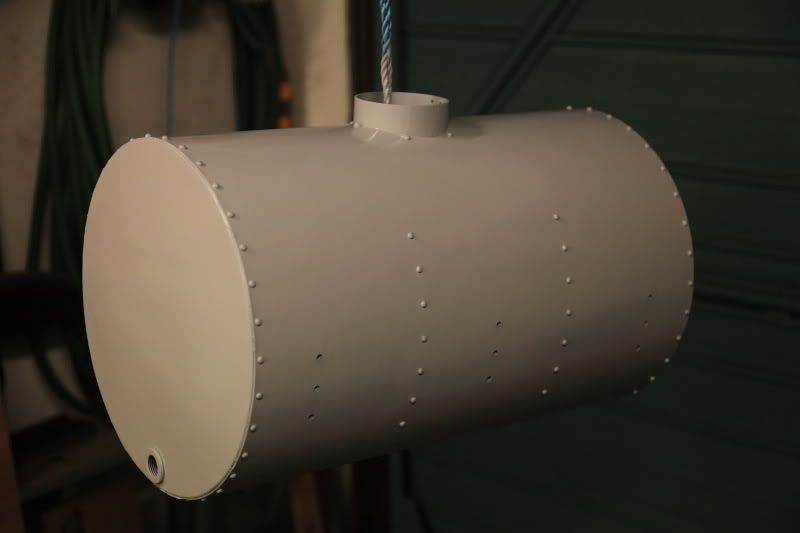

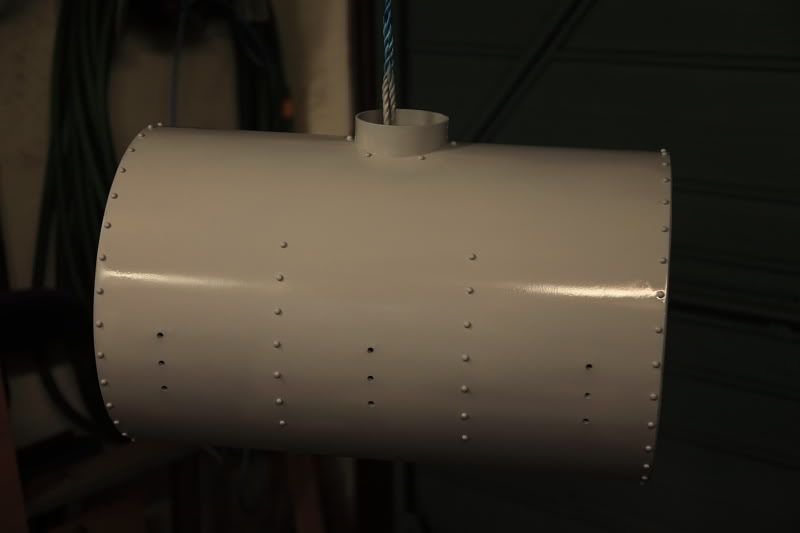

Tank in undercoat







Shower time.



lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

1st Aug 13:30

Post  lynnr on Mon 01 Aug 2011, 5:41 am

Well

progress will not be at a halt. Now waiting for the paint to dry Very Happy

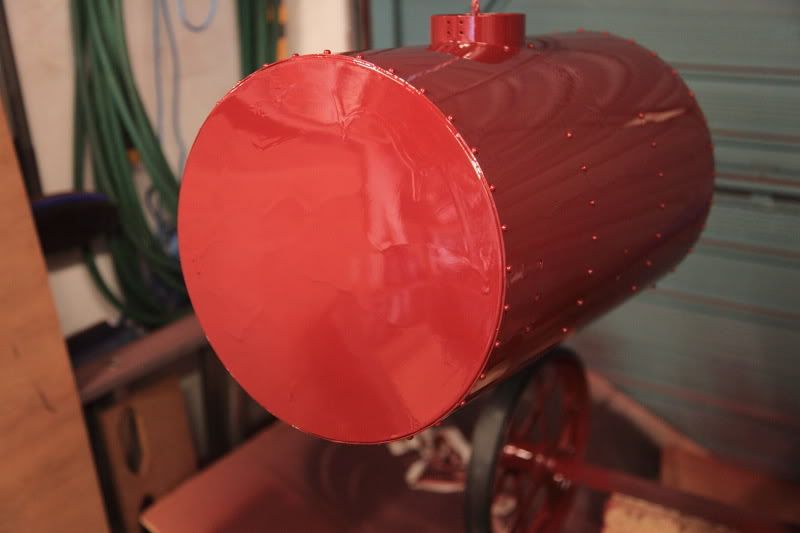

Couple of runs and sags but these will be rubbed down as it is only the first coat.

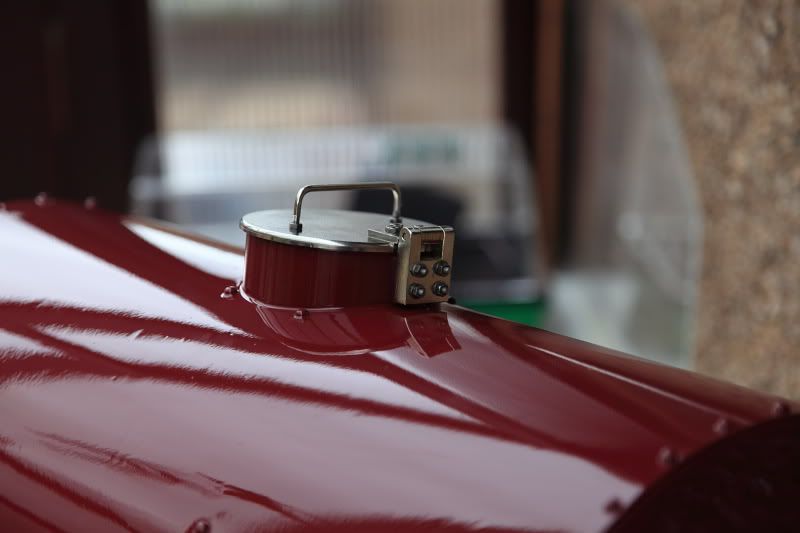

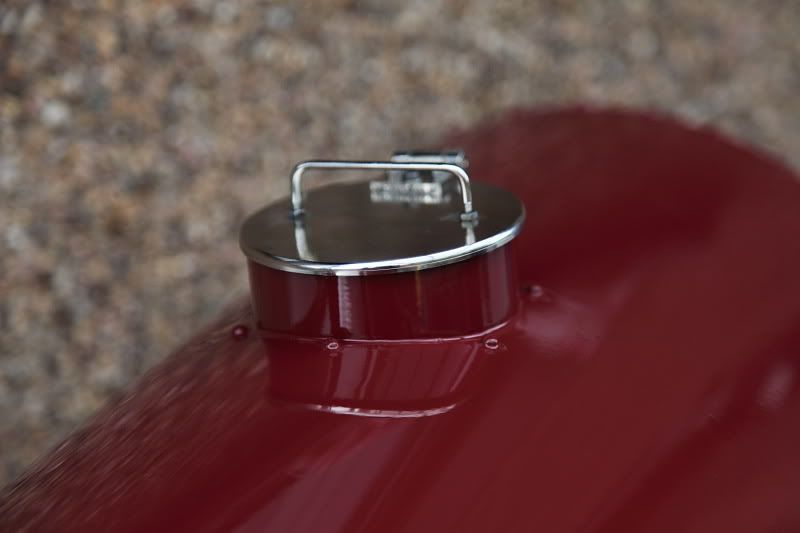

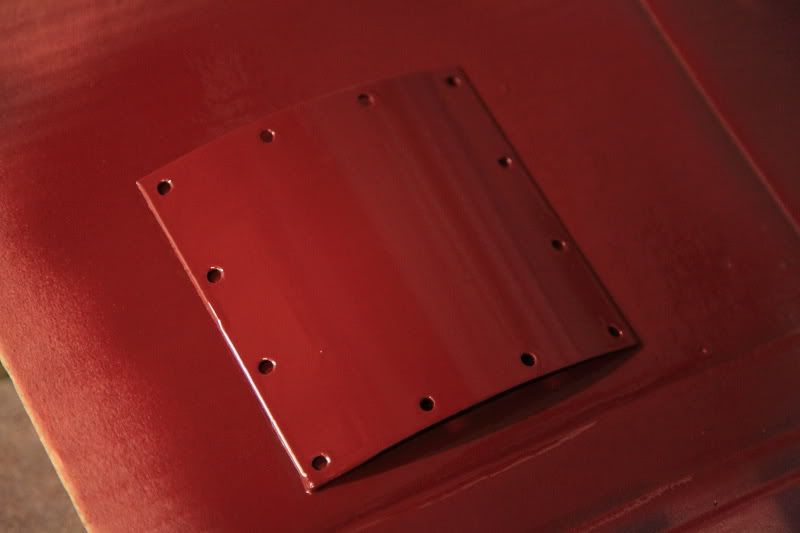

Tank inspection cover painted.

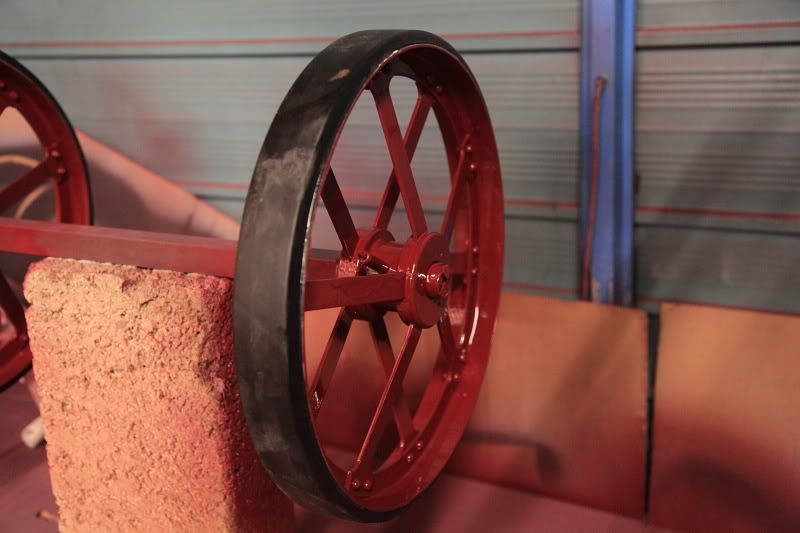

Wheels



and the tank






Did also get the chassis in undercoat as well but not enough room to do the black spraying.


So that is that for the weekend. Depending how tomorrow goes I may get the colour sanding done on the tank in the evening. Otherwise it will be left until next weekend.


lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Lynn Robinson 4" water bowser

Post  bjwlancashire on Mon 01 Aug 2011, 11:32 am

Bloody hell, slow down, I nearly had a coronary trying to keep up!!!

cheers

Brian


bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Re: Lynn Robinson 4" water bowser

Post  lynnr on Wed 03 Aug 2011, 12:04 am

bjwlancashire wrote:Bloody hell, slow down, I nearly had a coronary trying to keep up!!!

cheers

Brian

Laughing

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Painting

Post  lynnr on Thu 04 Aug 2011, 10:31 am

Well after rubbing most of the paint back off last night I thought it better to add some more.

Finish is much better tonight but a fair bit of spray in the air so no camera in the area.
Will get a couple pics tomorrow.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Bit of bling

Post  lynnr on Fri 05 Aug 2011, 11:10 am

Hi All

Just a couple of pics

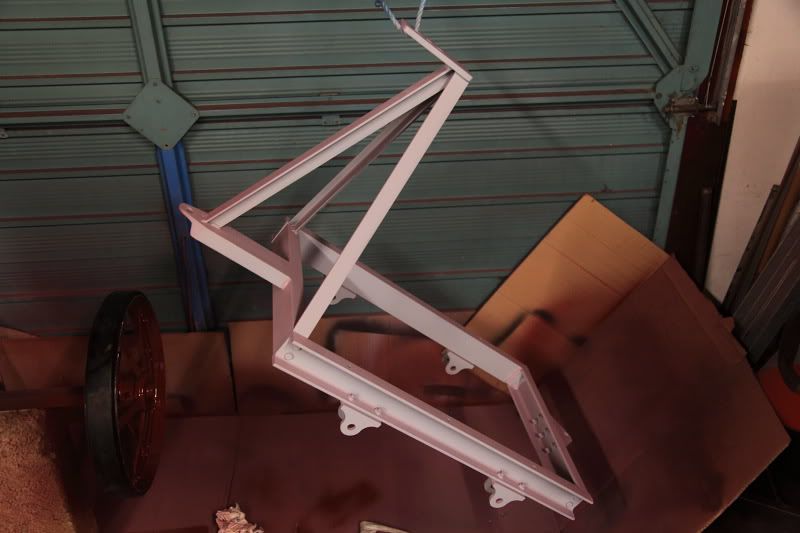

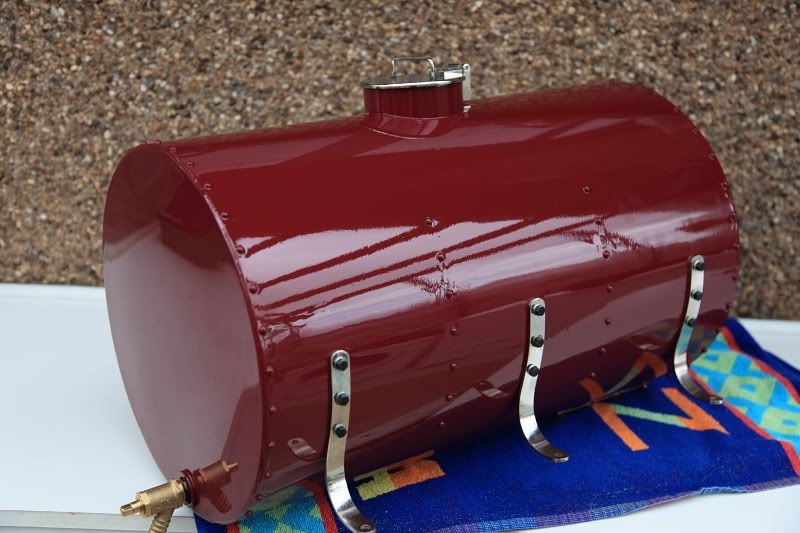

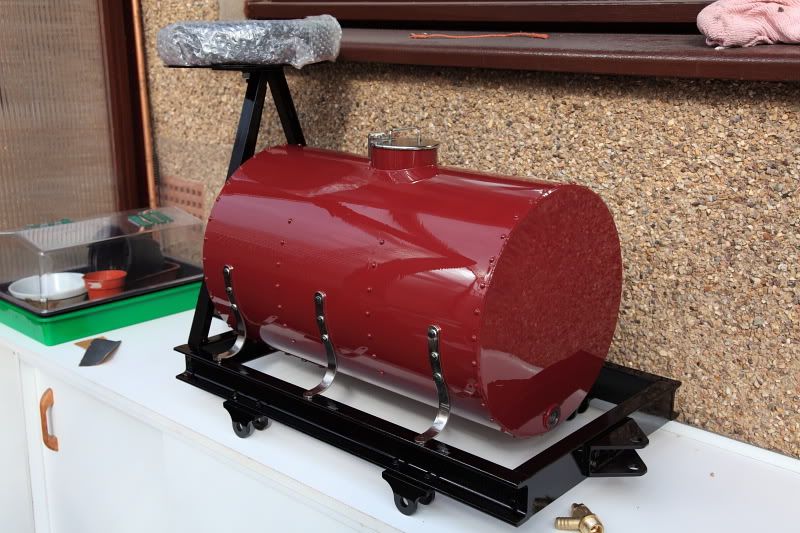

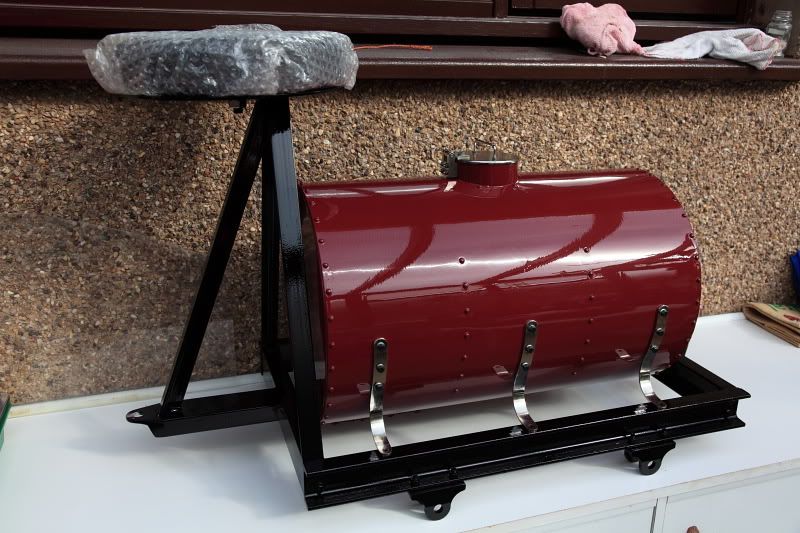

Tank now finished. Got tha chassis in the paint booth and in black drying







Not sure if I will line the tank or not... ponder

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Plan coming together nicely

Post  lynnr on Sat 06 Aug 2011, 1:52 am





Thinking of replacing the tap with another design as there is not much space to put a handle on the spigot.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Lynn Robinson 4" water bowser

Post  Brian M on Sat 06 Aug 2011, 2:29 am

Hi Lynn,

Looks good Very Happy

Just a quick question, with the showman being much taller than the standard 4" engine, will the bowser fit in to the tow bar OK, or does it have have to be at an angle.

If you could take a picture of the bowser connect to your engine I would appreciate it, as I would like one, but if the seat is pitched, I would find it annoying after a while.

All the best,

Brian

Brian M

Number of posts : 261
Location : Cheshire
Registration date : 2011-01-30

View user profile

Back to top Go down

Bowser hitch

Post  lynnr on Sat 06 Aug 2011, 2:39 am

Hi Brian

Only one hitch in the plan. I do not have the springs so unable to see the height. Also I am not worried about the seat as the water cart will be behind at least 1 wagon Very Happy I may even remove the seat supports when I get it all together.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Lynn Robinson 4" water bowser

Post  Brian M on Sat 06 Aug 2011, 3:03 am

Makes sense,

Thanks for the update.

All the best,

Brian

Brian M

Number of posts : 261
Location : Cheshire
Registration date : 2011-01-30

View user profile

Back to top Go down

Lining out

Post  lynnr on Thu 11 Aug 2011, 12:34 am

Hi All

Now that the paint has had a week to set off nice and hard. It is time..... for lining out, coach lining or pin-stripping (cross out as required). So hopefully some pictures this evening. Of course this is when I get home from work. Wheels are going to be the same as the SRL. Not sure on the tank but once the paint is in the Beugler we will see if a particle of inspiration hits the right spot. Not having found any pictures of a full size water cart can not see what was normally done to them.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Lynn Robinson 4" water bowser

Post  Tim Watson on Thu 11 Aug 2011, 12:47 am

I suspect very little, as they were normally at the back of the road train. I lined the tank on mine to tie it in with the engine, but left the wheels plain.

Tim

Tim Watson

Number of posts : 531
Location : Herts
Registration date : 2008-07-02

View user profile

Back to top Go down

She is at it again

Post  lynnr on Thu 11 Aug 2011, 12:12 pm

Just a couple of pics




Got the yellow on. Should be doing the red tomorrow evening.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Done the lining

Post  lynnr on Sat 13 Aug 2011, 8:21 am

Hi all

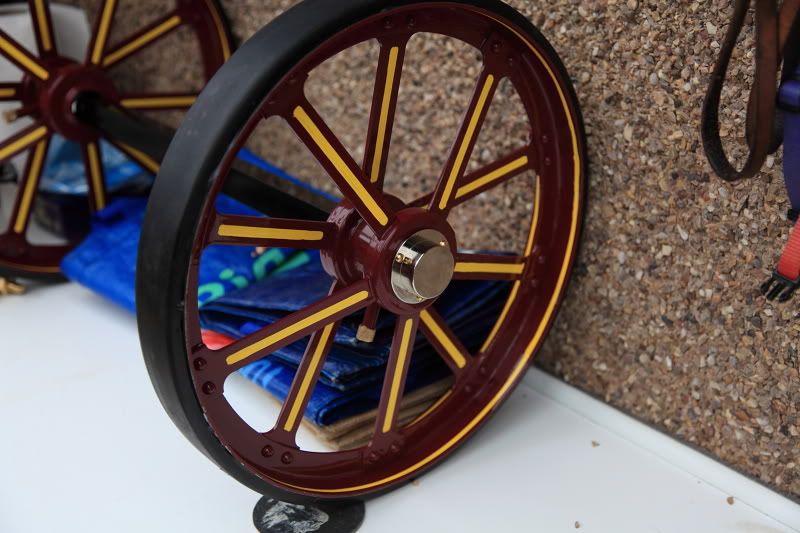

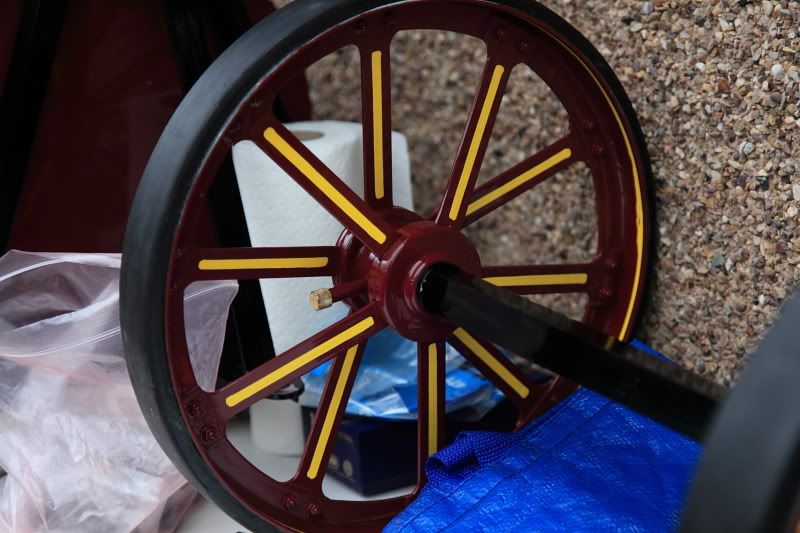

Wheels now lined out.





lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Lynn Robinson 4" water bowser

Post  Sponsored content Today at 5:07 am
