Tone's Showmans second lot!

Page 1 of 20 1, 2, 3 ... 10 ... 20  Next

View previous topic View next topic Go down

Tone's Showmans second lot!

Post  Tony King on Sat 09 Apr 2011, 10:48 am

Yeehaarr, it worked, so here goes again!

Belly tank in under caot


Tender starting to get sme lines


Hornplates & axle tubes all bolted up


Belly tank in topcoats


Starting to look like something now!



View from the back end


The last picture for now!!


Hope you like what I've done, it's a totally made up colour scheme & design, which I hope will do the engine justice at the end of the day?
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Looking good

Post  lynnr on Sat 09 Apr 2011, 10:51 am

Hi Tony

Colours look great!.

Big thumbs up.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Tone's Showmans! & stuff

Post  Tony King on Sat 09 Apr 2011, 12:18 pm

Now I am able to get pictures up here, I'm going for it now!!
Belly tank to horn plates, quite a job fitting it, without damaging that oh so prescious paint job!

Should be fitting the front end on tomorrow!

This is nothing to do with traction engines, but I have built this too!! (for my daughter.......... yah right!!) This is "SEC" who was the leader of the secret Dalek sect on Skaro, the Dalek home planet! He's helping dry the washing!!

This is Dolphin, which is the most imaculate showmans engine I have ever seen!! I took this picture at a local steam show at Fraser Castle, last year. Dolphin is owned by the same man who also owns Presedent, which I was lucky enough to take all those photos of!!

Another photo of my agricultural engine


This is a 3" /4" (Not quite sure) Fowler Showmans Engine on display at the Alford Transport Musium, just near here, built by the appretices from harwell college...... Beautiful job!!


OK hope you find this little lot interesting.
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: Tone's Showmans second lot!

Post  bjwlancashire on Sat 09 Apr 2011, 5:37 pm

Tony

I just congratulated Lynn as the first to have a showmans engine on wheels then realised I might be wrong - who was first, was it you or Lynn?

I will let you two sort that out. Twisted Evil

Brian

bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

First to show

Post  lynnr on Sat 09 Apr 2011, 11:47 pm

Hi

Tony was first with a engine. I was first with Painted engine.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Tone's Showman!

Post  Tony King on Mon 11 Apr 2011, 7:24 am

Hi All,
Just stopped for a cuppa, so thought I bung up a few more pics of the assembled engine!

This gives a glimps of oak slats on tender floor, knocked up from old floor boards I replaced on a job in the Glen. Also made a similar frame for top left side of belly tank.



Purch bracket & axle all bolted up, just got to shove a drop of paint on the nuts & that's another bit finished.


I can now move this impressive beastie about the workshop now!!


Made up an aluminium plate to cover the axle tube casting.


A closer look of the same thing!


Polished & painted brake wheel.


Now got to decide on pattern, colour & design of lining on wheels. Have to be in "patient mode" for this job, as I think it's going to take "for ever"!!


I think I'm starting to get the hang of this now!!
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Firedoor handle

Post  lynnr on Mon 11 Apr 2011, 8:11 am

Hi Tony.

Your cheating Very Happy . I am at a standstill at work :-(...

Just been looking at your pics. Your fire door handle is looking very shiny. Have you plated it?

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Door handle

Post  Tony King on Mon 11 Apr 2011, 8:51 am

Hi Lynn,
It's a charmed life I lead, just make it up as I go along!!
Actually, as per my first single cylinder Ag engine, it was my intension to paint after I had assembled the complete project, but due to STW moving factory etc & the delay to manufacturing, I'm keeping my impatience for the next kit at bay, by painting as I assemble this time!! So I'll have lots of opotunity to bash, scratch & chip the paint, as I assemble future bits!!
To answer your question, non of my bear metal has been plated............... yet! It's simply highly polished on the buffing wheel, but I looked with interest at your plating set up, so to preserve the "shine" I will probably give it a go.
I just tried to upload an image but it ain't having it!! (Kin computer!)
Regards
Tony


Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Wheel lining

Post  Tony King on Mon 11 Apr 2011, 9:04 am


This is "Dolpins" rear wheel, showing how it's been lined.




And this is the front!! Not a bad job I reackon........... Don't think my lining efforts will be able to compare with such perfection!!



Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: Tone's Showmans second lot!

Post  Rickster on Mon 11 Apr 2011, 9:22 am

Tony,
Congratulations! Looks stunnng - really, really good
I made my wood floor for the tender and belly tankfrom oak floorboards same as you. I've also made up an insert that figs into the coal bunker so I can get more coal in as the front is higher than the half height bunker divider.I can then lift the "coat bucket" in and out to clean the inside of the bunker proper. Sad I know!!!

Keep your photo's coming - she looks grand.

Rick

Rickster

Number of posts : 268
Location : canterbury, Kent
Registration date : 2010-02-19

View user profile

Back to top Go down

Buff wheel

Post  lynnr on Mon 11 Apr 2011, 9:23 am

Tony King wrote:Hi Lynn,
It's a charmed life I lead, just make it up as I go along!!
Actually, as per my first single cylinder Ag engine, it was my intension to paint after I had assembled the complete project, but due to STW moving factory etc & the delay to manufacturing, I'm keeping my impatience for the next kit at bay, by painting as I assemble this time!! So I'll have lots of opotunity to bash, scratch & chip the paint, as I assemble future bits!!
To answer your question, non of my bear metal has been plated............... yet! It's simply highly polished on the buffing wheel, but I looked with interest at your plating set up, so to preserve the "shine" I will probably give it a go.
I just tried to upload an image but it ain't having it!! (Kin computer!)
Regards
Tony


Where did you get your buff wheel?

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Buff wheel

Post  Tony King on Mon 11 Apr 2011, 10:55 am

Hi Lynn,
There are all number of supplier's for buffing wheels.
The photo shows my set up!! It's an 8" wheel on a 6" grinder!! I've removed the left hand guard & abrasive wheel & fitted a "special" spindle sleeve to the grinding machine which is designed to take the buffing wheel. The buffing wheel simple screws on to a "treaded taper" & self locks in place. I think I got the buffing wheel & buffing waxes from Screwfix ( along time ago, so not sure!!). There is two waxes I use, green for steel, brown for non ferrous, you can probably see them on the bench beside the grinder!!



While I'm in "hostin image mode" here's "yet another" photo of my engine.......... with the "blingy" lights on!!!!!!!!!!!!!!!!




What fun!!

Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: Tone's Showmans second lot!

Post  Brian M on Tue 12 Apr 2011, 11:38 am

Can everyone stop posting pictures, I'm getting depressed Mad .

Seriously, I nice job Tony great finish. The wheels and body are similar in colour to mine. although I am just priming the perch (it will also most be a shame to steam it up).

How did you make the floor, what were the dimensions? As I would like to do the same design.

All the best,

Brian M


Brian M

Number of posts : 261
Location : Cheshire
Registration date : 2011-01-30

View user profile

Back to top Go down

Re: Tone's Showmans second lot!

Post  Rickster on Tue 12 Apr 2011, 1:48 pm

Hi Brian,

One thing to consider when you are doing a slatted floor like Tony's is when you want to remove it to get to the water tank top for maintenance, is ease of removal or you could find it trapped by the water pipes from pump into the tender. When I made mine I decided to cut the the left hand corner out so I can just lift the floor up out of the way to get easy access.

I made mine to fit inside the tender floor nuts, bunker bottom and just over the front edge of the tank.

Hope this helps

Rick

Rickster

Number of posts : 268
Location : canterbury, Kent
Registration date : 2010-02-19

View user profile

Back to top Go down

Wooden slatted floor

Post  Tony King on Tue 12 Apr 2011, 11:52 pm

Hi Brian,
I think Rick beat me to answering your question & he is absolutly right about being able to easily remove the the floor when the engine is finished to allow access to tank top & for cleaning etc. I will cut away the piece of wood that goes behind the pump pipes to allow this, as I have done on my Agricultural engine.

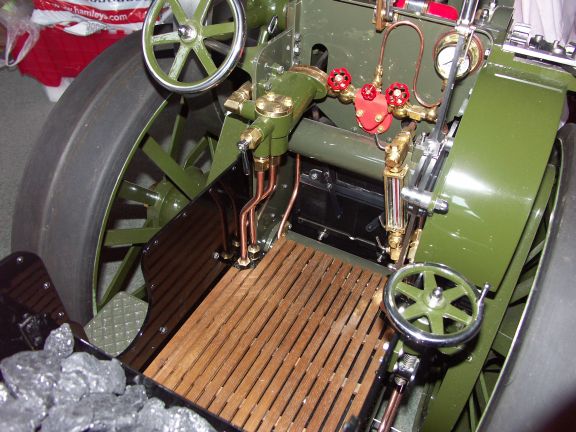

Couple of photos






Regards
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: Tone's Showmans second lot!

Post  Flasback on Wed 13 Apr 2011, 2:04 pm

hi Tony,

Can you please let me know the colour of your agricultural engine, my showman will have a main colour of classic green from Craftmaster with gold lining.

Cheers

Dwain

Flasback

Number of posts : 184
Location : Cheshire
Registration date : 2011-01-29

View user profile

Back to top Go down

Paint colour

Post  Tony King on Fri 15 Apr 2011, 8:11 am

Hi Dwain,
Sounds like your going to have a very interesting colour scheme on your engine, which I applaud, should stand out in the crowd!!
To answer your question, I used the darkest green I could find in the, wait for it............. Dulux paint cards in B&Q, "Oh the embarressment"!!
I got it mixed in weathersheild gloss, which is a really good paint & gives a lovely shine, however it takes 18 hours to dry so is an absolute bugger for collecting every bit of dust that might pass by till it's dry!! The colour is "TARRAGON GLORY 1" & the code on the card is 90YY07/093.
This colour really compliments the shiny metal work, & everyone who see's my engine compliments the colour scheme, so it's worked well as far as I'm concerned.
Would love to see pics of your engine when you get some paint on it.
Regards
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: Tone's Showmans second lot!

Post  Flasback on Fri 15 Apr 2011, 10:55 pm

Hi Tony,

I will post some pictures when I have some paint on metal, I got the idea from looking at engines on different website and canal boats, we have a few canals around us and the colour scheme did sound out but did not look OTT. If my wife saw me she would have gone crazy. When I am in B&Q or any other DIY shop looking at paints for the house my wife will look at all different colour schemes and samples and compares them against each other, always asking for my thoughts which has a response of 'it's okay or yer'. When choosing the colour scheme for the showman it was so intense (from our local canal suppliers shop). I had samples everywhere including colour charts and even Canal Monthly to look which scheme was the best, don't tell my wife if you ever meet her Embarassed

Thanks for the info

Dwain

Flasback

Number of posts : 184
Location : Cheshire
Registration date : 2011-01-29

View user profile

Back to top Go down

Green paint

Post  hhogendoorn on Tue 26 Apr 2011, 10:38 pm

Tony,
Is the green paint "Deep Brunswick green " ?
regards , Hans

hhogendoorn

Number of posts : 1
Age : 63
Location : Netherlands (Dirksland)
Registration date : 2010-03-05

View user profile http://home.kpn.nl/hanshogendoorn/

Back to top Go down

Steering kit

Post  Tony King on Thu 23 Jun 2011, 5:19 am

Hi All
Just thought I'd hoist a couple of pics while sitting here eating lunch!!
I've taken the engine all to bits again, so as to start fitting the rear cleading & copper man hole finisher!!



I've polished everything to within an inch of its life.......... Typical Showmans mentality!!



The manhole finisher looks fantastic, but is so "shiney" it's "blinding" the camera, so not really a good photo!!



Pics of steering chains etc are in the 4"DCC section!!

Regards
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Copper

Post  lynnr on Thu 23 Jun 2011, 6:05 am

Hi Tony

Now they are spoiling us. Not only do you get the steering gear but they give you some copper piping as well. Wink

Yes tooo shiny.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Tone's Showmans second lot!

Post  northburrell on Fri 01 Jul 2011, 9:18 am

Looking great tony. I'm a 2" builder still not the time to complete it yet due to work comitmants and decortating my house top to toe!!!! I'm in scotland too are you around the Edinburgh Area at all?

Jo

northburrell

Number of posts : 197
Location : edinburgh
Registration date : 2008-10-15

View user profile

Back to top Go down

Re: Tone's Showmans second lot!

Post  hughb on Fri 01 Jul 2011, 8:47 pm

Hi guys
I have been looking at this for a long time now but I am not building one so not replyed.
Ok here it is . I love the work well done Very Happy Shocked Cool As for the Dalek that well yes like it Rolling Eyes
keep up the good work and well done thanks for posting

hughb

Number of posts : 575
Age : 46
Location : hertfordshire
Registration date : 2009-03-13

View user profile

Back to top Go down

Re: Tone's Showmans second lot!

Post  Tony King on Thu 07 Jul 2011, 9:32 am


Hi All,
Been doing a bit more.......... sorted steering & fitting the cylinder!!

Painted the steering gear

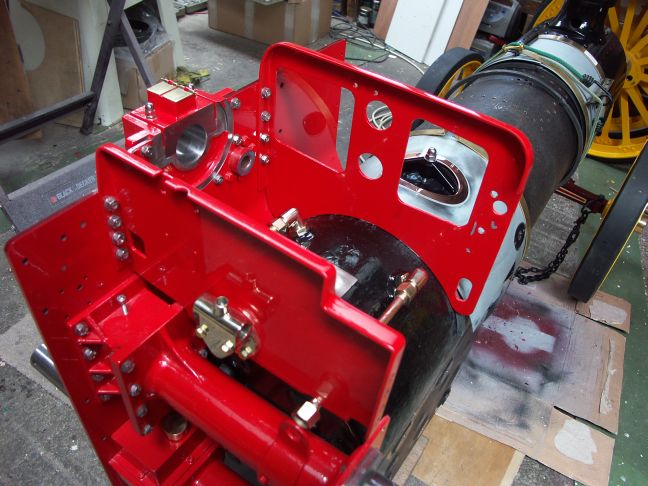

All the bits back on the engine!!


Chain shaft & chains all blacked!!


The cylinder all bolted down, foliac everywhere!! (a little out of focus!!)


Having cut down the studs & fitted S/Steel washers & nuts, I'm thinking it don't look right, so will probably go back to painting the whole lot black!!



Not a particularly good picture from the drivers point of view!!


My brother in law popped in this afternoon & was totally amazed at the way this engine is taking shape!!!!!!!......... So a big THANK YOU to STW!!.......... Despite the odd "hick up", things are working out really very well, I'm well pleased!!
Tony


Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: Tone's Showmans second lot!

Post  bjwlancashire on Thu 07 Jul 2011, 10:01 am

Tony

She's looking superb, I can't wait to get to your stage!! cheers

Picked up the blacking kit from Frost Autos today, dared to venture into Rochadale Twisted Evil

Brian

bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Re: Tone's Showmans second lot!

Post  Sponsored content Today at 6:29 pm


Sponsored content


Back to top Go down

Page 1 of 20 1, 2, 3 ... 10 ... 20  Next

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
