Coach lining

Post  Bobby's new hobby on Sat 05 Mar 2011, 2:16 pm

Friendly Builders,
I am building the 4" Burrell Showmans Scenic from STW and would like to find out how thick the various Coach lines are on the Engine.
Can anyone help me please?????????????
I look forward to hearing from someone soon,
Best wishes
Bobbys new hobby

Bobby's new hobby

Number of posts : 3
Age : 63
Location : Clevedon North Somerset
Registration date : 2010-06-07

View user profile http://briggs135@btinternet.com

Back to top Go down

Lining details

Post  Steve Traill on Sun 06 Mar 2011, 12:05 pm

One source of lining information is the 'Burrell Style 1900-1932' book by GFA Gilbert. It's not cheap but very interesting and gives all the lining widths and colours. I looked for an ISBN number but there doesn't appear to be one on the book. A good bookshop should be able to find it though. Hope it helps, Steve

Steve Traill

Number of posts : 605
Age : 60
Location : Illogan Redruth Cornwall
Registration date : 2008-06-29

View user profile

Back to top Go down

Re: Coach lining

Post  sonick45 on Mon 07 Mar 2011, 12:42 am

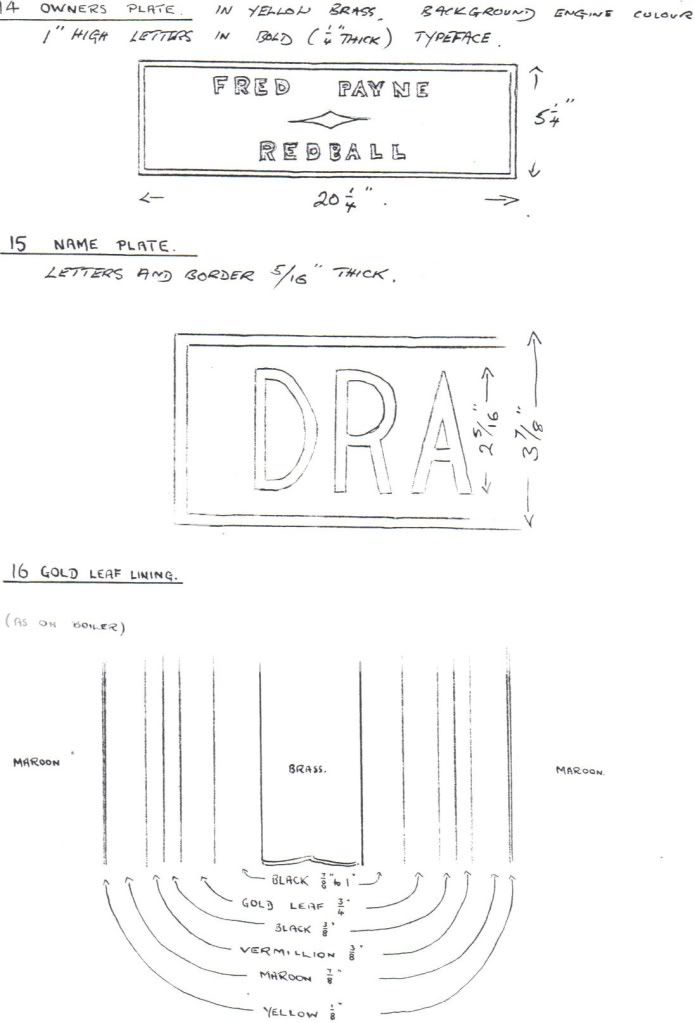

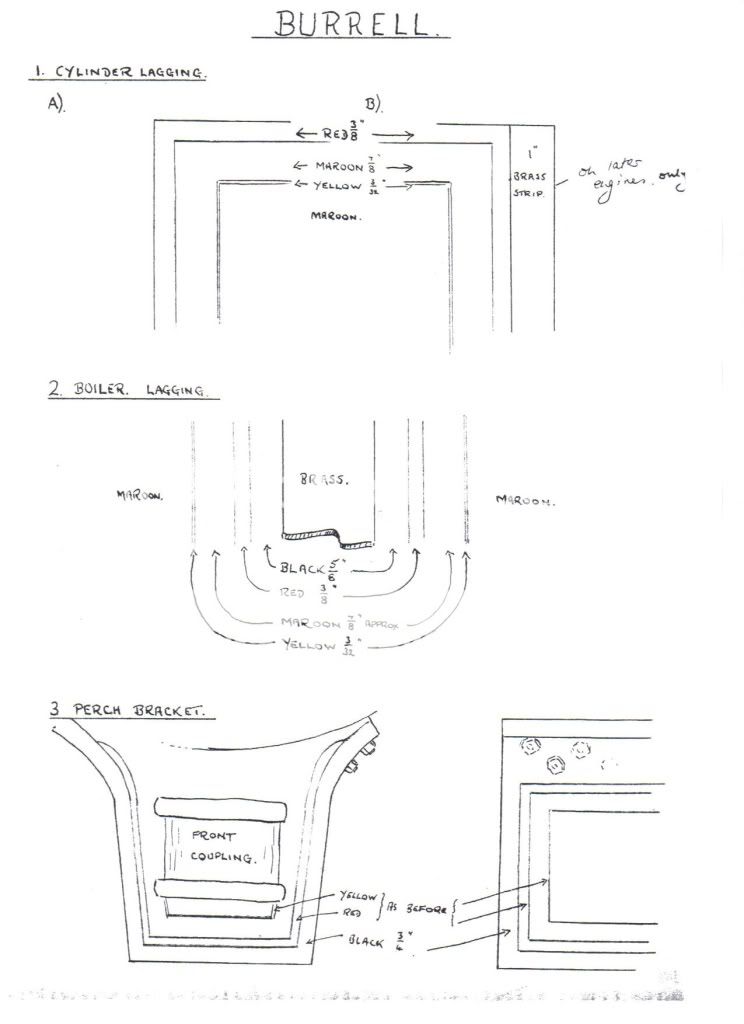

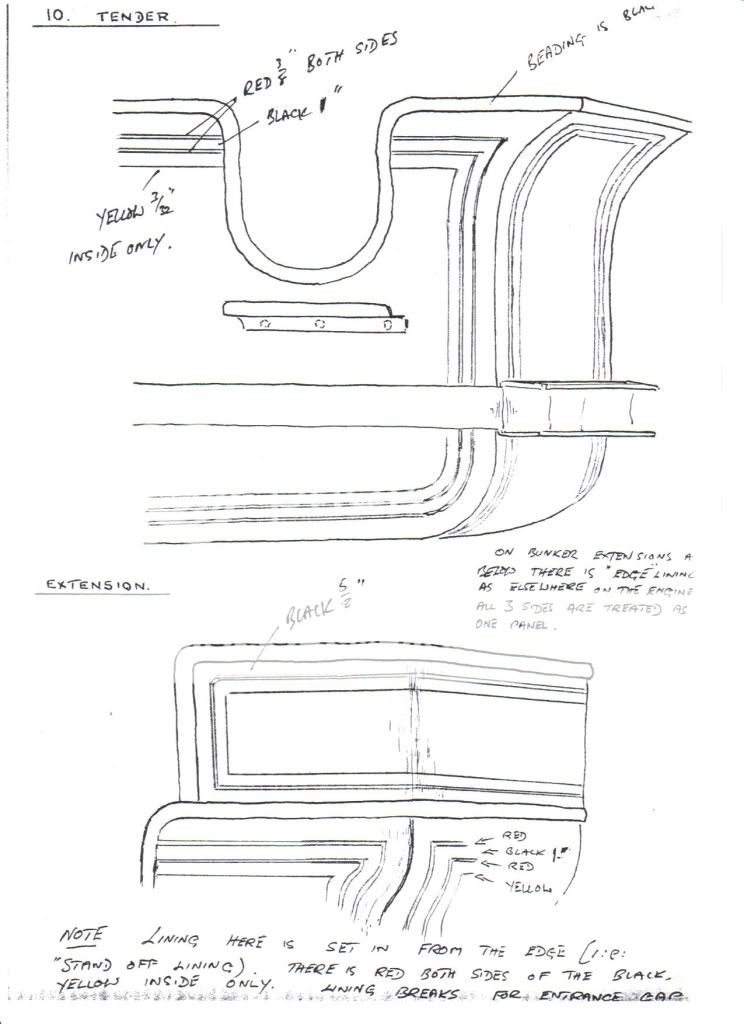

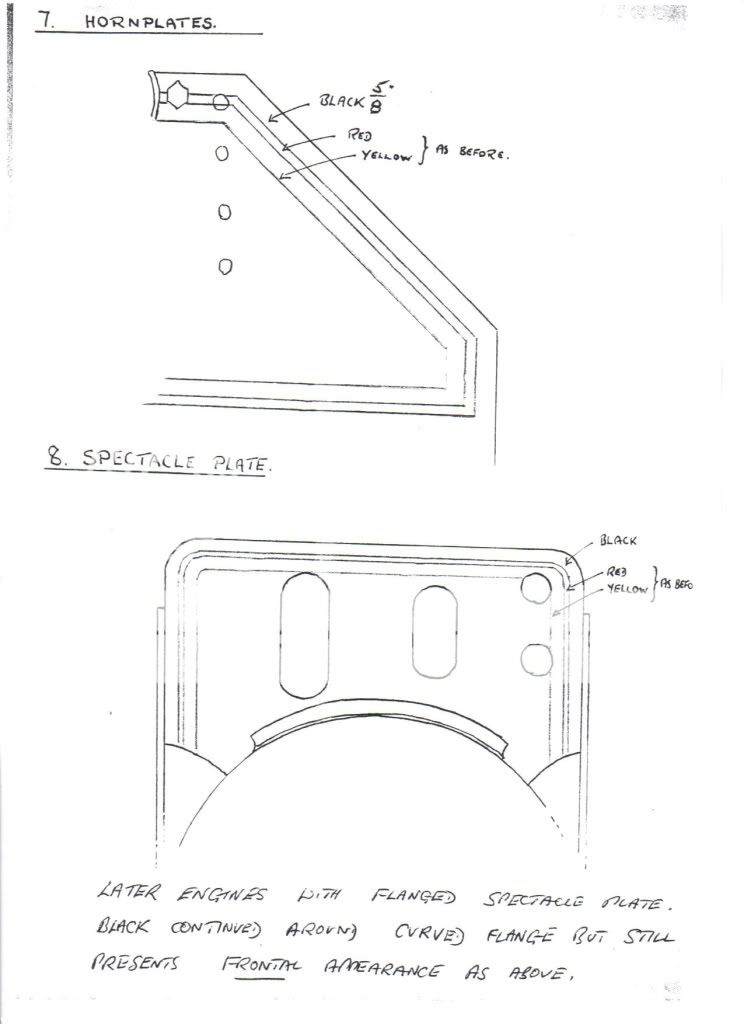

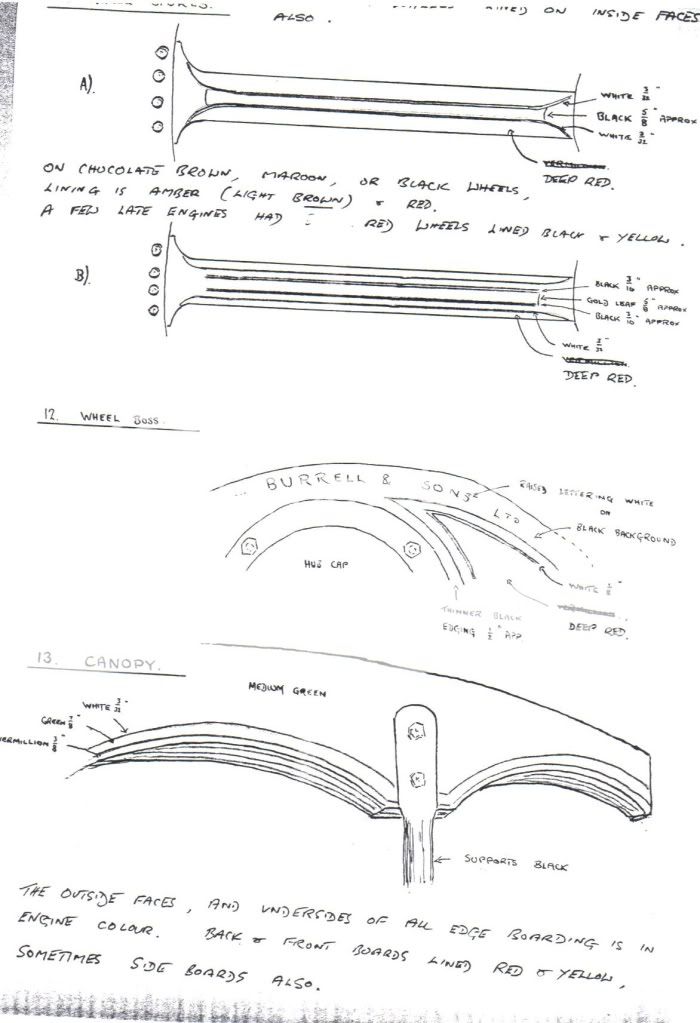

The following diagrams will need scaling down as they are intended for full size.
hope they help.

This combination of colours was intended for Maroon or Green engines.








Nick

sonick45

Number of posts : 396
Location : Barton-Le-Clay (Beds)
Registration date : 2009-01-26

View user profile

Back to top Go down
