Re: Road Loco - 'Blackbeard'

Post  Tony King on Sun 26 Feb 2012, 1:45 pm

Nice clear pictures Brian, lovely to see all that shiney metal before the paint goes on!! Somehow gives "one" an appreciation of all the machining that has gone on to get to this stage!!
You'll be catching up with Lynn, while she's down south, sorting out everyone in Daventry!!! Laughing
Keep up the good work. Very Happy
Regards,
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  bjwlancashire on Sun 26 Feb 2012, 2:51 pm

Tony

I was thinking of baricading the borders so she cannot get back home to Scotland Twisted Evil

All the shiny metal on the motion will be that finish, fine emery and then lots of oil engrained. Oh, and chemical blackened chain like yours, it does look good.

Brian

bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  Flasback on Mon 27 Feb 2012, 9:02 am

Looks good buddy, what colour will the crank be.................. Mad don't know can't guess tell me, will look impressive when finished, a bit like Knight Rider, should call you Michael or if you are from France Michelle, are you going to have a red LED on the front Twisted Evil

Are you going to the model show this weekend?

Dwain

Flasback

Number of posts : 184
Location : Cheshire
Registration date : 2011-01-29

View user profile

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  bjwlancashire on Mon 27 Feb 2012, 1:16 pm

Dwayne

There will be no electrickery on my engine Razz

It will be black, all black with just a little bit of black in it. Brass too, very brassy - call me Captain Jack Sparrow without the looks... or the money Rolling Eyes

We are thinking of going to the Manchester show, if we do it would be on the Sunday. What day are you planning to go?

Brian

bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  Flasback on Mon 27 Feb 2012, 2:16 pm

Saturday I believe, should be fun. Will be looking at getting some cleaning rods for the old boiler (I do mean the engine).

Flasback

Number of posts : 184
Location : Cheshire
Registration date : 2011-01-29

View user profile

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  bjwlancashire on Mon 27 Feb 2012, 2:39 pm

So, as I am in my hotel room in South Germany with a reasonable wireless connection, lets see if I can bring my build thread up to date!!!

I have recently had kit's 22 and 23 so lots of heavy gears to lift, and with my back too.

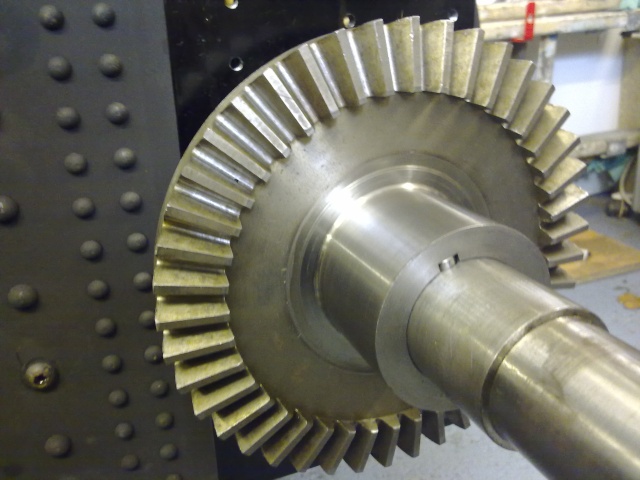

Dry run of the RH crankshaft gears saw no issues apart from the usual deburring to do, all fits well - just need to fit the third gear ring with the keyways once I finish off the valve gear asembly and strip it down to paint/powder coat the crank then it will go in for good with the third gear ring pushed on tightly with the keys.

Had a lot more frustration with the second shaft and the hub cap. The square on the RH end of the second shaft was rough where the side of the cutter had left a rough finish as if it was done in one cut rather than with a smoothing second pass. This caused the hub cap not to be square when the screw was tightened in the end. This had the result of making the LH end of the second shaft off centre. When the hub cap was bolted to the gear train with the second shaft in place, the end of the second shaft was a good 10mm off centre to the LH side bearing, it was like our dog's tail wagging when it can see you have some leftovers.

A closer inspection with the square showed the extent of the problem so I set about the edges of the square on the second shaft with fine files to get it more accurate which I did. I had it so that I could get the LH end of the second shaft through the bearing and turn the whole thing. It was only when the hub cap centre screw was fully tightened that showed there was still a small error. I took the second shaft/hub cap assmebly to STW last week and Steve kindly set it up in the old fashioned (not CNC) lathe holding the second shaft and took a light skim off the back of the hub cap. When I got home and fitted it all was well.

It was this assembly that bit me when lapping in the crankshaft bearings. The second shaft gear train was a useful lever to rotate the crank as some of you will have no doubt found out by now. Anyway, by sliding the 1st gear pinion onto the end of the crank and engaging it in the 1st gear on the second shaft it was possible to get many turns of the crank from little effort. However, I was doing it with gloves on with rubberised palms as my hands were aching from trying to turn the crank using the webs. On one pull I got a little close to the 1st gear pinion on the crank and momentum plus the grip of the gloves got my finger in the gear teeth. After initially thinking no damage was done as my gloves looked fine, I took my glove off to find a lump of flesh hanging off my pinkie and the blood was starting to flow Crying or Very sad

I intend to have the hub cap plus the gear centre hub gloss black, just leaving the second shaft gear rings in shiny metal. Also the centre of the second shaft drive pinion will be gloss black. This will all be powder coated so there will be a lot of masking to do when we strip the crank, gears and motion.



The bit that bites!!! Shocked




Last week the latest kit 23 was collected and I set about this at the weekend while recovering from a few days of man flu. In order for the three pinions to fit and rotate there was some filing of the apertures in the diff centre to do as the pinions caught the corners in a couple of places. This was described as a possibility in the instructions so no surprises there, 30 minutes with a file and all was well. Bushes pressed in or retained by bearing fit depending on individual clearances.

I also picked up the additional packing shims as they had just arrived in stock. I found that one of the two shims was only fractionally thinner than the one supplied with the kit, maybe 0.2mm. One was 1.5mm and one was 2.0mm. I initially ended up using both of the extra shims instead of the one that came with the kit however it did feel a little to loose between the pinions and the inneer bevel. Using one of the thickest shims had the rumble effect as the pinion teath climbed the side of the beyel teeth. However, as Tony pointed out in the thread about this kit, if you run the pinions just over the outside edge of the pinion they run smoother and he has made som small spacers to fit between the bottom of the pinions and the diff centre to ensure the pinions run as far up the bevel gears as possible.

I found some 1mm thick aluminium sheet hidden under my bench and so I made a shim from it. As a result, when fitted with the 2mm shim making a total of 3mm it does give a good setting with a smooth running diff apart from the odd time when one of the pinions presumably slides down it's axle towards the centre of the diff as it gets towards the highest point of the diff rotation. It will be interesting to try this set up with both wheels on and the drive piece on the RH side so that the wheels are fixed and the gap between the wheels is fixed. I may make three spacers at some point when I have access to my friends lathe, Tony's idea is quite a good one.

Steve has posted today that "We’ll machine the Drive Casting undersize and provide shims to make up the difference. Hopefully this time we’ll supply the right ones in the right combination to suit most situations. So don’t panic affraid "

Pre-painted bits.


With 3.5mm of shim!! Using only 3mm of shim made a surpising difference.









Sorry about the quality of the pictures but they are now being taken on my phone while I decide what to do about my camera that got wet in the Lake District over New Year.

Next kit will be the cleading as I missed that out to keep on with the good stuff, motion, gears etc.. I will also get Kit 24 at the same time and theother kit that went out early - I think it was kit 26, the one with the water pipes, clacks and the water gauge.

Looking forward to getting the tender on too, this will probably be done when I take the gears and motion off for paint/powder coating so it will look quite bare for a while. Also, this is when the cleading will be fitted and I do not know yet who or how those will be painted Wink However, once everything is painted and back on it will look to be almost complete.

I am looking forward to the summer and our first steaming very much now, the end is definately in sight. This will be the first project I will have finished and steamed, my previous two efforts were both sold unfinishe for mostly financial reasons. Here is a picture of my first traction engine project, a 4" Foster from LSM when it was just a one man operation from his home - note that it is taken in our dining room were I was lucky enough to be able to store it there while we renovated our first house, a two up two down terraced house.




I have also been thinking about entering Blackbeard into his first rally, the Cheshire Steam Fair in July. It is feasible although not necesarily in steam and I will need to decide on the transport arrangements by then.

Cheers and happy building to everone who is following this, watch this space for the next installment.

bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  Tony King on Tue 28 Feb 2012, 12:10 am

Good interesting post Brian, welldone...................... Making up for Lynn not posting at the moment:D
I wonder how she's getting on in Daventry?
Or, more to the point, "how's Daventry getting on with her!!"
regards,
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  lynnr on Tue 28 Feb 2012, 10:22 am

Tony King wrote:Good interesting post Brian, welldone...................... Making up for Lynn not posting at the moment:D
I wonder how she's getting on in Daventry?
Or, more to the point, "how's Daventry getting on with her!!"
regards,
Tony
I am doing fine. Don't have laptop with me as original digs did not have broadband. But I am not in the main building and this one does. I promise to do a wright up when I return. When you get the little do dad for the starting valve I spent today making 80 of them. Took 6 hours for that one small part. Yesterday was spent with Ian making parts for the winch drum. Cutting pins, bending the levers for the drive pin etc.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  highpressure on Tue 28 Feb 2012, 10:47 am

So that sounds like kit 24 wont be leaving anytime soon then!!! Hope it was an interesting experience in the factory and you didnt drive STW too mad!!! The extra help will be appreciated I'm sure.

highpressure

Number of posts : 1096
Age : 49
Location : West Sussex, 4" DCC Road Loco
Registration date : 2008-06-18

View user profile http://www.simplydigitalaerials.com

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  Tony King on Tue 28 Feb 2012, 11:14 am

Cor Blimey Lynn, there's no stopping you.......... Missed you on the forum for 48 hours (or was it 24?)
Sounds like you're having a great time down south. Well done in the factory! Will you be able to bring your own "next kit" home with you?
Oh by the way, you've missed our summer while you've been gone, it's positively hot up here today.....hotest part of the UK two days running!! (Wipe sweating brow & open another cold beer!)
You might have trouble getting back across the boarder if Brian gets there first!!! Laughing
Safe journey back,
Regards,
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  lynnr on Tue 28 Feb 2012, 11:24 am

If Brian is looking for me tomorrow he is going to miss me as I am staying until. The weekend

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  Robfishman on Thu 01 Mar 2012, 12:05 am

All week.....they will be able to close the factory and have a month off by tomorrow night.

Hope you are enjoying it.

Robfishman

Number of posts : 944
Age : 41
Location : Chandlers Ford Hampshire 4inch showman
Registration date : 2010-11-26

View user profile http://www.robertfish.net

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  Flasback on Wed 06 Jun 2012, 11:41 pm

come on you lazy git, I know you have been working on the engine and not just doing the house move and going to Germany finding unisex saunas in the black forest (and working). Lets see a picture of BB in its glory cladding on etc.

Are you still coming to one of the Cheshire rallies?

Flasback

Number of posts : 184
Location : Cheshire
Registration date : 2011-01-29

View user profile

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  bjwlancashire on Thu 07 Jun 2012, 4:39 pm

Hi Dwain

I see your now posting build updates daily!!!! clown

I am currently in Cornwall in a caravan waiting for the worst of the storm after first day of Cornwall Show with the Steam Yachts. It was interesting to say the least with the weather. Big Wheel closed, took all the cars off, Helter Skelter closed, wind was rocking it so hard it was strapped down to two trucks, Howard Bros Gallopers stopped for a while so they could remove a row of decorative boards before the wind did it for them - Steam Yachts continued regardless and surpisingly we were taking passengers from 9am to about 4PM Shocked

Your right though, I have been making progress and taking some pictures as I go - crank is red and back in as are eccentric straps, all crankshaft and second shaft gears fitted. Cylinder painted, gaskets made for cylinder covers, weighshaft bracket and slidebars plus lots of other bits powdercoated (black!). Cleading finally fitted and has now gone for powdercoating to try it out (dad has taken brass bands and a tin of Peak paste while we are on holiday so that they can be fitted as soon as cleading is back). Blast pip done, watergauge and blowdown valve fitted. Also, Sonic45 has finished painting my tender a deep gloss black and very good it looks too - better than his so he tells me Cool

Travelling most of next week but if I get a chance one evening I will try an update the build thread. However, the next chunk of work should see cleading and tender fitted. I need to get the wheels on ready for moving too.

May not make Cheshire now either, it could be the moving weekend. No worries, we can have our own miniature engine rally in the front garden now. maybe I will suggest it one day Laughing

Cheers

Brian

PS: I saw Clive at Chipping Rally and told him I will bring Blackbeard to the Leigh Arms do to run alongside yours and Brian's engines - I look forward to that.

bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Much progress - little time to update my build thread!!!!

Post  bjwlancashire on Fri 13 Jul 2012, 6:46 am

Well, I am never going to get the chance to do a detailed description of what I have been up to so I will get some photos on to bring this thread up to date!!!!!

Motion off again!!!




To finally add a bit of colour Shocked





Sonic has done a super job with my tender, now I just need to get my belly tank to him - he said it is better than his now Razz






Finally got round to doing the cleading - BEFORE.....



AFTER!!!!!!!!!! (spot the blast pipe too!)








A little bit of detail, plate courtesy of Diane Carney - very fine!!




Water gauge was fun to do!




Need a bucket to catch the drips from the injector too!!! Shocked




Winch fitted, just need to get my differential gear guard finished and powder coated so I can fit the wheel for the final time. Intreresting that the brake block does not foul the rear wheel rivets on the LH side.





bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  highpressure on Fri 13 Jul 2012, 7:21 am

Looking Good there Brian. Did you put any PTFE in that gauge assembly?? Looks suspiciously clean to me, no tell tale ends?? If you haven't read my exploits of trying to get things sealed you might have to think about re-doing it, if so don't bother with tape, buy some liquid PTFE intead, much easier to apply and far far more effective.

highpressure

Number of posts : 1096
Age : 49
Location : West Sussex, 4" DCC Road Loco
Registration date : 2008-06-18

View user profile http://www.simplydigitalaerials.com

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  bjwlancashire on Fri 13 Jul 2012, 8:37 am

I did use PTFE, lots of it so it was tight, I just made sure there is none sticking out. I have been following your expoits regaridng water p###ing out everywhere and I have since bought some sealing compound in case things don't work out. I already used it on some joints already - the injector valve connections to the header and steam pipe. In one other joint I used both!!

bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  Flasback on Fri 13 Jul 2012, 9:13 am

Got to say Brian, Nick's done a grand job of the tender....Okay Okay the rest of the engine looks really good as well, looking forward to seeing it at the Leigh Arms. From the conversations we should have 3 SL and 3 SM 4" Engines at the pub this year and 4 off them will be part of the STW collection.


Flasback

Number of posts : 184
Location : Cheshire
Registration date : 2011-01-29

View user profile

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  sonick45 on Fri 13 Jul 2012, 10:58 am

looking superb brian...

sonick45

Number of posts : 381
Location : Barton-Le-Clay (Beds)
Registration date : 2009-01-26

View user profile

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  bjwlancashire on Fri 13 Jul 2012, 12:42 pm

I know, all thanks to you, when are you repainting your tender?? Twisted Evil

bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  sonick45 on Fri 13 Jul 2012, 12:52 pm

Cheek.
I'm catching up slowly. Kit 18 is on.
Cleading next then the motion.

I'm giving myself till Bedford next year as my first big show and probably the stotfold
Mill before.


sonick45

Number of posts : 381
Location : Barton-Le-Clay (Beds)
Registration date : 2009-01-26

View user profile

Back to top Go down

Water Bowser finally in position and looking good (excluding the two trailers that will be in front of it)

Post  bjwlancashire on Tue 17 Jul 2012, 3:45 am

Once we move house it will be great to be able to get a photo of the engine without the restrictions of the garage, he has not been outside once in his short life Wink


bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Were in!!!!!

Post  bjwlancashire on Mon 12 Nov 2012, 11:59 am

Sorry I have been quiet on here for a while we have had a lot going on with the house move and then sorting out the new garage to take the workshop and moving my old workshop and the engines down to the new place. I have lost 3 months of my build/life with this in total so a little dissapointed that I have not had anything to report. We eventually moved on 17th August after being packed for around 5 weeks, luck was definately not with us as the solicitor for the buyer of our house went on holiday the night before he should have completed and transferred the money. Then my wife's car finally gave up the ghost as she collected the house keys from the estate agents in the nearby tonw so I had to rescue her and drag the car to a garage to be scrapped while the move was going on. The sofa people were wiating to deleiver the new suite at the new house when we eventually got there with the keys and when I went to the old hous the removal guys where just reversing into the drive - what a day that was. I even ended up moving our caravan late in the evneing in the dark and reversed it down the new long curved tree lined driveway for the first time in the dark and the rain Shocked

By the way, the number of our new house - 13!!!!!!!!! Twisted Evil

Blackbeard only moved on 6th October and my 7 1/4" gauge loco moved the week after, I finally got the benches out and emptied the garage around three weeks ago. It took me a couple of weeks to get the benches fitted into the new garage, it did not go smoothly either as two apparently flat floors were no where near the same so a lot af buggering about to get it in the new place. Its amazing hom much stuff you can store under benches too, I did not know I had so much stuff.

I was especially annoyed at missing the Leigh Arms do in Cheshire where Brian M and Flashback would have been showing their engines. It was the first dry weekend we had and I ended up at the old house dismantling the shed and re-errecting it at at our new place and re-felting the roof.

Anyhow last Friday we had our first workshop evening in the new workshop although it was a little slow trying to get into the swing of things and choosing one thing to focus on, I eventually made a little progress. Refitted the slidebars and connected up the HP connecting rod. Dad got on with putting together the flywheel brake handle and rods after polishing what seemed like lathe power feed marks out of the bar. I have all the kits in the workshop to finish the engine as the flywheel arrived in August but I have not been able to fit it because when I got it out for the first time last week there was a 60mm x 40mm area of the running face that had not cleaned up when the casting was machined, looks like a sink hole in the surface and it is still about 1mm deep. I need to give Steve a call about this get it exchanged and also ask about the water pump status as I do dnot want to go to the trouble of building mine up if it will just squirt water in 10 different directions.

I still need to sort out the tight diff./wheel fit too, a skim off the RH drive casting will be the start, turning the machined boss down as Brian M has shown in his recent posting.

So here is Blackbeard being loaded onto a trailer for the first time.


At the front of our new house on a rare dry day!!!


Sonic's paint looking good outside even if the photo is not so good.


Hopefully I will have another workshop evening on Friday when I get back from Germany and get more bits done.

Cheers

Brian


bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  lynnr on Sun 09 Dec 2012, 1:04 am

Congratulations on the move.

And I note today you have passed 10k views Very Happy

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Scale driver

Post  bjwlancashire on Tue 08 Jan 2013, 2:03 pm

I have been meaning to upload one of these since my great neice visited before Christmas, since we took her on the Welshpool and Llanfair she has been steam mad and even put a traction engine on her letter to santa - got to start them early. I wonder when a Steam Apprentice Club membership would be an appropriate present - Onslow Park is her local rally and they do anapprentice driving day.




bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Re: Road Loco - 'Blackbeard'

Post  Sponsored content Today at 1:23 pm


Sponsored content


Back to top Go down

Page 4 of 17 Previous  1, 2, 3, 4, 5 ... 10 ... 17  Next

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
