Rear Wheels

Post  lynnr on Sat 09 Apr 2011, 2:30 am

Hi All

Building is going well. Had a problem with a few of the tender bolts but a bit of chasing from the back with a tap cured the issues.
Currently putting the rear wheels on. Doing the left at the moment with the cintered bushes. Need slight honing as the were a tight fit and press in. I think the inside diameter has shrunk slightly.

Question for STW. When do we get the locking collers for the rear wheels. It would be useful to get them with the rear axil to allow easy movement of the enging. The coller would stop the wheel sliding off the axil and the hub cap would stop the wheel sliding too far on.

Only thing "missing" is the bolt for the firedoor handle. None specified on the ISO and I can not see it on the packing list.

Will do pictures later as I need to start up the main computer for that.

Hornplates went on well and lined up very quickly. Took 5 minutes.


lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

9th April 2011

Post  lynnr on Sat 09 Apr 2011, 10:41 am

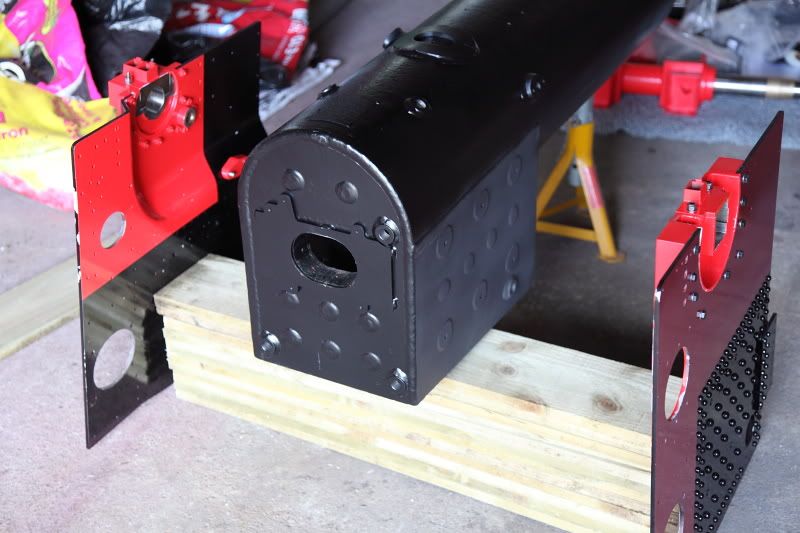

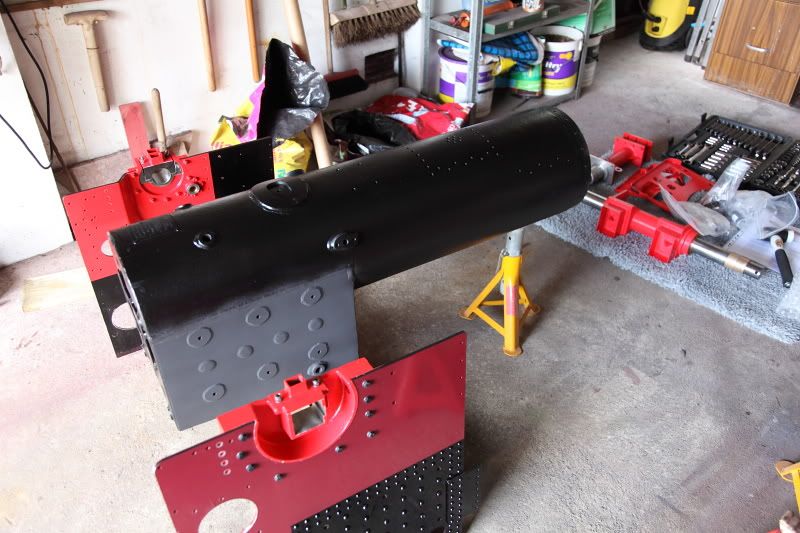

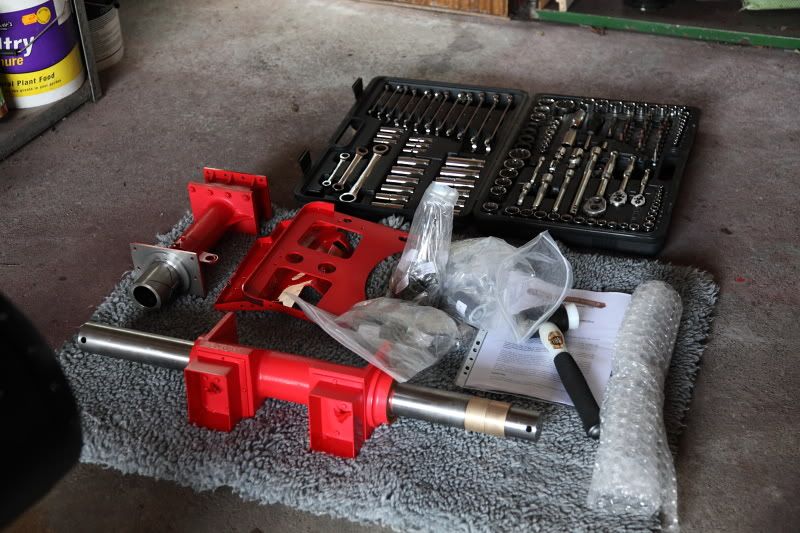

Getting ready

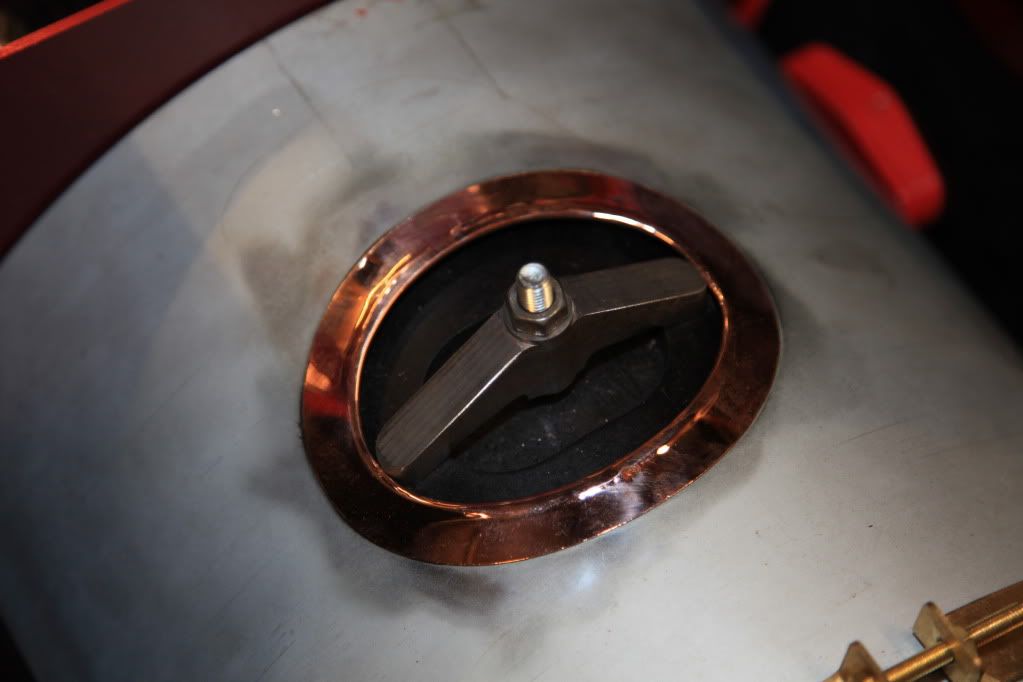

Fire door added

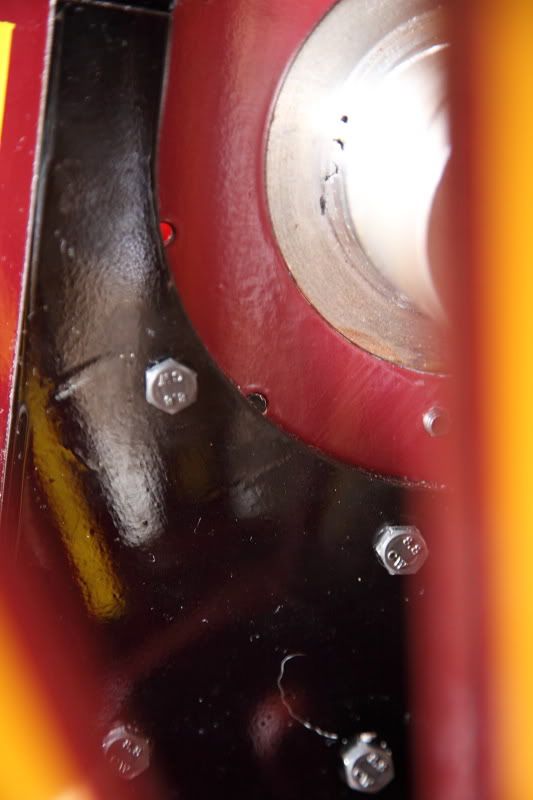

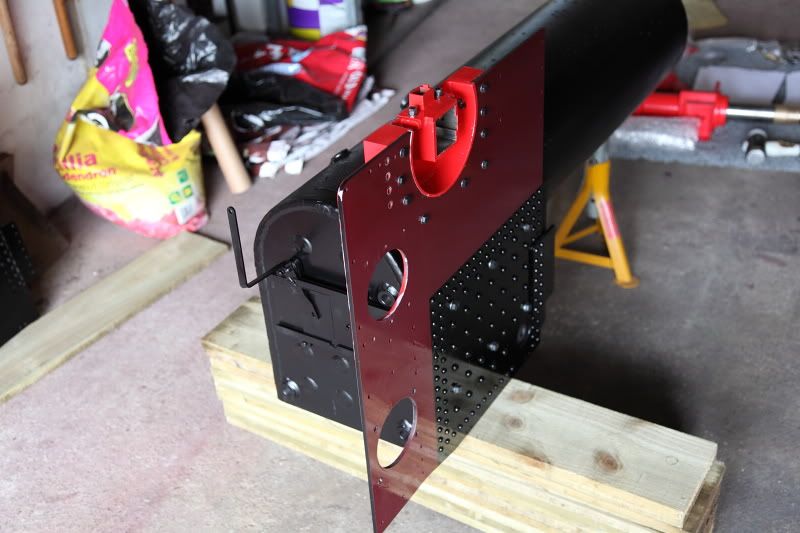

Right Hornplate


2nd Shaft casting


Rear axil casting and shaft


Rear spec plate


Front spec plate

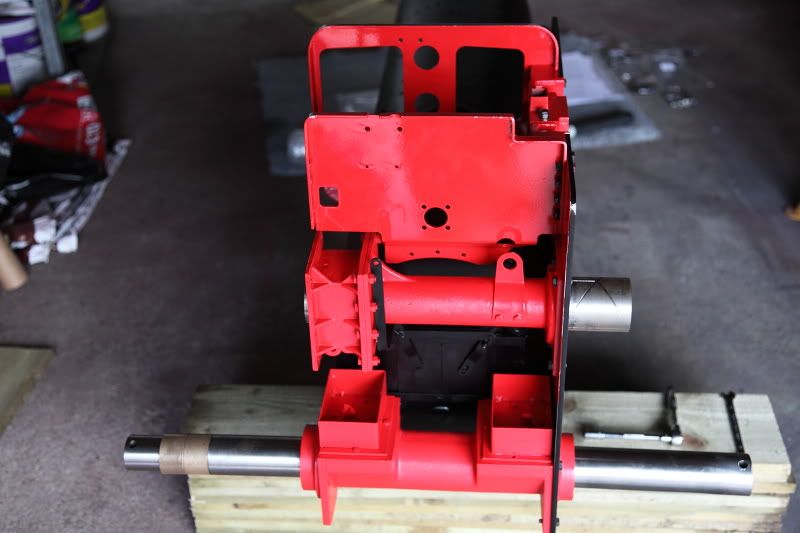

All ready for the left hornplate


Left hornplate fitted and Alignment tool in place. And it rotates. Very Happy

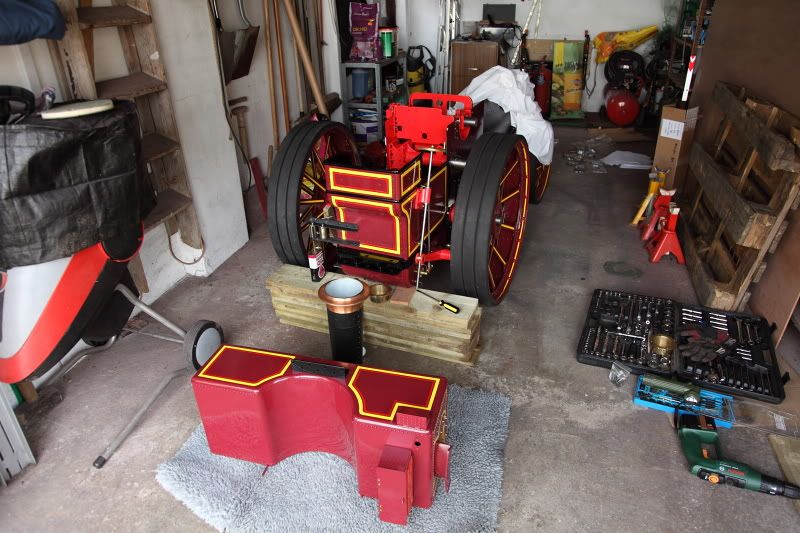

Tender moments


Getting ready to fit the belly tank for the time being. Need to remove for cleeding.


Just checking

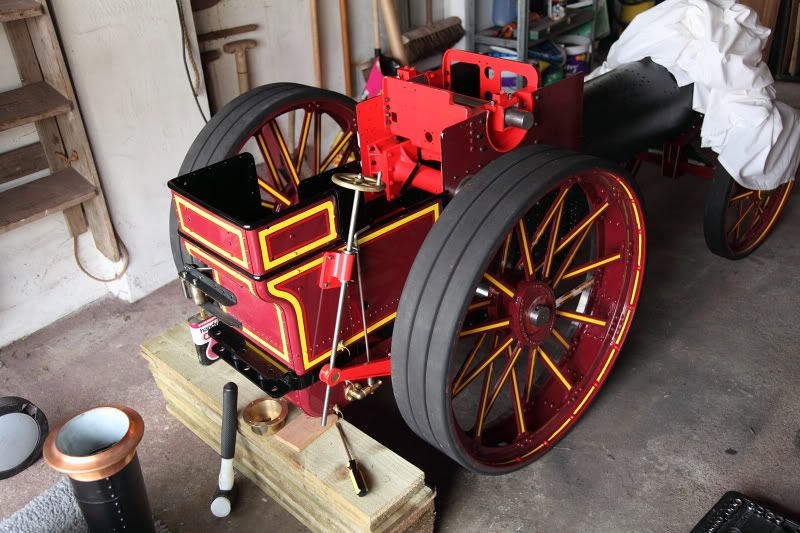

Getting there!

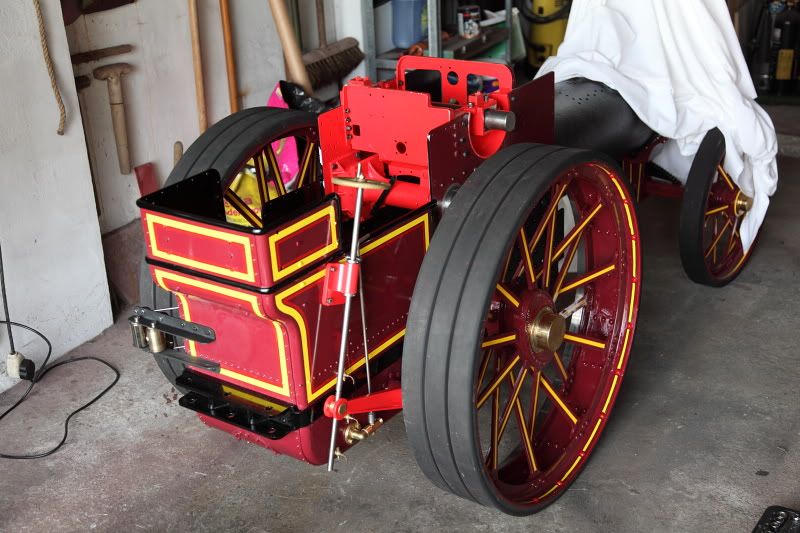

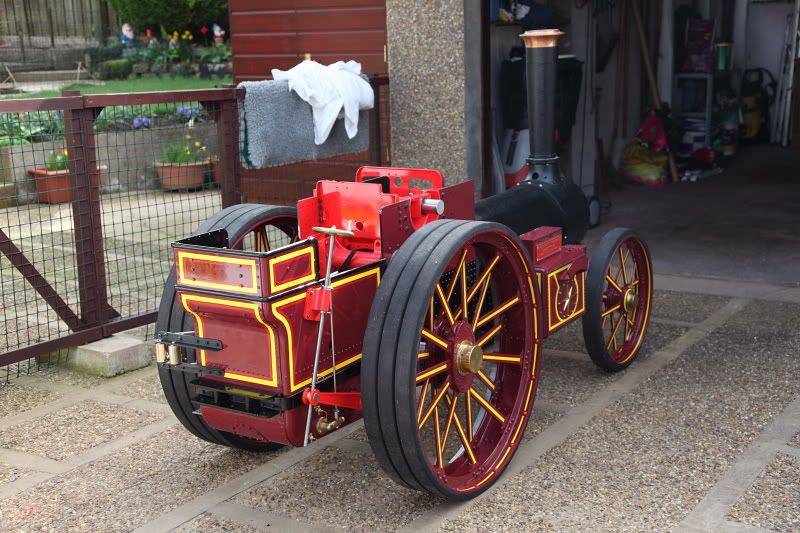

Ta Da!!!!!!!








Only couple of points. Lover bolt at the back is too long as it fouls the tender sides if not flush with the hornplate

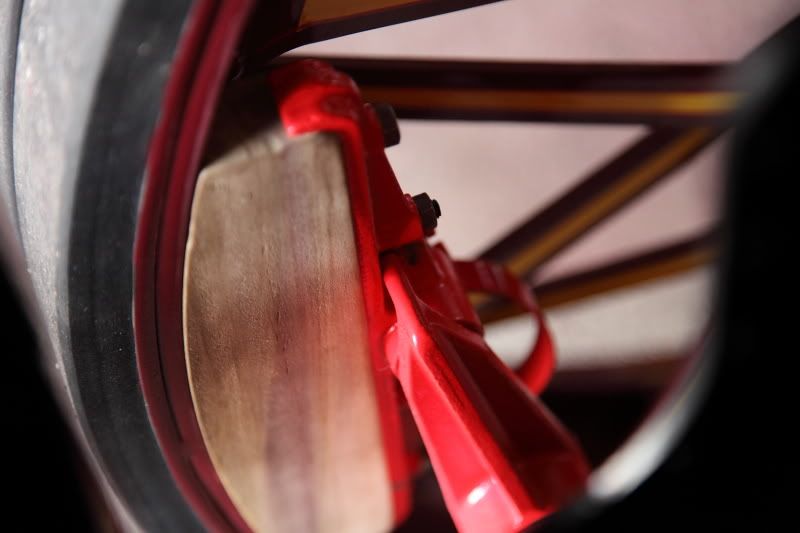

Are my brakes right?





lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Bed time

Post  lynnr on Sat 09 Apr 2011, 11:50 am

Hi All

Bed time for Crystal. She had her bed covers pulled up and tucked in. I kid you not. Also very firmly secured to the floor of the garage so she does not sleepwalk.

Pictures not included.

lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Lynn Robinson. Showman Scenic

Post  bjwlancashire on Sat 09 Apr 2011, 5:33 pm

Lynn

Inspirational! I do like your pics of the assembly stages - very informative. Looks like first Showmans engine on wheels to you cheers

I noticed that you painted all over the back of the hornplates where the axle cannon boxes, second shaft bearing housing bolts on and the firebox bolts, any issues with being tight due to paint thickness?

What did the neighbours think of it when they saw what you have been up too?

Brian

bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Thoughts

Post  lynnr on Sat 09 Apr 2011, 11:56 pm

Hi Brian

Had no problem with fitting the hornplates. The paint on the inside of the hornplates is quite thin as it is farly enclosed and should not get dinged.

Thats also part of the reason I had the hornplates apart when fitting to the boiler. It was somewhat easier to bolt things together as parts were much lighter and were put together at right angles where as if it was installed as a single unit. You are fighting the weight and trying to slide parts together. Only real heavy part was the axil as it was very tight in its bushes so did not want to try and wiggle it out again. Then run the risk of damage when puting it back in.

lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Piped at the post

Post  lynnr on Sat 09 Apr 2011, 11:59 pm

bjwlancashire wrote:Lynn

Inspirational! I do like your pics of the assembly stages - very informative. Looks like first Showmans engine on wheels to you cheers

I noticed that you painted all over the back of the hornplates where the axle cannon boxes, second shaft bearing housing bolts on and the firebox bolts, any issues with being tight due to paint thickness?

What did the neighbours think of it when they saw what you have been up too?

Brian

Tony got there first. I was at rolling chassis about 13:00 but did not upload as I had to take mother to B&Q for bits and then take my two dogs for a walk. Then I was installing the security before dinner.

lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Lynn Robinson. Showman Scenic

Post  Brian M on Sun 10 Apr 2011, 7:13 am

Great shots Lynn, wish mine was a rolling chassis Sad . Still, in a few weeks I will be up to kit 10 Very Happy

All the best,

Brian M

Brian M

Number of posts : 261
Location : Cheshire
Registration date : 2011-01-30

View user profile

Back to top Go down

any new pics?!!

Post  Graeme81 on Thu 28 Apr 2011, 2:54 am

been ages since i last saw any new pics from anyone!! (well if not it certainly feels like it! bounce )

Graeme81

Number of posts : 178
Location : Ireland
Registration date : 2009-05-25

View user profile

Back to top Go down

Pictures

Post  lynnr on Thu 28 Apr 2011, 3:52 am

[quote="Graeme81"]been ages since i last saw any new pics from anyone!! (well if not it certainly feels like it! bounce )[/quote

Hi Graeme

Not done anything on the engine this week as been working on the house painting for Parents.
I got Kit 16 but only put the ash pan together to see how it looks and try to get the boiler to belly tank bracket to fit.









lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Sorry all

Post  lynnr on Sun 08 May 2011, 9:56 am

No pictures this month so far. Been working on the house and waiting for the Cylinder block before fitting and painting the cladding.


lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

No Pic's but progress

Post  lynnr on Sun 19 Jun 2011, 7:12 am

Hi All

Just a short update.

I have been fitting the cladding and fettling the panel that goes at the hormplate end.

Couple of observations.

First The spacer that is sitting at the spec plate. I have tapered the ends to allow a easier fit for the cleading due to especially the left hornplate.

Next I made a 3cm cut where the cleading heads down the each side of the firebox. This allowed the cleading to go in effect 2 directions without distorting, also when the cleading is down the left side between the hornplate and boiler it is slightly closer into the boiler.

Then to allow the bracket for the flywheel brake to fit I cut a section out of the cleading. If you mark the centres and outer width of the plate on the inside and cut out. You have enough space and it does not distort the cleading. Also I cut 5 threads of the 2 bolts as they were very close to the boiler barrel.

Hope this helps others.

lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Been doing more thinking

Post  lynnr on Sun 19 Jun 2011, 10:19 am

I know thinking on a sunday!

I may trim the two fingers that are on the front cleading panels where they go up past the front of the exiter platform and behind the smokebox, back to the edge of the exiter bracket as currently you have 2 thicknesses at the top due to the exiter infill and the smokebox. By trimming back this will look better as a single thickness.

lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Lynn Robinson. Showman Scenic

Post  Graeme81 on Wed 06 Jul 2011, 8:20 pm

anybody have any new pics of the engine up to date....need my fix!! bounce

Graeme81

Number of posts : 178
Location : Ireland
Registration date : 2009-05-25

View user profile

Back to top Go down

Pictures and progress

Post  lynnr on Thu 07 Jul 2011, 9:58 am

Hi


Currently away from the engine. Will hopefully be taking delivery of both the block and steering kits. Need to speak with STW on Monday.
Will then get some pictures done.

lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Back from Holiday :-(

Post  lynnr on Mon 11 Jul 2011, 3:31 am

Hi All

Just back from my holidays. Now waiting for my next kits. Hopefully both the Cylinder and Steering kits.

lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Whooooot!

Post  lynnr on Thu 14 Jul 2011, 3:21 am

Hi

Got Steering kit Very Happy
Photos tonight

lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Lynn Robinson. Showman Scenic

Post  bjwlancashire on Thu 14 Jul 2011, 4:04 pm

lynnr wrote:Hi

Got Steering kit Very Happy
Photos tonight

Any photos then? Laughing

How is yours going on, seen some comments about the worm and wheel not meshing perfectly.

bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Lol

Post  lynnr on Fri 15 Jul 2011, 12:03 am

bjwlancashire wrote:
lynnr wrote:Hi

Got Steering kit Very Happy
Photos tonight

Any photos then? Laughing

How is yours going on, seen some comments about the worm and wheel not meshing perfectly.

Did not get to photos or touching the engine last night. Ended up towing trees out of next doors front garden. Twisted Evil

lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Lynn Robinson. Showman Scenic

Post  bjwlancashire on Fri 15 Jul 2011, 8:44 am

lynnr wrote:
bjwlancashire wrote:
lynnr wrote:Hi

Got Steering kit Very Happy
Photos tonight

Any photos then? Laughing

How is yours going on, seen some comments about the worm and wheel not meshing perfectly.

Did not get to photos or touching the engine last night. Ended up towing trees out of next doors front garden. Twisted Evil

That would have been fun with the winch on our engines.

bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Weekend

Post  lynnr on Fri 15 Jul 2011, 12:41 pm

Hi All

Traction engine going to Boat of Gartan tomorrow. First outing :-)

Strathspay Railway Steam and Tractorfest!

I will be in the tent on the station.

lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

First outing for "Crystal"

Post  lynnr on Mon 18 Jul 2011, 10:47 am

Hi All

Well she has had her first outing and as a debutante carried herself well.




lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Steering

Post  lynnr on Mon 18 Jul 2011, 11:28 am

Hi All

Pictures of steering arrangement and clearance.































lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Lynn Robinson. Showman Scenic

Post  Robfishman on Thu 21 Jul 2011, 12:33 pm

Looking good Lynn

Robfishman

Number of posts : 947
Age : 42
Location : Chandlers Ford Hampshire 4inch showman
Registration date : 2010-11-26

View user profile http://www.robertfish.net

Back to top Go down

Looking good and progress

Post  lynnr on Fri 22 Jul 2011, 3:18 am

Robfishman wrote:Looking good Lynn

Thanks Rob

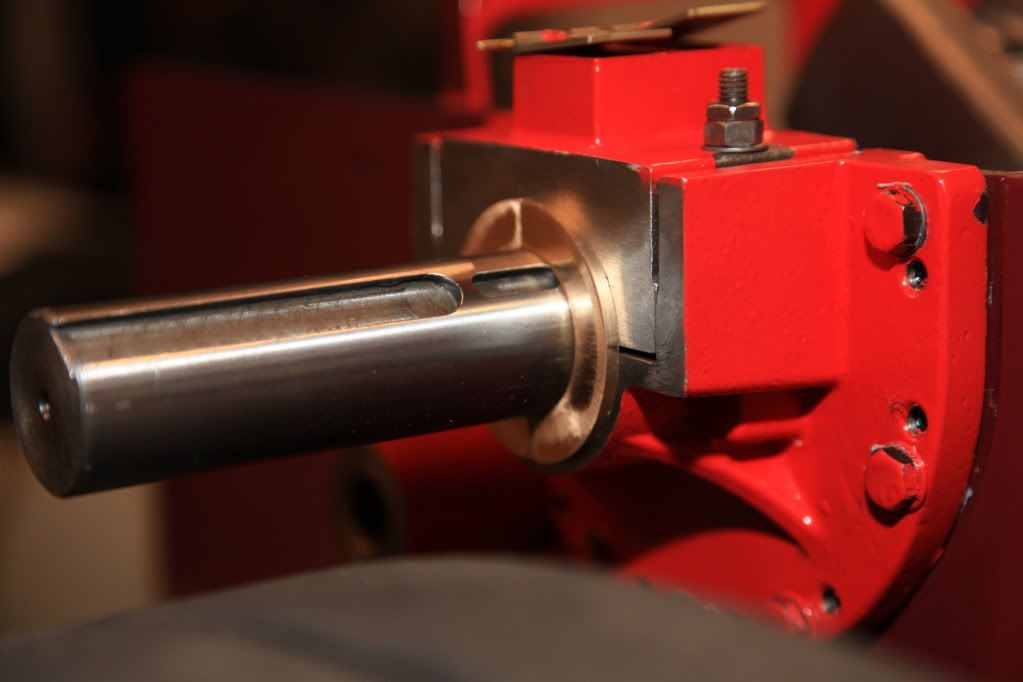

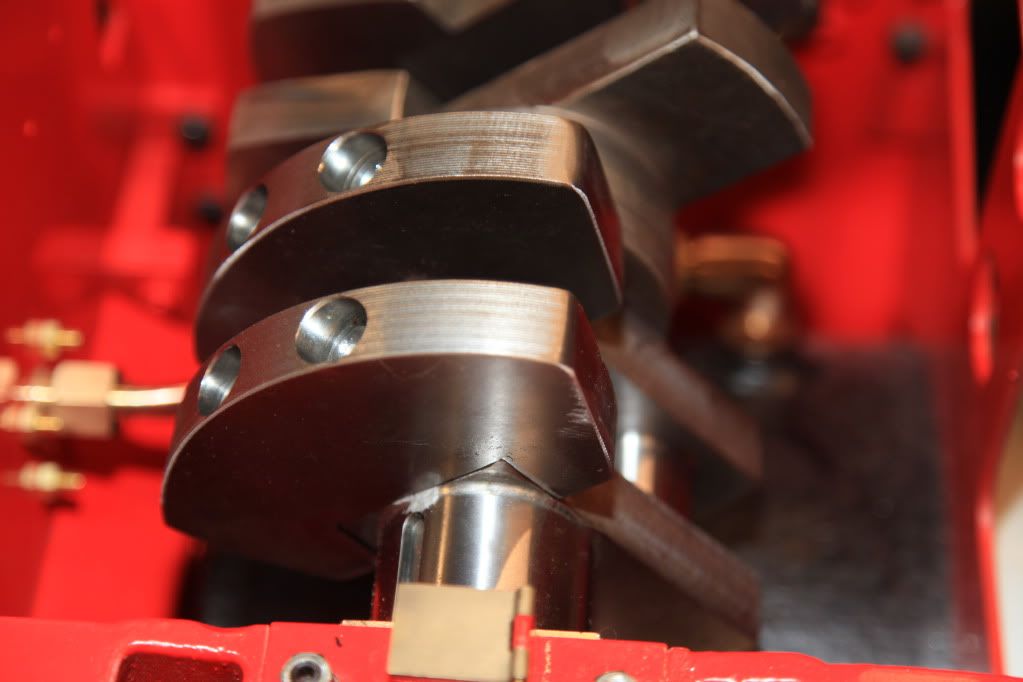

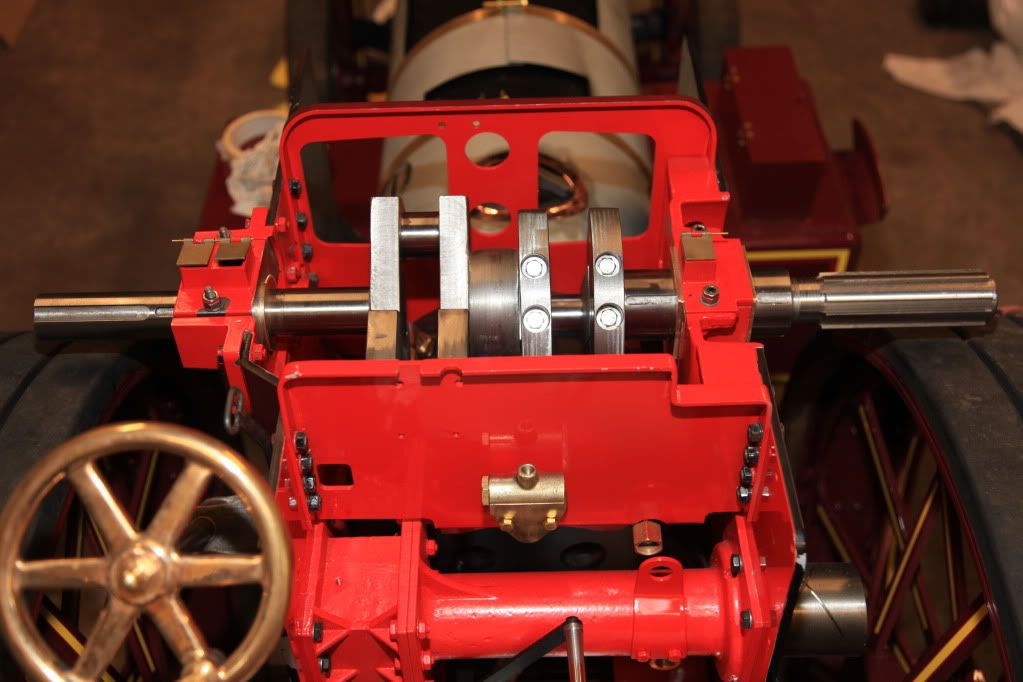

I must admit you are correct. Got the crank attached last night. Will not require too much fettling as I can actually turn it by hand with just putting everything in place. I will do photos tonight. I did have to remove the paint from the bearing housing faces to allow the bronze bushes to slide in to place.

As the left hand bush is round. Should I put locking compound behind them to keep the orientation and the oil holes lined up?

Also adding to the stable. I have ordered the water bowser. Should arrive Tuesday. It will go nicely behind the traction wagon or 2.

lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Cranking about

Post  lynnr on Fri 22 Jul 2011, 12:00 pm

Hi All

Got home from work early today. Got the steering chains blackened. Before I done the blacking I welded the eyes on the adjusters so that they can not pull out over time. Done the copper ring round the inspection plug.



















lynnr

Number of posts : 2716
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down
