Showmans / Road loco rolling chassis

Post  craig@STW on Mon 06 Sep 2010, 12:10 am

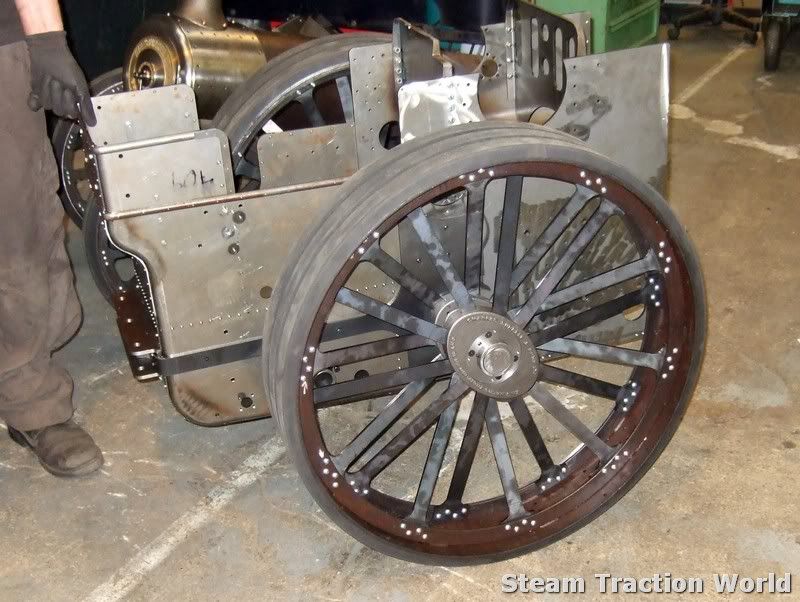

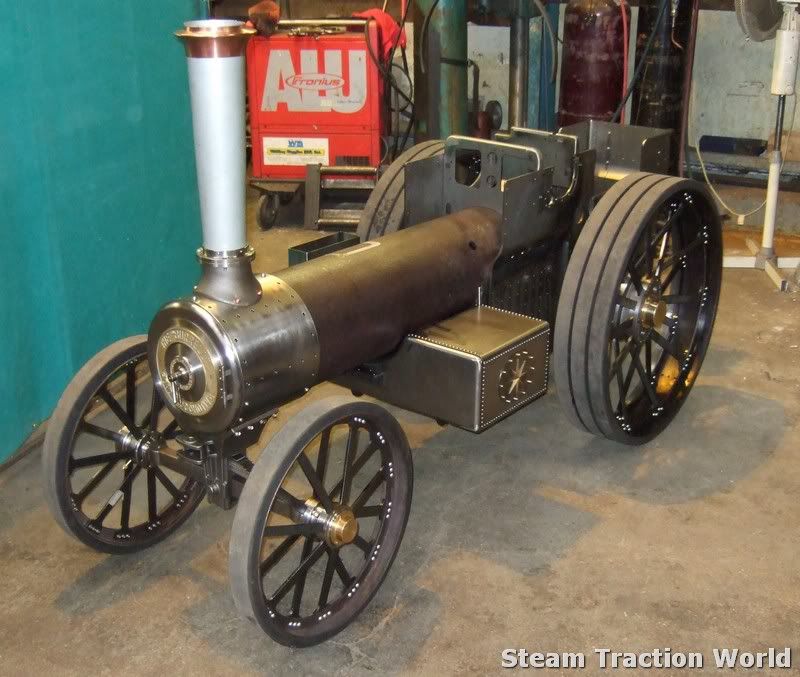

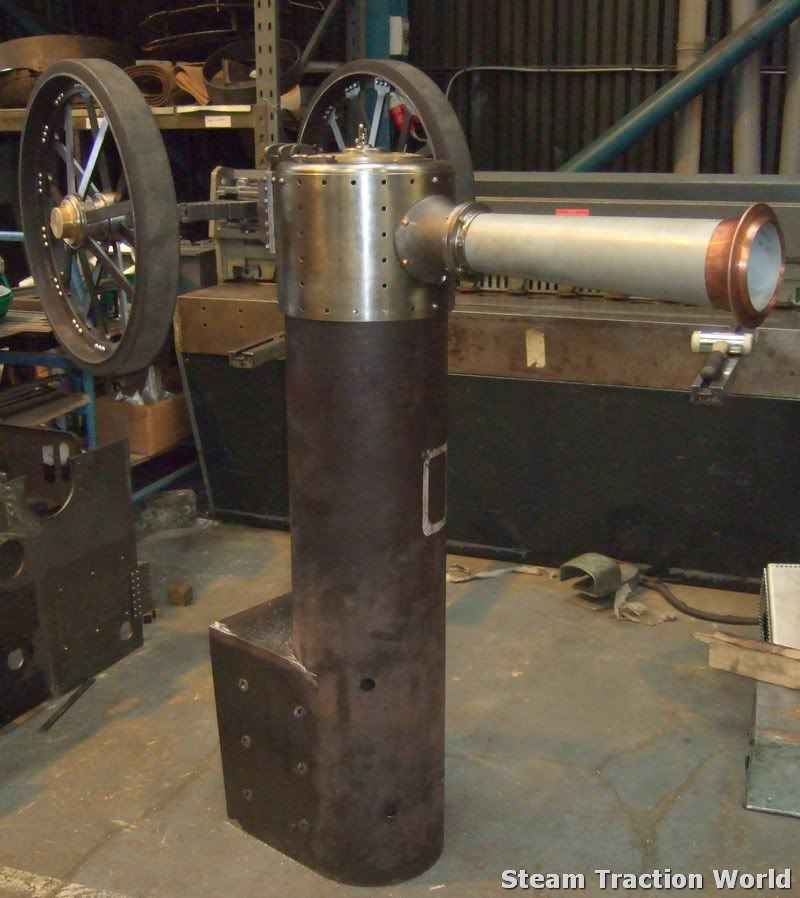

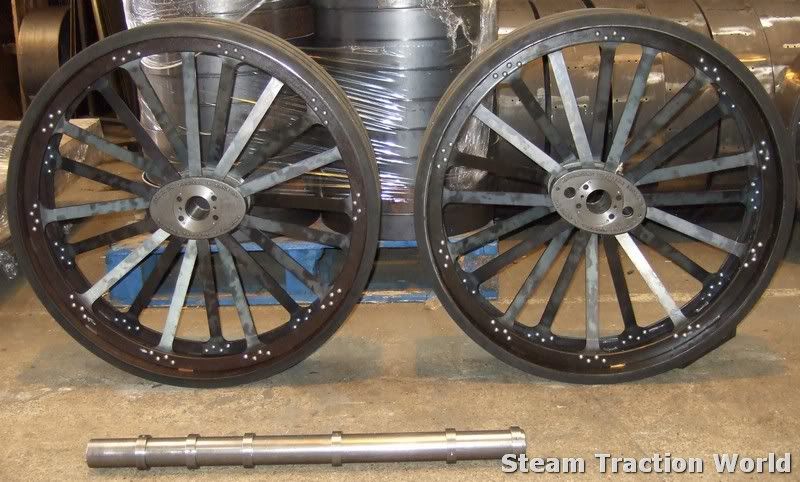

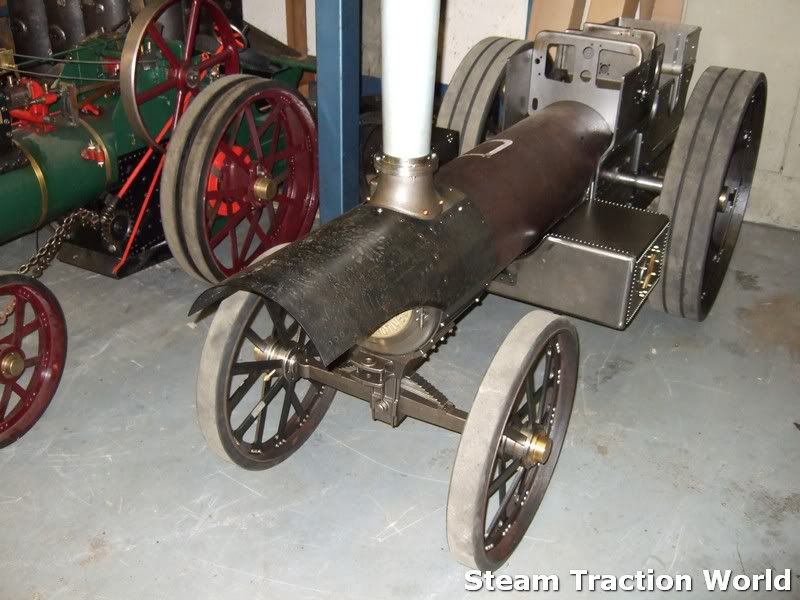

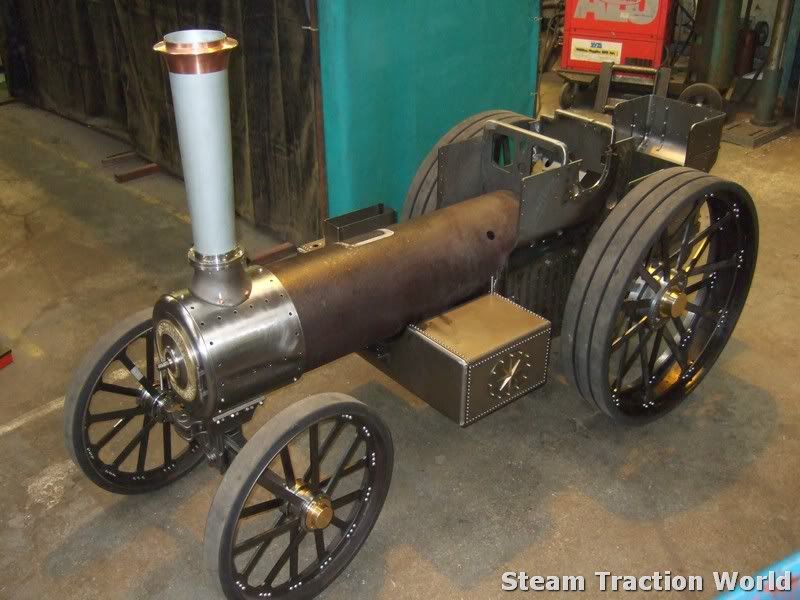

with the Dorset show out the way its now safe to post the photos of the rolling chassis on the forum Cool

we are using a dummy hollow boiler and a rather basic rear Axel but everything is set to the correct dimensions.


























craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Dorset Show

Post  Steve Traill on Mon 06 Sep 2010, 3:05 pm



Here is a picture of the STW stand when at about 6.30pm a gap appeared (for a millisecond!) in the crowd for me to take this picture. The stand was busy all day every day. The Showmans/Road Loco mock up was very impressive & received nothing but praise from everyone. Having looked at it for 5 days and from every angle I don't think there is any way of improving it, everything is spot on. Anyone interested in one should decide soon as with the ones we sold at Dorset there's only a few left of this extended run and when 'they're gone they're gone' as they say. Also the 'J' type Foden in SWB Artic form is going to be a 'hot' engine on the rally field as there is nothing like it out there & will be a real head turner.
ps Can anyone spot the deliberate mistake on the stand?!!

Steve Traill

Number of posts : 595
Age : 59
Location : Illogan Redruth Cornwall
Registration date : 2008-06-29

View user profile

Back to top Go down

Re: Showmans / Road loco rolling chassis

Post  sonick45 on Mon 06 Sep 2010, 10:04 pm

The stand looked fine to me although I'd had quite a bit to drink by the time i made it over to the stand.. drunken
Is the left hand tent the wrong way around?

I was impressed to see how busy the stand was from first thing all the way through the afternoon.

i even caught the tail end of a conversation over by the showmans line later on in the evening talking about the DCC and how impressive it will look when finished so i'm happy i've made the right decision to build an STW model.

Here is another view of the stand.
img][/img]

Just one word of advice if you are thinking of going to Dorset next year.. Cover your car?
The dust is unbelievable and due to all the heavy haulage movement in the play pen it is kicked up is great clouds.

I had to literally scrape my way down to glass on the windscreen and there wasn't one part of the car that didn't have a chalky white film on it.. Other than that seeing the rolling chassis in the flesh and surmising over the possibility of a double seat arrangement on the back well and truly made up for it.

Many Thanks for the IPA.. Smile


Nick

sonick45

Number of posts : 380
Location : Barton-Le-Clay (Beds)
Registration date : 2009-01-26

View user profile

Back to top Go down

Re: Showmans / Road loco rolling chassis

Post  craig@STW on Tue 07 Sep 2010, 12:12 am

ps Can anyone spot the deliberate mistake on the stand?!!

no dean on the stand ?

dean on the stand ?

taking a photo with your shadow in it ? Razz

leaflet stand in front of rolling chassis ?

too far away from beer tent ?

too close to beer tent ?

101 reasons why the models are not "exactly" like the originals in ways that only true enthusiasts (read geeks) would know

Razz Razz Razz Razz Razz

lack of any LARGE Steam Traction World signs ?





craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Signs

Post  Steve Traill on Tue 07 Sep 2010, 5:16 am

Who didn't pack the signs then!!! no xmas bonus for them then. Next year there might be flags up so the stand is easy to find.

Steve Traill

Number of posts : 595
Age : 59
Location : Illogan Redruth Cornwall
Registration date : 2008-06-29

View user profile

Back to top Go down

Re: Showmans / Road loco rolling chassis

Post  craig@STW on Fri 10 Sep 2010, 12:13 am

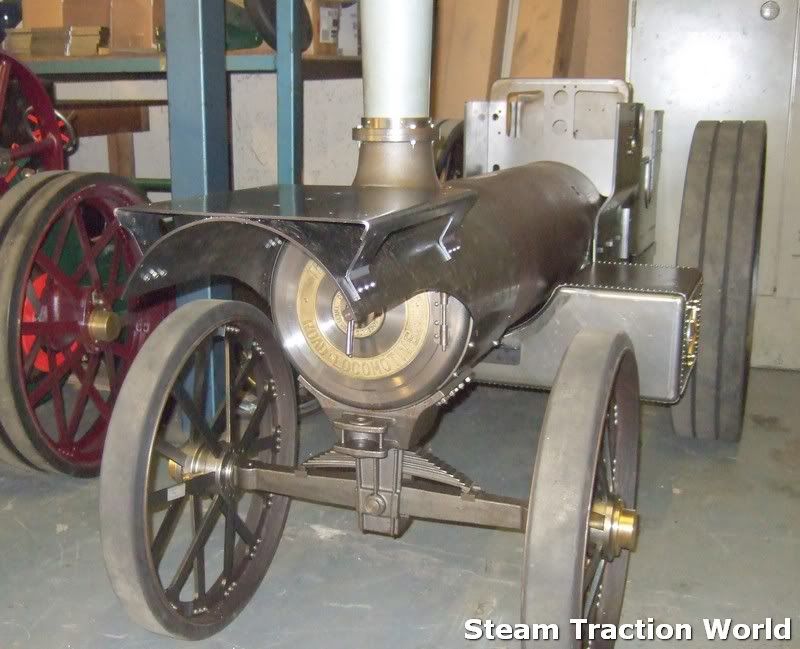

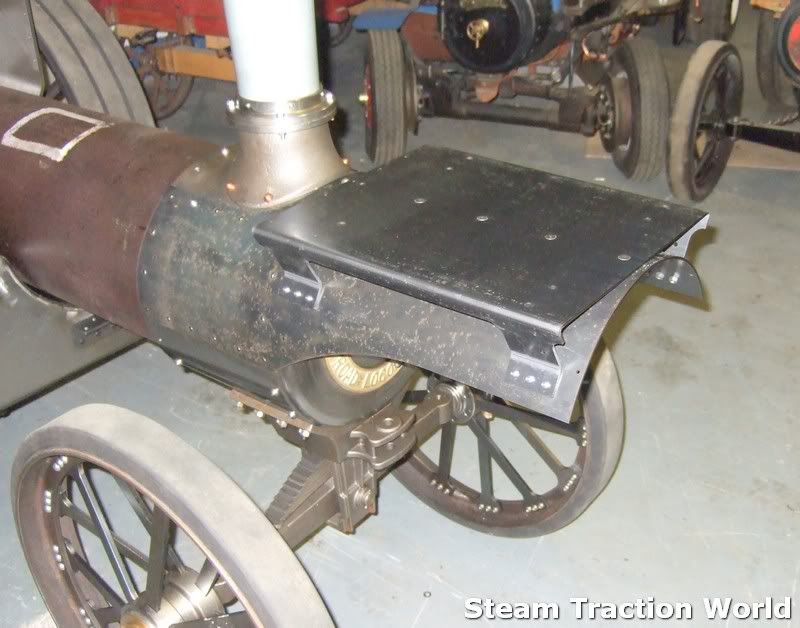

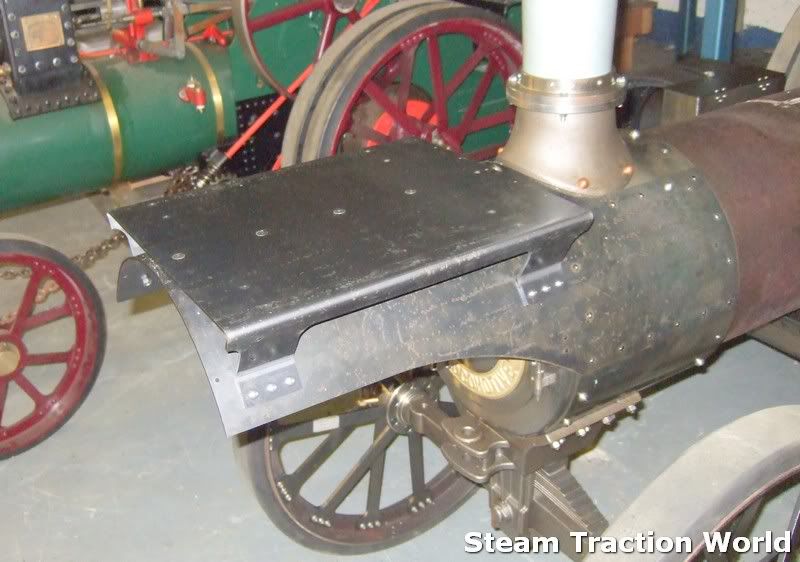

the prototype laser cuts for the dynamo mounting arrived this week and have been rolled and fitted to the chassis...





all that work on the smoke-box and now you can hardly see it Rolling Eyes Rolling Eyes Very Happy

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Hiding

Post  lynnr on Fri 10 Sep 2010, 1:14 am

Hi Craig

Looking good on the extension for the dynamo. I take it that the smokebox door does not get impeded by the extension?

lynnr

Number of posts : 2684
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Showmans / Road loco rolling chassis

Post  craig@STW on Fri 10 Sep 2010, 3:49 am

the door comes into contact with the mounting just before it reaches 90 degrees of "open-ness". still plenty of room to get in there but you cant open the door "fully and out of the way" any more.

I'll take a photo before the end of the day Cool

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: Showmans / Road loco rolling chassis

Post  craig@STW on Fri 10 Sep 2010, 4:00 am

may actually give a prize out to anyone who can understand that last comment. i cant figure it out and i wrote it Rolling Eyes

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

cryptic

Post  lynnr on Fri 10 Sep 2010, 4:13 am

craig@STW wrote:may actually give a prize out to anyone who can understand that last comment. i cant figure it out and i wrote it Rolling Eyes


Yes it makes perfect sence

lynnr

Number of posts : 2684
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Showmans / Road loco rolling chassis

Post  Tony King on Fri 10 Sep 2010, 5:43 am

Hi Craig,
You may be able to open the door, but I don't think it'll will be possible to remove the door hinge pin unless it's modified or put in from the bottom & held in place somehow. ( with split pin at the top, perhaps?)
Just a thought for those who will want to remove the door without taking the whole engine to pieces after it's built!!
Tony King

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: Showmans / Road loco rolling chassis

Post  craig@STW on Fri 10 Sep 2010, 7:00 am

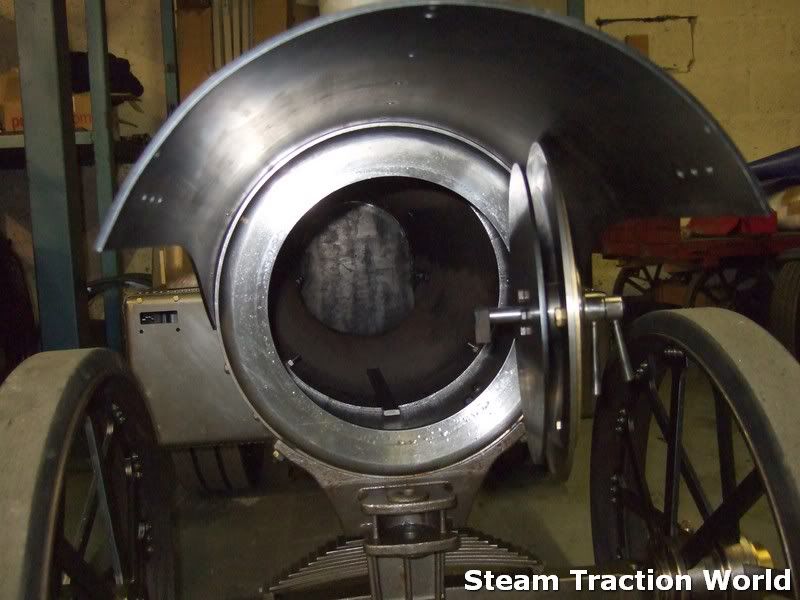

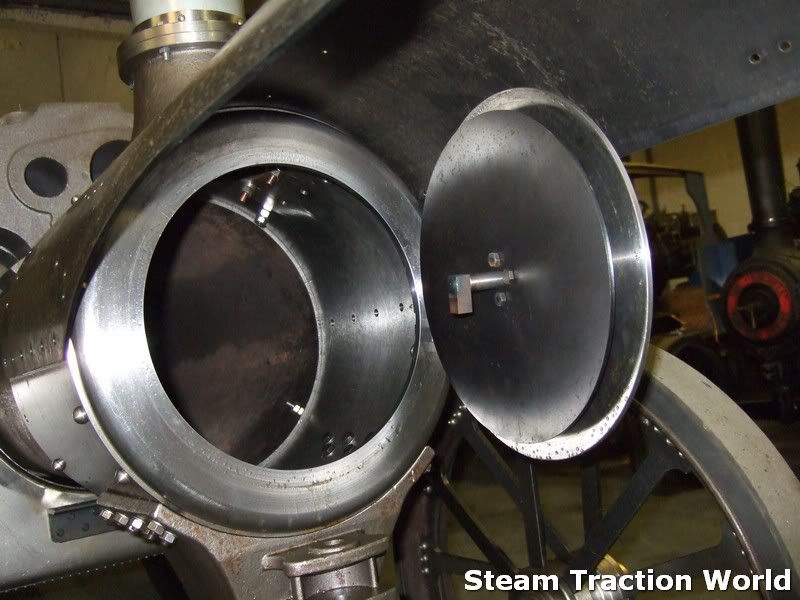

here's the photos of the door open...





and no, you can't remove the hinge pin.

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: Showmans / Road loco rolling chassis

Post  forge on Fri 10 Sep 2010, 10:57 am

would an extra hole in the dynamo mounting plate be useful for removing the door hinge pin?

sorry still have not decided to build one of these yet. still have a few things to do to my 2" first.
Would really like a 6" next! will have to start saving up!

forge

Number of posts : 107
Location : Norfolk (2" Burrell)
Registration date : 2008-07-01

View user profile

Back to top Go down

Pins

Post  lynnr on Fri 10 Sep 2010, 12:09 pm

Hummm. Think I may just put the hinge pin up side down and secure with a R clip.

lynnr

Number of posts : 2684
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Showmans / Road loco rolling chassis

Post  craig@STW on Sat 11 Sep 2010, 12:08 am

well there's a lot to go on top of the mounting so im not sure there would be clearance to pass the pin up into a hole, but good idea, worth looking at Cool

another alternative would be to have the top hinge block threaded and end of the pin threaded so you can "screw" the pin in place, but then we are moving away from type Neutral

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: Showmans / Road loco rolling chassis

Post  greystones on Sat 11 Sep 2010, 2:06 am

Hi
Looks to me as though you can get a tube brush in OK so why would you need to remove the door apart from repainting the name rings when the paint tarnishes.

Mike

greystones

Number of posts : 65
Location : Pickering North Yorkshire
Registration date : 2008-06-16

View user profile http://greystonesholidays.co.uk

Back to top Go down

Hinge pin

Post  Tony King on Sat 11 Sep 2010, 3:28 am

On my engine the hinge is polished metal so will need to be removable to keep that proper showmans "wow factor". I have actually made a small collar & drilled through hinge pin & collar & fitted a taper pin. There is a fabulous showmans engine "Dolphin" near here which I'm sort of copying. The same man also owns the "president" which I took the pictures of, which you see from STW.
Tony king

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Smokebox door

Post  Steve Traill on Sat 11 Sep 2010, 1:40 pm

I noticed up at Dorset this year at least one Burrell Showmans had the smokebox door hinged from the bottom so it drops down. Whether this was done by Burrells or later on I couldn't say but it would alliviate the hinge pin problem. The hole in the dynamo bracket might not work anyway depending on where the dynamo sits. Other options are two small hinge pins, stick it in upside down with an R clip, unbolt the door from the hinge, unbolt the hinge from the smokebox or crack open another tinny and leave it as it is! pirat

Steve Traill

Number of posts : 595
Age : 59
Location : Illogan Redruth Cornwall
Registration date : 2008-06-29

View user profile

Back to top Go down

Smokebox door pin

Post  lynnr on Mon 13 Sep 2010, 4:46 am

Hi

Just been looking through the pictures of ex-mayor Here and I think the smokebox door pin is in the upside down position!


lynnr

Number of posts : 2684
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Showmans / Road loco rolling chassis

Post  craig@STW on Thu 16 Sep 2010, 12:07 am

yes Lynn, looks like your right Cool

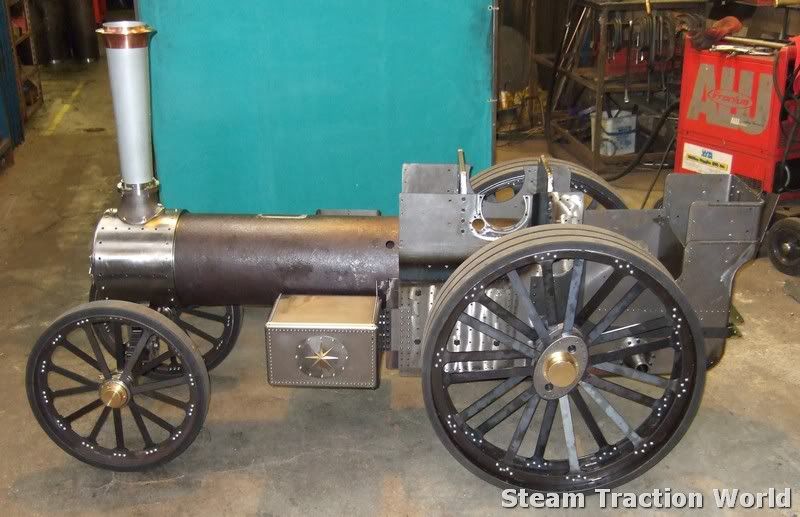

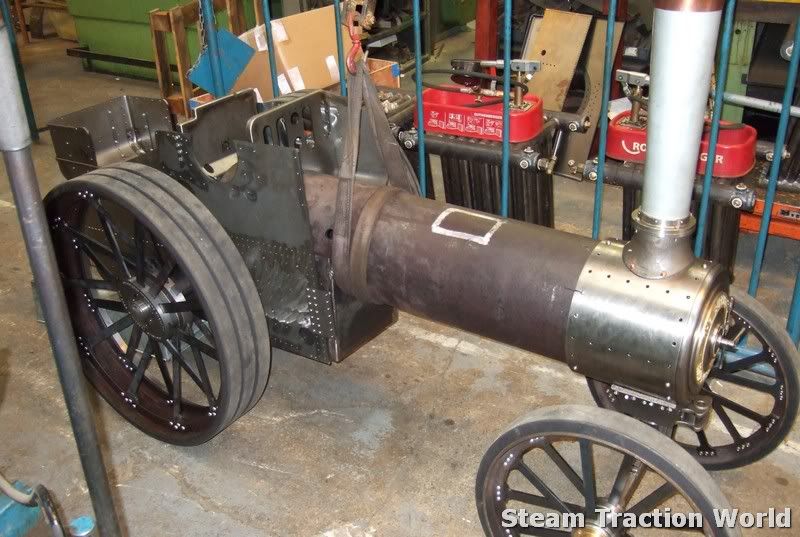

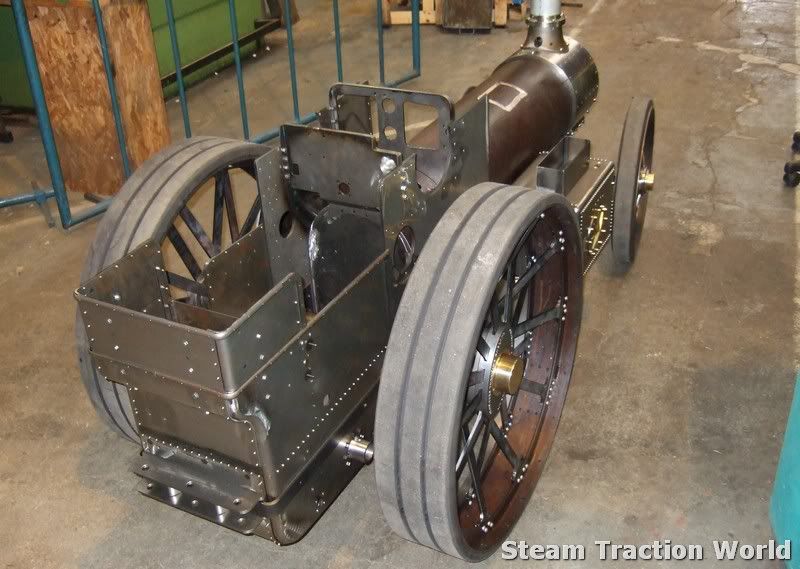

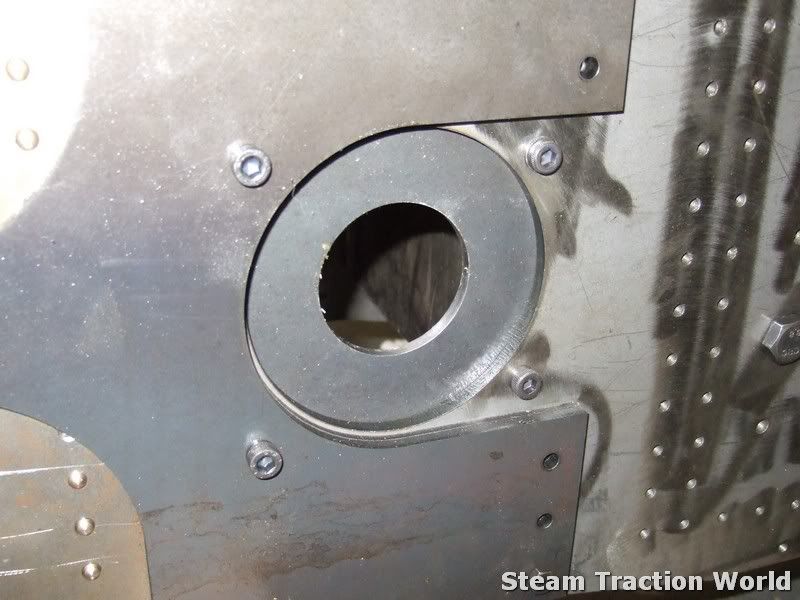

OK, the next section of the prototype dynamo mount is now bent and fitted, ready for the show at the weekend. here's the photos...






craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Show

Post  lynnr on Thu 16 Sep 2010, 1:09 am

Hi Craig

What show is it this weekend?

Pinstriping paint and brushes arrived yesterday. Practice and trial run hopefully tonight. Axil first as it is the easiest I think.

lynnr

Number of posts : 2684
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Showmans / Road loco rolling chassis

Post  craig@STW on Thu 16 Sep 2010, 4:09 am

lynnr wrote:Hi Craig

What show is it this weekend?


this one

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: Showmans / Road loco rolling chassis

Post  Sponsored content Today at 5:16 am


Sponsored content


Back to top Go down
