showmans boiler

Post  craig@STW on Fri 13 Aug 2010, 9:42 pm

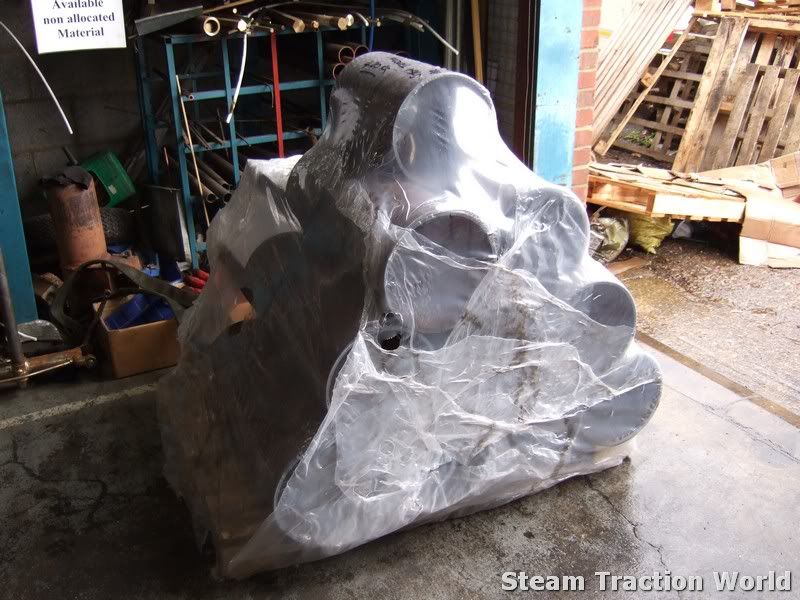

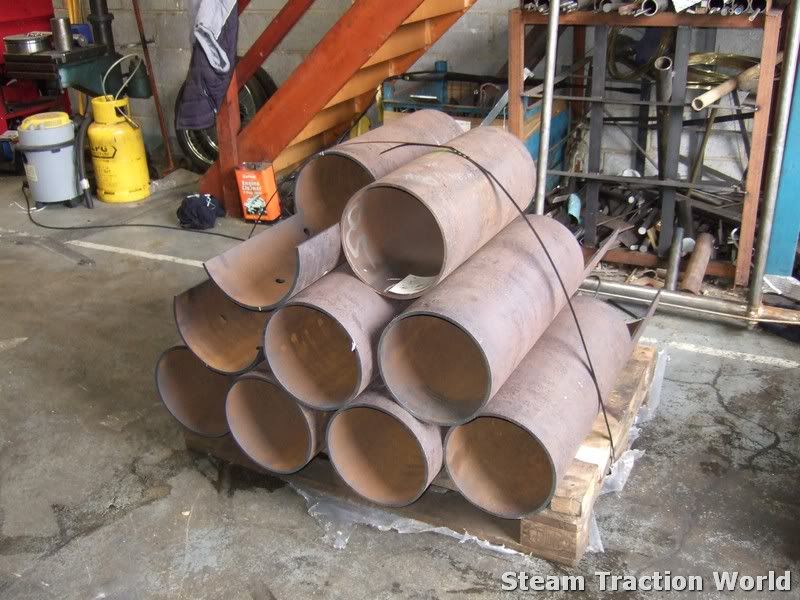

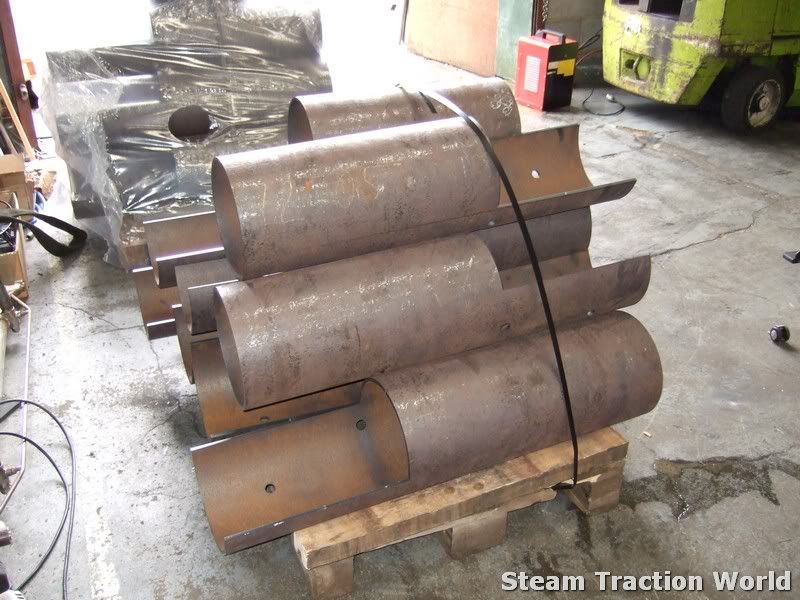

the boiler barrel tubes arrived today.....








craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showmans boiler

Post  craig@STW on Tue 24 Aug 2010, 6:49 pm

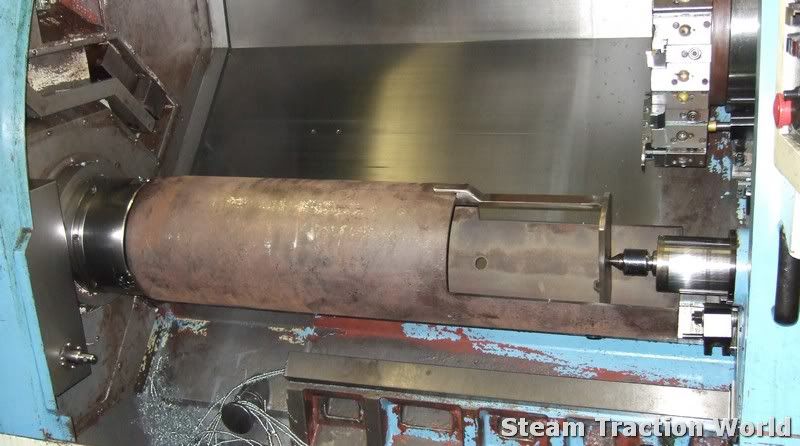

boiler barrel tube on the lathe for turning op. the flange for the smoke-box is turned before it goes on the 4th axis mill.



Ian has been making a "dummy" boiler from sheet metal so we can get a rolling chassis ready for the Dorset show.

mmm, top secret. not sure i can post a picture Razz

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showmans boiler

Post  craig@STW on Thu 11 Nov 2010, 9:45 pm

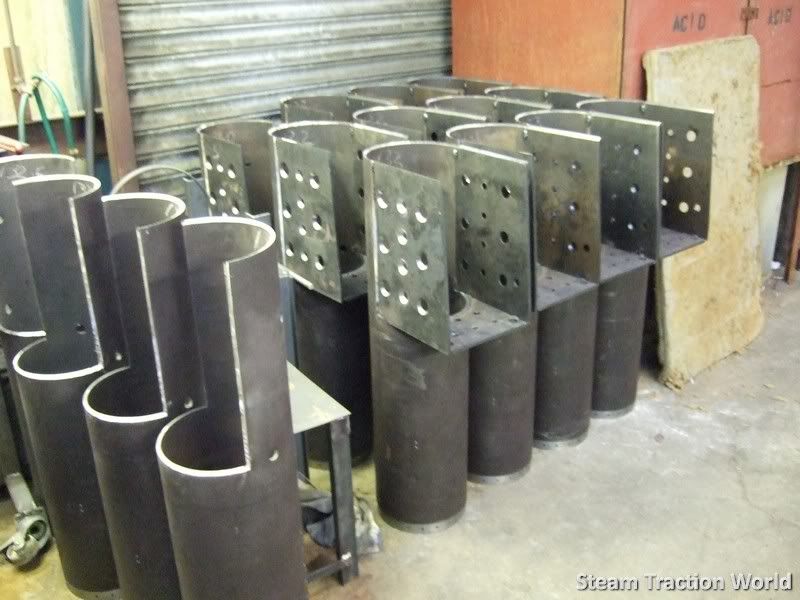

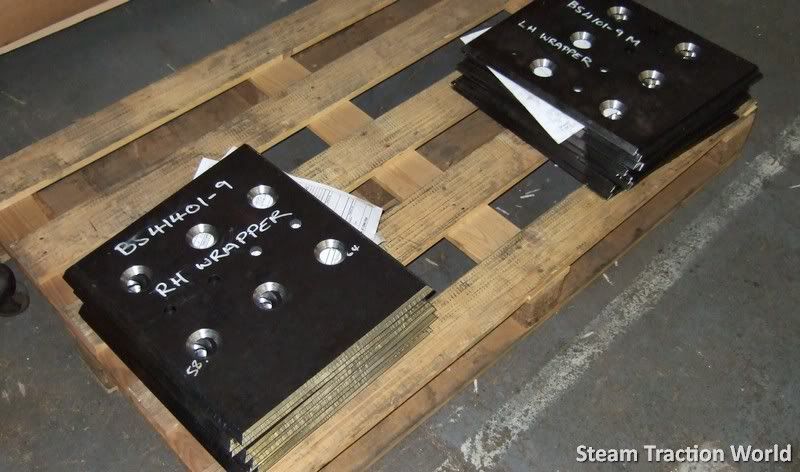

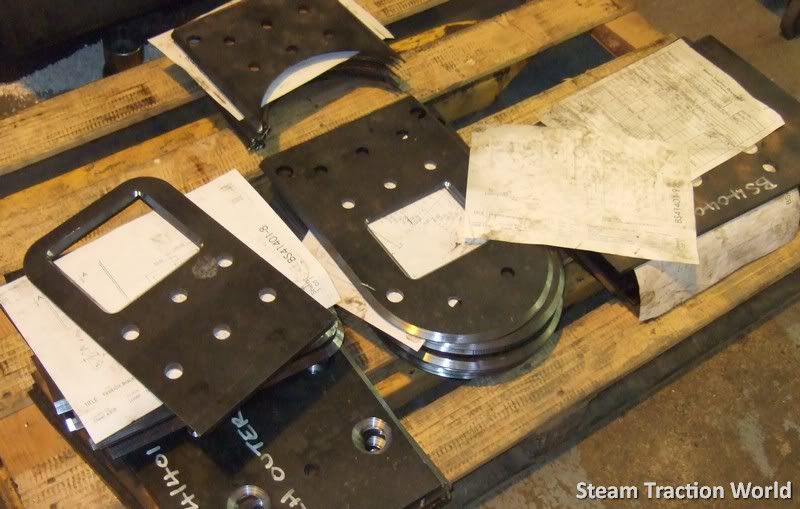

the boiler plates arrived this week...

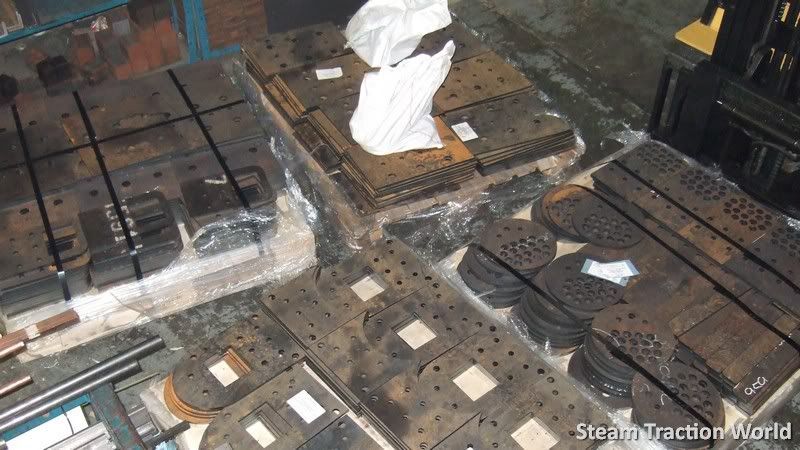

and we are already prepping them on the machine...

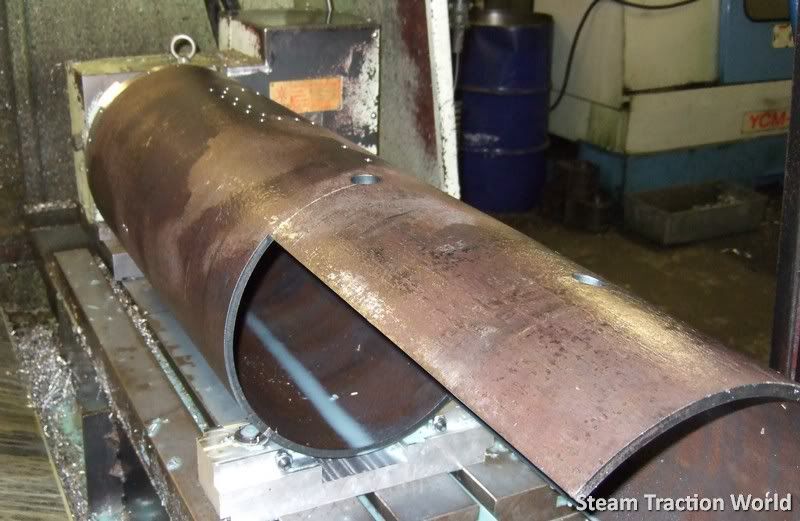

so with the plates now here, the boiler barrels have gone up on the 4th axis mill. it really is a tight fit !!!

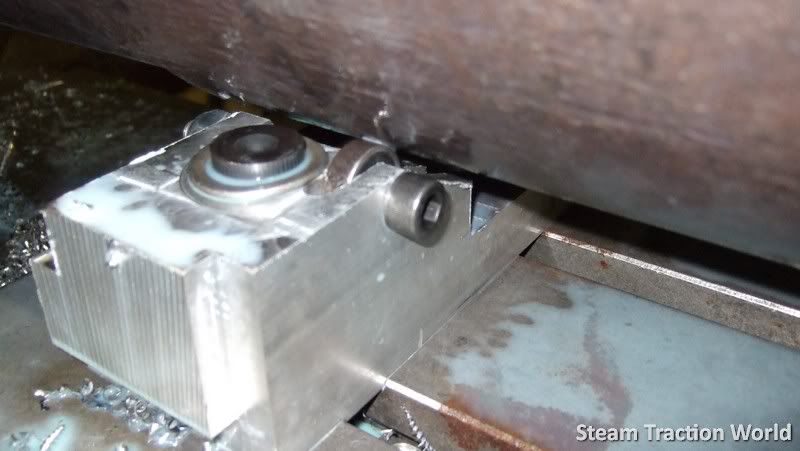

i've had to make a fixture with little rollers to support the end of the tube...


craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Heavy metal

Post  lynnr on Fri 12 Nov 2010, 11:25 am

Yup looking good. Delivery man is going to have a fit when these get sent out.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: showmans boiler

Post  hughb on Sat 13 Nov 2010, 2:53 pm

Hi guys
Yep look a bit on the heavy side but How farst are you guys on the lathe????

hughb

Number of posts : 575
Age : 46
Location : hertfordshire
Registration date : 2009-03-13

View user profile

Back to top Go down

Re: showmans boiler

Post  craig@STW on Sat 13 Nov 2010, 4:25 pm

should have the machining done quite soon but its the fabrication that will take the time.

target date for the first boilers is late January/early February

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showmans boiler

Post  hughb on Sat 13 Nov 2010, 8:31 pm

craig@STW wrote:should have the machining done quite soon but its the fabrication that will take the time.

target date for the first boilers is late January/early February

Hi Sorry I did not mean how long I was only showing an intrest in how Fast the lathe is going IE how manny vickers {RPM}

hughb

Number of posts : 575
Age : 46
Location : hertfordshire
Registration date : 2009-03-13

View user profile

Back to top Go down

Re: showmans boiler

Post  craig@STW on Wed 24 Nov 2010, 10:40 pm

more plates prepared. the first proper boiler should be tacked together soon...


craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showmans boiler

Post  craig@STW on Wed 01 Dec 2010, 8:31 pm

loads of work going into the boilers to get them finished for early next year...

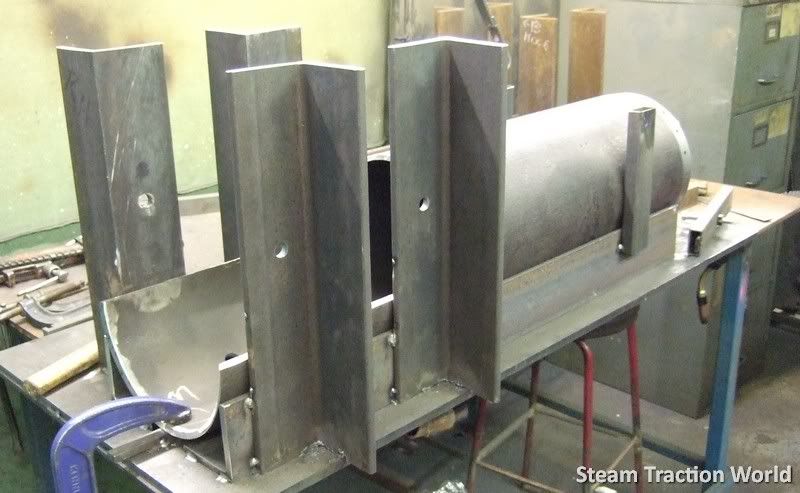

this is the boiler jig with barrel loaded in place...


craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showmans boiler

Post  craig@STW on Mon 06 Dec 2010, 5:46 pm

had some good news on the boilers...

the boilers have to be inspected at various stages of manufacture by "them that know" !!! and until we get the OK on them we cant move on to the next stage. the good new is that the first stage of "tacking together" has been given the OK and we can now more on to some proper welding up of things cheers

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showmans boiler

Post  craig@STW on Thu 09 Dec 2010, 9:39 pm

another sub assembly appeared today...



this may seem like slow progress but we are doing a batch of 40 of these at the moment.

should see something that looks like a finished boiler going together soon Cool

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showmans boiler

Post  highpressure on Thu 09 Dec 2010, 10:15 pm

That certainly looks like there will be a big fire in there. Should be able to leave it for hours whilst geting lunch or a quick cuppa Very Happy Very Happy

highpressure

Number of posts : 1096
Age : 49
Location : West Sussex, 4" DCC Road Loco
Registration date : 2008-06-18

View user profile http://www.simplydigitalaerials.com

Back to top Go down

Pressure mounting

Post  lynnr on Fri 10 Dec 2010, 8:16 am

Well not quite yet Smile but getting there. You just can not rush these things. Looking good.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: showmans boiler

Post  craig@STW on Tue 21 Dec 2010, 10:17 pm

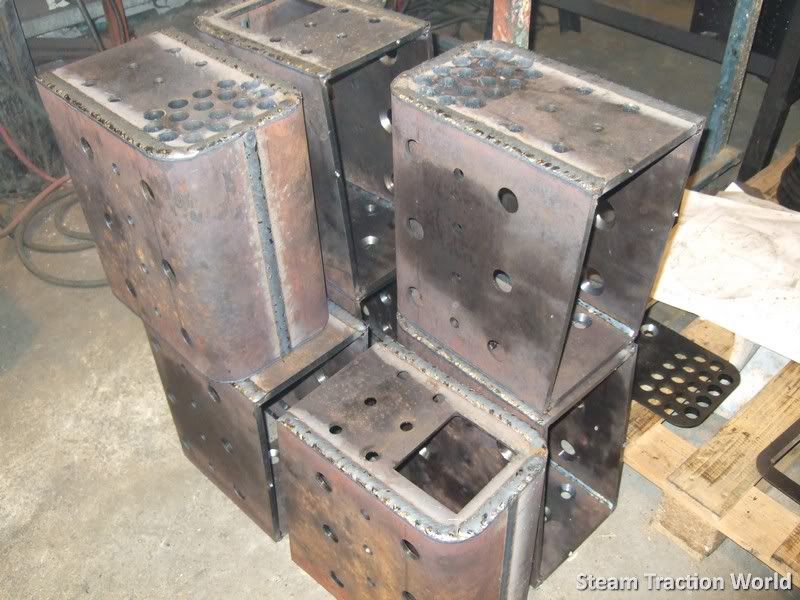

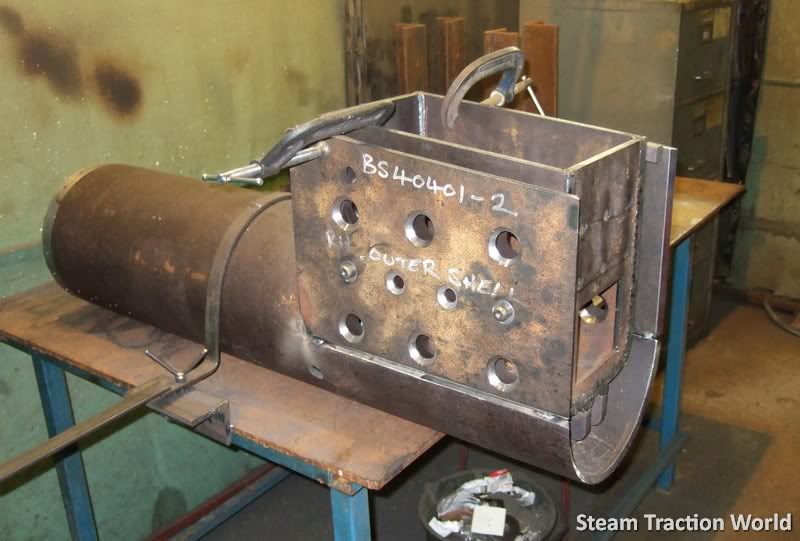

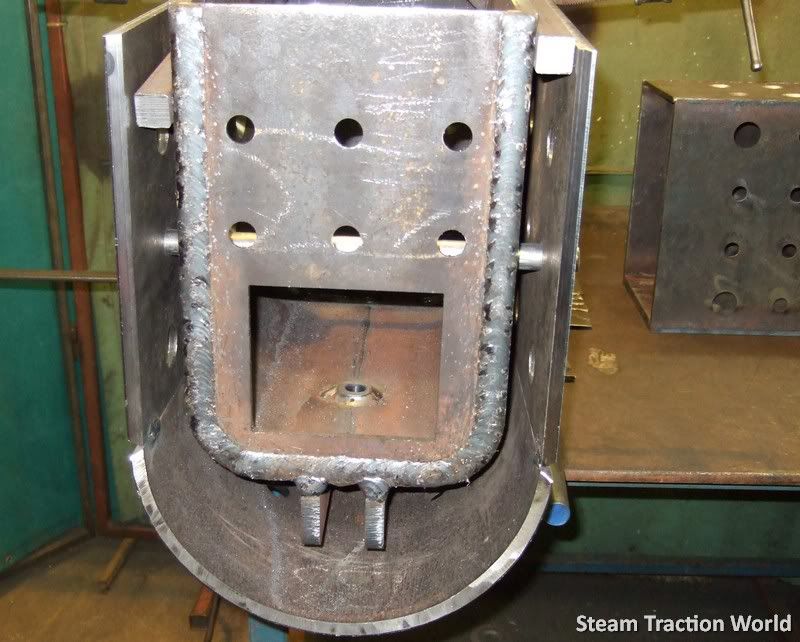

a few more shots of the boilers coming together...






craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showmans boiler

Post  craig@STW on Sun 09 Jan 2011, 11:55 am

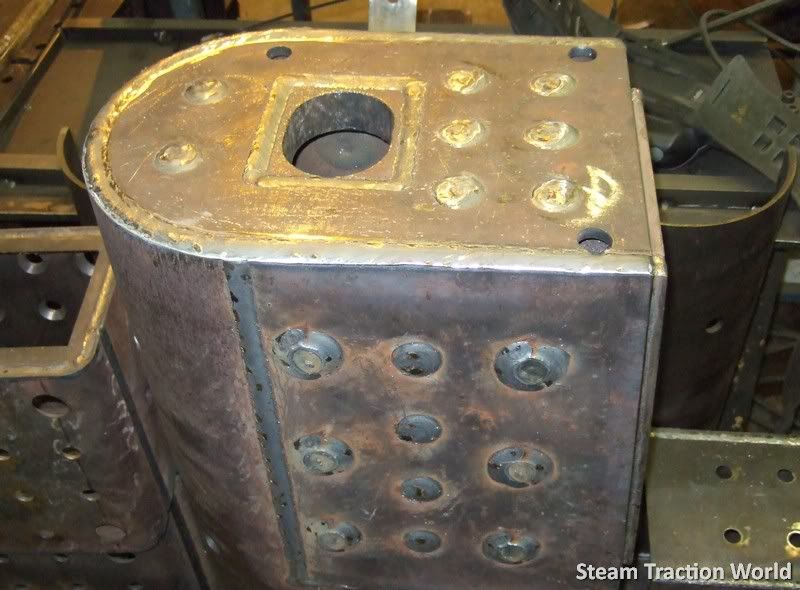

more progress as the ends of the boilers are sealed up Cool




craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Showmans boiler

Post  Rickster on Sun 09 Jan 2011, 5:24 pm

Looking fantastic guys, really good on all fronts - boiler, Block and Kit 10.

As a matter of interest, does anyone know the weight of the boilers ?

cheers

Rick

Rickster

Number of posts : 268
Location : canterbury, Kent
Registration date : 2010-02-19

View user profile

Back to top Go down

Re: showmans boiler

Post  craig@STW on Sun 09 Jan 2011, 5:31 pm

im sure Steve has a facility in solid works that gives an approximate weight of any part, but i may have dreamt it.

im sure we can stick one on the scales if not.

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showmans boiler

Post  highpressure on Sun 09 Jan 2011, 5:43 pm

Unless I'm remembering it wrong I seem to recall being told about 100kg for the Road Loco and 120kg for the Showmans.

Looking forward to it all arriving shortly... I have now caught up with everything outstanding, wheels all lined nameplates painted and polished. Nothing left to do but wait now.... Shocked Shocked

Kev

highpressure

Number of posts : 1096
Age : 49
Location : West Sussex, 4" DCC Road Loco
Registration date : 2008-06-18

View user profile http://www.simplydigitalaerials.com

Back to top Go down

Re: showmans boiler

Post  craig@STW on Sun 09 Jan 2011, 7:13 pm

kit 10 will be next. hopefully some boilers will be ready late jan early feb Cool

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Possible non delivery by couriers

Post  lynnr on Mon 10 Jan 2011, 11:15 am

Hi Craig

In case you do not send the boilers out by courier what are the dimensions of the showman boiler so I can start planning and reserving resources if they will not fit in the car.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: showmans boiler

Post  craig@STW on Mon 10 Jan 2011, 1:44 pm

rough measurements are 3ft 6inch long, 12inch wide and 16inch "tall" at highest point.

weight to be announced Cool Laughing

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Cool

Post  lynnr on Mon 10 Jan 2011, 2:33 pm

craig@STW wrote:rough measurements are 3ft 6inch long, 12inch wide and 16inch "tall" at highest point.

weight to be announced Cool Laughing

That should fit in the boot without any problem.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: showmans boiler

Post  bjwlancashire on Tue 11 Jan 2011, 9:37 am

Fitting it in the boot is one thing, getting it in and out is another problem!! Razz

It will fit in my S-Max too and the access is not to bad, all flat and low floor, I get my wife-s large mobility scooer in reasonable easily. However, the tailgate would be in the way of a fork lift truck putting it in and would possibly not even allow access for my engine hoist recently purchased to assist with the "heavier" parts Embarassed

Still look forward to the challenge, I will post some photos of our road loco - Blackbeard - at some point.

bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Re: showmans boiler

Post  craig@STW on Wed 09 Feb 2011, 10:35 pm

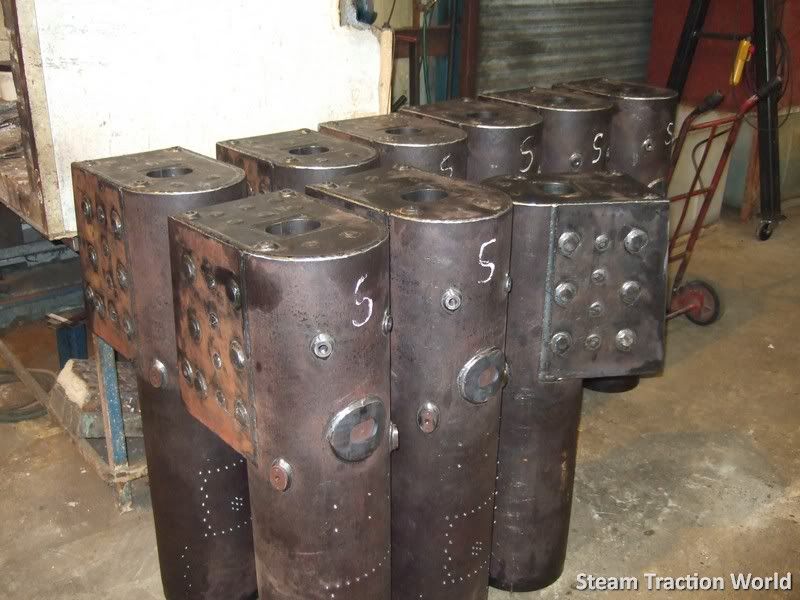

good progress on the boilers...

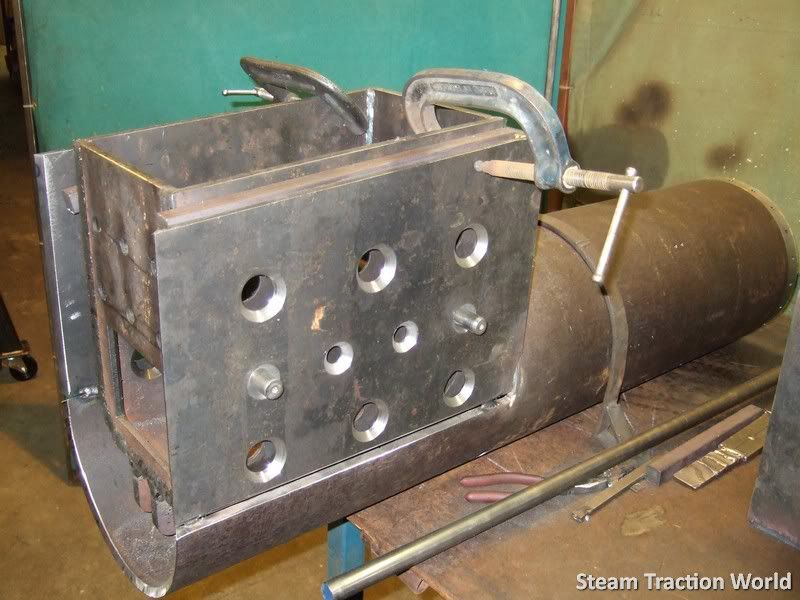

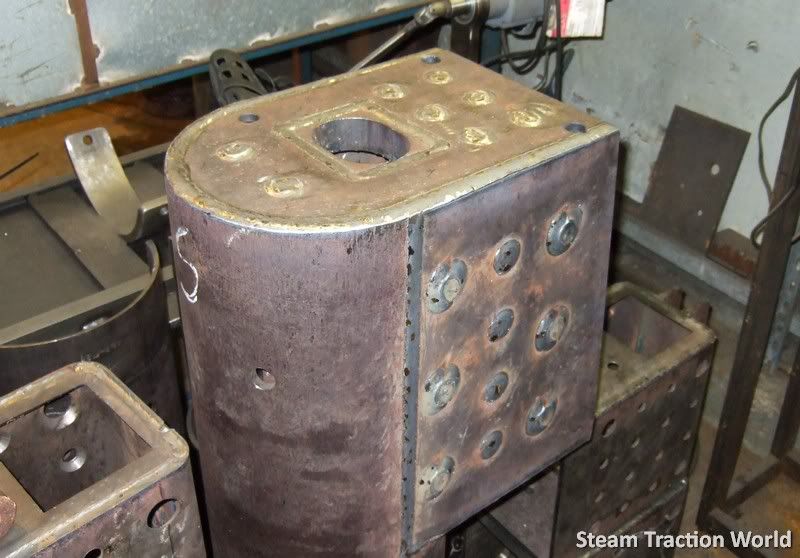

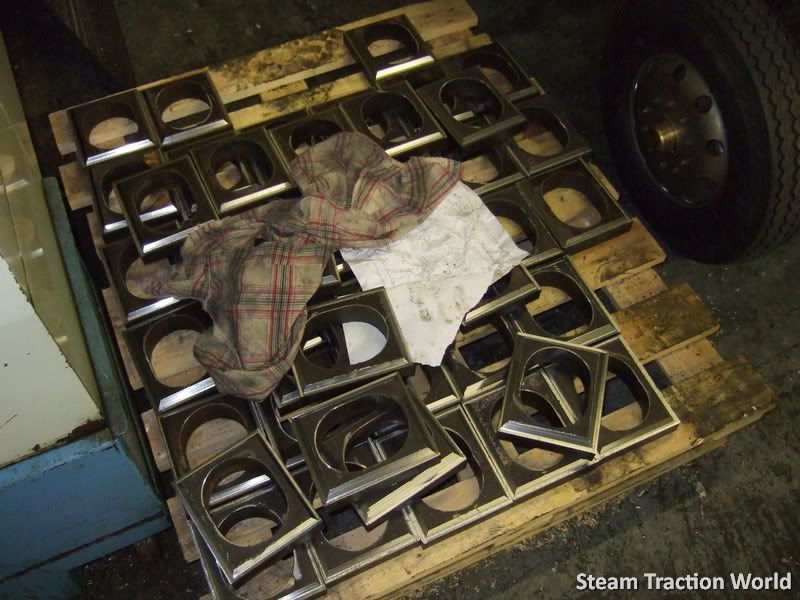

fire hole rings before wielding into the boilers...



finished boilers waiting for machining...



and the first boiler has been machined cheers mark has spent the last few days making all the jigs and fixtures and slowly working his way through the machining of the first one. once the first one is out of the way the rest will follow thick and fast

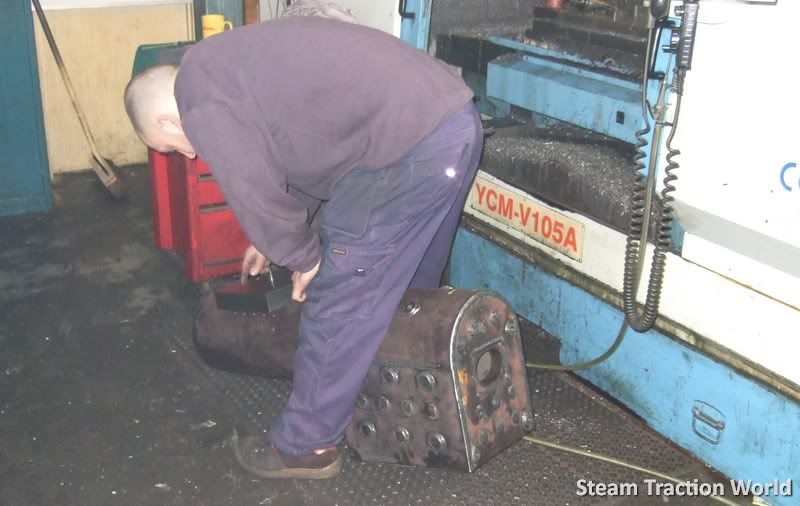

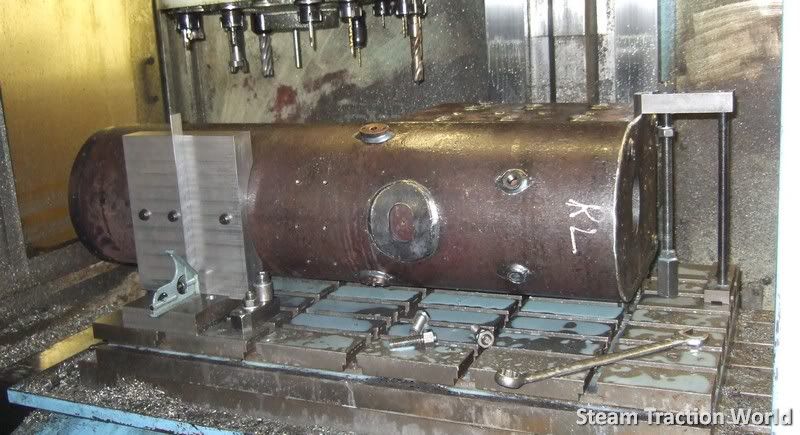

mark fitting the reference plate to the boiler, this basically sits where the cylinder will sit and gives the correct machining width of the finished boiler mounting lugs and a reference point to work from to get the correct positions of the mounting holes...



first one on the machine...


craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showmans boiler

Post  craig@STW on Mon 14 Feb 2011, 3:21 pm

good news... the first 11 boilers have passed their inspection cheers cheers

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down
