Showman's "star"

Post  craig@STW on Fri 11 Jun 2010, 1:23 pm

been working on a prototype part for the showman's today. we were unsure how to manufacture the brass stars that decorate the engine. one idea was to have them done as castings but we thought these would be too rough, however, someone thought they would be impossible to machine on the CNC. Rolling Eyes

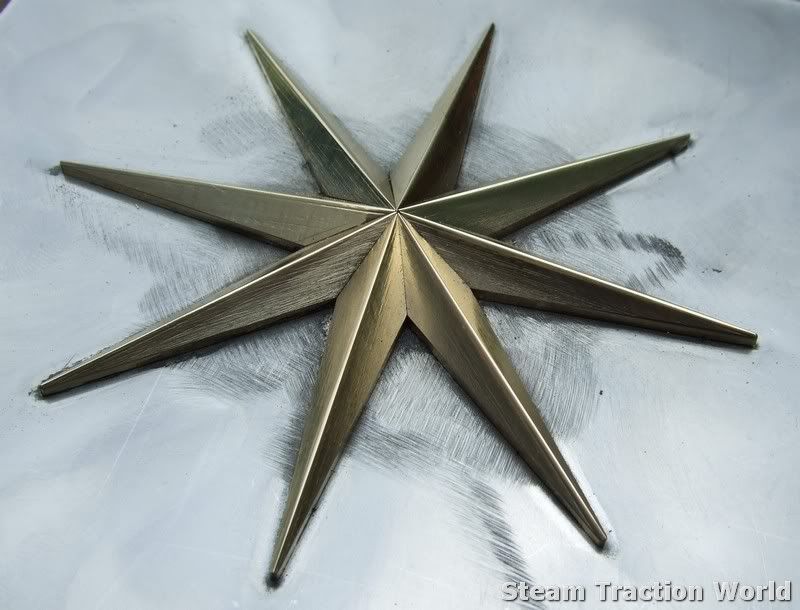

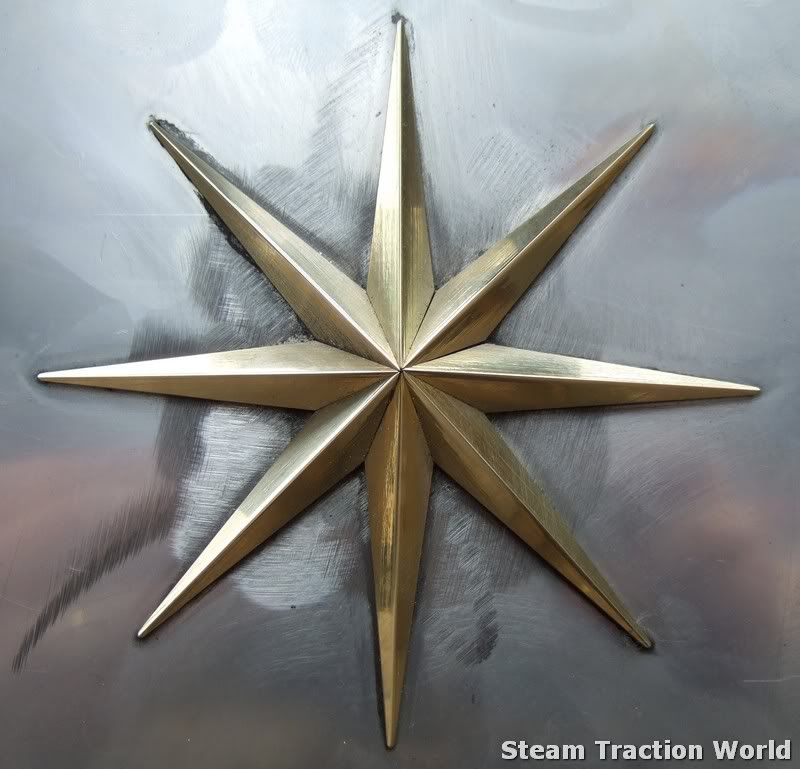

well here you go, made out of eight separate segments. the thin pointed end is little more than 2mm thick...





doesn't look too bad for a rough first try. but now i have to make a few 100 more pale

craig
