anybody know what this is/was ????

View previous topic View next topic Go down

anybody know what this is/was ????

Post  craig@STW on Tue 01 Jun 2010, 10:40 am

i was out for the day on Monday and came across this...



it's in the heart of the midlands and there is not much of it left but...

it's a fascinating bit of engineering that opened in 1900 and was in operation until around 1910. the link to steam ?? well it was powered by a stationary steam engine, which was one of the main reasons it was closed down due to it being uneconomical to keep "in steam" for the little use it was getting.

i know what it was and have found a picture from this very same spot when it was in operation, it's an amazing bit of engineering considering the amount of weight it had to .... oops, too many clues Rolling Eyes

anybody ???

craig

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: anybody know what this is/was ????

Post  highpressure on Tue 01 Jun 2010, 11:37 am

At a guess I'd say an early mechanised lock to transport boats up to or down from the top. Possibly in water or on their own. Question Question

highpressure

Number of posts : 1096
Age : 49
Location : West Sussex, 4" DCC Road Loco
Registration date : 2008-06-18

View user profile http://www.simplydigitalaerials.com

Back to top Go down

Re: anybody know what this is/was ????

Post  craig@STW on Tue 01 Jun 2010, 1:57 pm

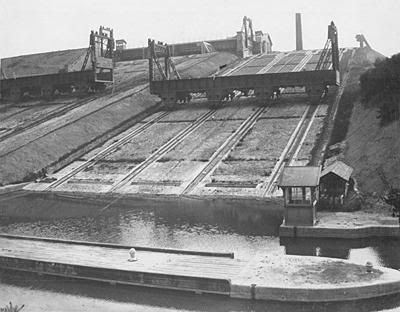

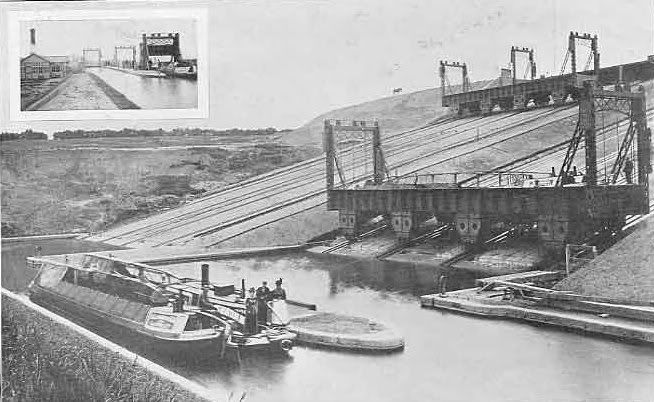

well yes, thats close enough, now this picture is from the same spot with with the "thing" fully working...





its called The Foxton Inclined Plane Barge Lift and as you can probably guess, its at foxton locks...



this website gives all the details... click but i think you have to agree, what an amazing bit of engineering it was. two huge tanks of water on rails going up and down the hillside as an alternative to an hour or more through the locks.
each tank weighed an amazing 230 tons and went up the 1in4 slope in twelve minutes. as the tank reached the bottom it actually submerged into the canal.

these people are actually trying to get it fully restored and working again, what an amazing sight that would be !!!!

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: anybody know what this is/was ????

Post  craig@STW on Tue 01 Jun 2010, 2:05 pm

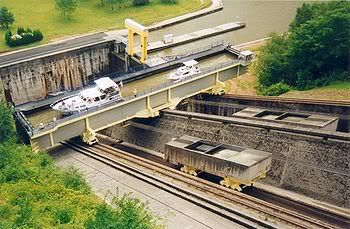

this is a slightly more modern version...



can you imagine the conversation.... "well actually i think we should have two giant tanks of water, on rails, going up and down the hillside. you drive the boat in at the top and wind it down the hill and out at the bottom"... " Shocked "

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: anybody know what this is/was ????

Post  hughb on Wed 02 Jun 2010, 1:29 am

Hi Well I did not get it. !!

But do you know what the footing is made out of ??

hughb

Number of posts : 575
Age : 46
Location : hertfordshire
Registration date : 2009-03-13

View user profile

Back to top Go down

Re: anybody know what this is/was ????

Post  Vapor on Wed 02 Jun 2010, 7:59 am

Now this is what you call a proper boat lift, have a look at this link, there are also some even bigger ones in Germany.

http://www.mywarrington.me.uk/waterfront_anderton_boat_lift_030609_01.JPG

Vapor

Number of posts : 375
Age : 106
Location : Isle of Wight (2" Burrell & 5" Duchess ex MW)
Registration date : 2008-06-18

View user profile

Back to top Go down

Re: anybody know what this is/was ????

Post  craig@STW on Wed 02 Jun 2010, 9:30 am

hughb wrote:Hi Well I did not get it. !!

But do you know what the footing is made out of ??

dont know ???? do tell !!! Shocked

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: anybody know what this is/was ????

Post  craig@STW on Wed 02 Jun 2010, 9:35 am

Vapor wrote:Now this is what you call a proper boat lift, have a look at this link, there are also some even bigger ones in Germany.

http://www.mywarrington.me.uk/waterfront_anderton_boat_lift_030609_01.JPG

wow, another big one !!!

but there's something about the foxton lift that makes it look totally unsafe, and therefore scary and therefore exciting and therefore fascinating Cool

i may be wrong but i would imagine that with all the weight involved it would creak and grown its way up and down the rails, add to this the huge tank rising from the canal and i think it would be amazing to watch. lets hope they do get it fully restored one day Cool

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

re anybody know what this is?

Post  augustrock on Thu 03 Jun 2010, 10:47 am

There is a large on on the Forth Clyde canal in Scotland in the form of a giant ferris wheel. Sadly I have only seen pictures.

Augustrock

augustrock

Number of posts : 29
Location : Andover Hampshire
Registration date : 2008-06-19

View user profile

Back to top Go down

Re: anybody know what this is/was ????

Post  craig@STW on Thu 03 Jun 2010, 1:15 pm

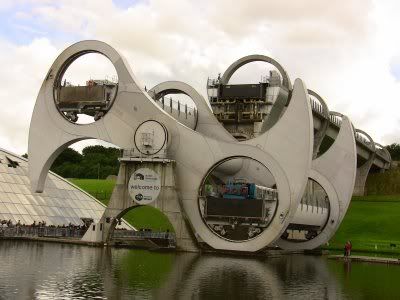

oh yes. that would be this one....



another great design Cool

but then this would have been designed on a computer. the foxton lift would have been done the old fashioned way Cool

nope, im still going with the foxton one as the most impressive Very Happy Very Happy Wink

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: anybody know what this is/was ????

Post  chrisnchrisroberts on Thu 03 Jun 2010, 3:07 pm

We had a ride on that when we were there in 2007. It was a fine day too. (Had to pay a pound to park the motorhome for the day and as we were only there for 4hrs, we gave the ticket to the next motorhome that arrived when we left.) Chris

chrisnchrisroberts

Number of posts : 114
Location : Blackbutt, Queensland, Australia
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: Anybody know what this is/was ????

Post  Agricola on Fri 04 Jun 2010, 4:53 am

The Falkirk Wheel works on the principle of the weight of the descending barge lifting the other and, if memory serves me right, it uses the same energy as needed to boil a kettle for each lift. Did the Foxton lift work on the same principle - similar to many cliff railways?

Agricola

Number of posts : 12
Age : 70
Location : Pickering
Registration date : 2008-07-02

View user profile

Back to top Go down

Re: anybody know what this is/was ????

Post  craig@STW on Fri 04 Jun 2010, 9:16 am

yes, the tanks were connected. so as one went up the other went down, passing in the middle. very clever Cool

i think if you look at the photo i posted of the more modern version you can see counter weights to do the same thing ???

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: anybody know what this is/was ????

Post  FosterGP6NHP on Wed 18 May 2011, 1:37 pm

Both caisons weigh the same even if only one has a boat in it as the boat displaces its own weight of water so the balance remains.

FosterGP6NHP

Number of posts : 12
Location : Rugby
Registration date : 2011-05-18

View user profile

Back to top Go down

Re: anybody know what this is/was ????

Post  bjwlancashire on Wed 18 May 2011, 3:09 pm

craig@STW wrote:oh yes. that would be this one....



another great design Cool

but then this would have been designed on a computer. the foxton lift would have been done the old fashioned way Cool

nope, im still going with the foxton one as the most impressive Very Happy Very Happy Wink

I remember seeing this on the TV - Mark Williams Industrial Revelations - a brilliant series showing our indistrial heritage to the max and a funny many presenting it with great enthusiasm.

bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down
