showman's kit 3

Post  craig@STW on Thu 13 May 2010, 1:23 pm

yes we had a casting delivery today cheers

some of the nameplates have arrived and the chimney base castings, the rest are due in another two weeks.

although this may not seem like a lot, it means we can finally start work on the kit without it going out incomplete.

the kit folder has been issued and i will start ordering material tomorrow.

we need these so we can drill the mounting holes in "appropriate" places and then match the hole location on the smoke box door.



we still plan to send the horn-plates out as the next kit and the laser cuts are due in in the morning, so keep your fingers crossed again people

craig


Last edited by craig@STW on Mon 07 Jun 2010, 1:52 pm; edited 1 time in total

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showman's kit 3

Post  craig@STW on Mon 24 May 2010, 11:21 am

work started on kit 3.

these are the small nameplate bosses. these need drilling to match the small nameplates then we will have the smoke-box door to drill to match the large nameplate.



dart bars will soon be on the lathe Cool

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showman's kit 3

Post  craig@STW on Sun 30 May 2010, 11:44 am

dart bars/ draw bars finished...


craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showman's kit 3

Post  craig@STW on Wed 02 Jun 2010, 11:00 am

more work done on kit 3....

small nameplate boss on the mill today...

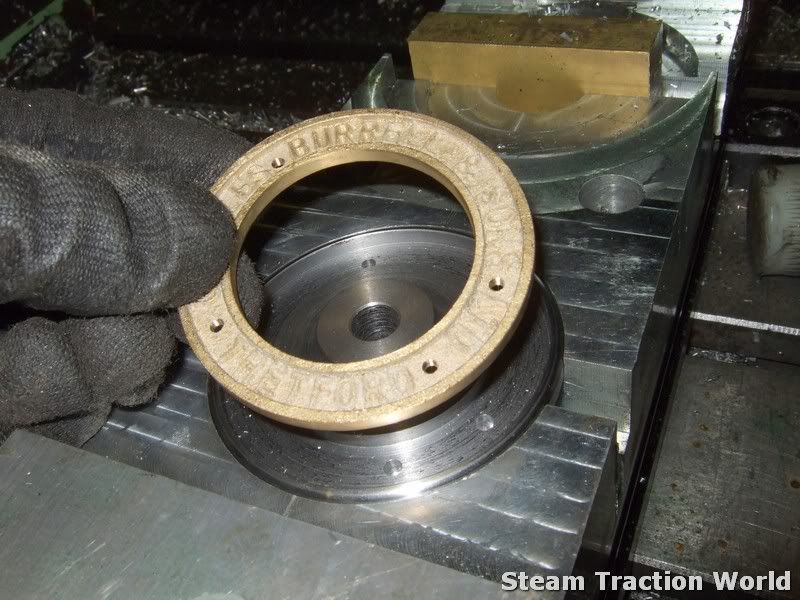

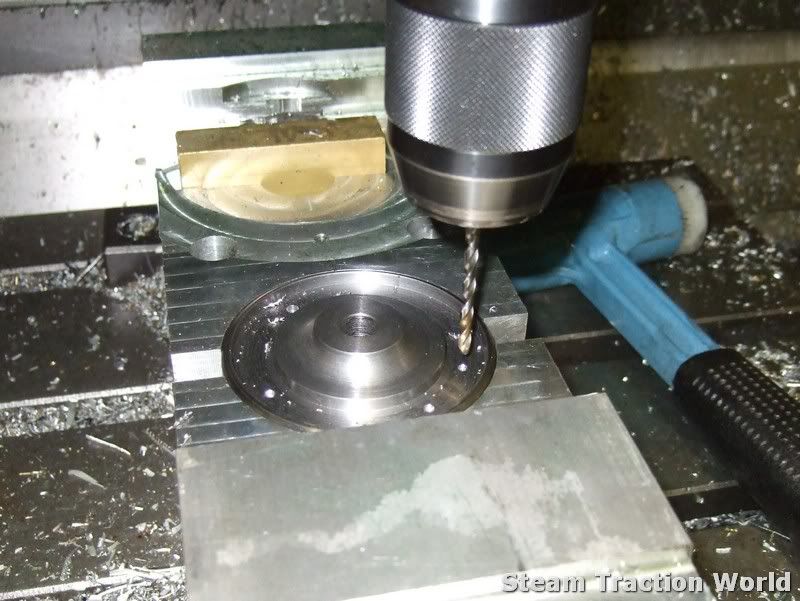

drilling the mounting holes for the small name plate...

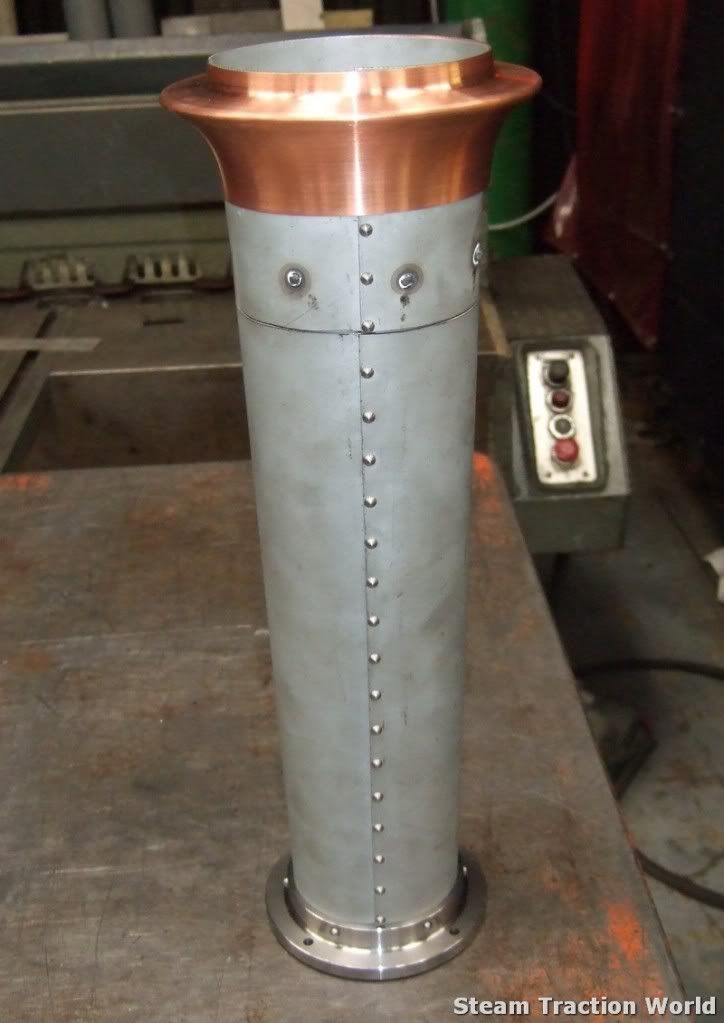

"trial run" chimney put together to prove the sheet metal pattern for laser cutting...



with removable top...



large name ring and smoke box doors following soon Cool

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showman's kit 3

Post  craig@STW on Mon 07 Jun 2010, 1:55 pm

more work done on this kit...

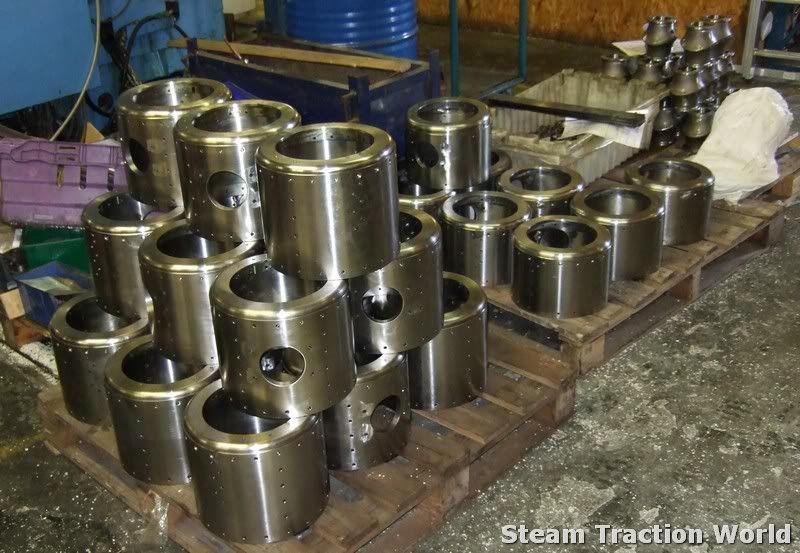

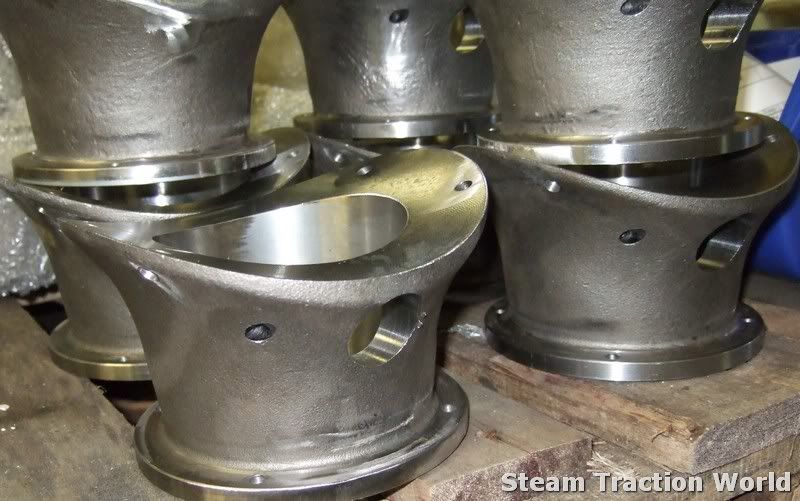

chimney base castings all machined...

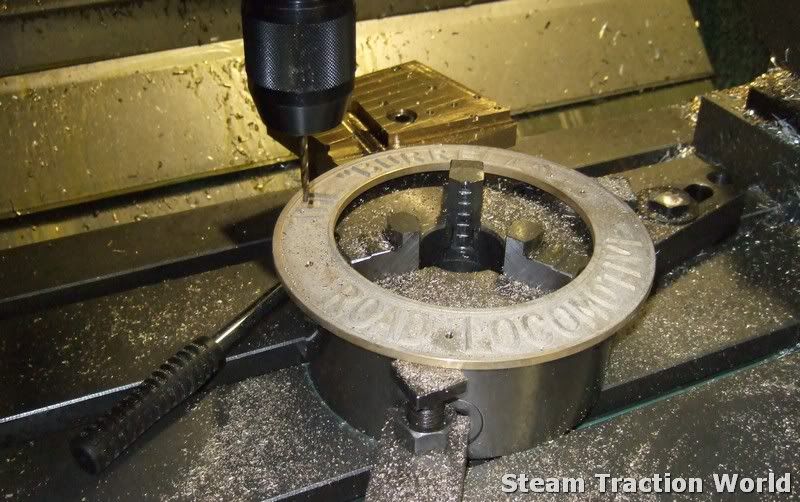

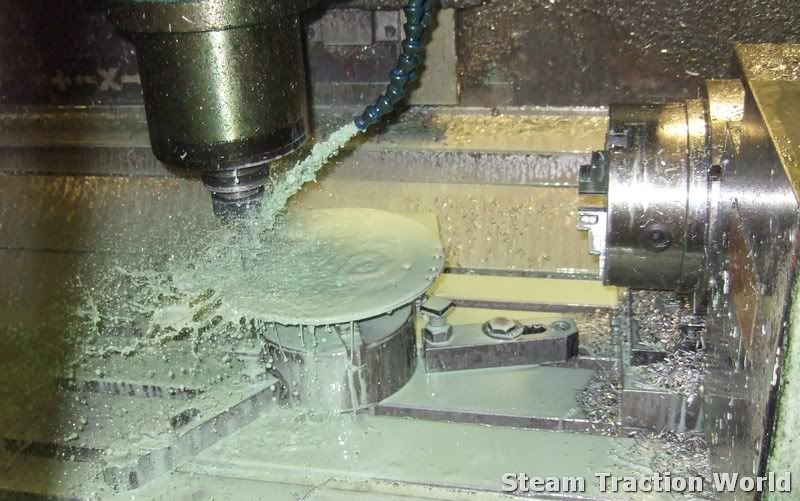

large nameplate on the CNC for drilling...



and the smoke-box door on the CNC for drilling...

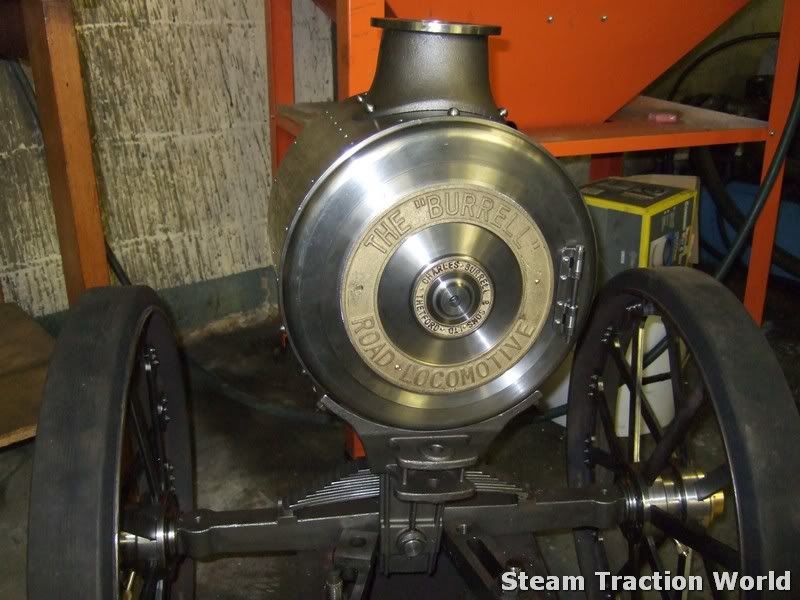

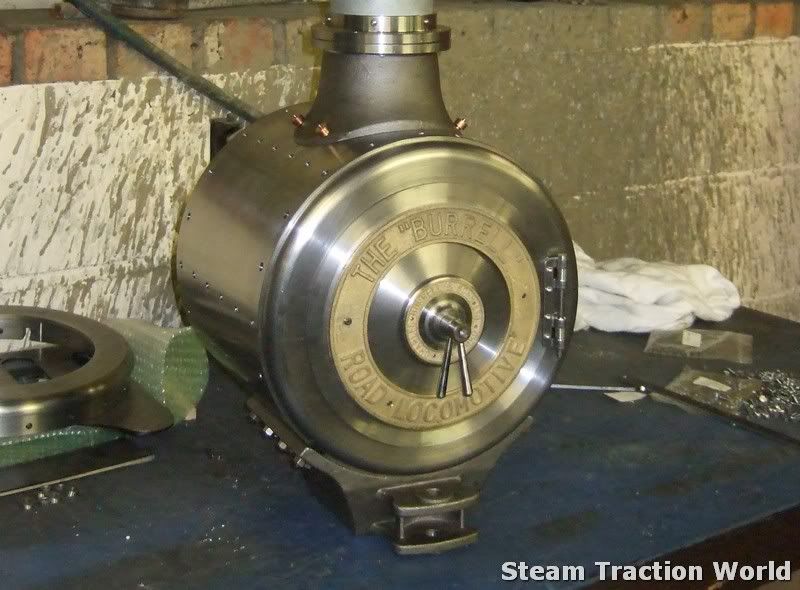

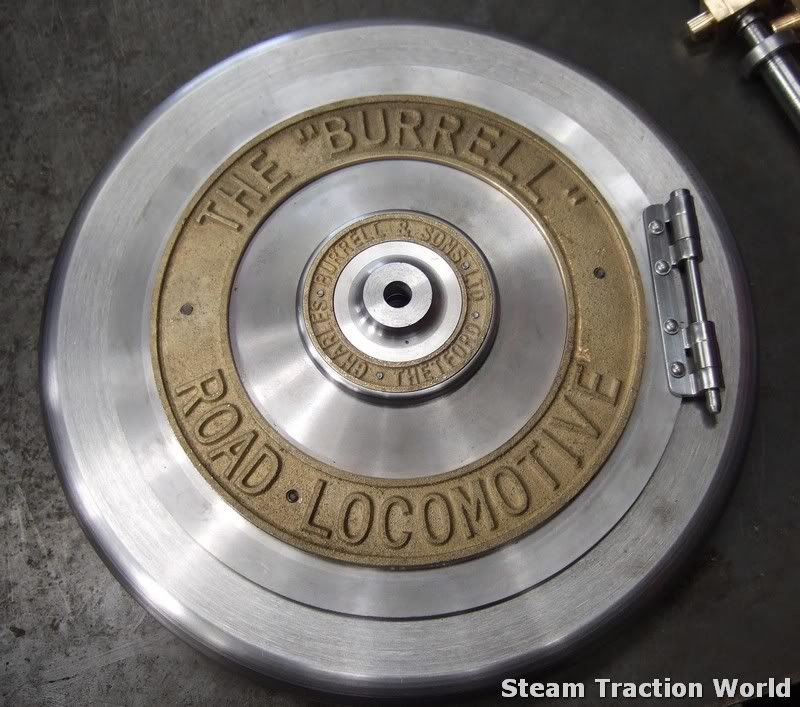

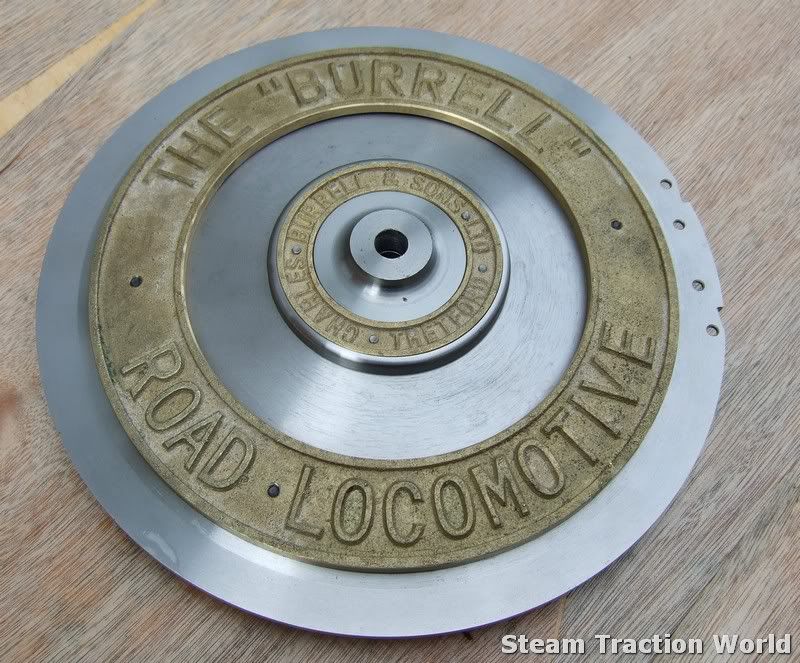

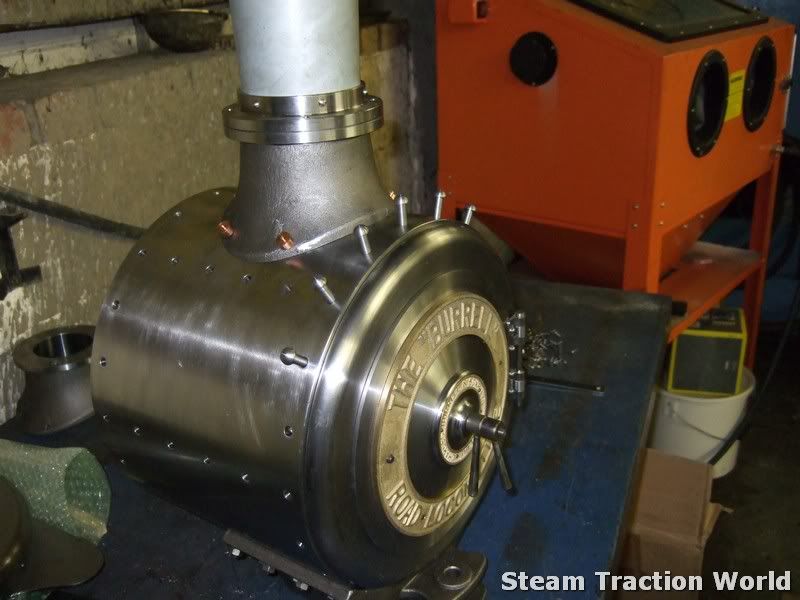

the door so far, complete with large and small name plates and nameplate boss...


craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showman's kit 3

Post  highpressure on Tue 08 Jun 2010, 9:23 am

Now thats starting to look a bit sexy.... Embarassed Embarassed depending on what floats your boat etc but for us "sad flat cap wierdos!" Shocked (not my words!!! but a description from someone dear to me Mad Mad ) its getting quite exciting. Just to allow to plan financially does that mean we might see Kit 3 going out towards the end of this month?? Not trying to push just want to ensure funds are in the right place etc to pay for it, cos work seems to be going along at a pace.

Kev.

highpressure

Number of posts : 1096
Age : 49
Location : West Sussex, 4" DCC Road Loco
Registration date : 2008-06-18

View user profile http://www.simplydigitalaerials.com

Back to top Go down

Re: showman's kit 3

Post  craig@STW on Tue 08 Jun 2010, 10:21 am

yes Kev, we do hope to get kit 3 out at the end of the month (seeing as the last kit really should have gone out late may not early June) and are really doing everything we can to get the bits done that are in so far. we are still waiting for the smoke box material to turn up and the laser cuts for the chimney, but as everything else is just about done, we should have no problem meeting the deadline if the bits turn up. but as always, no 100% promises until im sure we can do it.

good news is, we had the inner rims for the rear wheels arrive today and we are told the outer rim should be with us by the end of the week. Cool

we are very conscious of the recent delays and comments and really do want this to be an enjoyable experience for all involved.

PS: i know what you mean about the "sexy". mini parts and bicycles do it for me Embarassed Embarassed

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showman's kit 3

Post  highpressure on Tue 08 Jun 2010, 10:50 am

Once uopn a time it was mini parts for me too, long centre branch exhausts and water heated inlet manifold with 1 3/4" SU carbs...... drunken Then it was Detroit Pig Iron when I had matured a bit.... Chevvy 350 4 bolt mains blocks and Holley 900cfm carbs with Edelbrock inlets and hedders....... affraid Then I saw the error of my ways and progressed to steam from small scale garden railways to the current line up... But it wont be full size though... too much hassle in transporting, storage, maintainance etc.

Saw a Road Loco at the weekend Lord Nelson which was converted back from a showmans which allowed me to understand the complexity of the hornpaltes and where things go.... Some of the later kits are going to be a real challenge to build and assemble affraid affraid

However it will be worthwhile in the end as it will be a stunning and rare beast at rallies. sadly patience is NOT one of the qualities my wife chose me for... Evil or Very Mad Evil or Very Mad Which just makes it painful at the moment. When we get to the point where the chassis is rolling perhaps early in the new year then I can just sneak off to the garage and sit and gaze at it or even sit on it making chuffing noises Embarassed Embarassed Embarassed

highpressure

Number of posts : 1096
Age : 49
Location : West Sussex, 4" DCC Road Loco
Registration date : 2008-06-18

View user profile http://www.simplydigitalaerials.com

Back to top Go down

Re: showman's kit 3

Post  craig@STW on Wed 16 Jun 2010, 10:31 am

more progress with this kit. the smoke box rings and the door hinges are started/done. the hinge blocks are just prototype ones and we need to make them a little bit longer (you may be able to spot a couple of washers packing them up to the correct height)...


craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showman's kit 3

Post  craig@STW on Sat 19 Jun 2010, 10:11 am

more progress.

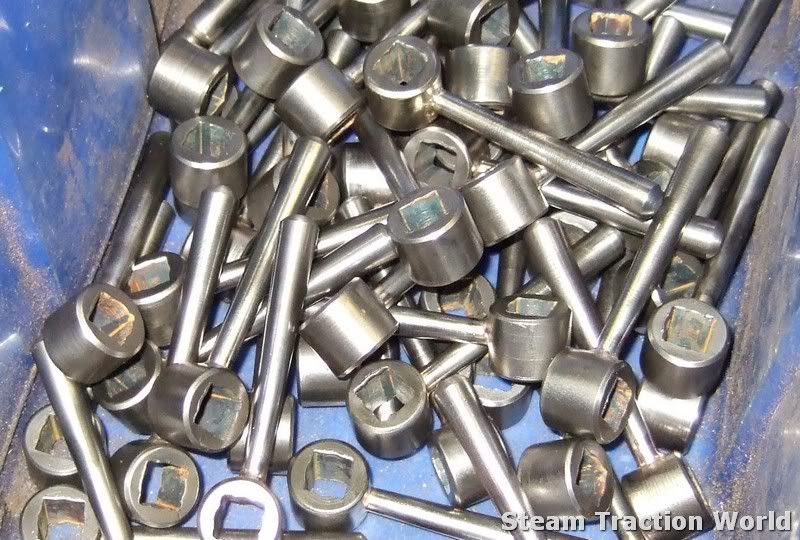

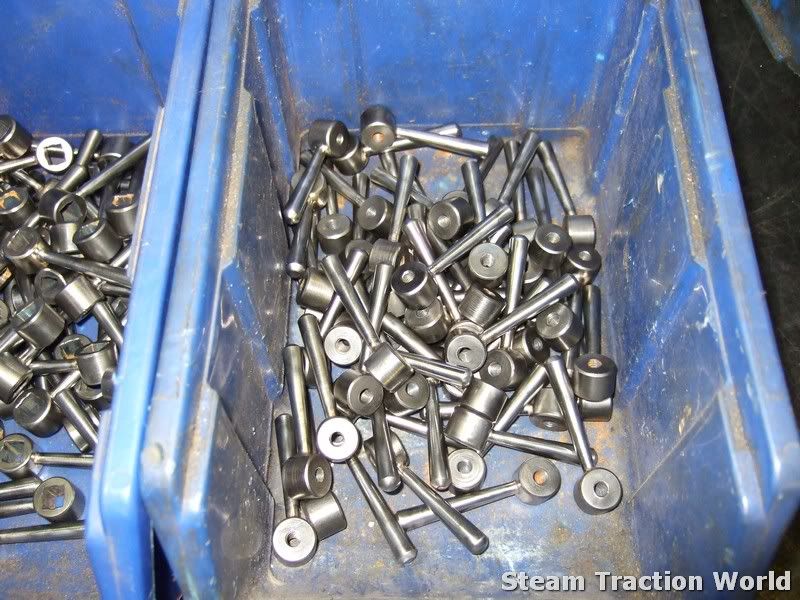

door handles...





and the outstanding laser cuts arrived on Friday...

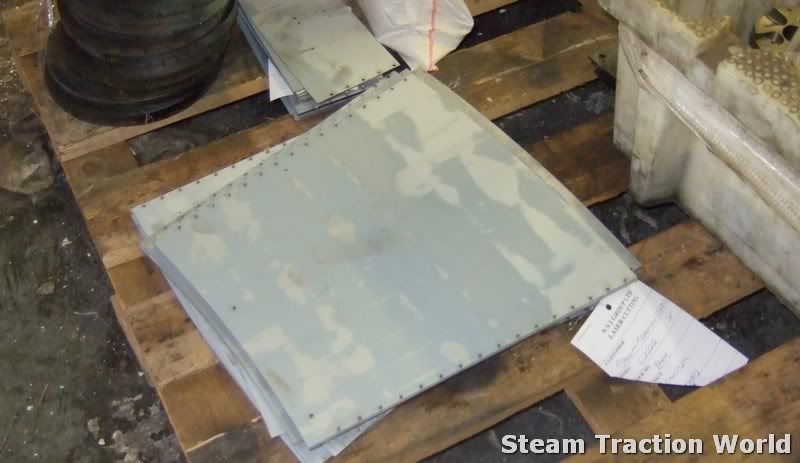

and the smoke-box material has arrived !!!! Cool

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showman's kit 3

Post  craig@STW on Wed 23 Jun 2010, 1:35 pm

very close to getting this finished now cheers

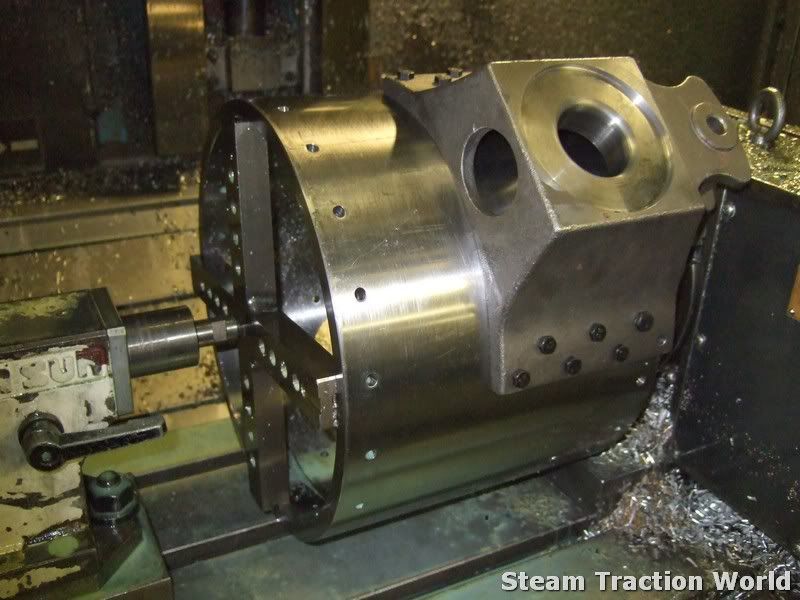

i got the smoke-box on the 4th axis mill today and full production will start in the morning. here's the first one...

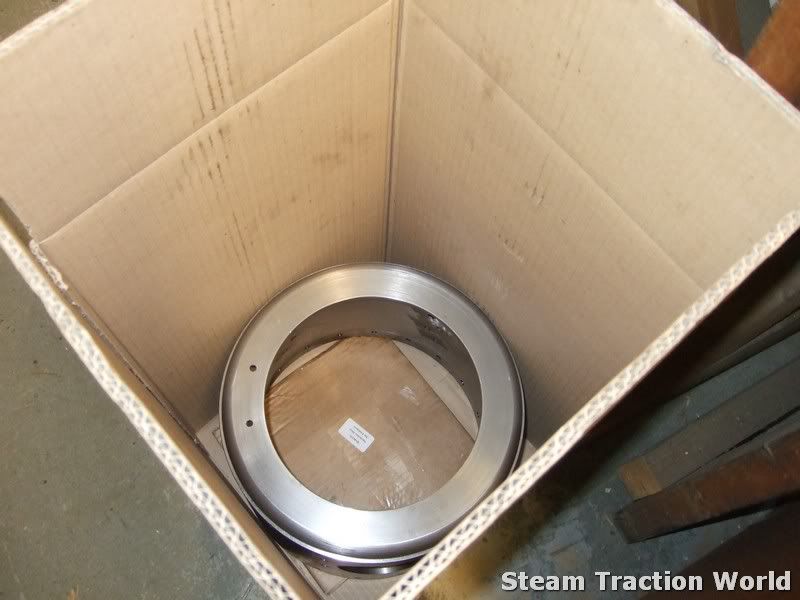

the smoke-boxes will take a while to do so we have plenty of time to finish the last few parts. this includes rolling the chimneys (already started), final "scooping" of the chimney base to match the smoke-box (already started), 2nd op on 1000's of rivets (already started) and wielding the lug on the end of the dart.

can't see this going out this week but it should be done next week Cool


craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showman's kit 3

Post  craig@STW on Fri 25 Jun 2010, 2:01 pm

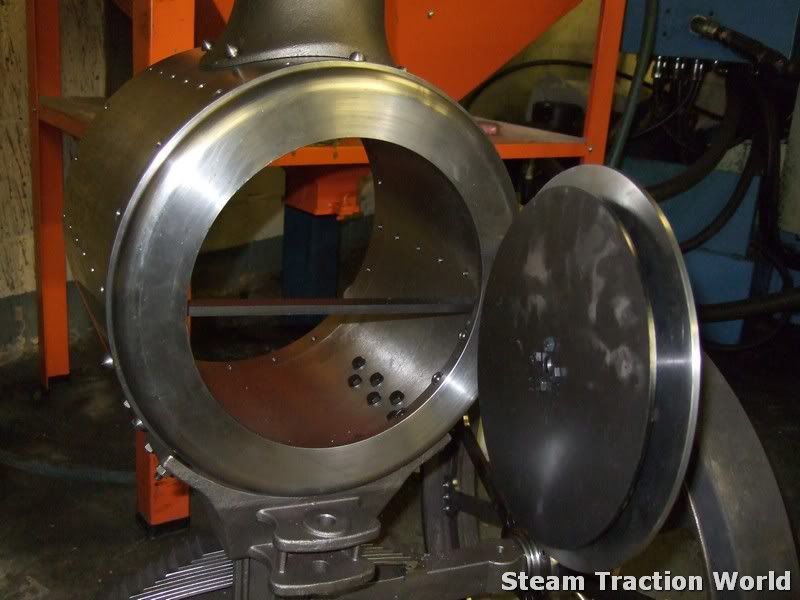

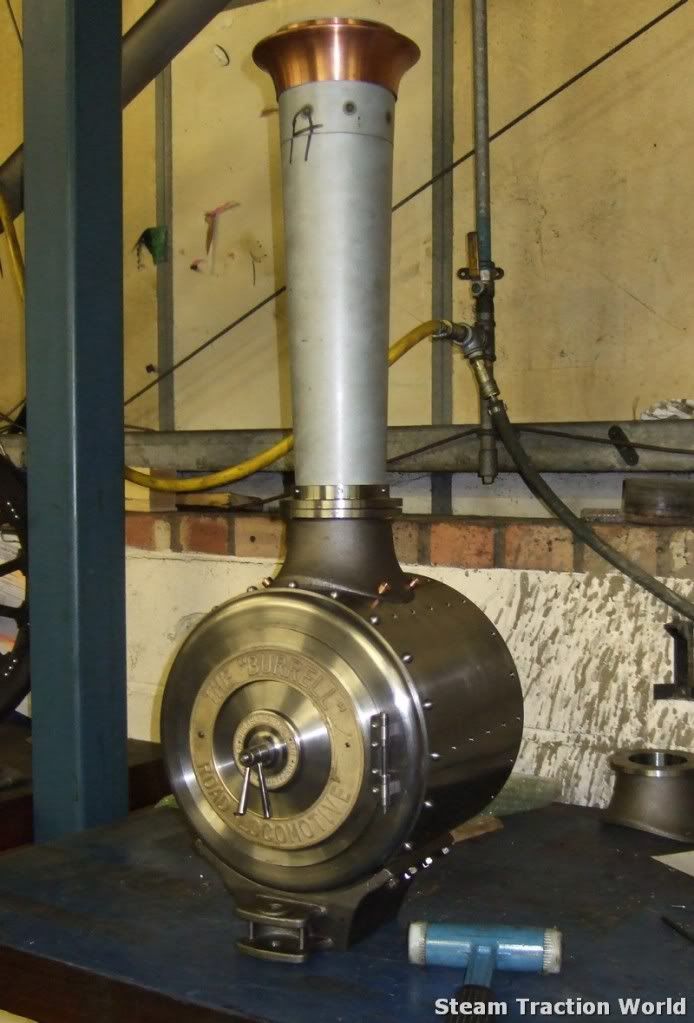

most of the smoke-boxes are done. showman's at the front of the pic and road loco behind. you can also see the chimney bases at the back...

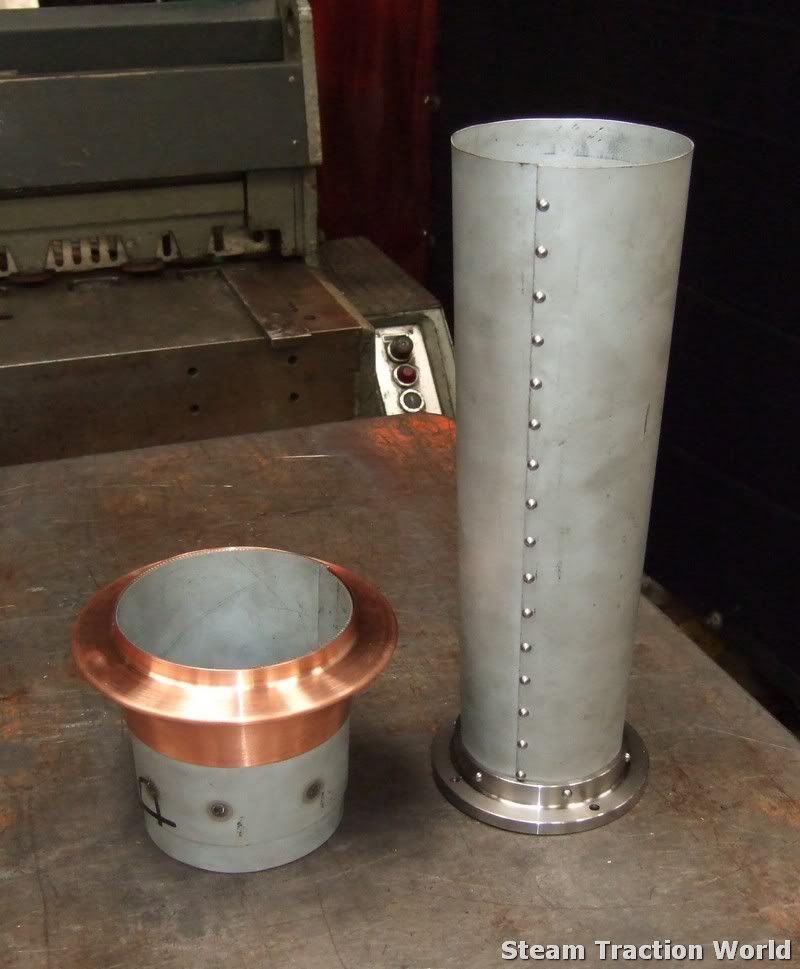

chimneys (or parts of chimneys)...

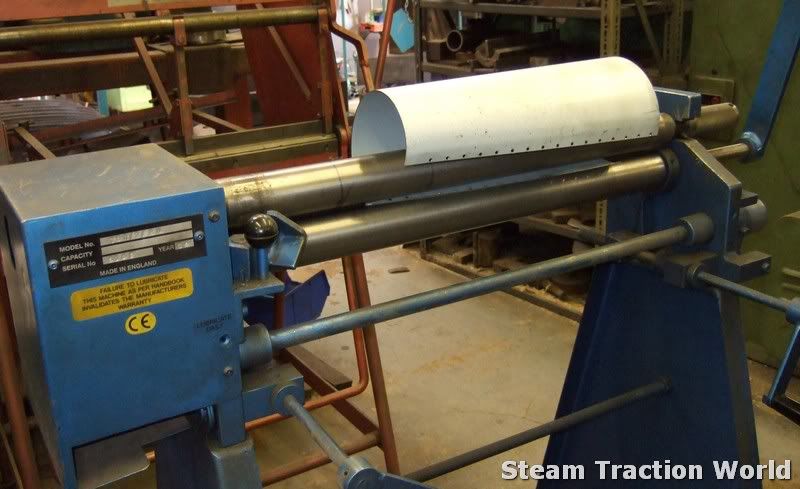

and being rolled...

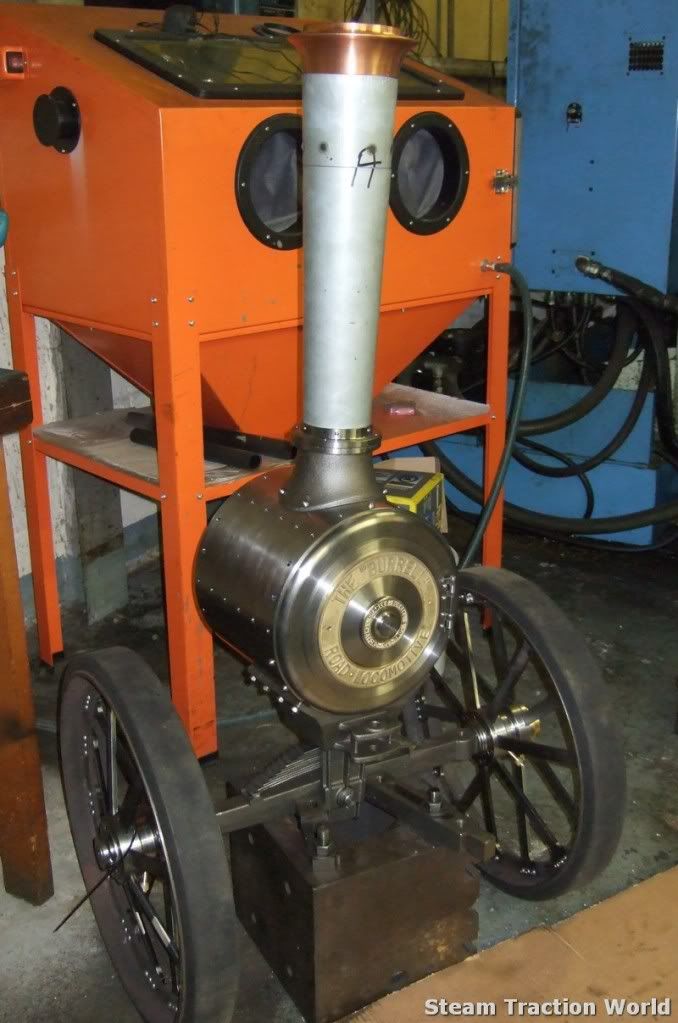

and we mounted the kit on the front axle...






craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showman's kit 3

Post  craig@STW on Tue 29 Jun 2010, 12:05 am

starting to pack this today. just a few chimneys left to roll and some chimney base rings to finish.

this will/needs to go out this week Cool

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showman's kit 3

Post  craig@STW on Tue 29 Jun 2010, 11:32 am

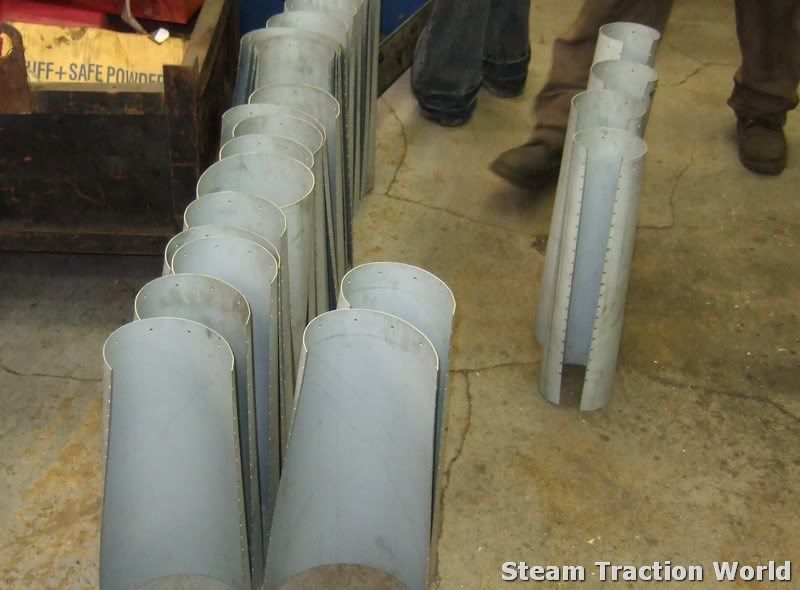

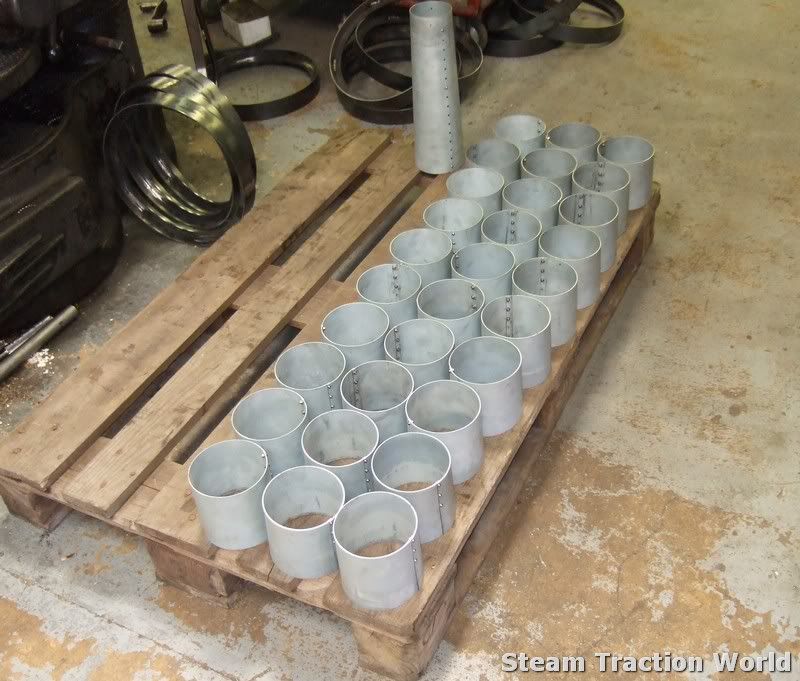

chimneys at various stages of rolling...

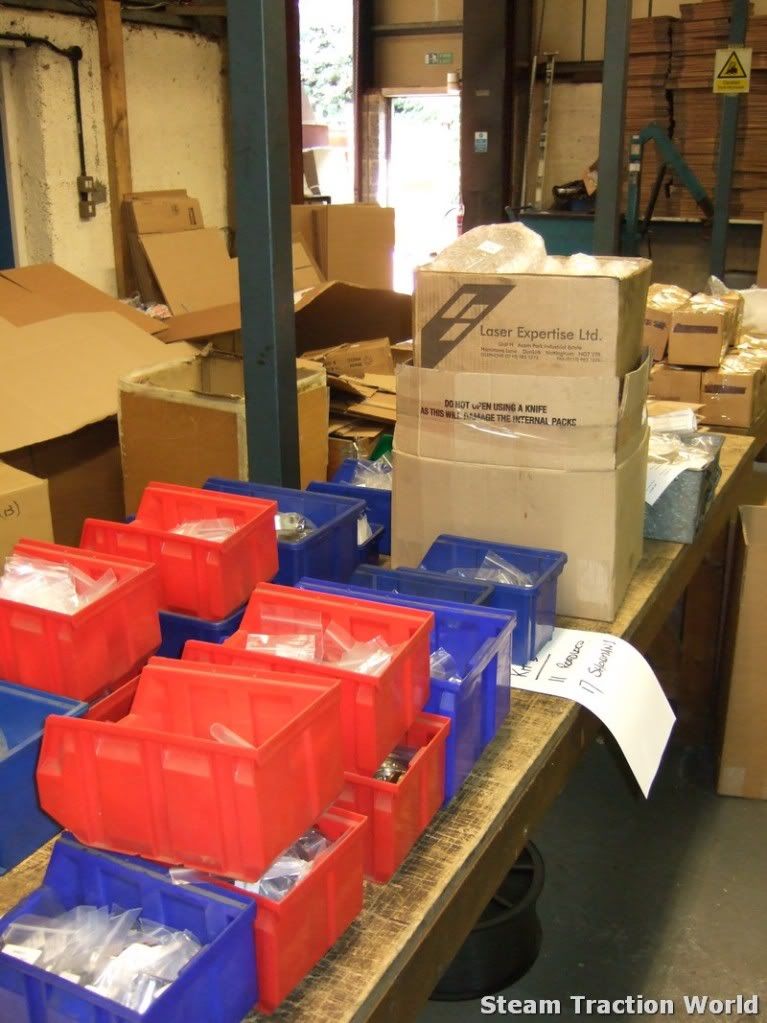

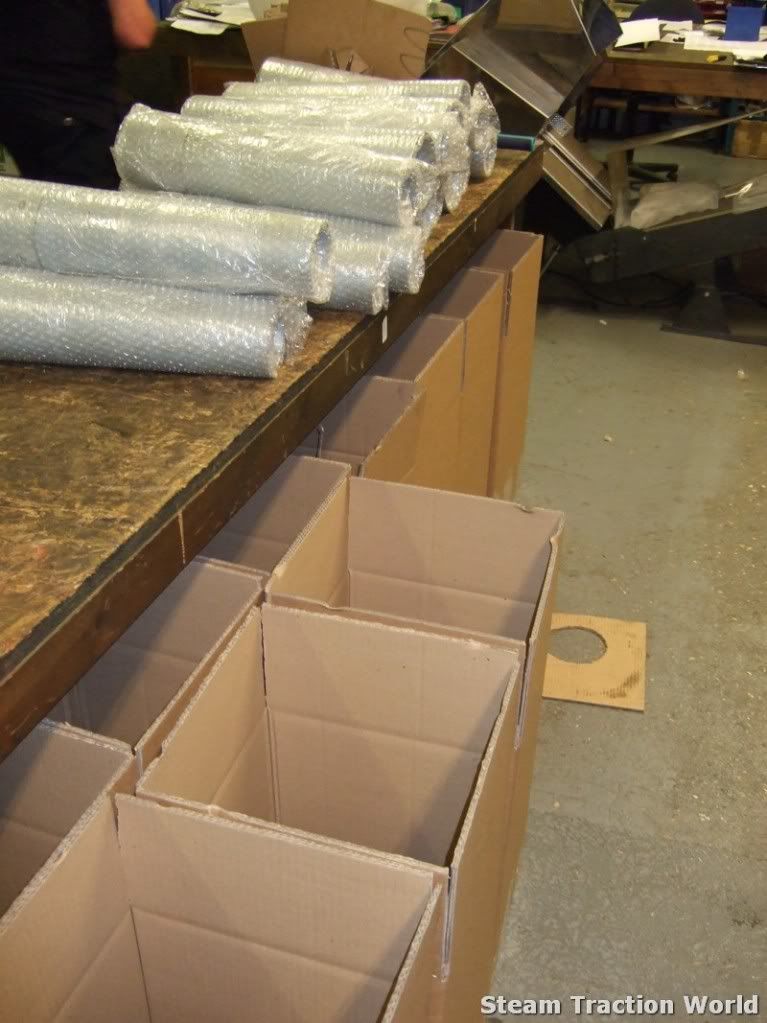

parts "are" going in boxes...



nearly there now, this will be going out Friday.



.

oh yes, work has started on the belly tank kit cheers

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showman's kit 3

Post  highpressure on Tue 29 Jun 2010, 1:53 pm

Does that mean leaving you on Friday or getting to us for Friday? Just that it will be arriving on Monday otherwise, would have been nice to have the weekend to start prepping etc.

highpressure

Number of posts : 1096
Age : 49
Location : West Sussex, 4" DCC Road Loco
Registration date : 2008-06-18

View user profile http://www.simplydigitalaerials.com

Back to top Go down

Re: showman's kit 3

Post  craig@STW on Tue 29 Jun 2010, 11:59 pm

im going to say "leaving us" on friday rather than give you false hope. there is a slight chance it could go tomorrow but it's very very slight.

we are waiting for some longer bolts to mount the perch bracket (don't want a repeat of last month Embarassed ) and these are due in on thursday. if they turn up at 3pm, the kit will be going nowhere till friday.

the chimneys take a long time to "get right" but these should be finished today (wed)

if it don't go friday i'll probably be sacked Rolling Eyes

craig Wink

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showman's kit 3

Post  Keiran02 on Wed 30 Jun 2010, 4:03 am

I must say its all looking good, however will the once's of us Building the showmans be receiving the extras (kit 3a) aswell or will these come at a later date?

Keiran

Keiran02

Number of posts : 4
Location : Workshop usually
Registration date : 2009-12-14

View user profile

Back to top Go down

Re: showman's kit 3

Post  craig@STW on Wed 30 Jun 2010, 4:28 am

no, the extra parts will be done later. i'll have to talk to Steve to find out when.

quick up-date, some of the road-loco kits will be going today and we have been told that the rest of the "long bolts" will be with us at 9 o'clock in the morning so we should be sending all the other kits out Thursday Smile

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showman's kit 3

Post  greystones on Wed 30 Jun 2010, 5:37 am

Just a gentle reminder about the belly tank mounting rivet bolts.

Thanks Mike

greystones

Number of posts : 65
Location : Pickering North Yorkshire
Registration date : 2008-06-16

View user profile http://greystonesholidays.co.uk

Back to top Go down

Re: showman's kit 3

Post  craig@STW on Wed 30 Jun 2010, 6:28 am

greystones wrote:Just a gentle reminder about the belly tank mounting rivet bolts.

Thanks Mike

yep, they are in there as well, thank you mike Cool

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: showman's kit 3

Post  craig@STW on Wed 30 Jun 2010, 6:28 am

bugger... double post Embarassed

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down
