Photo's of 4" Burrell's

Post  Julia on Wed 18 Jun 2008, 8:29 am

To set the ball rolling here are three Burrells


The Burrells of Steve Buzz & Julia at Boconnoc 2007

Julia

Number of posts : 71
Location : South East England
Registration date : 2008-06-17

View user profile

Back to top Go down

Re: Photo's of 4" Burrell's

Post  tef 20 on Thu 19 Jun 2008, 12:43 pm

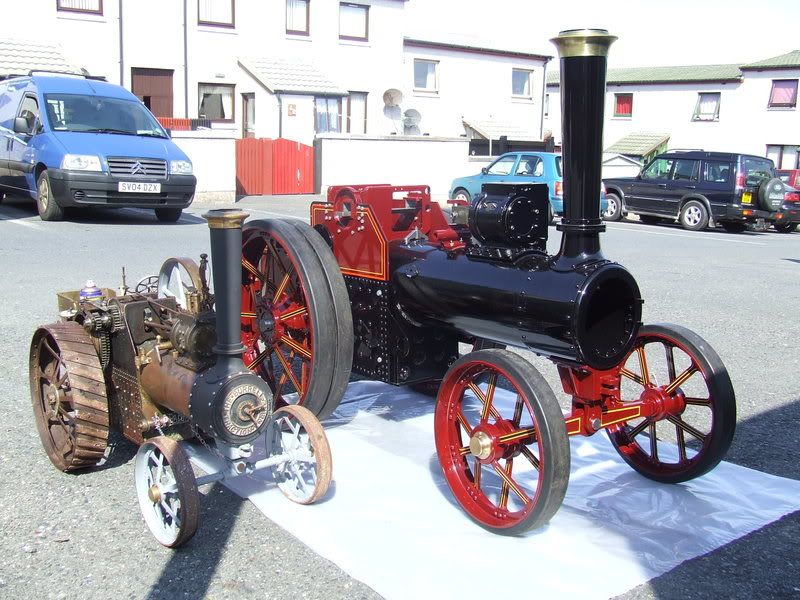

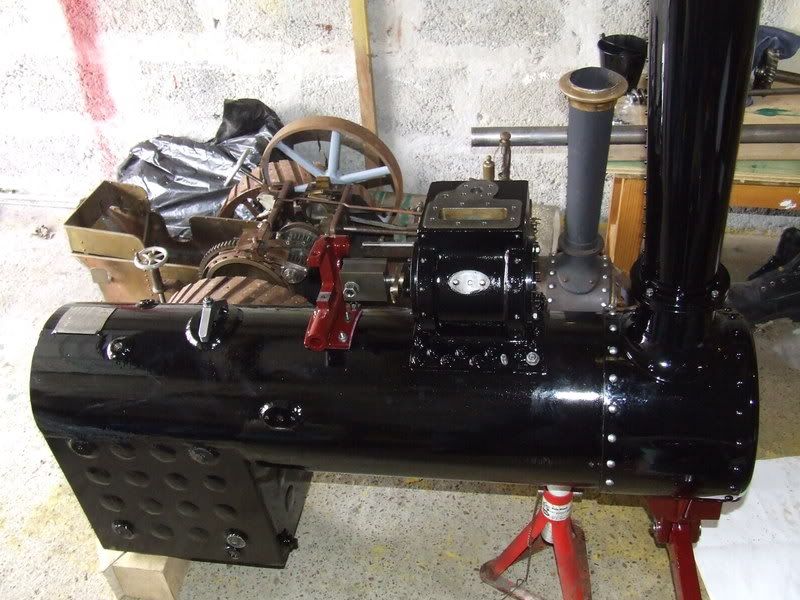

Here is some pictures of my 4" burrell under construction





cheers
mark

tef 20

Number of posts : 142
Location : SHETLAND 4 1/2" foden
Registration date : 2008-06-19

View user profile

Back to top Go down

Re: Photo's of 4" Burrell's

Post  highpressure on Wed 02 Jul 2008, 10:25 am

[img]http://i43.servimg.co[url=http://www.servimg.com/image_preview.php?i=2&u=12632880]m/u/f43/12/63/28/80/100_4110.jpg[/img][/url]

highpressure

Number of posts : 1096
Age : 49
Location : West Sussex, 4" DCC Road Loco
Registration date : 2008-06-18

View user profile http://www.simplydigitalaerials.com

Back to top Go down

Re: Photo's of 4" Burrell's

Post  highpressure on Wed 02 Jul 2008, 10:27 am


highpressure

Number of posts : 1096
Age : 49
Location : West Sussex, 4" DCC Road Loco
Registration date : 2008-06-18

View user profile http://www.simplydigitalaerials.com

Back to top Go down

Preston 29th June 2008

Post  Julia on Thu 03 Jul 2008, 1:18 am


"Little Beastie" at the Preston Rally


Note: I don't believe in polishing my engine whilst at a rally - engine presented in "working clothes"
"Little Beastie" is now nice and clean with a little polish ready to get dirty again at the Dialpost
Rally 5-6th July.

Julia

Number of posts : 71
Location : South East England
Registration date : 2008-06-17

View user profile

Back to top Go down

Burrell Control Model Batch 1

Post  Steam Traction World on Thu 10 Jul 2008, 2:24 pm



I thought it was about time we added a photo. Keep them coming everyone please. It's great to see.

Dean

Steam Traction World

Number of posts : 884
Location : Daventry UK
Registration date : 2008-06-18

View user profile http://www.steamtractionworld.co.uk

Back to top Go down

Re: Photo's of 4" Burrell's

Post  andyfletch on Wed 16 Jul 2008, 1:56 pm

here's a picture of my Burrell "Rufus" at a charity day in Essex


andyfletch

Number of posts : 12
Location : Great Dunmow, Essex
Registration date : 2008-06-21

View user profile

Back to top Go down

Re: Photo's of 4" Burrell's

Post  Steve Traill on Thu 24 Jul 2008, 11:23 am


Steve Traill

Number of posts : 595
Age : 59
Location : Illogan Redruth Cornwall
Registration date : 2008-06-29

View user profile

Back to top Go down

Re: Photo's of 4" Burrell's

Post  Steve Traill on Thu 24 Jul 2008, 11:25 am


Steve Traill

Number of posts : 595
Age : 59
Location : Illogan Redruth Cornwall
Registration date : 2008-06-29

View user profile

Back to top Go down

Burrells at Boconnoc 2008

Post  Steve Traill on Thu 24 Jul 2008, 11:28 am

Heres a couple of 4'' Burrells enjoying the sunshine at Boconnoc this year. The first one (blue) is Buzz's ''Missy'' and the second one is my ''Trelawney''. Both engines performed well over the three days with only a tin of brasso required in the way of maintenance!

Steve Traill

Number of posts : 595
Age : 59
Location : Illogan Redruth Cornwall
Registration date : 2008-06-29

View user profile

Back to top Go down

Re: Photo's of 4" Burrell's

Post  Julia on Tue 19 Aug 2008, 8:14 am


Woodland path at the Weald and Downland Open Air Museum
This path was fun!
Steep in places with hairpin bends



Passing the Saw Mill at the Weald and Downland Open Air Museum

Julia

Number of posts : 71
Location : South East England
Registration date : 2008-06-17

View user profile

Back to top Go down

Water pump accessory

Post  Steve Traill on Fri 12 Sep 2008, 4:29 am


Steve Traill

Number of posts : 595
Age : 59
Location : Illogan Redruth Cornwall
Registration date : 2008-06-29

View user profile

Back to top Go down

Water pump accessory

Post  Steve Traill on Fri 12 Sep 2008, 4:39 am

Mods I've made to stop water hammer

Steve Traill

Number of posts : 595
Age : 59
Location : Illogan Redruth Cornwall
Registration date : 2008-06-29

View user profile

Back to top Go down

Re: Photo's of 4" Burrell's

Post  BUNGLE on Sun 14 Sep 2008, 1:48 pm

HI STEVE, FULL SIZE FOWLER SHOWMANS 'RENOWN' HAS A SIMILAR DEVICE. AS DO OTHERS I GUESS !

REGARDS
BRUCE

BUNGLE

Number of posts : 232
Age : 58
Location : HERTS (2" BURRELL)
Registration date : 2008-06-17

View user profile

Back to top Go down

Re: Photo's of 4" Burrell's

Post  tef 20 on Sun 02 Nov 2008, 6:00 am

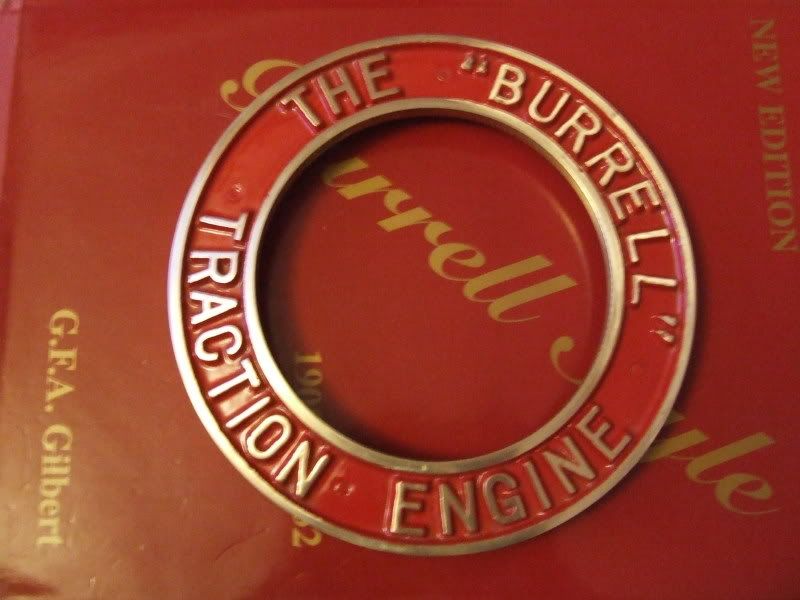

I thought you all might want to see an update as to how my burrell looks now. Its been a lot of hard work but i think its all paying of.






Has anyone got any tips on painting the front name rings and keeping the paint of the letters (apart from being cafefull with a paint brush)

cheers
mark Very Happy

tef 20

Number of posts : 142
Location : SHETLAND 4 1/2" foden
Registration date : 2008-06-19

View user profile

Back to top Go down

Re: Photo's of 4" Burrell's

Post  Julia on Sun 02 Nov 2008, 7:46 am

Mark, I cheated!

I sprayed everything an removed the paint from the letters. The top of my letter were flat and all it took was a rub with fine wet n dry.


Julia

Number of posts : 71
Location : South East England
Registration date : 2008-06-17

View user profile

Back to top Go down

Re: Photo's of 4" Burrell's

Post  tef 20 on Mon 03 Nov 2008, 2:01 pm

Thanks Julia.
I think thats what the previous owner tryed exept it looks like he used something like a screwdriver to scrape the paint of the letters which has resulted in lots of deep scratches which i have been try to wet n dry out but it does'nt seem to be working so i will give it one more go and if it does'nt work i will order a new one.

cheers
mark

tef 20

Number of posts : 142
Location : SHETLAND 4 1/2" foden
Registration date : 2008-06-19

View user profile

Back to top Go down

Re: Photo's of 4" Burrell's

Post  tef 20 on Sun 30 Nov 2008, 10:37 am

I got all the deep scratches out Cool and resprayed it the same way as Julia and it works very well a lot better than trying to brush paint between the letters.
Thanks again Julia Cool




cheers
mark

tef 20

Number of posts : 142
Location : SHETLAND 4 1/2" foden
Registration date : 2008-06-19

View user profile

Back to top Go down

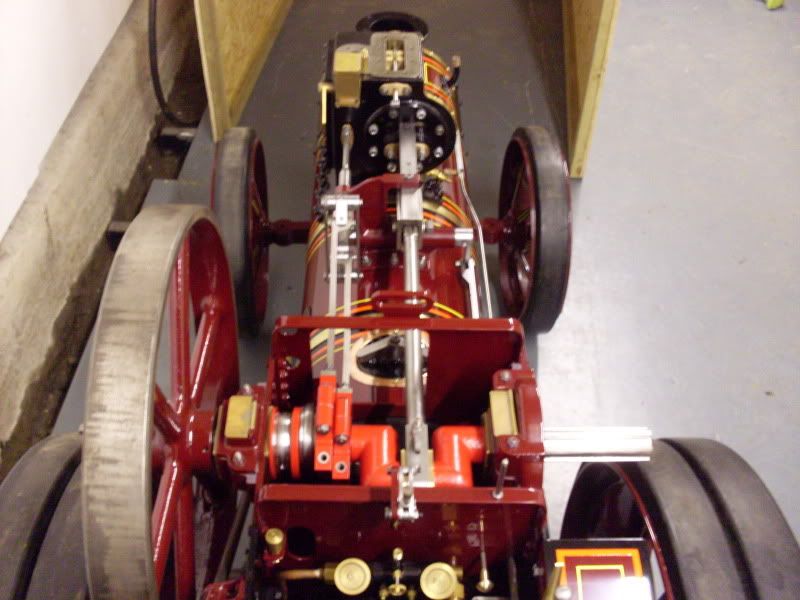

Completed Burrell updated pictures

Post  highpressure on Fri 10 Apr 2009, 9:22 am

Hi All,

I thought I would share the photos of my newly completed 4" which was delivered to me on Wedsnesday the 8th. It has been succesfully steamed by me alone and drives very well, all the relevant paperwork was also present and the postie even delivered the NTET disc from Walker Midgely as the engine was unloaded.

A word of warning though, I would think very carefully about this route before embarking on it due to a number of reasons not least of which is the loss of the building experience and the fact that I can no longer hold my head high and say yes when people ask if I built it. Also I dont feel I can say that its is an STW or Modelworks version as it is neither. It is however very pleasing to be finished.

The first is the engine on the road the second is my little man enjoying the ride and finally me including the MW trailer I bought and completed two years ago in anticipation.






highpressure

Number of posts : 1096
Age : 49
Location : West Sussex, 4" DCC Road Loco
Registration date : 2008-06-18

View user profile http://www.simplydigitalaerials.com

Back to top Go down

Re: Photo's of 4" Burrell's

Post  Waterways on Sun 06 Sep 2009, 9:32 am

MY BURRELL 4" TO DATE
url=http://www.servimg.com/image_preview.php?i=2&u=14326058][/url]

Waterways

Number of posts : 93
Location : Bedford (Burrell 4" 2nd batch)
Registration date : 2008-06-25

View user profile http://www.waterways-direct.com

Back to top Go down

Re: Photo's of 4" Burrell's

Post  tef 20 on Fri 27 Nov 2009, 7:33 am

Here is a picture of how my burrell is looking as of yesterday Very Happy Hows yours coming on waterways?









Mark

tef 20

Number of posts : 142
Location : SHETLAND 4 1/2" foden
Registration date : 2008-06-19

View user profile

Back to top Go down

Re: Photo's of 4" Burrell's

Post  Waterways on Fri 27 Nov 2009, 11:56 am

Hi Mark

Nickel plated motion gear + other bits which turned out better than expected and have been painting cleading, gear guards and gears now on second top coat and starting to get a good shine. spent most of the day today polishing and chamfering parts.

Keith

Waterways

Number of posts : 93
Location : Bedford (Burrell 4" 2nd batch)
Registration date : 2008-06-25

View user profile http://www.waterways-direct.com

Back to top Go down

Re: Photo's of 4" Burrell's

Post  tef 20 on Sat 28 Nov 2009, 3:26 am

Any pictures? plus any pictures of the nickel plated items?? I should of done this on my engine as these parts are rusting quickly with the Shetland air!!
Did you use that nickel plating kit that Steve and Dean recomend in the instructions?

Mark

tef 20

Number of posts : 142
Location : SHETLAND 4 1/2" foden
Registration date : 2008-06-19

View user profile

Back to top Go down

Re: Photo's of 4" Burrell's

Post  Waterways on Sun 29 Nov 2009, 12:01 am

I Nickel plated the parts using caswell (caswelleurope.co.uk) electroless plating kit which was a Christmas presentat. All the parts were cleaned with sulphuric battery acid + 10% distilled water. The only drawback to this is the quantity it will do as i had to buy more chemicals (80) to do everything i need, i may try the electro plating on the showmans as it does about 50 times more surface area but you have to be carefull about shadowing and is a bit more complicated. No pics as yet engine in pieces just trying to decied how to do the lining probaly 2 lines but not sure what width.
Keith

Waterways

Number of posts : 93
Location : Bedford (Burrell 4" 2nd batch)
Registration date : 2008-06-25

View user profile http://www.waterways-direct.com

Back to top Go down

Lining & Nickel plating

Post  Tim Watson on Sun 29 Nov 2009, 1:30 am

The width of full size lining should, in theory, be 1" black, 3/8" red, 1" maroon (or the engine body colour) and 1/8" yellow for Burrell TE's at full size. The SRLs had the added complication of gold leaf. In certain situations you would need to squeeze these dimensions a little. I think the important thing is to have the yellow line significantly narrower than the red to get the correct colur balance. Many exposed edges on engines were painted black. This was for the simple reason that it is is easier to touch in black paint when it has worn or been chipped than it is a body colour.

I used the recommneded electroplating system and had good results. I used it on the bits of the engine that were either the wrong colour or prone to rust: e.g. the outer name ring, hub caps, reversing pole catch handle & fairleads for the winch. I did not plate the motion as I prefer the natural steel colour.

Tim

Tim Watson

Number of posts : 531
Location : Herts
Registration date : 2008-07-02

View user profile

Back to top Go down
