CLACK VAVLE/PUMP HANDLES

Post  BUNGLE on Wed 20 Jan 2010, 2:26 pm

JUST GOT SOME 'OVERDUE/FINISHING' PARTS, IN WHICH ARE TWO CLACK VAVLE/PUMP HANDLES. NOW I KNOW WE'VE GONE METRIC, ETC, ETC. SINCE I WENT TO SCHOOL, BUT TWO CLACK VALVES, AND ONE PUMP STILL ADD UP TO THREE I'AM SURE !!!!!!!!!!!! lol!

ANYWAY COMMENTS GUYS !! lol!

STAY OUT THE PUB, OR GET A CALCULATOR !!! lol!

BUNGLE

BUNGLE

Number of posts : 232
Age : 58
Location : HERTS (2" BURRELL)
Registration date : 2008-06-17

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  Waterways on Wed 20 Jan 2010, 4:14 pm

Hi

you only get two handles one permantly fits on the pump pointing downwards and the other shared between the clack valves as these are not normally shut off.

Keith

Waterways

Number of posts : 93
Location : Bedford (Burrell 4" 2nd batch)
Registration date : 2008-06-25

View user profile http://www.waterways-direct.com

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  Big Al on Wed 20 Jan 2010, 11:11 pm

Keith

That will be as per the instructions that came with them wont it? Very Happy

Bungle, In my old job there was a phrase 'RTFI' which relates to reading instructions, I'll let you fill in the missing words !

Too much time in the pub mate

cheers

Al

Big Al

Number of posts : 147
Age : 62
Location : Oxford, England (2" Burrell)
Registration date : 2008-06-18

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  hughb on Thu 21 Jan 2010, 11:56 am

Hi
I got two .But did think it was ment to be 3 .I can not get to the engine at the mo .
I am shaw it will get sawted out

hughb

Number of posts : 575
Age : 46
Location : hertfordshire
Registration date : 2009-03-13

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  Tim Watson on Fri 22 Jan 2010, 12:54 pm

It's not advisable to have the handles on the clacks permanently as little Johnny can come along and turn them off. This is not a good idea as on the pump side a closed off clack will put a lot of strain on the hornplate as the pump works against an obstruction. It's also useful to file a line into the square shouldered head to indicate their condition i.e. a line at 90 deg to the boiler shows that they are open.

You therefore only need one handle on the water pump and the other can live in the tool box.
Tim

Tim Watson

Number of posts : 529
Location : Herts
Registration date : 2008-07-02

View user profile

Back to top Go down

Clack valve handles

Post  Steve Traill on Fri 22 Jan 2010, 3:11 pm

Totally agree with Tim on this one, one engine I know (no names to protect the innocent) left the handle on and 'little Johny' turned it off and when the engine was being driven later & the water pump turned on there was a bang and he was left with a bent hornplate and a mangled waterpump bearing! Water is not in the least squishy so steel bends before water compresses.

Steve Traill

Number of posts : 595
Age : 59
Location : Illogan Redruth Cornwall
Registration date : 2008-06-29

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  BUNGLE on Fri 22 Jan 2010, 3:36 pm

HI TIM AND STEVE, YES I HAD ALREADY DECIDED TO LEAVE THEM OFF, MOST FULL SIZE DON'T USE THEM, JUST THOUGHT WE MIGHT GET ONE FOR EACH. I HAVE NOW HAD CHANCE TO LOOK AT THE PAPERWORK WHICH MENTIONS ONLY ONE.

REGARDS
BUNGLE

BUNGLE

Number of posts : 232
Age : 58
Location : HERTS (2" BURRELL)
Registration date : 2008-06-17

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  LilyJack on Sat 23 Jan 2010, 5:09 am

Bungle ya handsome devil you Cool
Well now THAT made for some interesting reading and have taken notes on this one and yup, I can see where you're all coming from regarding steel bending before water compresses etc.

Hope you're all well. Roll on pay day Very Happy

LilyJack Cool

LilyJack

Number of posts : 236
Location : UK
Registration date : 2009-04-01

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  hughb on Sat 23 Jan 2010, 9:07 am

LilyJack wrote:Bungle ya handsome devil you Cool


LilyJack Cool
Hi guys
Now that is nice ..BUT what do you call me ????? HUM I have been to the show and at some pics put up your
LilyJack cam pics for you .


Last edited by hughb on Mon 25 Jan 2010, 6:14 am; edited 1 time in total

hughb

Number of posts : 575
Age : 46
Location : hertfordshire
Registration date : 2009-03-13

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  northburrell on Mon 25 Jan 2010, 5:44 am

They dont really fit is all i've noticed! Or will saying this get me in trouble again!

J

northburrell

Number of posts : 197
Location : edinburgh
Registration date : 2008-10-15

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  hughb on Mon 25 Jan 2010, 6:16 am

Hi Giys

Yes they do not fit .I did try my big shed hammer bounce but not good. affraid ..Steve says just file out till they fit

hughb

Number of posts : 575
Age : 46
Location : hertfordshire
Registration date : 2009-03-13

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  northburrell on Mon 25 Jan 2010, 6:20 am

I have filed out one to so it push fits the square but found the corners are very close to the edge of the brass and it has started to crack.

hmmmm.

northburrell

Number of posts : 197
Location : edinburgh
Registration date : 2008-10-15

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  hughb on Mon 25 Jan 2010, 6:24 am

northburrell wrote:I have filed out one to so it push fits the square but found the corners are very close to the edge of the brass and it has started to crack.

hmmmm.

Ho Bugger I will see what I can find out .

hughb

Number of posts : 575
Age : 46
Location : hertfordshire
Registration date : 2009-03-13

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  northburrell on Mon 25 Jan 2010, 6:38 am

hughb wrote:
northburrell wrote:I have filed out one to so it push fits the square but found the corners are very close to the edge of the brass and it has started to crack.

hmmmm.

Ho Bugger I will see what I can find out .

the pump handle could be silver soldered on if they do start to crack but then it's on for good!

I'm not too fussed about the other handle I'll be using it as a spare for the pump as you'll never really need to shut the clacks off and a spanner is the best bet for this.

northburrell

Number of posts : 197
Location : edinburgh
Registration date : 2008-10-15

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  hughb on Mon 25 Jan 2010, 6:41 am

Hi
Ok I am going to the shop soon ..Thanks for the heads up

hughb

Number of posts : 575
Age : 46
Location : hertfordshire
Registration date : 2009-03-13

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  Steam Traction World on Tue 26 Jan 2010, 9:19 am

Hi Guys,

Not had chance to look at the handles yet but will do my best to tomorrow.

Assuming that they can't be opened out slightly, isn't it an option just to hand file the four flats on each of the stainless steel valve cocks and the water lifter bypass slightly smaller so they fit? This way it would leave sufficient wall thickness on the cast handle. Sounds like as it was lost wax cast they're has been a shrinkage problem.

Dean

Steam Traction World

Number of posts : 884
Location : Daventry UK
Registration date : 2008-06-18

View user profile http://www.steamtractionworld.co.uk

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  hughb on Wed 27 Jan 2010, 8:03 am

Hi Guys

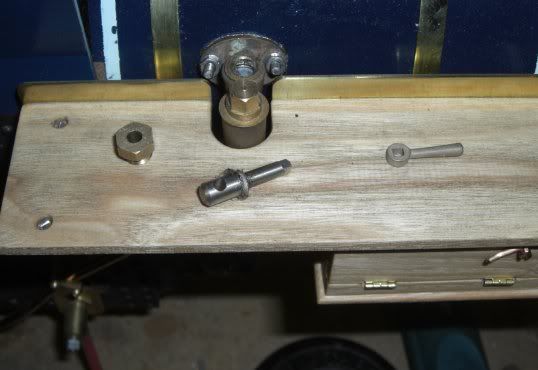

Sorry not been on for a bit . After all the INFO I went for the pins and filed them down.
I did try it on the engine at first but if I sliped then well you know .

So pulled them out and did it in the vice.

I think that this is a better way but what do you guys think??

hughb

Number of posts : 575
Age : 46
Location : hertfordshire
Registration date : 2009-03-13

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  LilyJack on Mon 01 Feb 2010, 2:12 pm

I'm not at this stage quite yet but I'll comment on this one, is this shrinkage problem with the castings going to be rectified at all?

Regards

LilyJack Cool

LilyJack

Number of posts : 236
Location : UK
Registration date : 2009-04-01

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  Steam Traction World on Tue 02 Feb 2010, 12:54 am

Hi Alan,

I've put a set together and really don't think that there is a problem. There is some shrinkage on the handle which makes the square in the handle the same size as the square on the cock. Under normal circumstances we'd ask customers to gently file out the square on the handle a little, the problem with this is it leaves the wall thickness too thin, therefore it is better to file the flats on the cock to suit. That's what i did and it really was a two minute job with no more than a flat file.

Hope that helps.

Dean

Steam Traction World

Number of posts : 884
Location : Daventry UK
Registration date : 2008-06-18

View user profile http://www.steamtractionworld.co.uk

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  LilyJack on Tue 02 Feb 2010, 4:53 am

Yup, cheers for looking into it for me. Happy with that answer.

Regards,

LilyJack Cool

LilyJack

Number of posts : 236
Location : UK
Registration date : 2009-04-01

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  hughb on Tue 02 Feb 2010, 12:41 pm

Hi Lilyjack

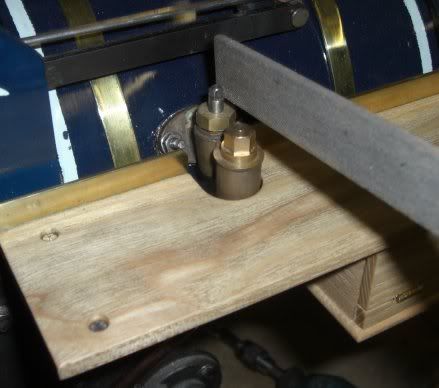

As you can see I filed down the vavles .You can try a big hammer but it may not work. Sad

hughb

Number of posts : 575
Age : 46
Location : hertfordshire
Registration date : 2009-03-13

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  northburrell on Wed 03 Feb 2010, 10:58 am

Yes this is the best way to do it.. I threw one of mine away, by opening out the brass casting just made it split at the corners.. i've filed my square on the valve on the pump and got the other one to fit now..
Very Happy
Thanks

Jo

northburrell

Number of posts : 197
Location : edinburgh
Registration date : 2008-10-15

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  Steam Traction World on Thu 04 Feb 2010, 7:05 am

Jo,

Do you need a replacement sending for the one you binned?

Dean

Steam Traction World

Number of posts : 884
Location : Daventry UK
Registration date : 2008-06-18

View user profile http://www.steamtractionworld.co.uk

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES

Post  northburrell on Fri 05 Feb 2010, 4:12 am

Hi Dean,

If thats not too much trouble that would be good. just to have a spare for the pump really just in case.

I will probably just use a spanner on the clack valves if I need to close them at any point. I have the one on my pump fitted so thats the main one that I need.

I'll be sending back the spare outer diff bevels you sent me to try out over the next week or so i'm just finalising my gears at the moment fitment wise. I ended up using the outer diff that had not had the teeth made smaller. I found that it meshed nicely with my drive gear so I'll be using it..

I'll send you a mail once I have sent them back to you..

Cheers
Jo

northburrell

Number of posts : 197
Location : edinburgh
Registration date : 2008-10-15

View user profile

Back to top Go down

Re: CLACK VAVLE/PUMP HANDLES
