Post  Waterways on Fri 08 Jan 2010, 2:16 am

Hi

On the gear changer bracket where should the M5 hole be for the grub screw to retain the shaft.

Keith

Waterways

Number of posts : 93
Location : Bedford (Burrell 4" 2nd batch)
Registration date : 2008-06-25

View user profile http://www.waterways-direct.com

Back to top Go down

Re: burrell 4" Kit 22

Post  tef 20 on Fri 08 Jan 2010, 10:22 am

Just put mine in the other day and it is on the right hand side under where the shaft goes into the gear change bracket i am sure there is a iso in the instructions? if you need any pictures of certain set up just ask.


Mark

tef 20

Number of posts : 142
Location : SHETLAND 4 1/2" foden
Registration date : 2008-06-19

View user profile

Back to top Go down

Re: burrell 4" Kit 22

Post  Waterways on Fri 08 Jan 2010, 4:28 pm

There is no hole shown on the iso and mine is missing on the bracket so need to drill one.

Keith

Waterways

Number of posts : 93
Location : Bedford (Burrell 4" 2nd batch)
Registration date : 2008-06-25

View user profile http://www.waterways-direct.com

Back to top Go down

Re: burrell 4" Kit 22

Post  tef 20 on Sat 09 Jan 2010, 9:50 am

I wonder how they managed to leave out the hole maybe a one off!

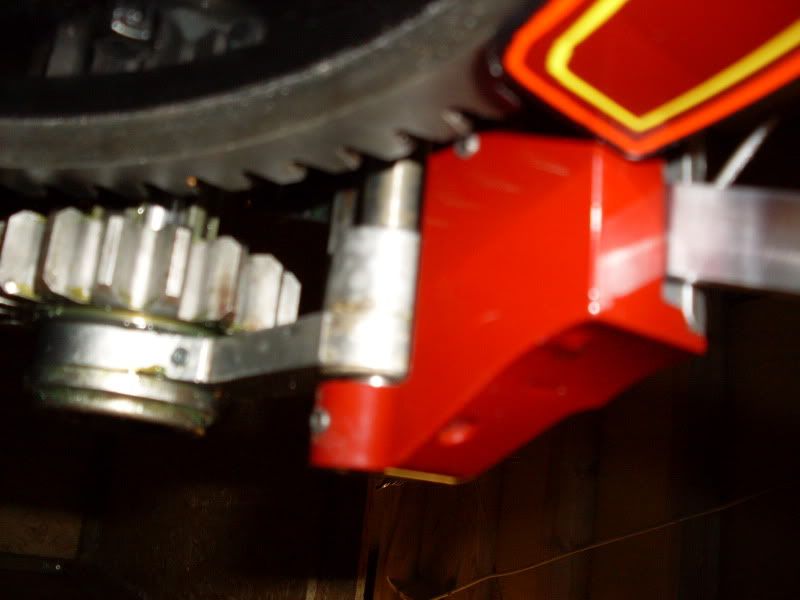

Here is a picture of the grub screw although the pictures to very good it will give you an idea of what i was saying.






Mark

tef 20

Number of posts : 142
Location : SHETLAND 4 1/2" foden
Registration date : 2008-06-19

View user profile

Back to top Go down

Re: burrell 4" Kit 22

Post  Waterways on Sat 09 Jan 2010, 11:34 pm

Thanks mark

now drilled an tapped

Keith

Waterways

Number of posts : 93
Location : Bedford (Burrell 4" 2nd batch)
Registration date : 2008-06-25

View user profile http://www.waterways-direct.com

Back to top Go down

Re: burrell 4" Kit 22

Post  Steam Traction World on Tue 12 Jan 2010, 9:40 am

Hi Guys,

Looks like we've made a cock up. The original batch were a fabrication which we changed to a lost wax casting to improve the appearance. In the process of the design change for the casting it looks like the M5 thread to lock the shaft with a grub screw was missed.

The following options are available:

1. Return the part and we will drill and tap it.
2. Drill and tap a hole to lock the shaft in place. (M4 or M5 or there equivalent will be fine)
3. Instead of tapping and locking with a grub screw. Loctite the shaft in position with a bearing grade loctite.

Sorry for the error.

Dean

Steam Traction World

Number of posts : 886
Location : Daventry UK
Registration date : 2008-06-18

View user profile http://www.steamtractionworld.co.uk
