Foden boiler on CNC

Post  miller on Mon 10 Aug 2009, 1:29 pm

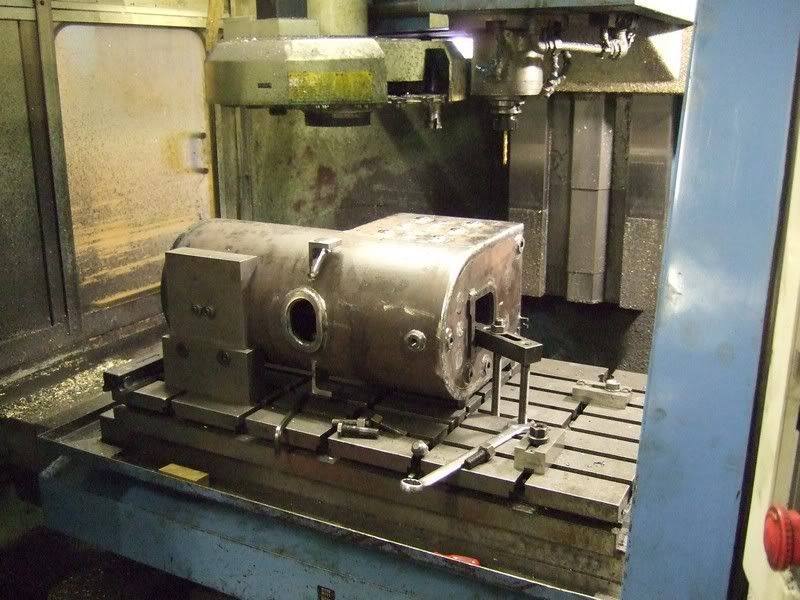

just a quick pic of the foden boiler on the CNC...

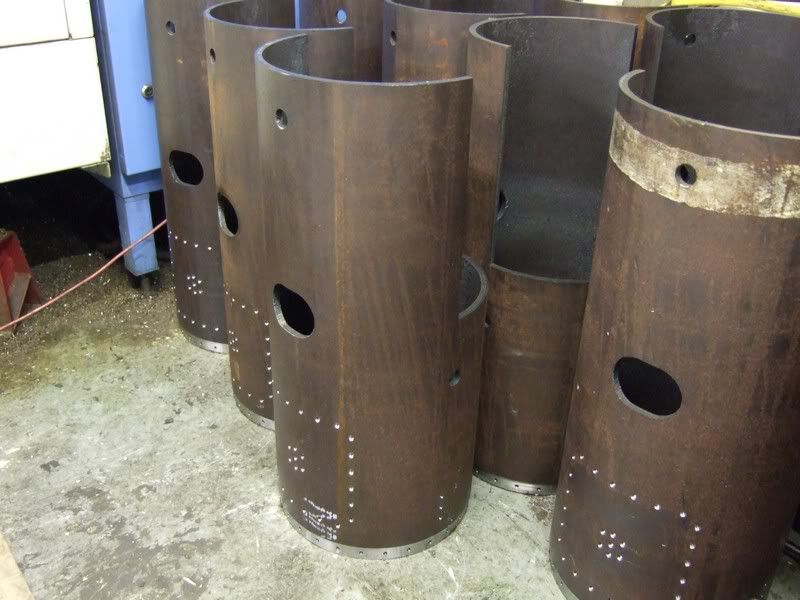

you can see that the boiler barrels are pre-machined before the boilers are welded up...

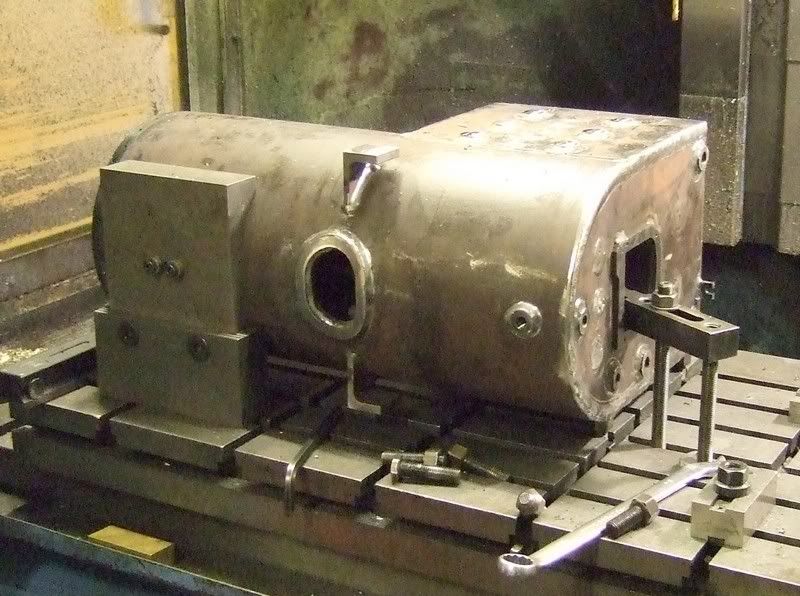

using these pre drilled holes, a cradle is mounted in the position of the cylinder. this then fits into a Jig that is bolted to the table, setting the boiler up nice and square. using the cradle as a reference point the mounting lugs are machined and drilled and everything comes out nice and accurate.



in many ways, this is done manually and takes a good bit of time, but then who wants to rush when you realise how much one boiler costs to make.

and they still need turning over for the other side to be done pale

Craig

miller

Number of posts : 270
Location : STW
Registration date : 2008-06-16

View user profile

Back to top Go down

Re: Foden boiler on CNC

Post  hughb on Wed 19 Aug 2009, 1:29 pm

Looking good well done guys Very Happy Cool

hughb

Number of posts : 575
Age : 46
Location : hertfordshire
Registration date : 2009-03-13

View user profile

Back to top Go down

Re: Foden boiler on CNC

Post  miller on Mon 18 Jan 2010, 10:18 am

next batch of foden and 4inch burrell boilers ready for pressure testing...


miller

Number of posts : 270
Location : STW
Registration date : 2008-06-16

View user profile

Back to top Go down

Re: Foden boiler on CNC

Post  Vapor on Tue 19 Jan 2010, 1:10 am

Nice photos keep em comming Craig, I can see my name on one of them boilers cheers

Vapor

Number of posts : 375
Age : 106
Location : Isle of Wight (2" Burrell & 5" Duchess ex MW)
Registration date : 2008-06-18

View user profile

Back to top Go down

Foden Boilers??

Post  thehawk on Tue 19 Jan 2010, 11:17 am

With respect to the last photo showing the boilers all connected up for pressure testing, they look remarkably like Burrell 4inch boilers - compare them with the other pictures?? Rolling Eyes

regards,

Paul

thehawk

Number of posts : 45
Location : Templecombe (4 inch Burrell)
Registration date : 2008-06-21

View user profile

Back to top Go down

Foden Boilers??

Post  thehawk on Tue 19 Jan 2010, 11:22 am

Hang on a minute I've just seen the Foden ones in the background - duh! I'll book an eye test!

Paul Embarassed

thehawk

Number of posts : 45
Location : Templecombe (4 inch Burrell)
Registration date : 2008-06-21

View user profile
