4 inch Burrell Differential

Post  miller on Mon 10 Aug 2009, 1:17 pm

although most of this kit will be bought in gears the main part, the compensating centre, requires some complex machining.

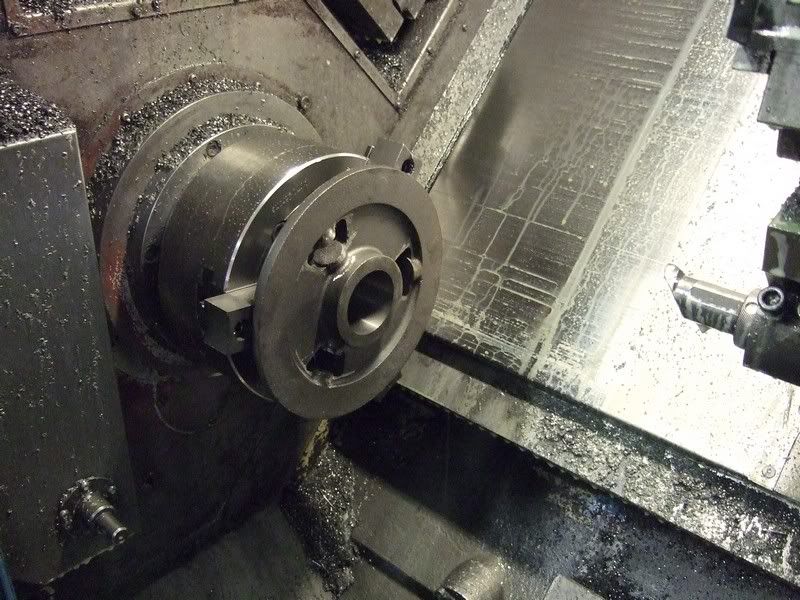

first of all the castings were turned, front and back, on the lathe...



and now the complex stuff begins, but only really complex in the sense that all the machining has to be lined up "very" accurately with the casting.

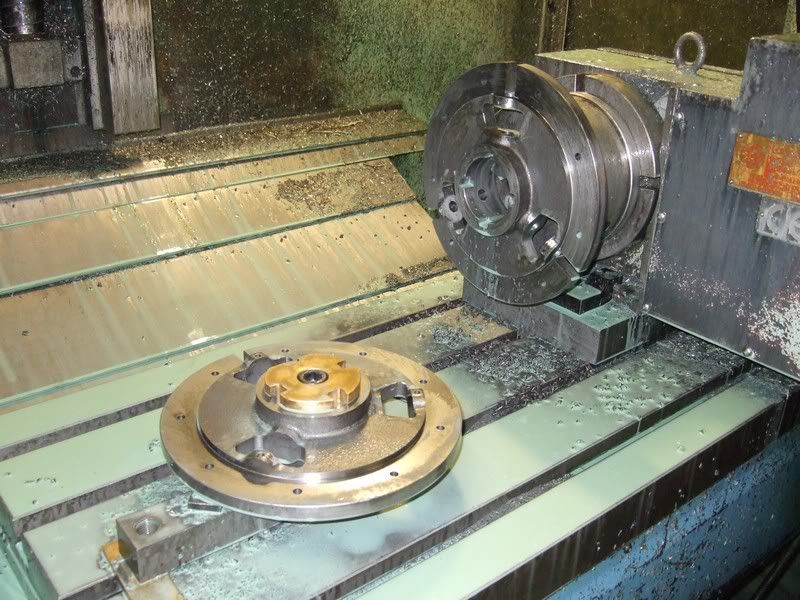

here you can see both milling ops being done at the same time, taking around 25 minutes in total...



the first op is lying down on the bed and then the second op is in the 4th axis.

miller

Number of posts : 270
Location : STW
Registration date : 2008-06-16

View user profile

Back to top Go down

Re: 4 inch Burrell Differential

Post  miller on Mon 10 Aug 2009, 1:20 pm

we are currently working flat out on this kit to get it done as soon as possible, I'll post more pics as it comes together.

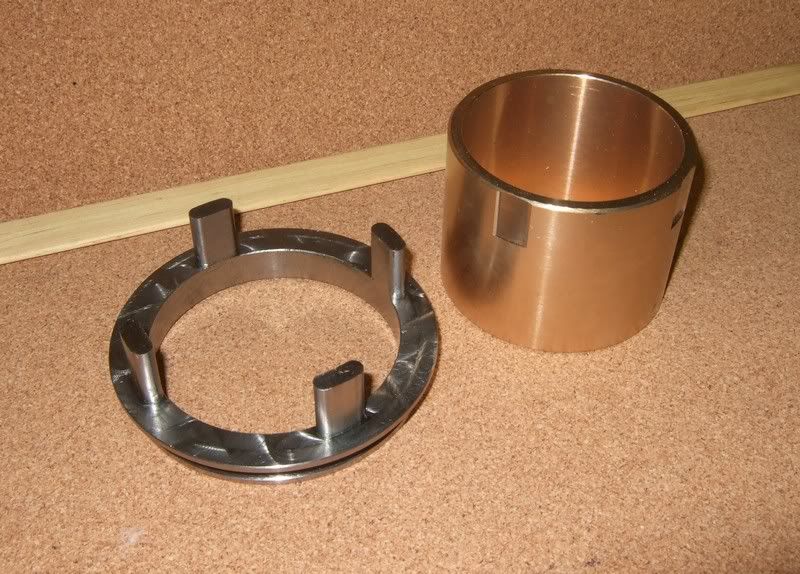

here's, the locking ring and main bush...


miller

Number of posts : 270
Location : STW
Registration date : 2008-06-16

View user profile

Back to top Go down

Re: 4 inch Burrell Differential

Post  miller on Thu 03 Sep 2009, 1:11 pm

this kit was finally finished.

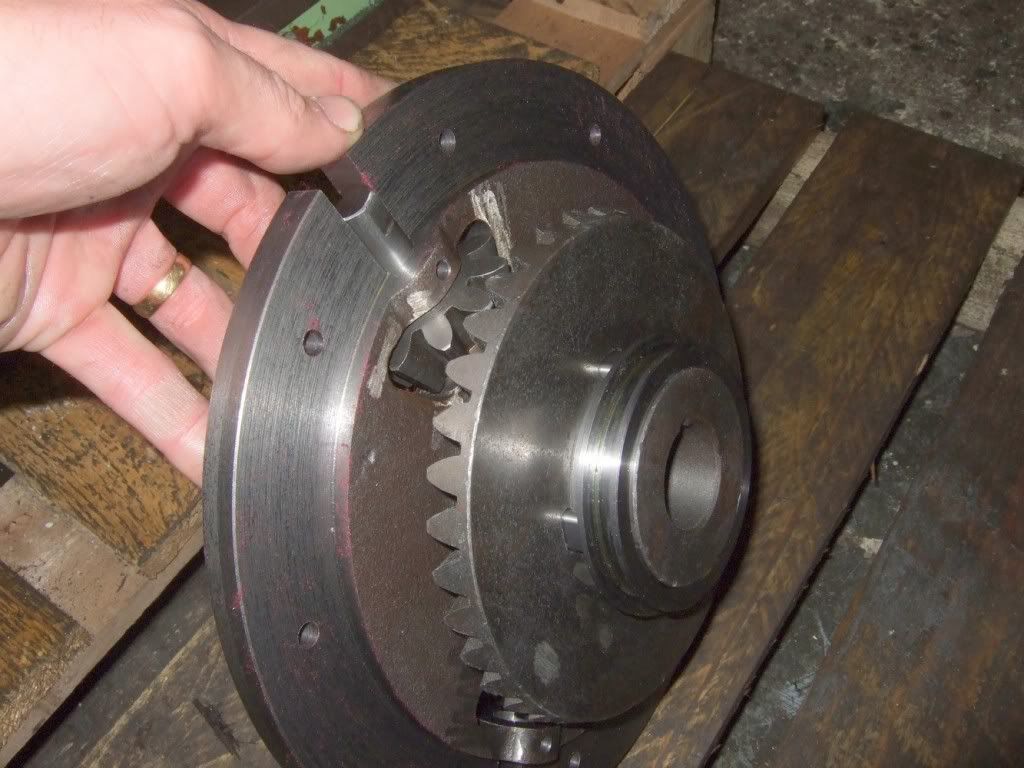

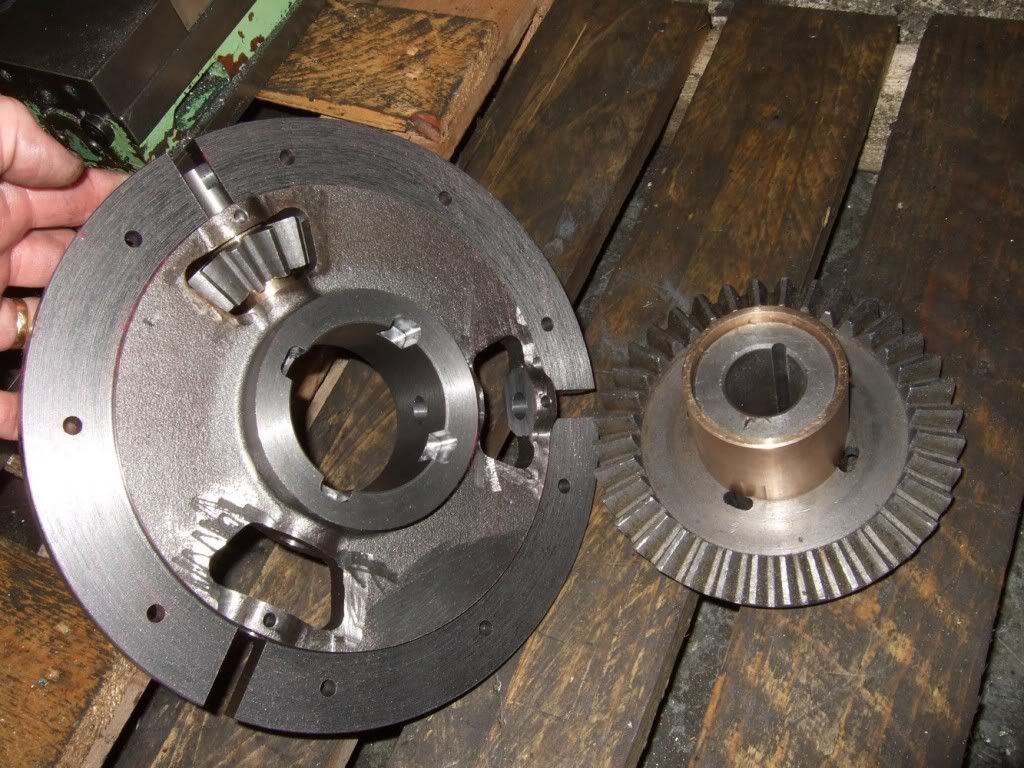

a few more pics of the diff for you....
