2 inch burrell gear change mechanism

Post  miller on Mon 10 Aug 2009, 1:08 pm

the next part for the 2 inch burrel is the gear change mechanism...

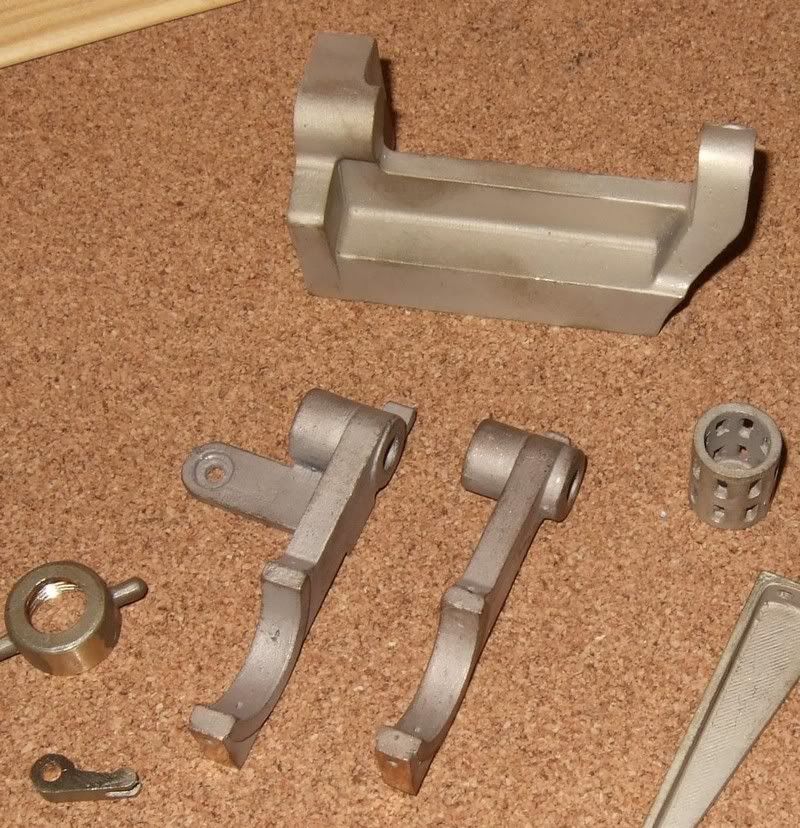

some of the castings arrived with the governor bodies...

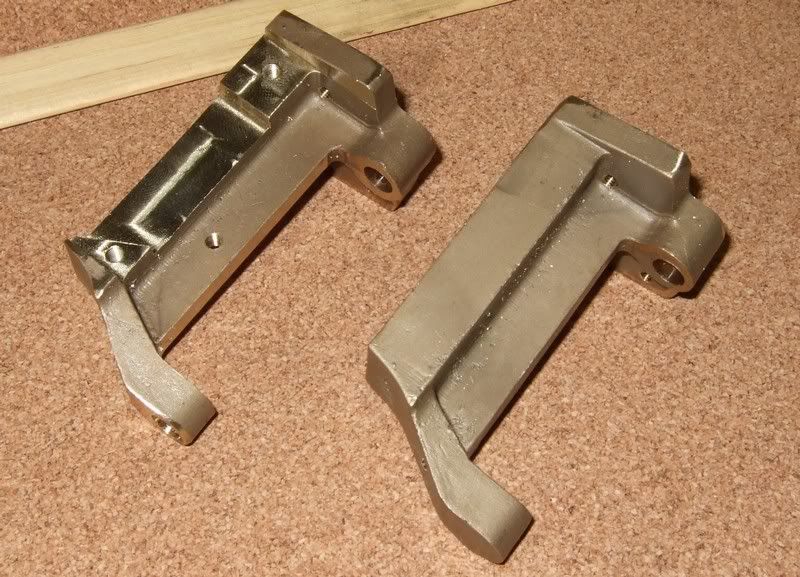

we have started with the main bracket so everything else can be checked for a good fit...




this is going to be another complicated kit Sad

Craig What a Face

miller

Number of posts : 270
Location : STW
Registration date : 2008-06-16

View user profile

Back to top Go down

Re: 2 inch burrell gear change mechanism

Post  hughb on Sat 15 Aug 2009, 1:00 pm

Hi Thanks
For this But I still not got to my engine at the mo Crying or Very sad .But I have been reading the kits Shocked
good looking carstings Laughing

hughb

Number of posts : 575
Age : 46
Location : hertfordshire
Registration date : 2009-03-13

View user profile

Back to top Go down

Re: 2 inch burrell gear change mechanism

Post  TonyT on Tue 18 Aug 2009, 6:36 am

castings are looking great guys...but what about the diff and gears,they do seem to be way off schedule.

Tony Neutral

TonyT

Number of posts : 134
Age : 48
Location : Truro,Cornwall. (2" Burrell)
Registration date : 2008-06-17

View user profile

Back to top Go down

Re: 2 inch burrell gear change mechanism

Post  Steam Traction World on Tue 18 Aug 2009, 9:04 am

Hi Tony,

The diff and gear kit is just about ready. We have one drilling operation to do and then it can be despatched, so you'll be getting two kits this month.

Regards

Dean

Steam Traction World

Number of posts : 886
Location : Daventry UK
Registration date : 2008-06-18

View user profile http://www.steamtractionworld.co.uk

Back to top Go down

Re: 2 inch burrell gear change mechanism

Post  TonyT on Tue 18 Aug 2009, 12:34 pm

Great news Dean,better see if there's any overtime at work!!!

TonyT

Number of posts : 134
Age : 48
Location : Truro,Cornwall. (2" Burrell)
Registration date : 2008-06-17

View user profile

Back to top Go down

Re: 2 inch burrell gear change mechanism

Post  hughb on Wed 19 Aug 2009, 1:28 pm

Ok Can some one tell me what is going on ??????
Lost all the posts

hughb

Number of posts : 575
Age : 46
Location : hertfordshire
Registration date : 2009-03-13

View user profile

Back to top Go down

Re: 2 inch burrell gear change mechanism

Post  miller on Thu 03 Sep 2009, 1:04 pm

well we have made progress with this kit, in fact it's all but finished now. i think we are just waiting for the handles to be silver soldered on the main lever.

a few more pics for you...

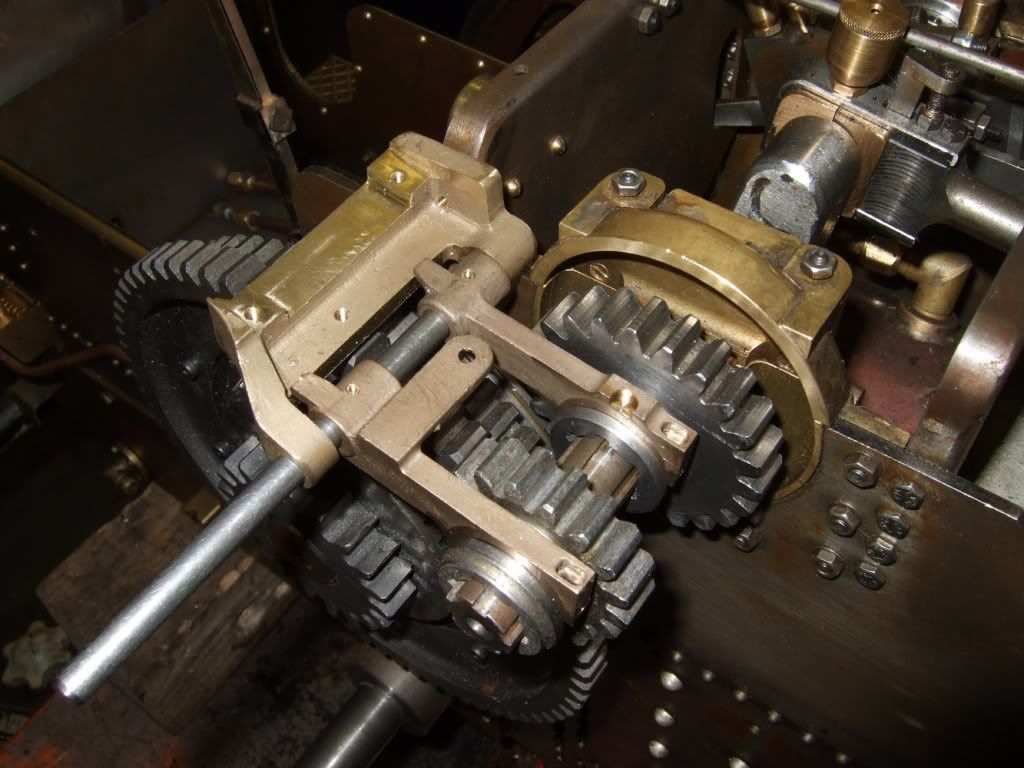

this is the main bracket fitted to the control model, with the two "arm" castings in place

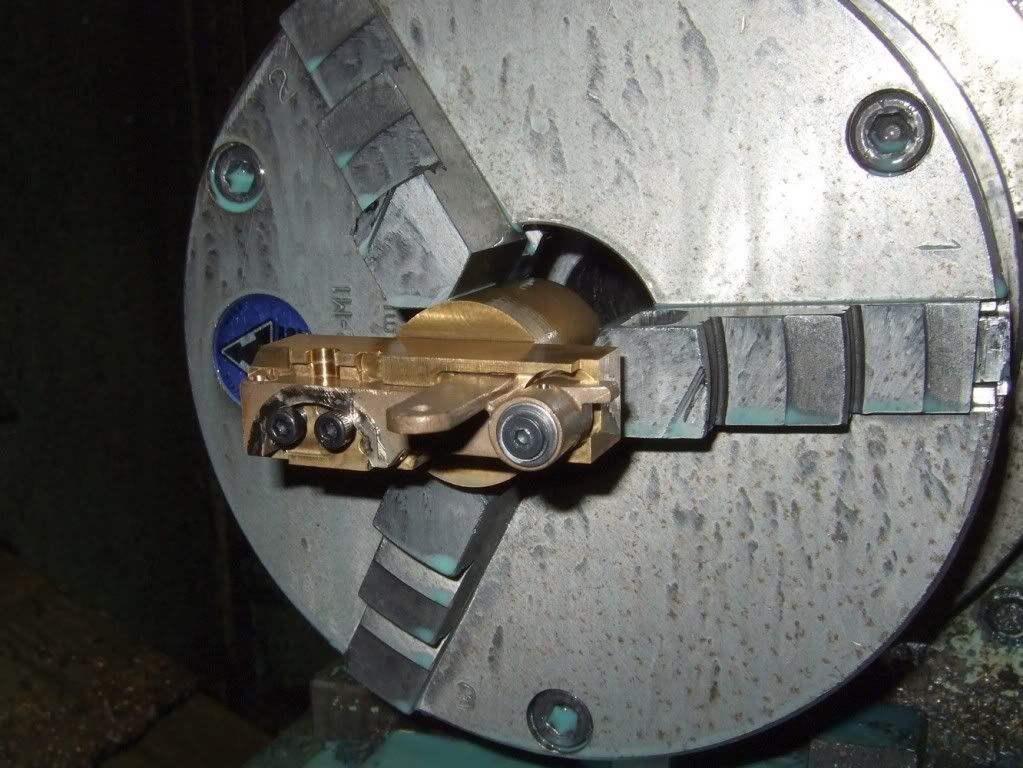

these arm castings were finished on the 4th axis CNC. by mounting them in a fixture in the chuck we could spin them the full 360 degrees and drill and tap all the holes in one go Cool

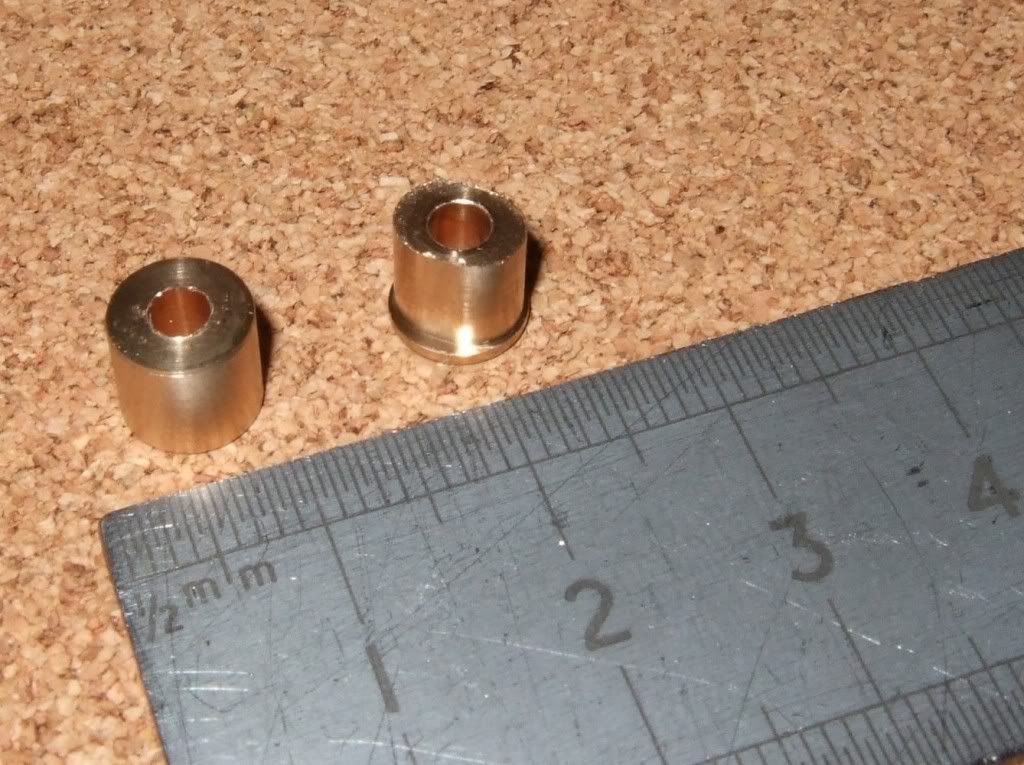

and another small part Crying or Very sad , the bronze bush for the main lever...

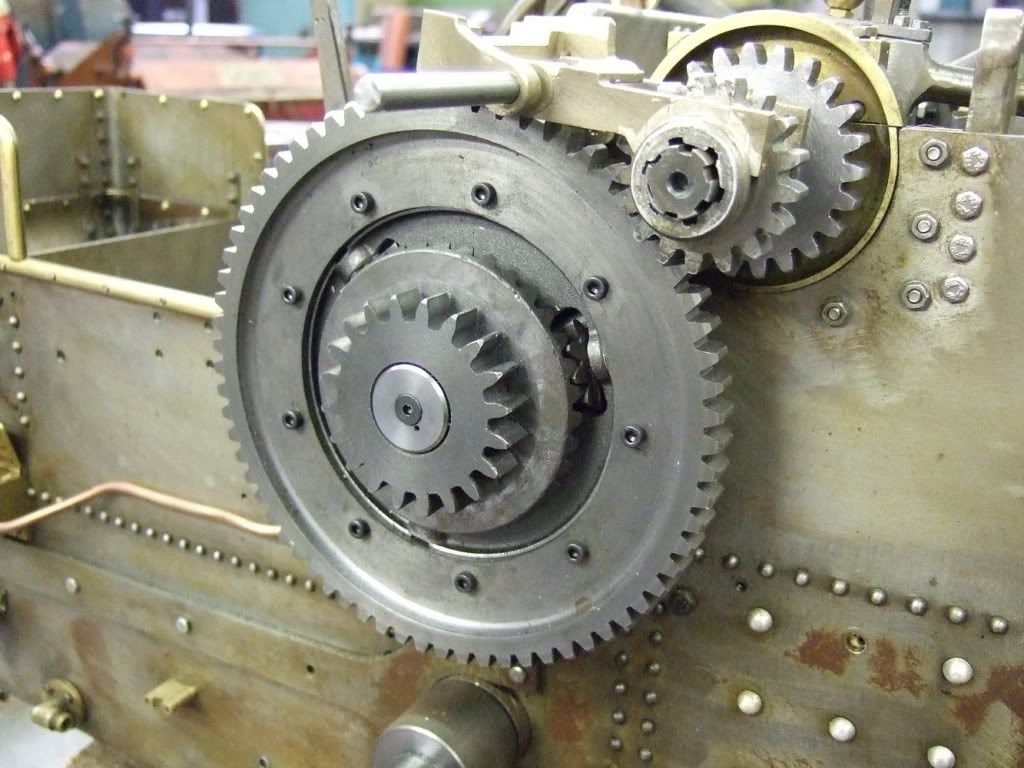

and just to prove that the diff is coming on, a photo for you, we had to do a few unexpected operations to the castings when they arrived in the factory. i believe the last part, the cutting of the key-ways, is under way. don't forget, we have to do everything 100 times on the 2 inch, so it all takes time Wink ...



craig What a Face

miller

Number of posts : 270
Location : STW
Registration date : 2008-06-16

View user profile

Back to top Go down

Re: 2 inch burrell gear change mechanism

Post  LilyJack on Thu 03 Sep 2009, 3:01 pm

Nice looking job there Miller.. I'm going to assume that it was you who were buggering about with the gear change parts when Hugh and I were sodding about around the 2" the other day. Don't need to panic about getting the kits you're mentioning ready just yet as I've a fair way to go yet so everyone can wait for ME!!!! Laughing

Regards

LilyJack Cool

LilyJack

Number of posts : 236
Location : UK
Registration date : 2009-04-01

View user profile

Back to top Go down

Re: 2 inch burrell gear change mechanism

Post  miller on Fri 04 Sep 2009, 10:44 am

yep, that was me Cool

miller

Number of posts : 270
Location : STW
Registration date : 2008-06-16

View user profile

Back to top Go down

Re: 2 inch burrell gear change mechanism

Post  Sponsored content Today at 3:51 am


Sponsored content
