Post  craig@STW on Fri 03 Feb 2017, 3:48 pm

A few photos from this week...

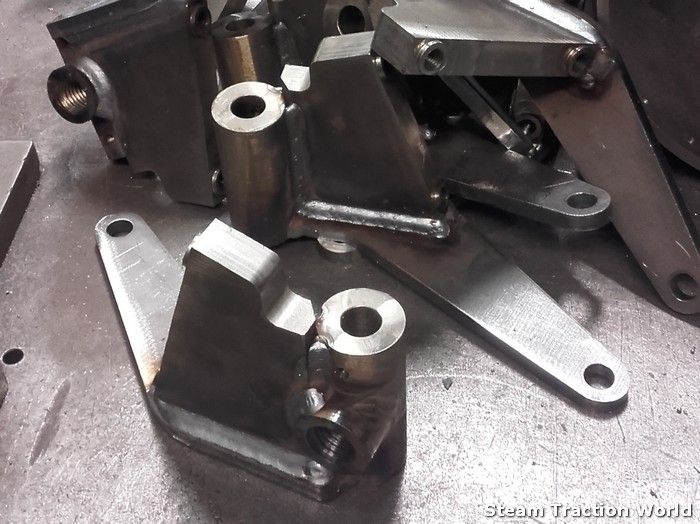

safety valve bases...



and levers...

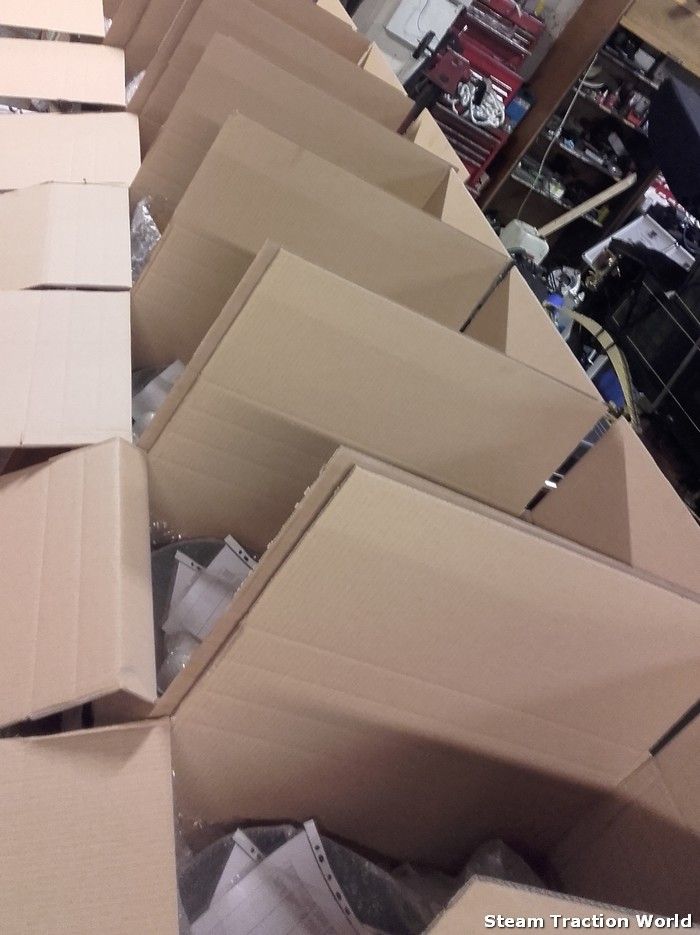

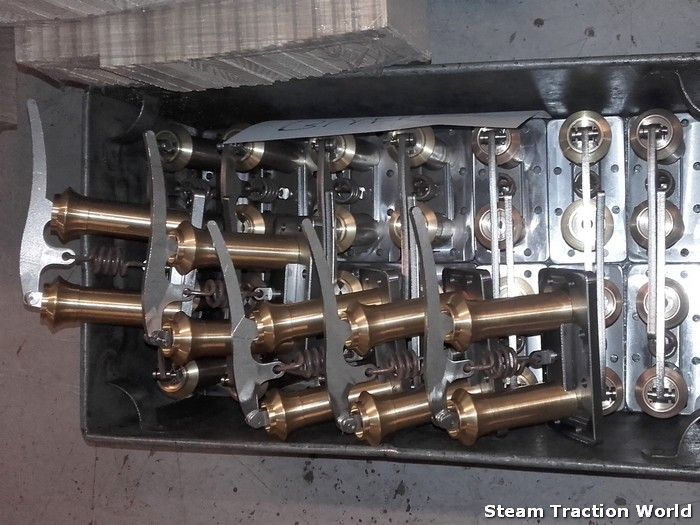

BS kit28 in the boxes (just left the factory as i type)



BS reversing levers...



and 2nd shaft gear guards...



starting valve bracket...



Lyka front stub axle assemblies getting welded...

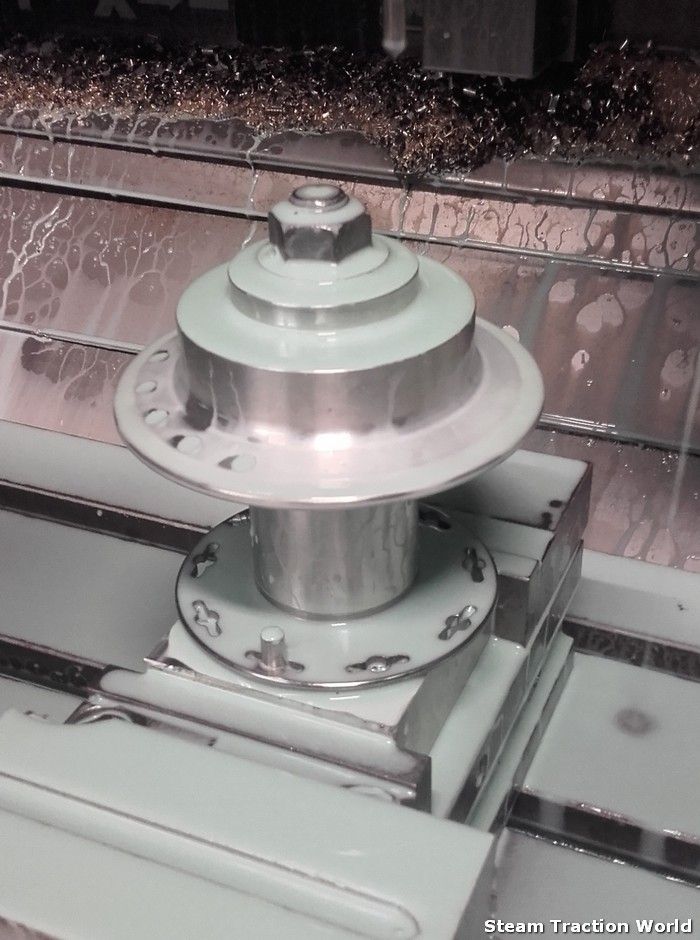

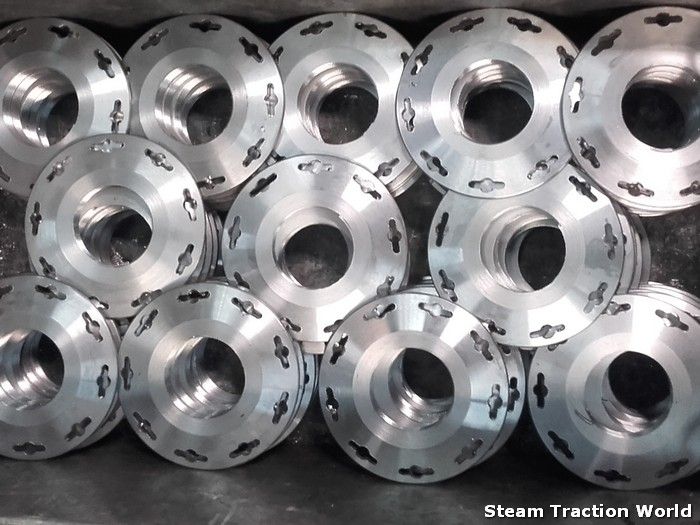

and we have started on the inner flange of the lyka wheel hub



Last edited by craig@STW on Sat 08 Apr 2017, 10:43 am; edited 3 times in total
avatar
craig@STW

Number of posts : 1211
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  Mark the spark on Fri 03 Feb 2017, 5:26 pm

looks great cant wait to get my kit on Monday
Mark

Mark the spark

Number of posts : 138
Location : Edinburgh
Registration date : 2015-04-26

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  craig@STW on Fri 10 Feb 2017, 4:00 pm

this weeks photos...

lyka steering upright...



lyka stub axles all together...

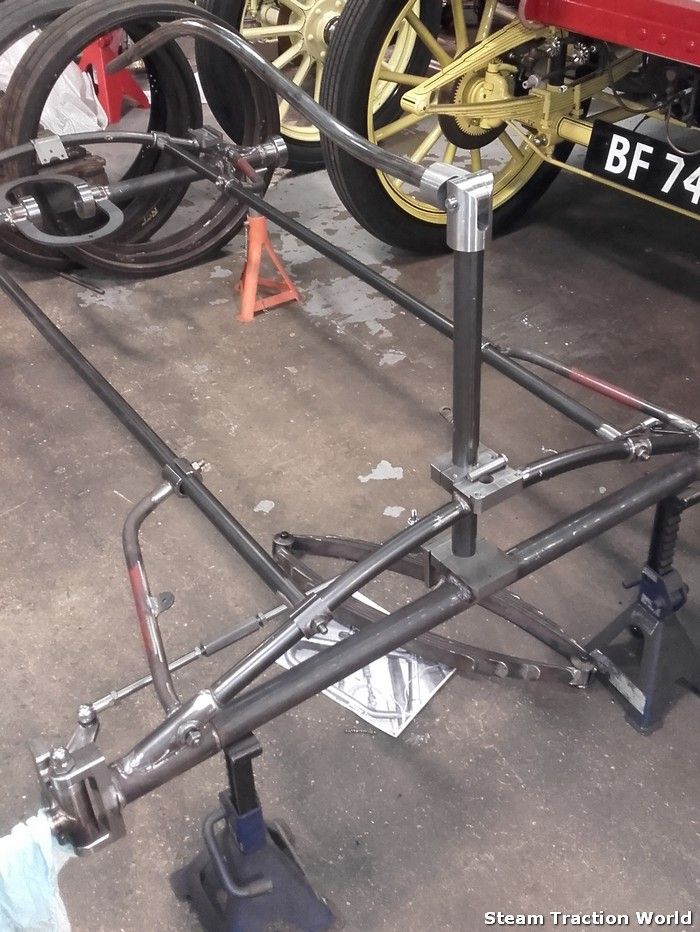

in place on the control model...





lyka hub flanges with loads on very small spoke holes...



and the outer flanges now being turned...



2inch burrell weighshaft bracket parts...





2inch burrell front wheel rims being drilled...

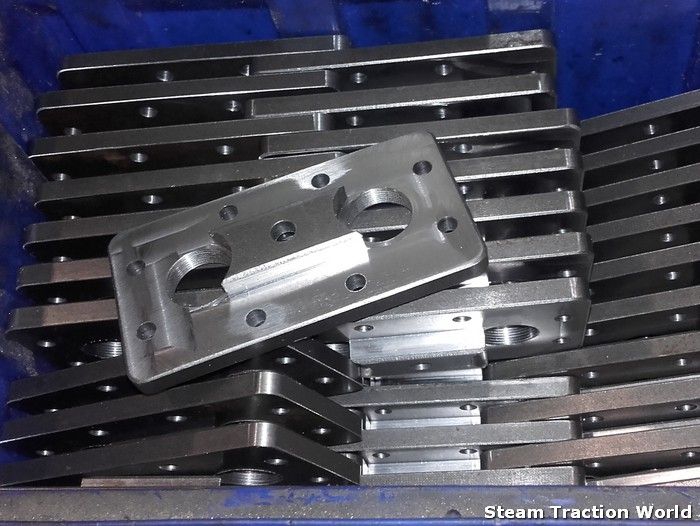

4inch gauge plinths...

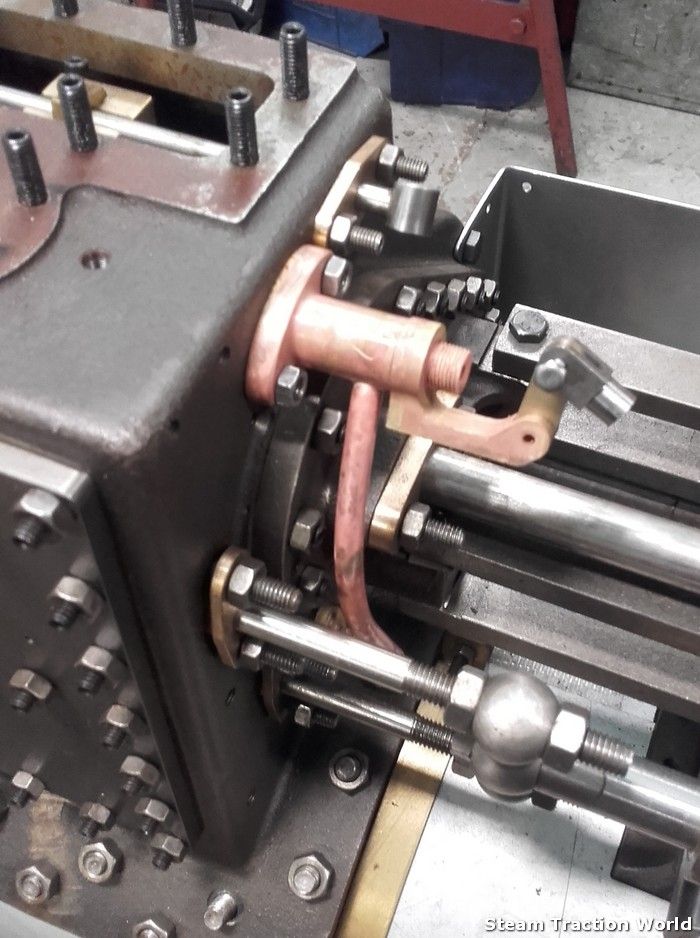

and finished starting valve...



avatar
craig@STW

Number of posts : 1211
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  Ian on Mon 13 Feb 2017, 8:22 am

This week we are looking to Ship Lykamobile kit 2, Foden 6" Kit 28, SCC kit 22b and Burrell Agricultural Kit 22b

Ian

Number of posts : 93
Age : 61
Location : Daventry
Registration date : 2008-06-30

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  Alan Grant on Sat 18 Feb 2017, 5:45 pm

Did the next SCC kit go out the door? It has been two months since the last kit was delivered and hoping to make a rally or two this year!

Its complete should go out on Wednesday, then your on your final kit so I guess rallies are looking good for this year.

Alan Grant

Number of posts : 17
Age : 41
Location : Aberdeenshire
Registration date : 2013-09-06

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  Ian on Mon 20 Feb 2017, 4:25 pm

BU4 and SCC kits 22B are now complete and should be despatched Wednesday, Lyka kit 2 and Foden 6" kit 28 have left.
Currently progressing BU2 kit 16B, Roller kit 9, DCC kit 29 and Foden 6" kit 29

Ian

Number of posts : 93
Age : 61
Location : Daventry
Registration date : 2008-06-30

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  craig@STW on Thu 23 Feb 2017, 2:40 pm

no photos last week as i was on holiday.

here are the latest images.

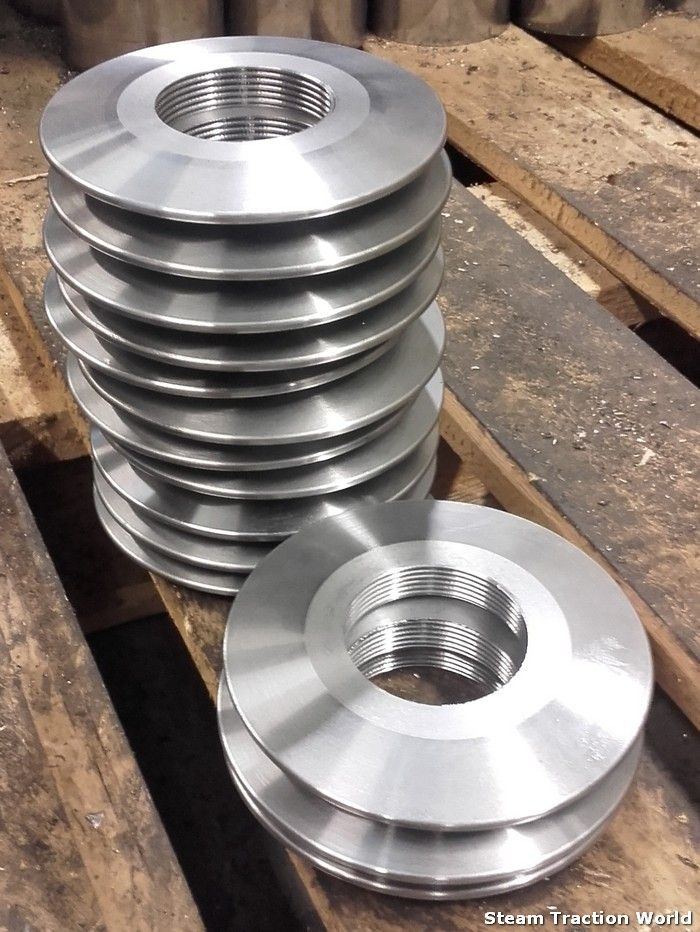

2inch pressure gauge plinths...

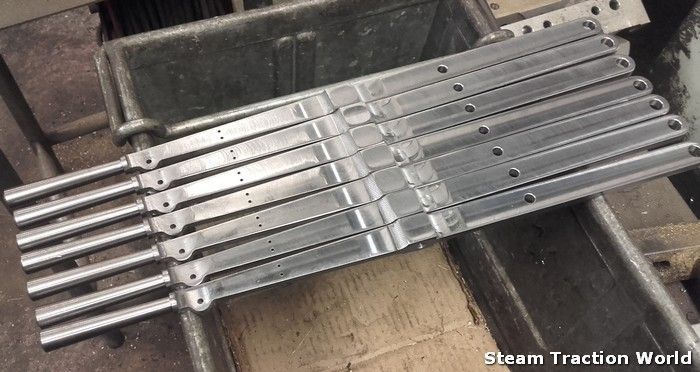

2inch weigh-shaft brackets together and having final machining...

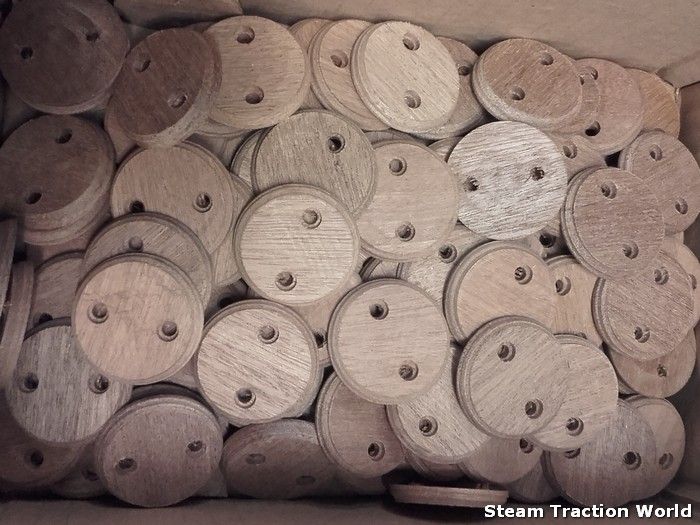

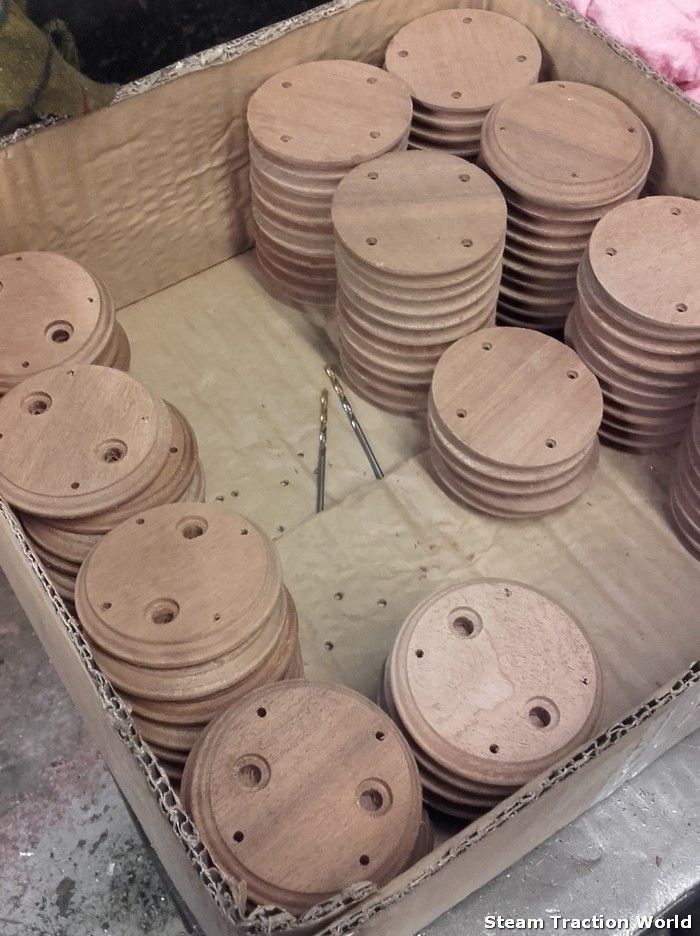

nameplate bosses...



safety valves together and pressure set...

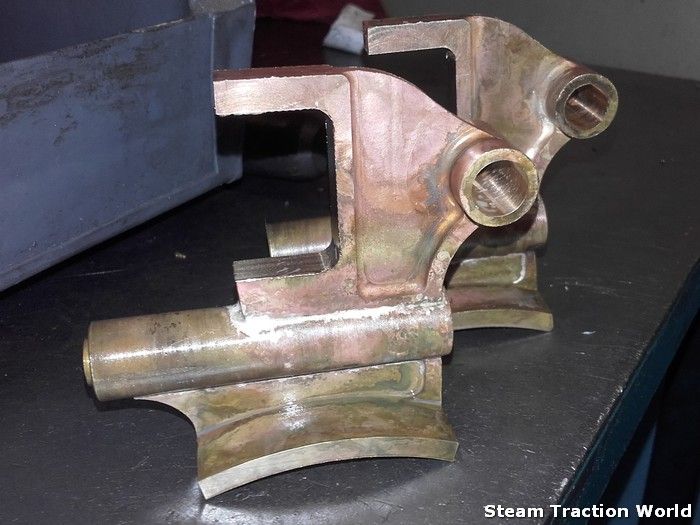

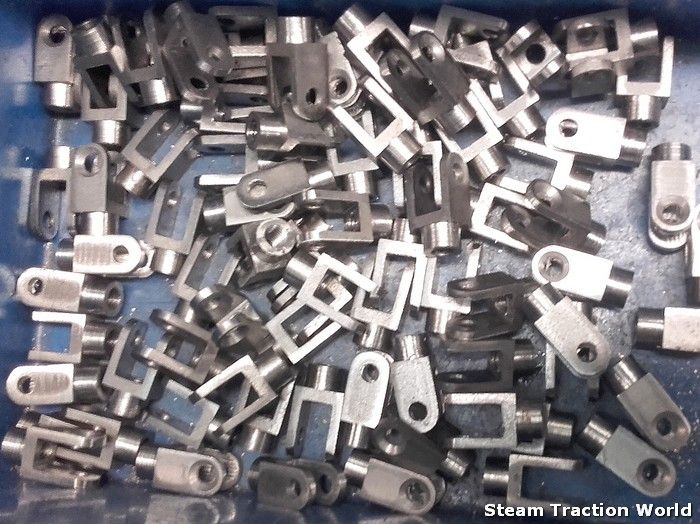

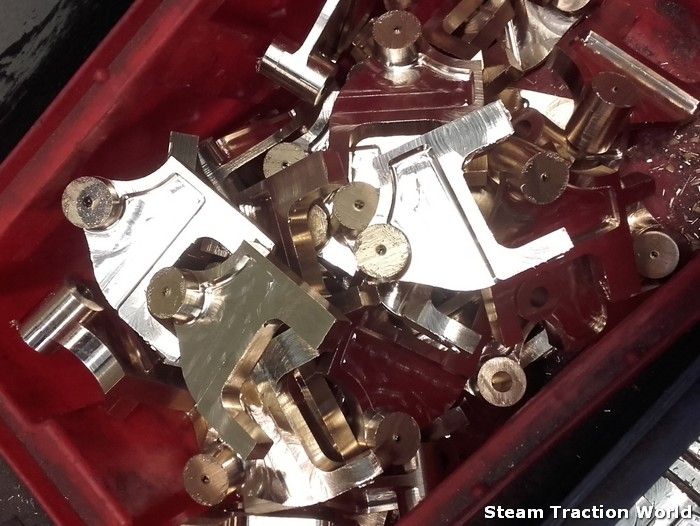

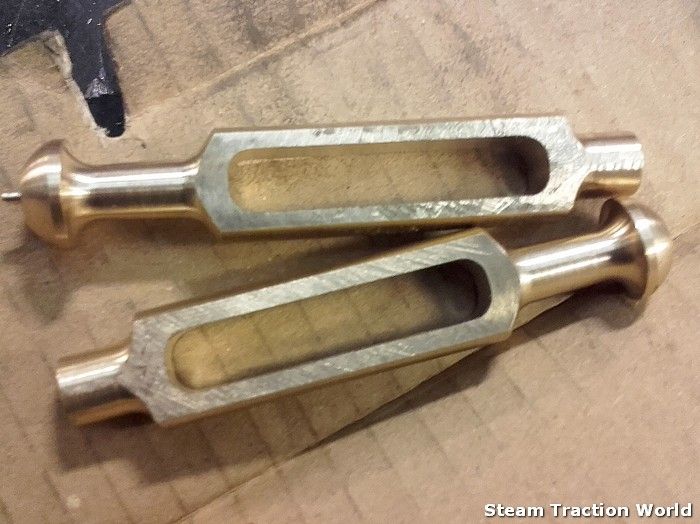

regulator clevis...

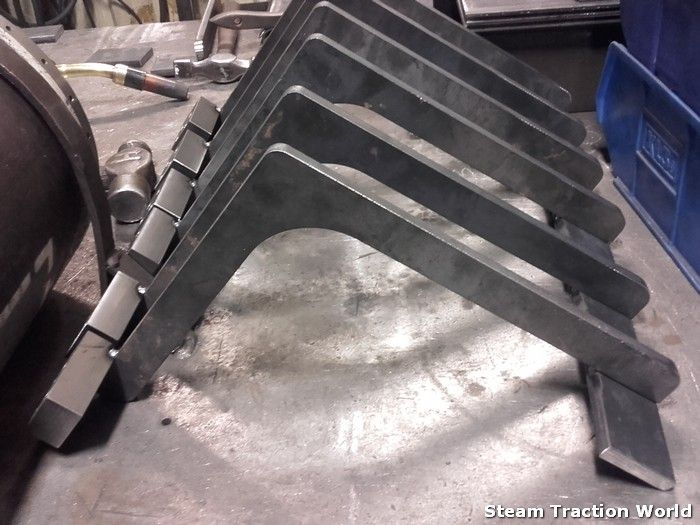

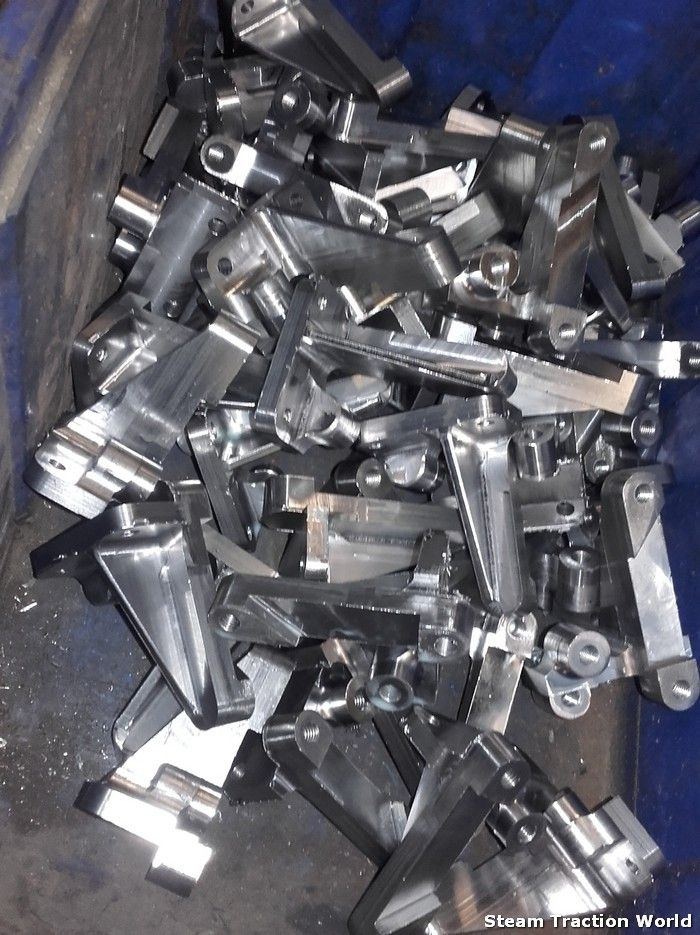

regulator bracket...



hornplates for the roller...

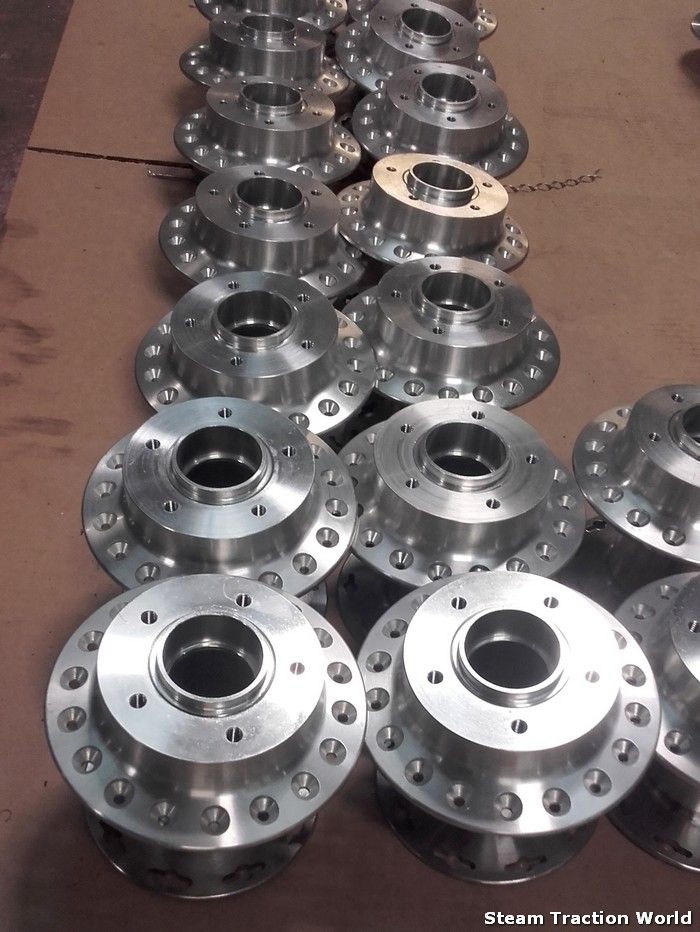

lyka wheel hubs are together and having the final set of spoke holes drilled...





and Harry is starting on a new batch of 4inch agricultural boilers...

avatar
craig@STW

Number of posts : 1211
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  craig@STW on Fri 03 Mar 2017, 3:37 pm

OK a few photos from this week.

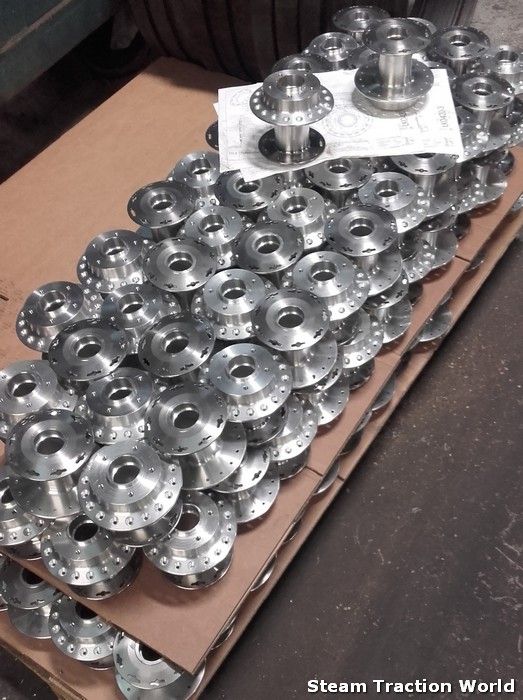

the lyka hubs are ready to go out to be built into wheels...

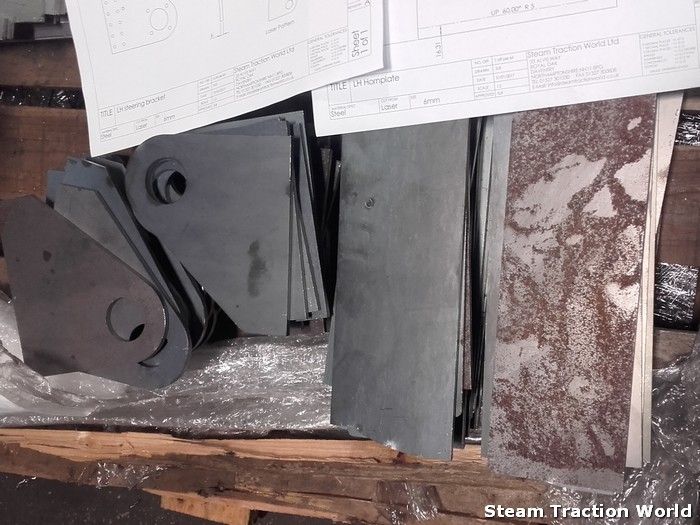

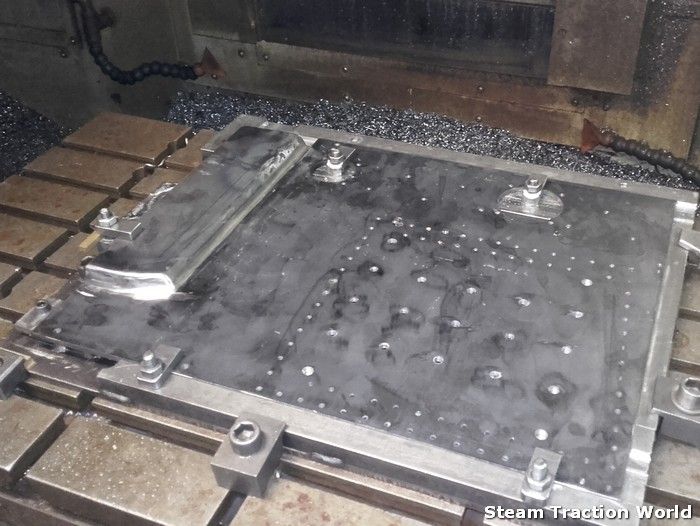

roller horn-plates are still on the mill with the spectacle plates being worked on as well...





and some more laser cut parts for that kit...

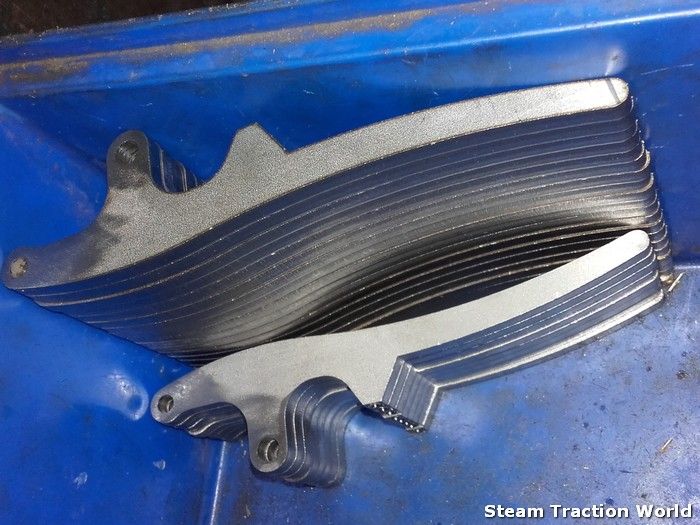

6inch foden brake pedals...

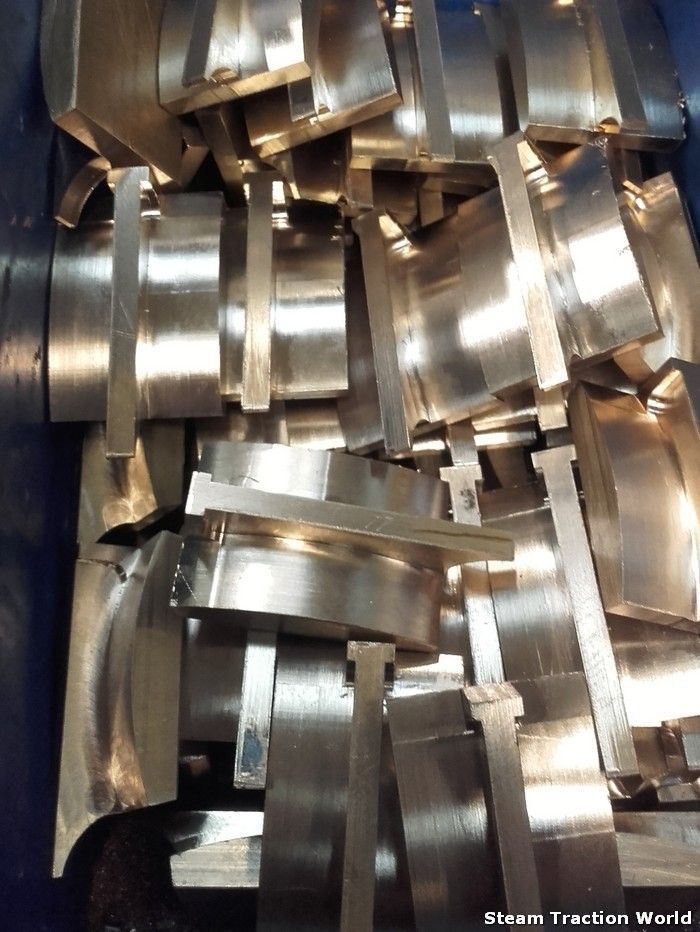

and eccentrics...



4inch foden differential...

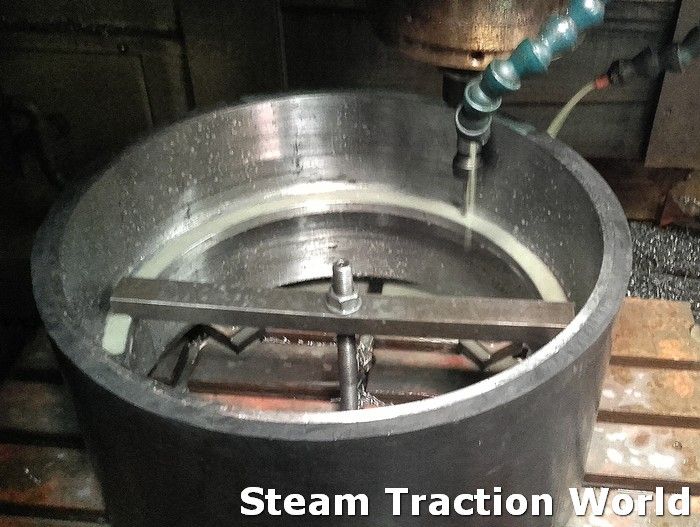

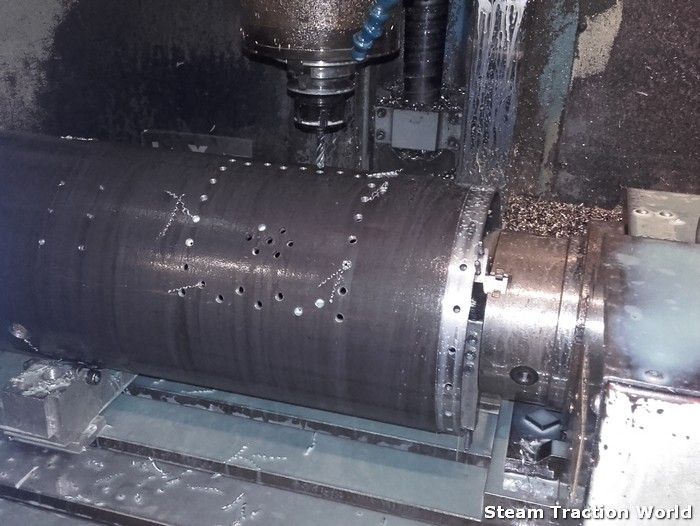

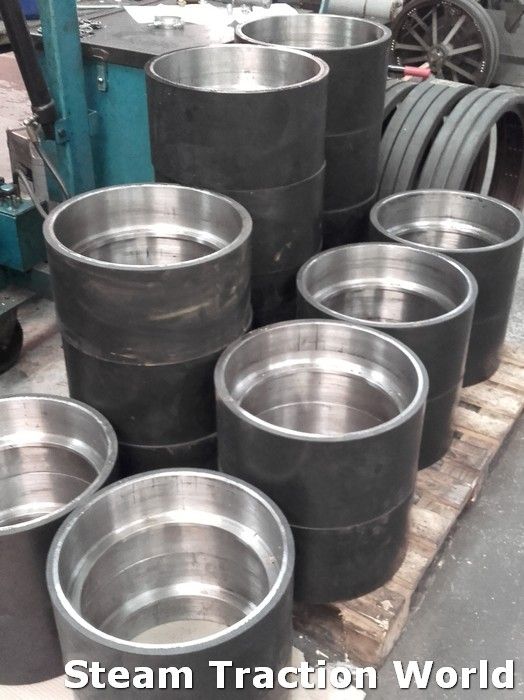

4inch burrell boiler barrels on the mill...

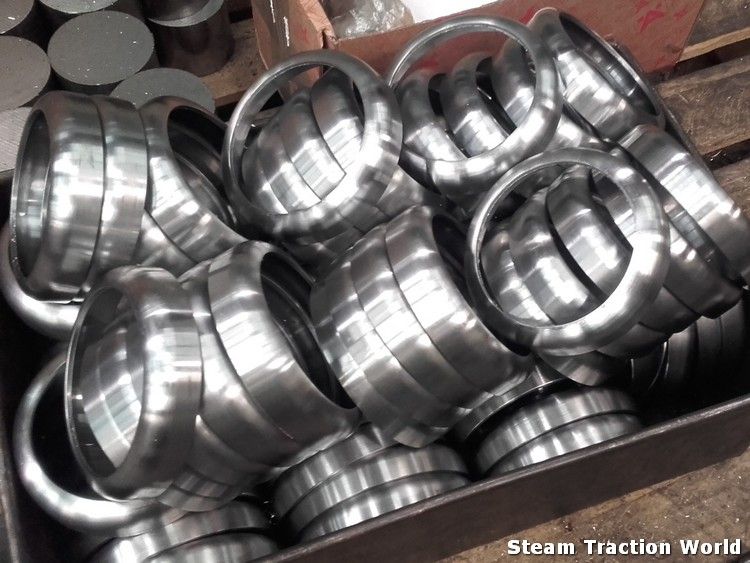

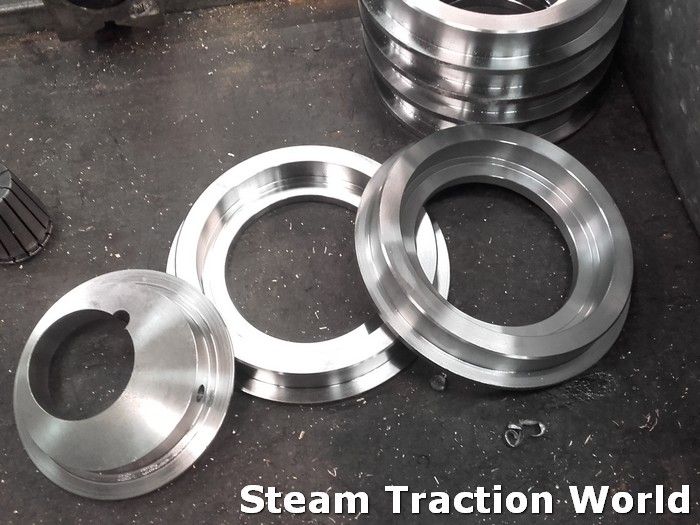

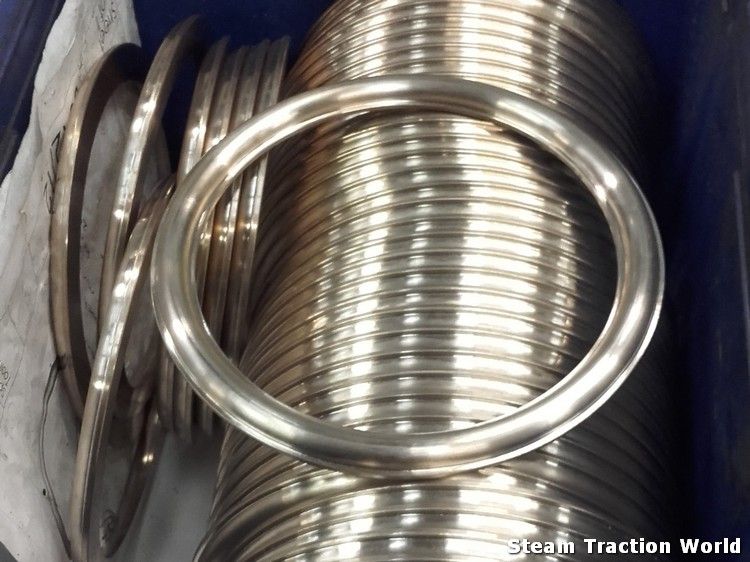

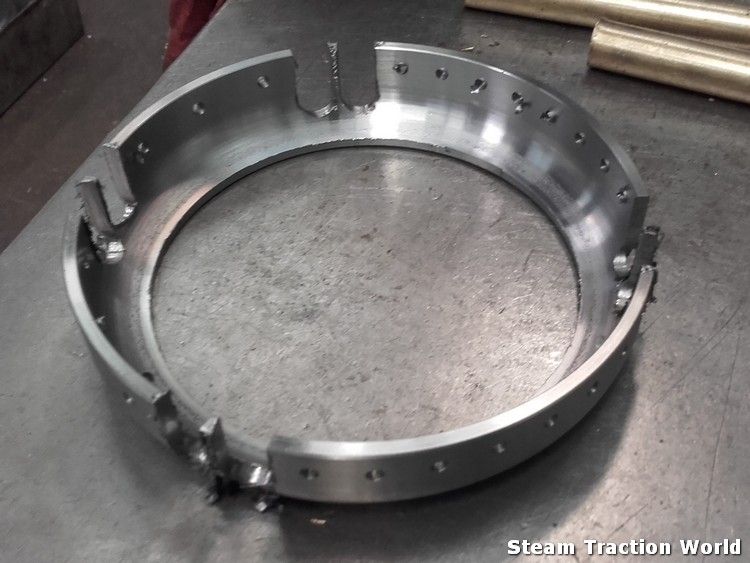

and machining the weld prep on the fire hole rings...

avatar
craig@STW

Number of posts : 1211
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  craig@STW on Fri 10 Mar 2017, 3:47 pm

not a lot to see this week that you haven't seen already, but we have nearly finished the roller horn-plate kit. the LH horn-plate is a welded fabrication...



and this needs final machining...



and so the kit is done...





Ian is just prepping the tender so he can join the two together...



a lot of this week has been spent making parts for electric sentinel kits...

avatar
craig@STW

Number of posts : 1211
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  craig@STW on Fri 17 Mar 2017, 4:00 pm

a bit more to see this week !!!

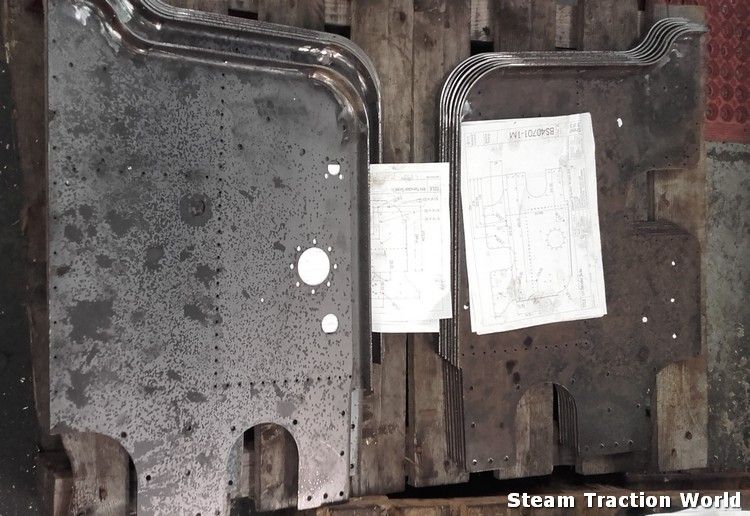

a quick pic to show the roller horn-plate and tender kit together...



and progress on the roller kit 1a and kit 1b. most of it is now done. need to get the "wheels" on the mill for drilling before we can get one together...



more tender parts to do soon, this time basic 4inch burrell...

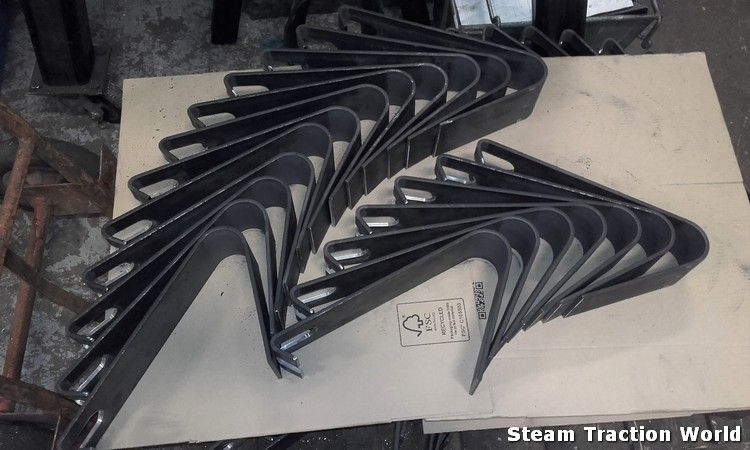

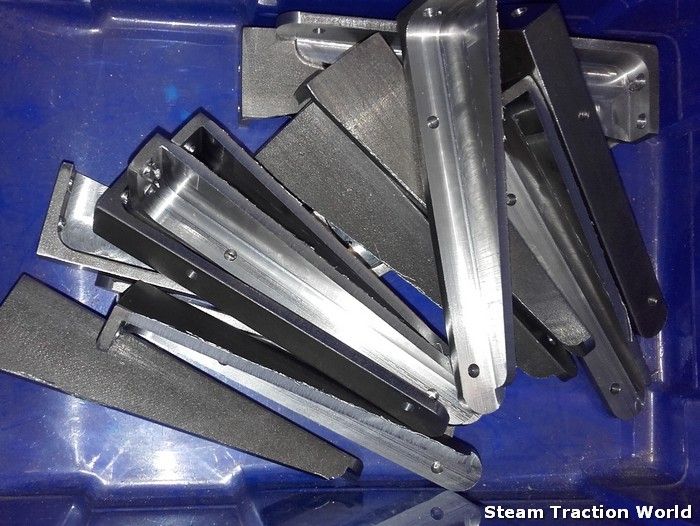

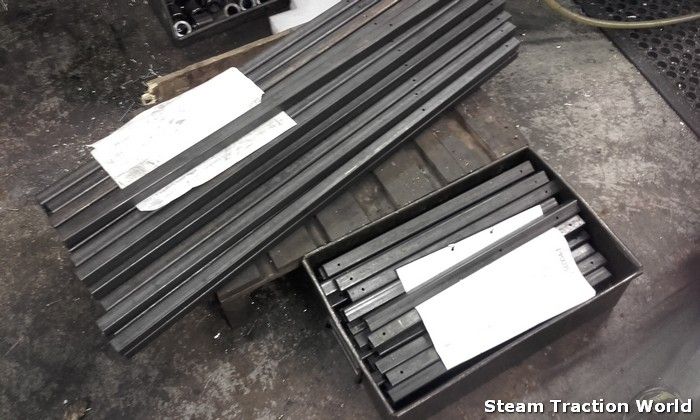

also some 4inch walkboard brackets...

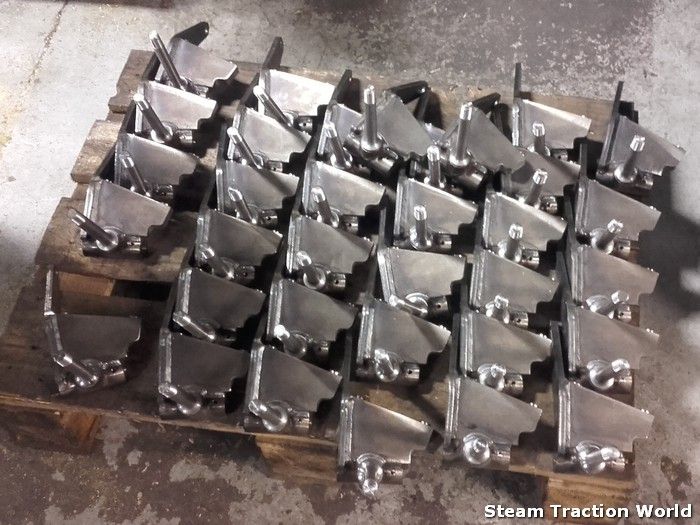

and lubricator brackets...

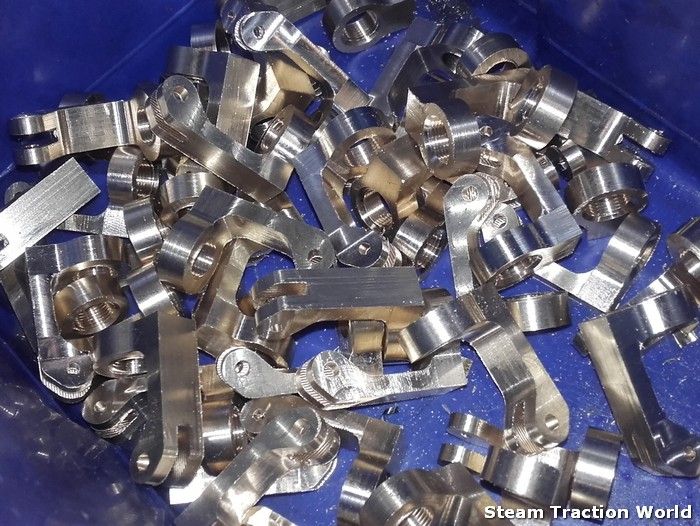

showmans/roadloco starter knobs...

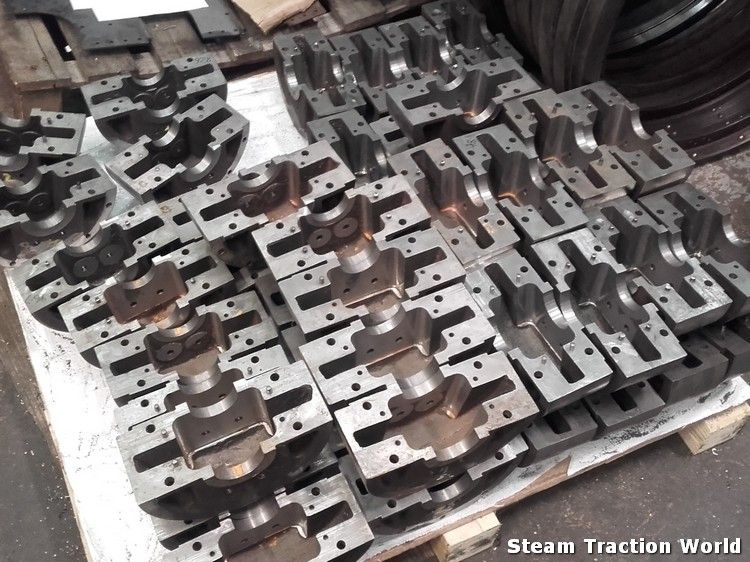

4inch foden diff parts...

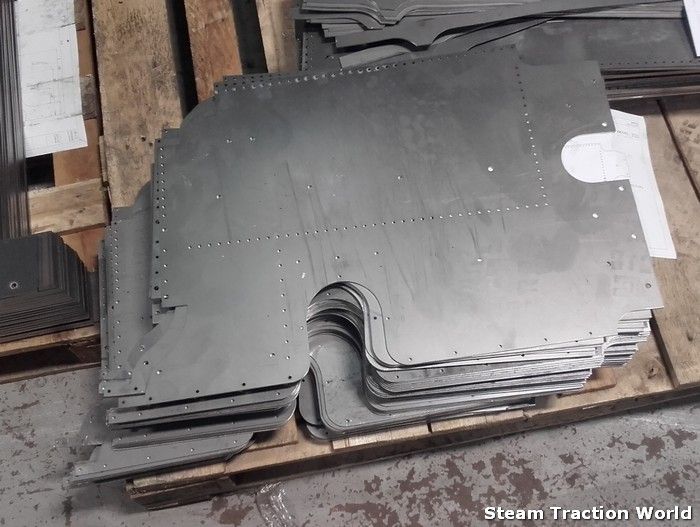

and a fair bit of work done on the electric sentinel kits. the plate work its being bent now...

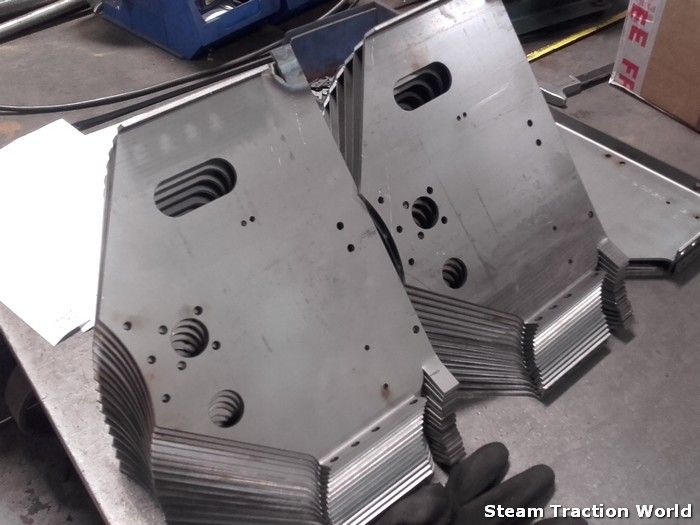

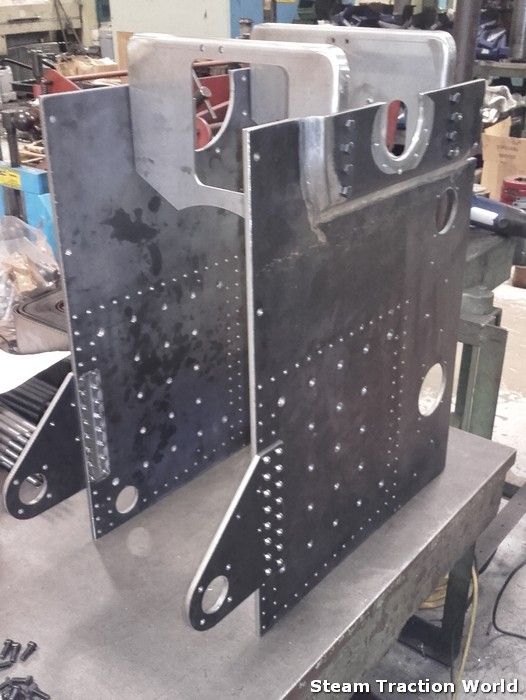

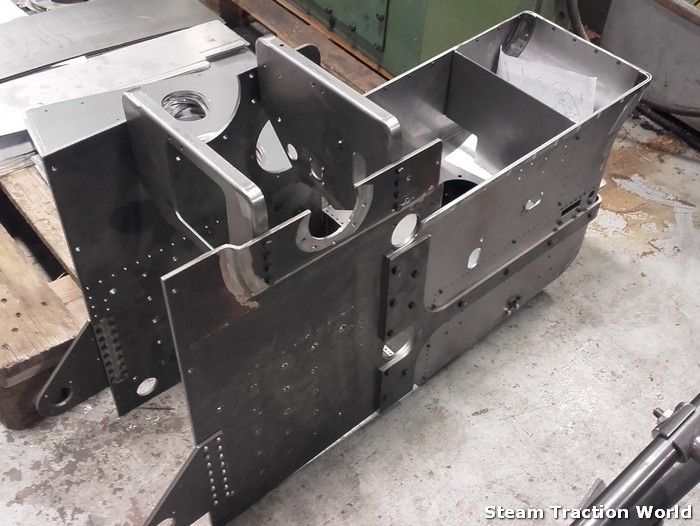

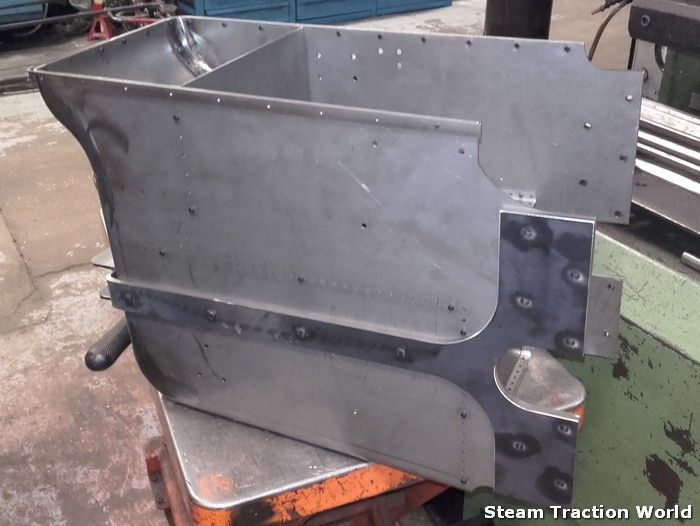

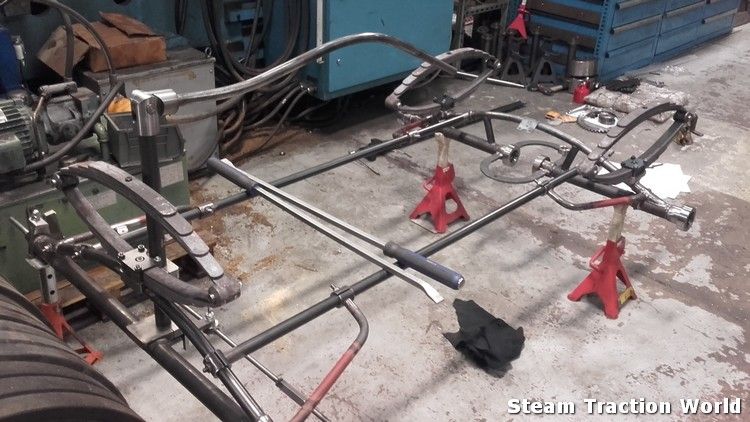

and the main chassis parts have been machined and are now being welded together...

avatar
craig@STW

Number of posts : 1211
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  Robfishman on Sat 18 Mar 2017, 6:44 pm

Looks like things are progressing nicely on a number of fronts. Those roller wheels look quite heavy, hope you have had your weetabix before carrying them around the factory. Keep up the good work.
avatar
Robfishman

Number of posts : 1023
Age : 42
Location : Chandlers Ford Hants 4" showmans & 4" Roller
Registration date : 2010-11-26

View user profile http://www.robertfish.net

Back to top Go down

Re: February/March/April 2017 Production

Post  craig@STW on Fri 31 Mar 2017, 5:56 pm

OK, i was on holiday last friday and the PC at work was playing up today so im posting from home again this week Cool

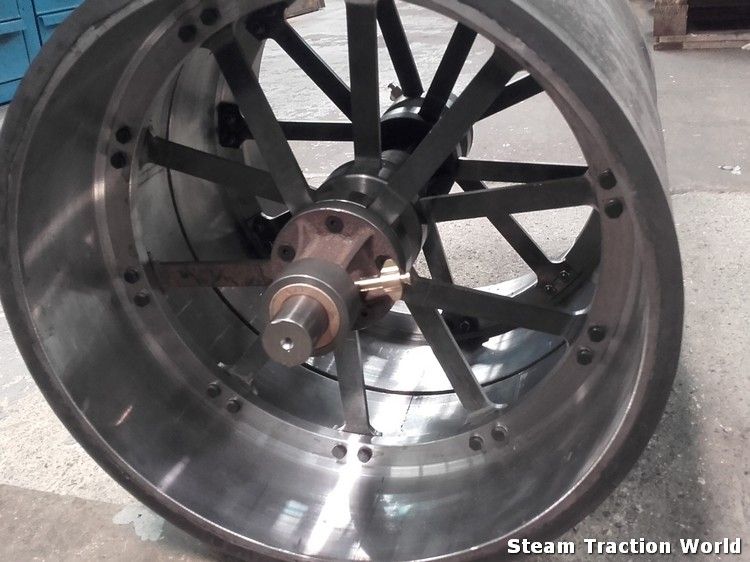

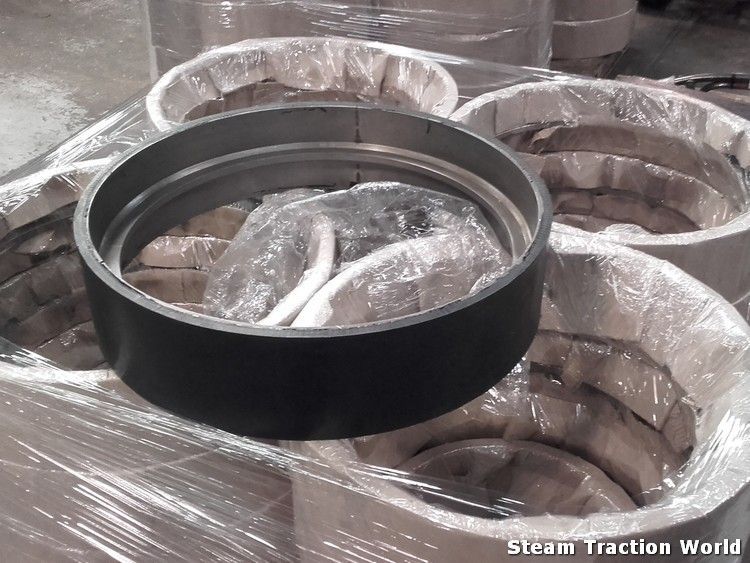

the roller "wheels" have now been drilled...



they are not too heavy, lighter than a BU rear wheel  Laughing

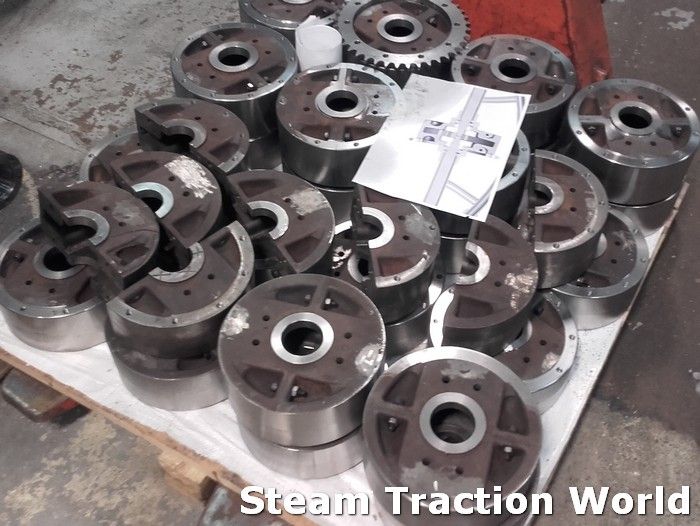

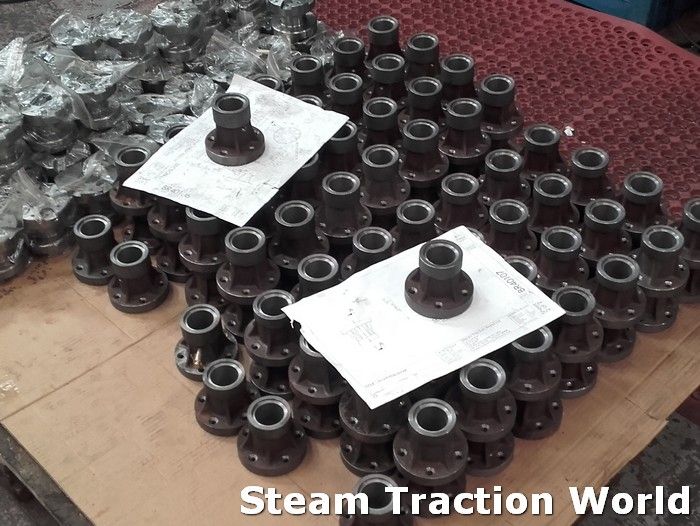

and the hub sections are all finished...

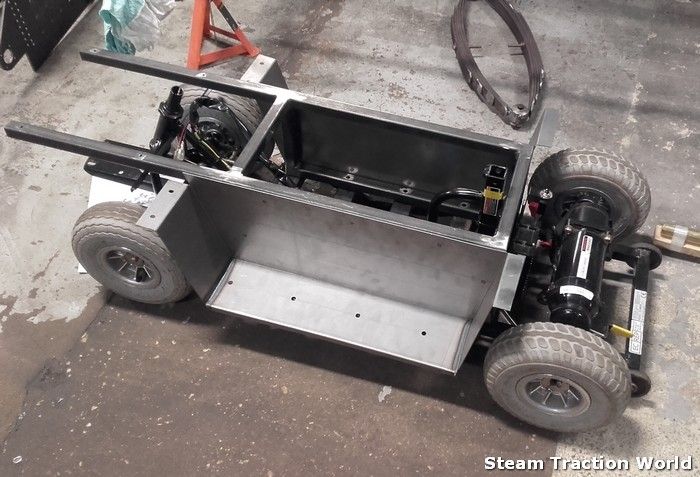

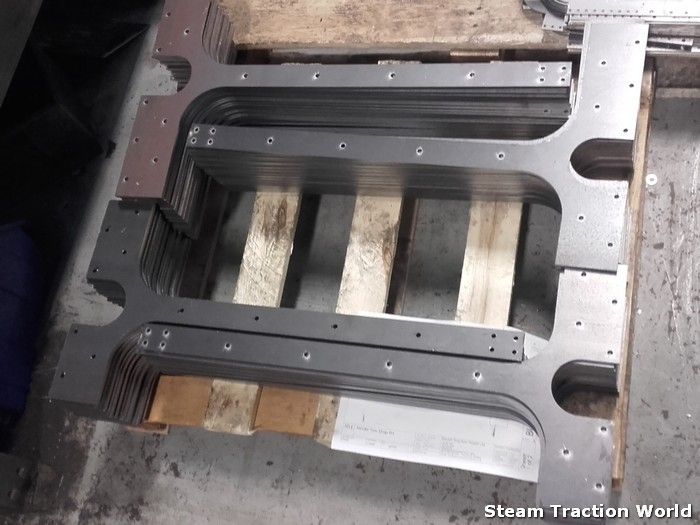

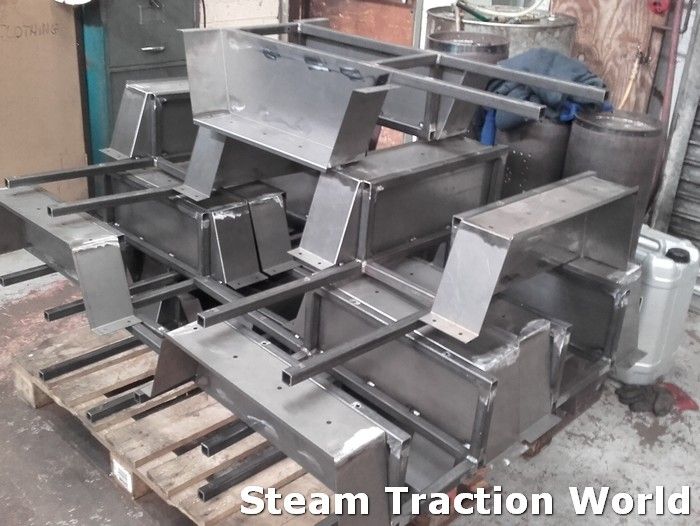

a pallet load of electric sentinel chassis...

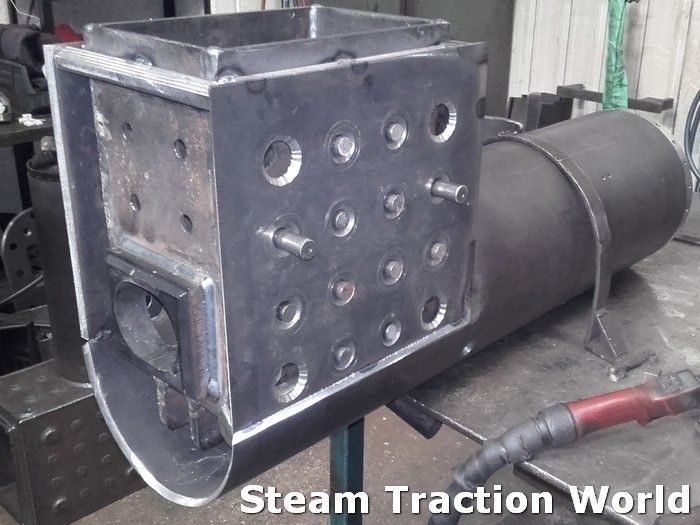

and an interesting photo of a boiler during construction...

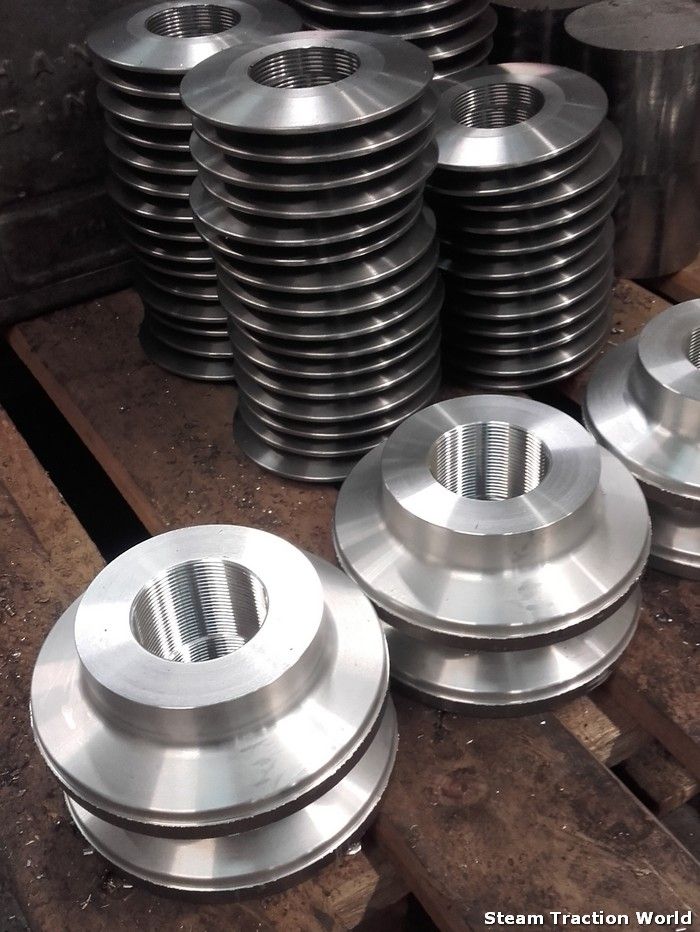

I've spent a lot of time this week on 2inch governor bases...

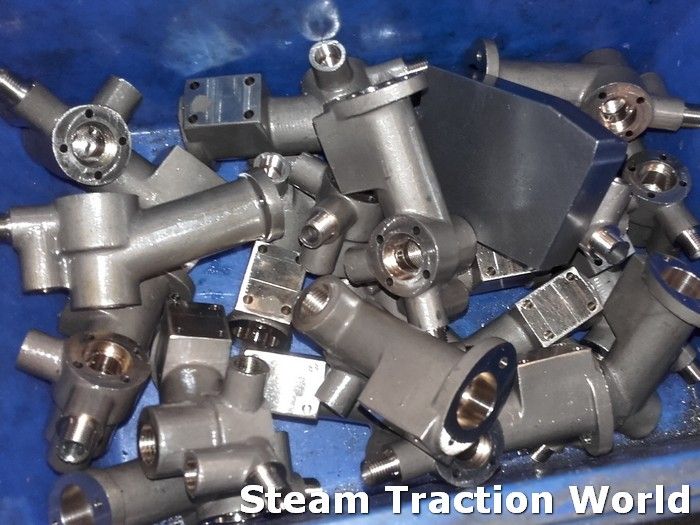

water pumps...



and check valves...

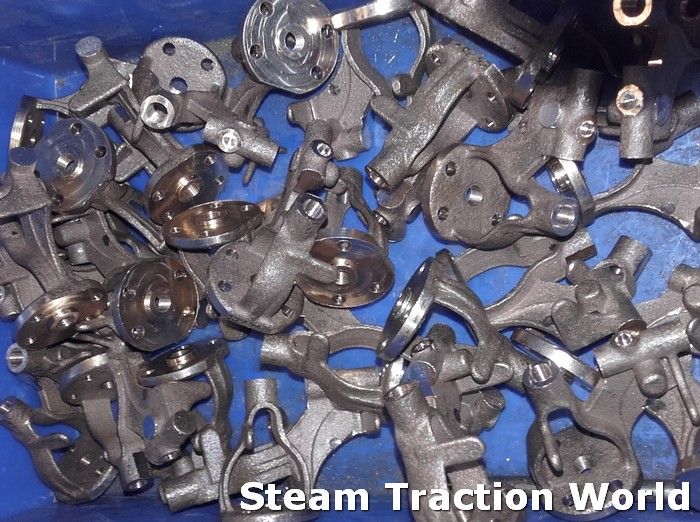

from the lathes we have 6inch foden eccentric straps...



and water pump covers...

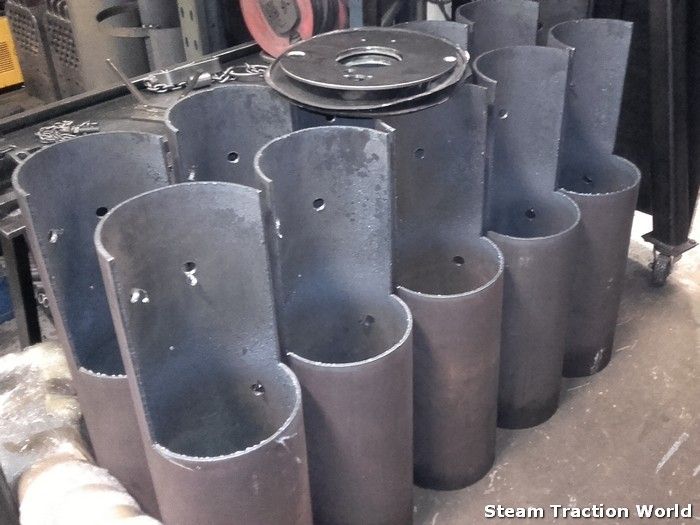

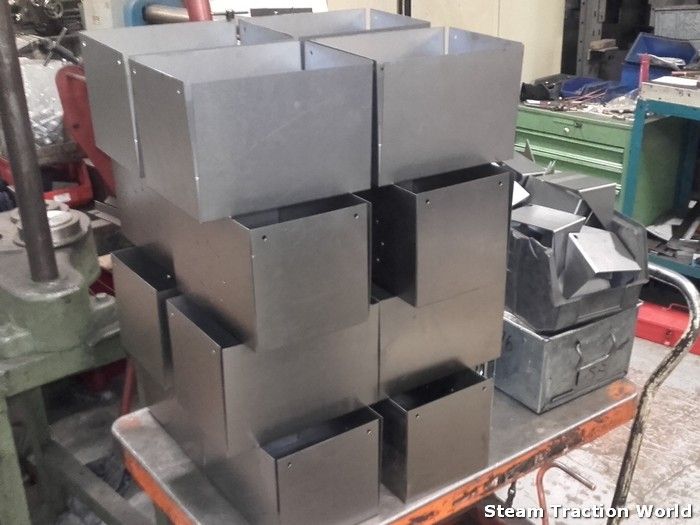

and BU tender fillets (to be segmented later on the mill)...

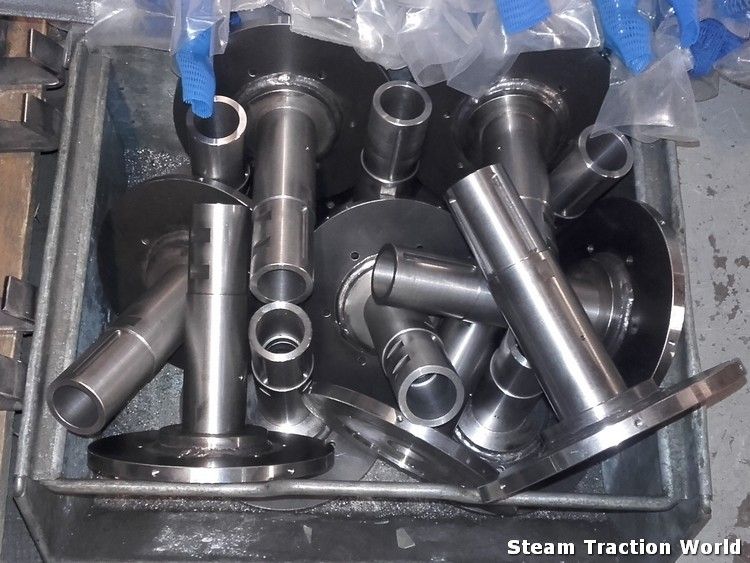

and the lyka diff castings have been turned. they just need the internals milling...

avatar
craig@STW

Number of posts : 1211
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  craig@STW on Sat 08 Apr 2017, 10:53 am

photos for last week...

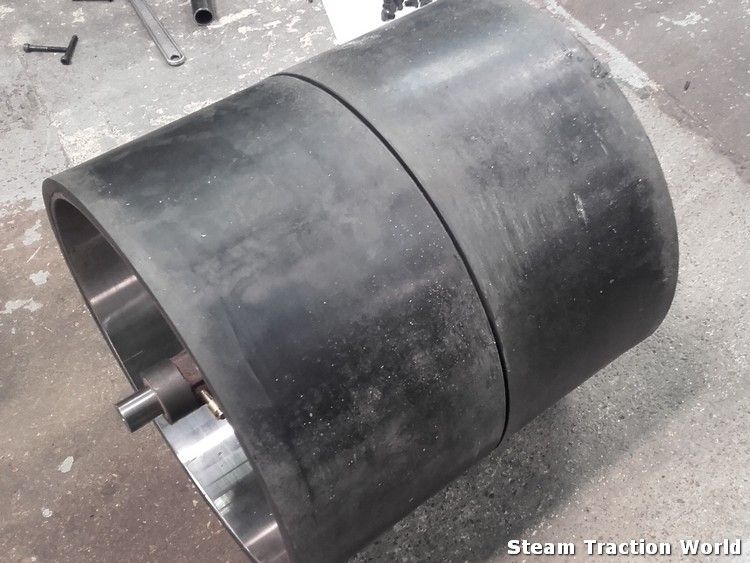

the roller "wheels" kit was finished and sent out. the pair of wheels look great together on the single axle...





also the rear wheels have arrived. we have three pallets of these...



the lyka diff castings have been split and the inner area machined...

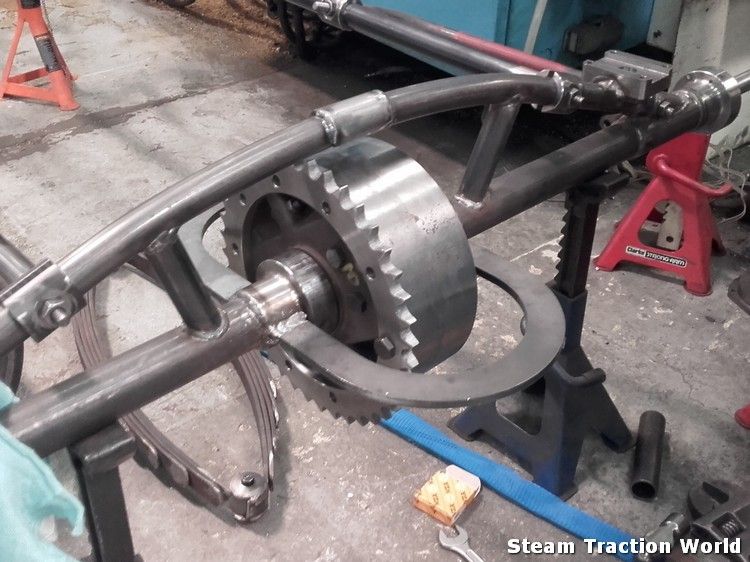

and fitted to the control model...

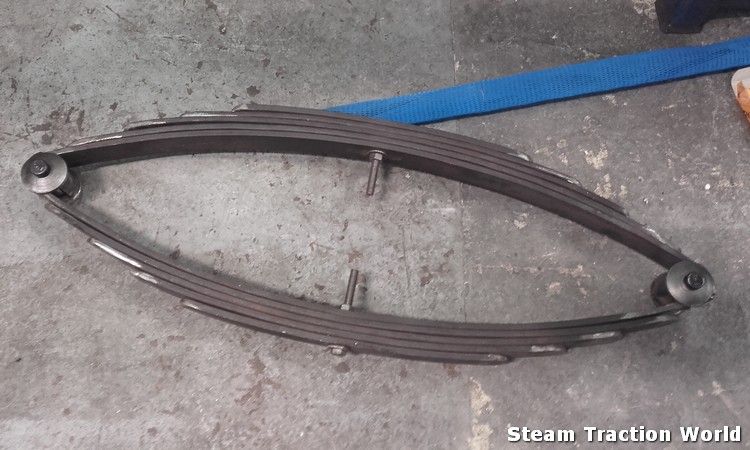

I cant remember if i posted a photo of the prototype spring set, but there it is. we will be working on these next week...



the bu tender fillets from last week have had the backs turned...



and are now on the mill to be segmented...

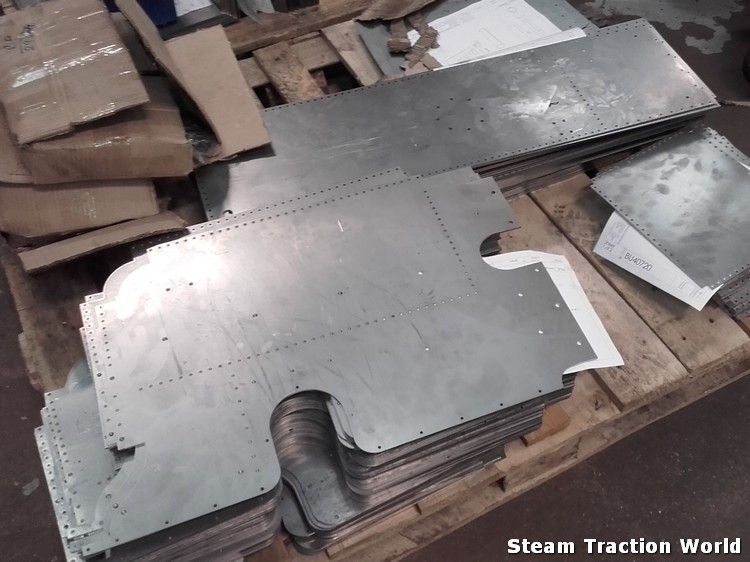

and the pile of electric sentinel parts is still growing...



there wont be anymore photos till after Easter now because I'm on holiday next week, but if your lucky you may get an update from Ian.
Don't forget to pester him with any and all of your production questions Laughing Wink
avatar
craig@STW

Number of posts : 1211
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  Alan Grant on Tue 11 Apr 2017, 10:41 am

Ian, is there any news on the last SCC kit?

Alan Grant

Number of posts : 17
Age : 41
Location : Aberdeenshire
Registration date : 2013-09-06

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  steam oil on Thu 13 Apr 2017, 1:56 pm

Hi Ian any news on the 2inch governor's yet

Thanks steve

steam oil

Number of posts : 23
Age : 60
Location : DERBYSHIRE
Registration date : 2013-11-09

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  Ian on Thu 13 Apr 2017, 3:03 pm

steam oil wrote:Hi Ian any news on the 2inch governor's yet

Thanks steve

base casting are now machined just need to prove the whole assy out now
so soon after Easter is best guess

Ian

Number of posts : 93
Age : 61
Location : Daventry
Registration date : 2008-06-30

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  Ian on Thu 13 Apr 2017, 3:06 pm

Alan Grant wrote:Ian, is there any news on the last SCC kit?

we are producing this kit along with kit 23 of the Agi the machined parts are done but all the seat parts need fabricating and we have a backlog in that dept so we are still looking a couple of weeks (we are as eager for your money as you are for our kit) it will be as soon as possible.

Ian

Number of posts : 93
Age : 61
Location : Daventry
Registration date : 2008-06-30

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  chas12154 on Wed 19 Apr 2017, 6:41 pm

With March's kit being late, for the 2", will there be a kit this mouth (April) .

Charlie

chas12154

Number of posts : 314
Age : 56
Location : Totton, Southampton, Hampshire
Registration date : 2015-01-21

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  Ian on Thu 20 Apr 2017, 8:09 am

steam oil wrote:Hi Ian any news on the 2inch governor's yet

Thanks steve

All governor parts now proven to fit.
Don't have anyone to pack it this week due to holidays, so early next week it should be on its way to you

Ian

Number of posts : 93
Age : 61
Location : Daventry
Registration date : 2008-06-30

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  steam oil on Thu 20 Apr 2017, 12:54 pm

Thanks Ian for the update

Thanks steve

steam oil

Number of posts : 23
Age : 60
Location : DERBYSHIRE
Registration date : 2013-11-09

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  craig@STW on Fri 21 Apr 2017, 4:04 pm

just a few photos from this week. a few people have been on holiday over the last few weeks so its been a bit slow.

the machine shop has been making parts for the scc seat base...



so the manual section can get on with bending, forming and welding...



lyka spring set now on the control model...

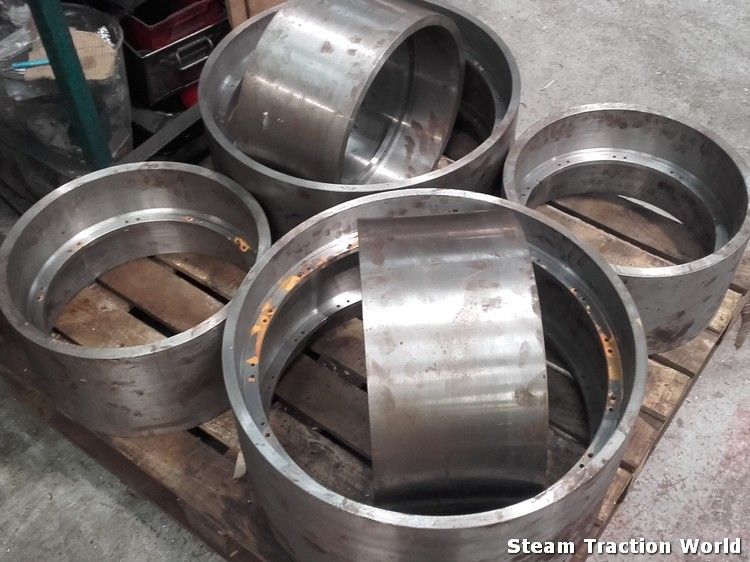

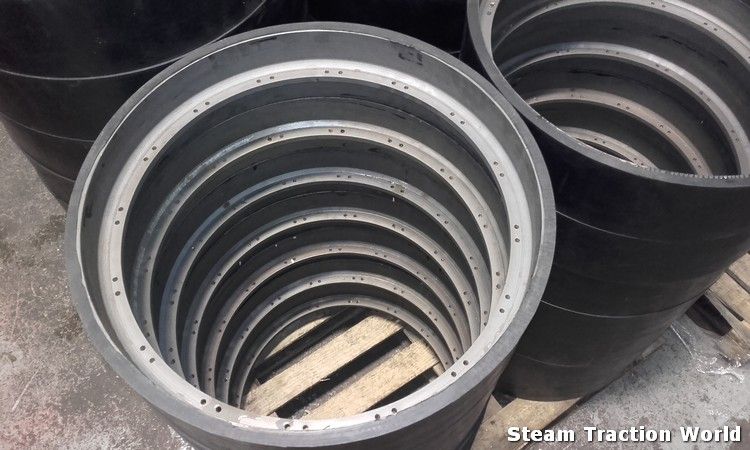

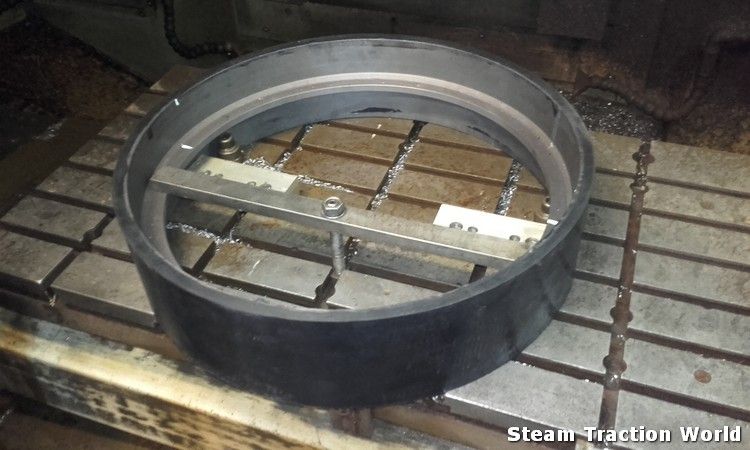

im drilling loads of roller rear wheel rims...





6inch foden front axle tubes...



and showmans tender sides...


avatar
craig@STW

Number of posts : 1211
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: February/March/April 2017 Production

Post  craig@STW on Fri 28 Apr 2017, 3:51 pm

photos for this week Cool

some of the parts on the cnc machines this week, 2 inch burell chimney bases...

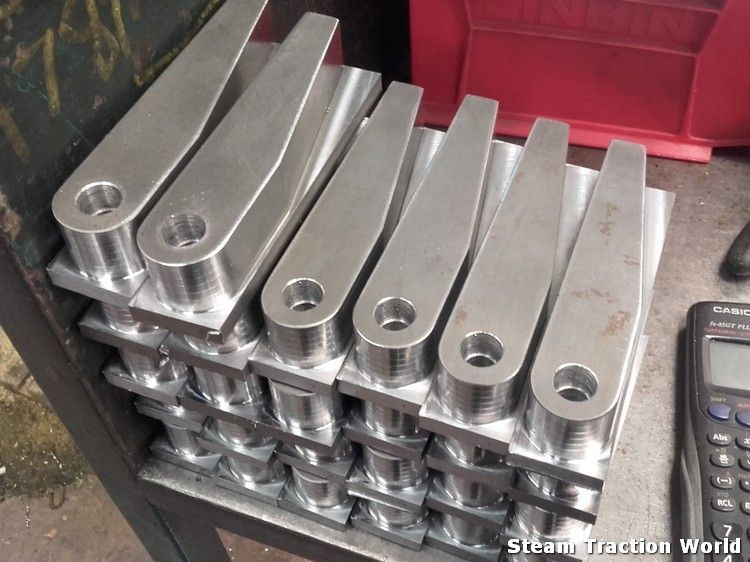

showmans motion rings...



4 inch foden torsion bar brackets...

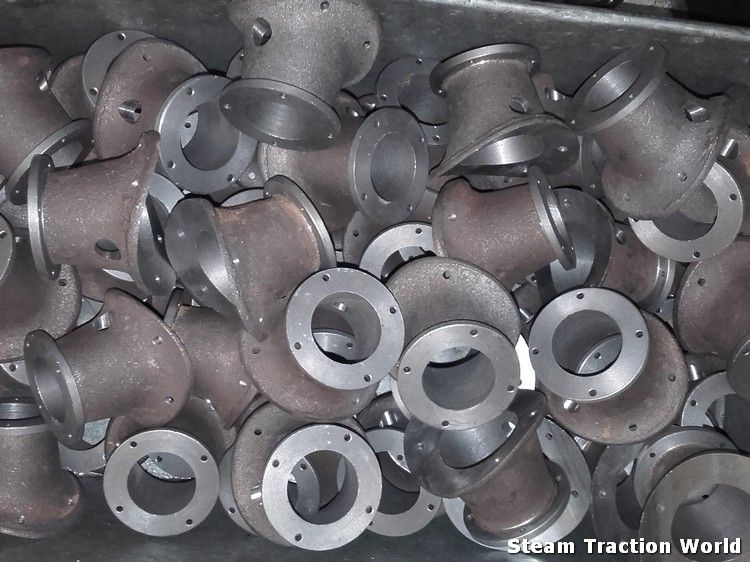

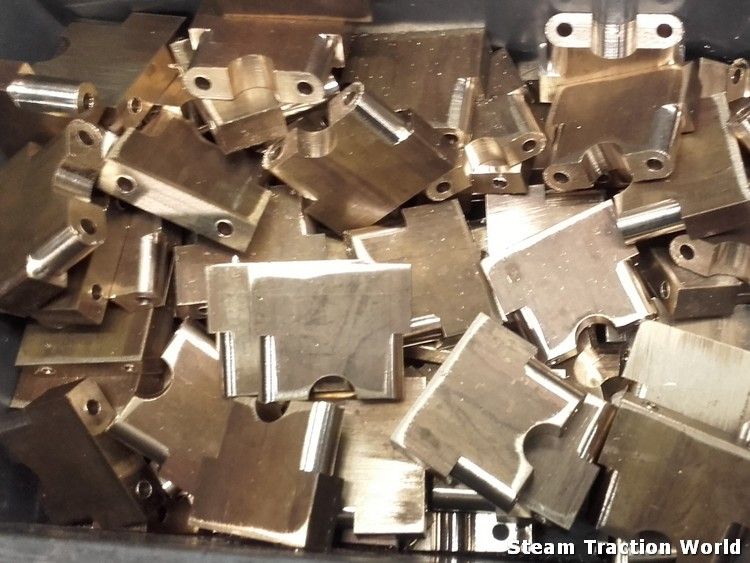

4 inch burrell pipe clamps...



6 inch foden king-pins...

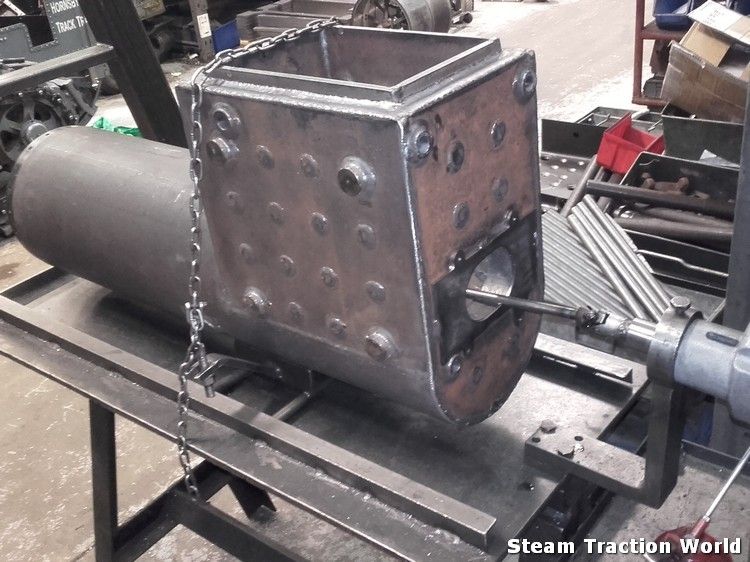

also a burrell boiler being "tubed"...



4 inch foden RH diff housings welded together...



more burrell tender parts have arrived !!!...



and to add to the roller wheels over the last couple of weeks a few sets with solid rims. these are very heavy...

avatar
craig@STW

Number of posts : 1211
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: February/March/April 2017 Production
