January/February/March 2015 production photos

Post  craig@STW on Sun 11 Jan 2015, 4:06 am

hello all. here are the first production photos of this year.

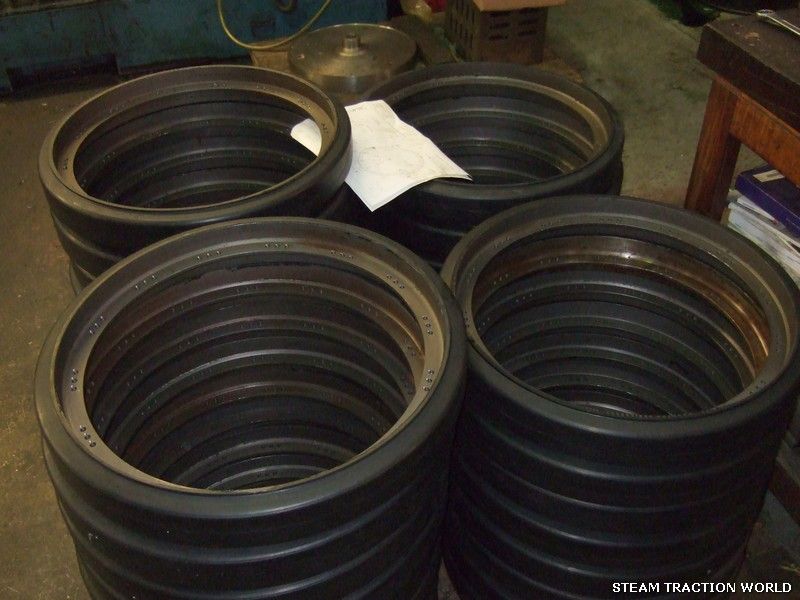

another batch of showman's front wheels have been drilled...

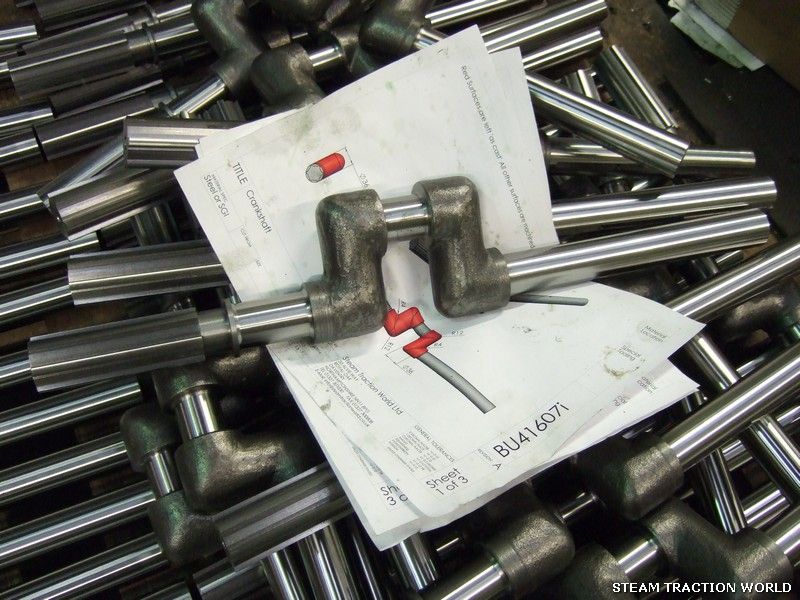

been working on the burrell 4inch crank shafts...



the 2inch burrell front axles were finished...

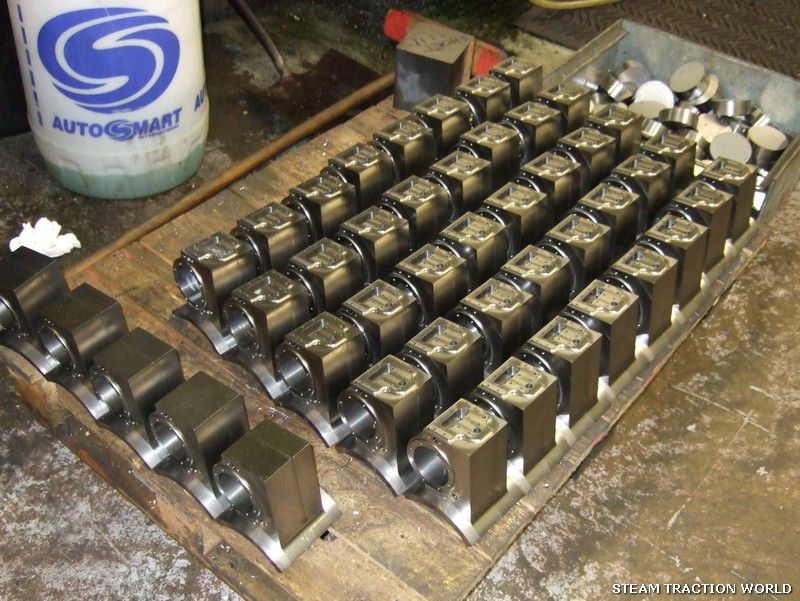

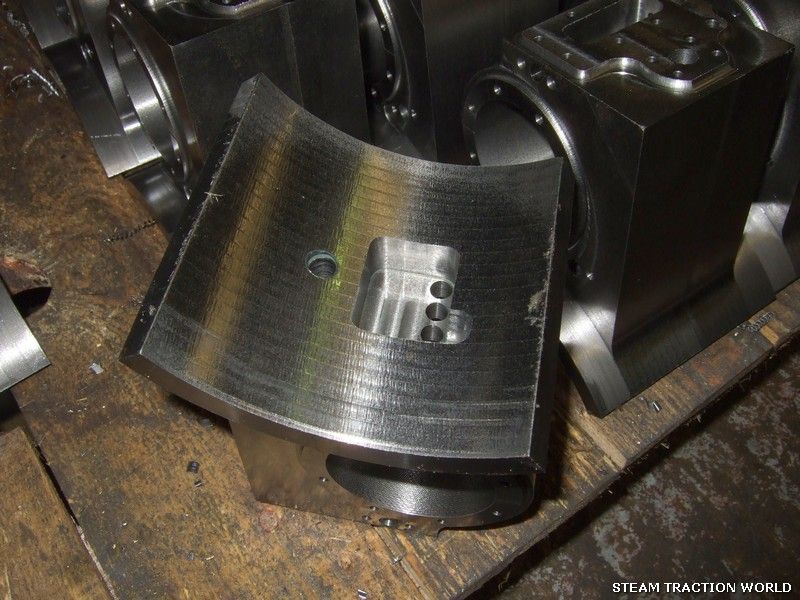

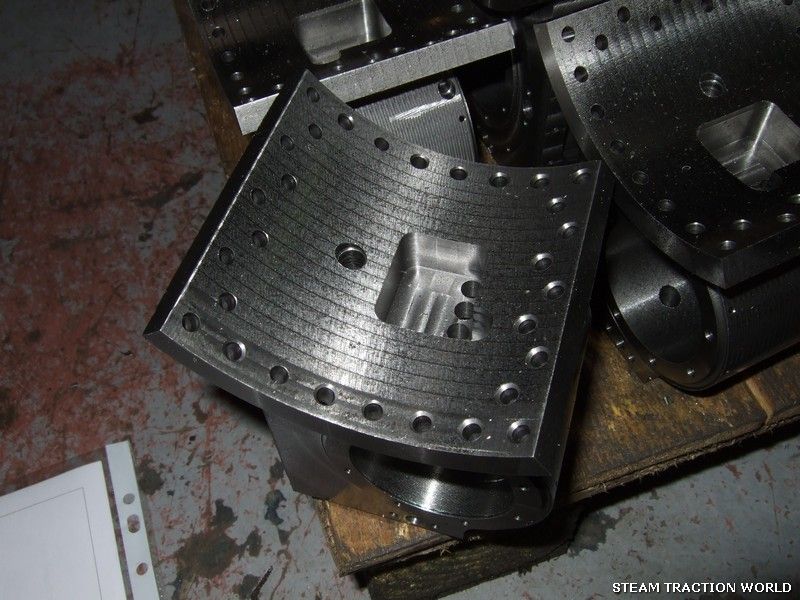

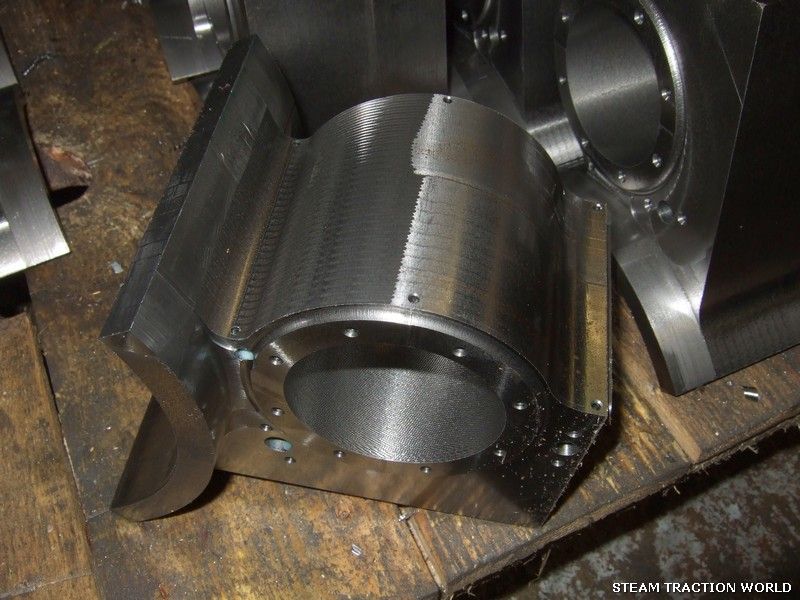

and now concentrating on the 2inch cylinder blocks...



after the blocking out op 3 was the port at the bottom...



then on to the front. this area has to be carved out for clearance on the mounting bolts...

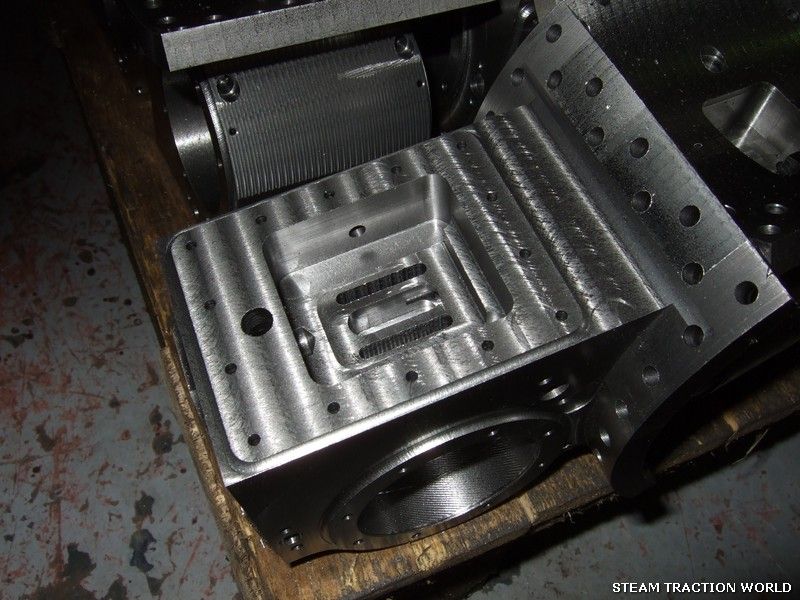

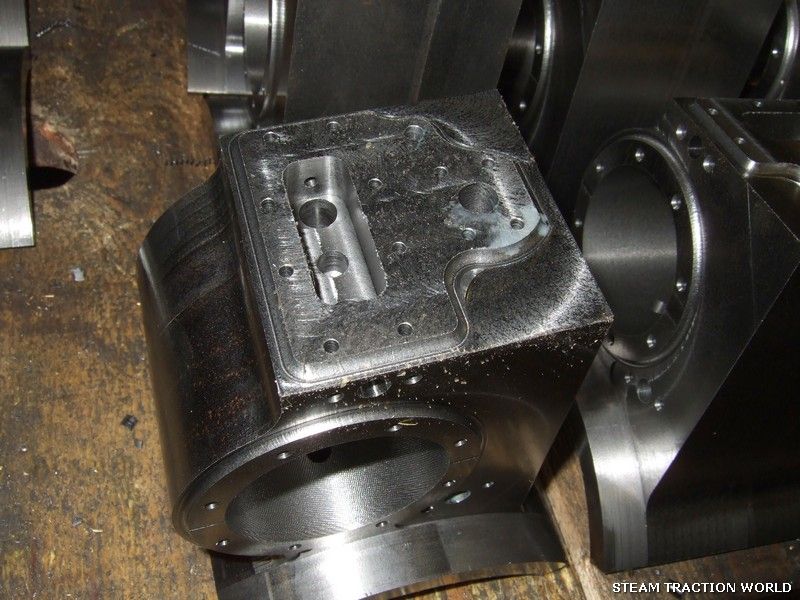

and then the port on the top...



just the back port and saddle holes to do and the the liners can be shrunk in...

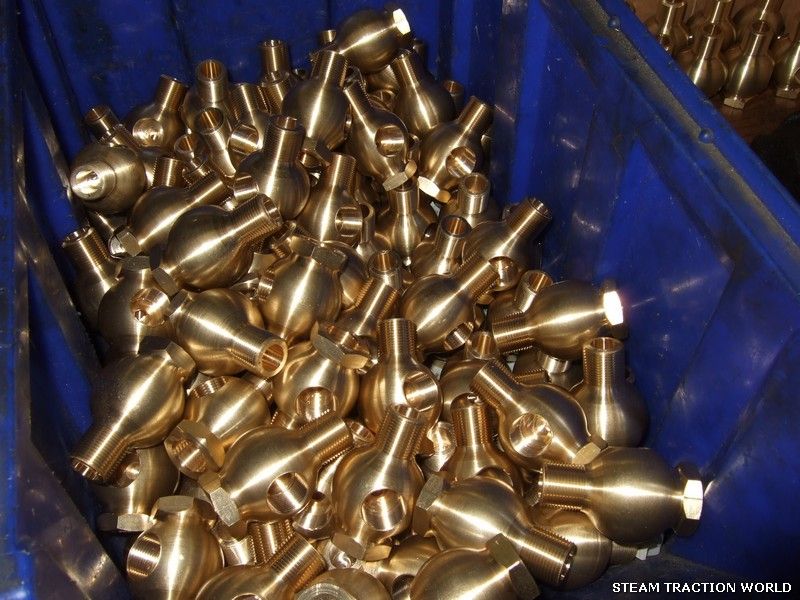

also working on 6inch foden globe valves...



drilling the important angled hole...



Last edited by craig@STW on Sun 08 Mar 2015, 10:56 am; edited 2 times in total

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  Sick of brasso on Sun 11 Jan 2015, 8:43 am

Do we know what the next kit will be the first 6inch foden batch? At the point we need some more bits to bolt on. The machining is looking very nice.

jamie

Sick of brasso

Number of posts : 23
Location : stotfold
Registration date : 2014-12-15

View user profile

Back to top Go down

2" Burrell Builders

Post  Mike King on Sun 11 Jan 2015, 8:53 am

Does anyone know when the 2" front wheel kits are going out?
Mike

Mike King

Number of posts : 223
Age : 69
Location : Hereford
Registration date : 2014-09-04

View user profile http://www.mikekingphotography.co.uk

Back to top Go down

Re: January/February/March 2015 production photos

Post  Kiwiconnection on Sun 11 Jan 2015, 11:44 am

How about the DCC cylinder blocks.... still waiting for mine Sad

Kiwiconnection

Number of posts : 108
Age : 60
Location : Tauranga New Zealand
Registration date : 2011-10-25

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  storey on Sun 11 Jan 2015, 12:38 pm

Also would love to know what's next for the 4" SCC Very Happy

storey

Number of posts : 46
Location : Hampshire, 4" SCC builder
Registration date : 2013-07-08

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  craig@STW on Mon 12 Jan 2015, 10:06 am

you either need to phone or bombard Ian with PM's for any dispatch details. sorry Embarassed

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  mikero on Tue 13 Jan 2015, 4:25 am

I can say having been in the factory last week that it is a hive of activity with more people working there than I have ever seen before. Also the steam cars are absolutely magnificent in the flesh, it would be a sin to subject them to the Dorset mud/dust.

Mike

mikero

Number of posts : 229
Location : Brighton
Registration date : 2011-07-19

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  He Who Must Not Be Blamed on Tue 13 Jan 2015, 4:58 am

mikero wrote:Also the steam cars are absolutely magnificent in the flesh

Pictures! We want to see pictures! You did take pictures, didn't you? bounce

Eric


He Who Must Not Be Blamed

Number of posts : 28
Location : Europe
Registration date : 2013-08-02

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  craig@STW on Wed 14 Jan 2015, 2:57 pm

i'll try and get more pic's of the steam cars this week. they spend most of their time covered up at the moment.

i do know that steve is planing a " first steaming" this month !!!!!

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  Tony King on Thu 15 Jan 2015, 1:49 am

Hi Craig,

You gotta make sure you get lots of pictures of Steve's Stanley Steam cars coming to life! That'll be quite a day for celebration!

Perhaps you should give them their own thread on the forum, it would be of enormous interest to everyone. It's a fantastic project Steve has undertaken (His projecst always are!!) & I'm sure there are a few builders out there who don't fully understand what Steve & STW are capable of, when it comes to producing incredible steam machines!! I know it's a lot of work to make it happen, but this is a "trumpet well worth blowing"!!.....Think of the advertising value!!
It's all part of the amazing story of STW!!

Regards,
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  Kiwiconnection on Thu 15 Jan 2015, 11:36 am

I agree with Tony. Címon Steve, let us all into world of the steam car. I have seen them close up a number of times and although you are not making them available to the general public as kits, I know that a separate forum covering the build would be of great interest. Very Happy Time to undertake this is an obvious consideration as I know all you guys at STW work flat out for your living. Rolling Eyes pale

Kiwiconnection

Number of posts : 108
Age : 60
Location : Tauranga New Zealand
Registration date : 2011-10-25

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  bjwlancashire on Fri 16 Jan 2015, 7:37 am

There is a post for them!!

http://traction.forumandco.com/t483-stanley-steam-car-at-stw

There were some more photos posted somewhere on here during last year showing them painted too but I cant find them. I saw them in September and they are absolutely stunning.

bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  craig@STW on Sat 17 Jan 2015, 4:58 am

yeah, may be a bit late to "start" a section for the steam cars as they are nearly done, but i can update the thread posted above with any photos i can find. and yes, i have a few photos this week but i think its going to be worth waiting for some real "footage" over the next few weeks.

anyway, this weeks pics...

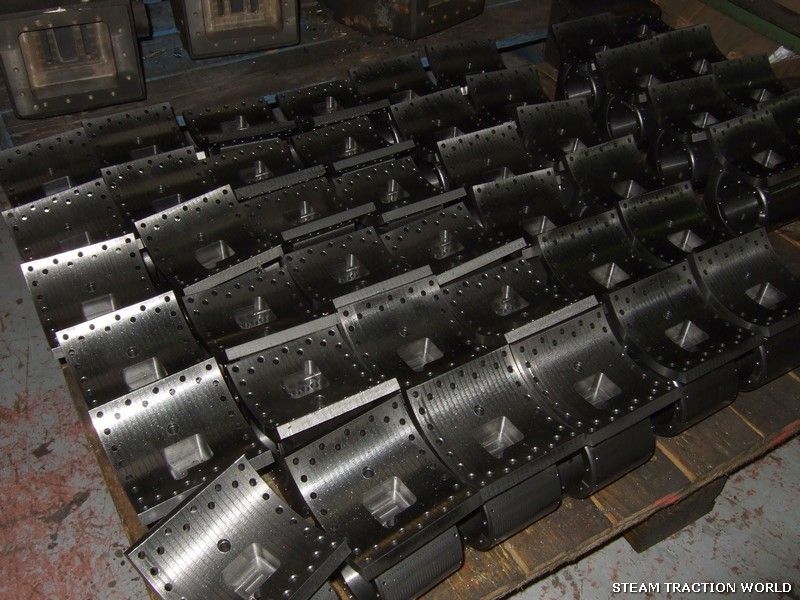

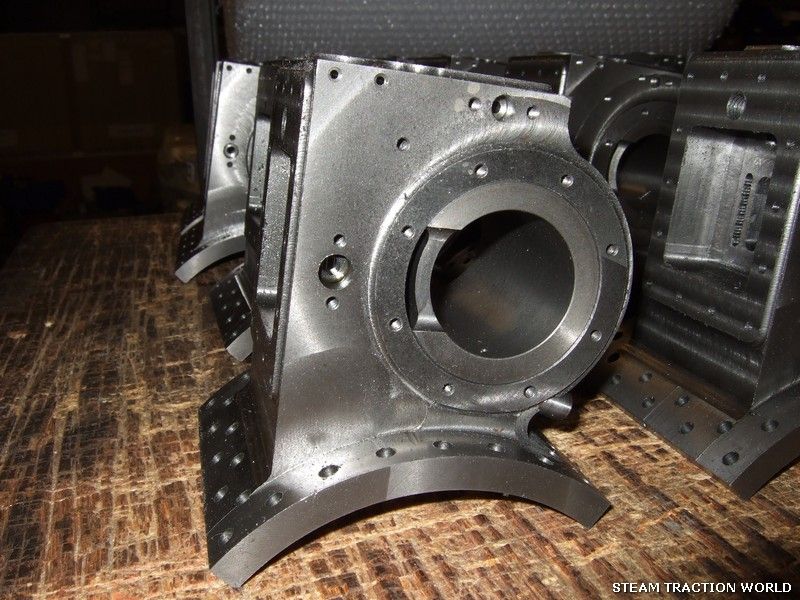

2inch cylinder blocks are finished on the machines and now just need manual tapping and the liners fitting...

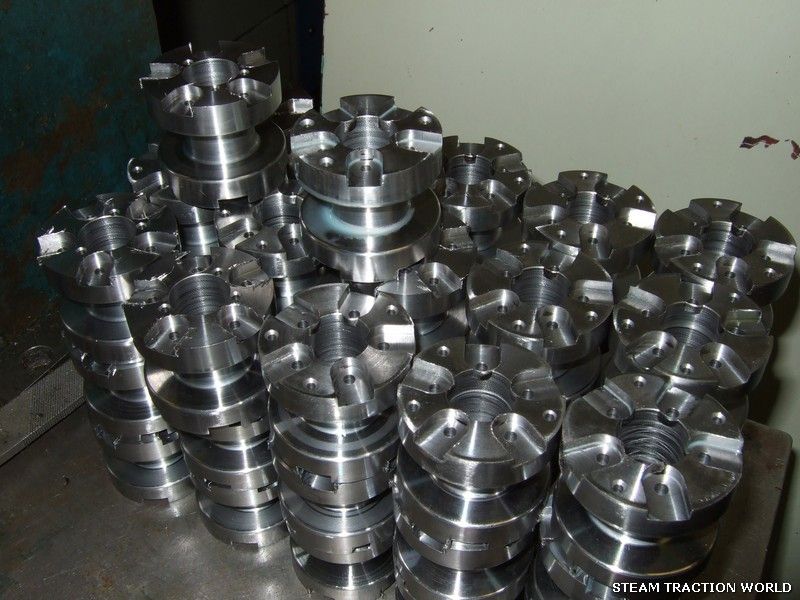

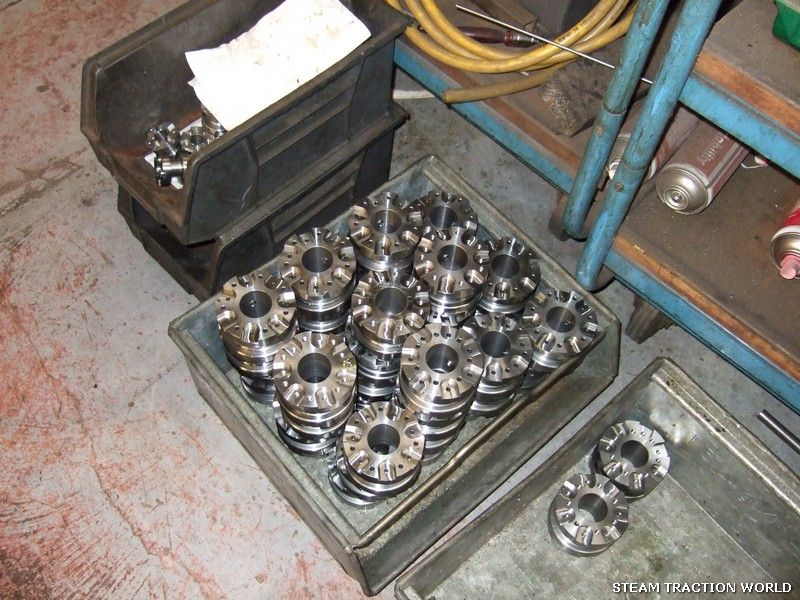

this week has been mostly about 2inch front hubs...

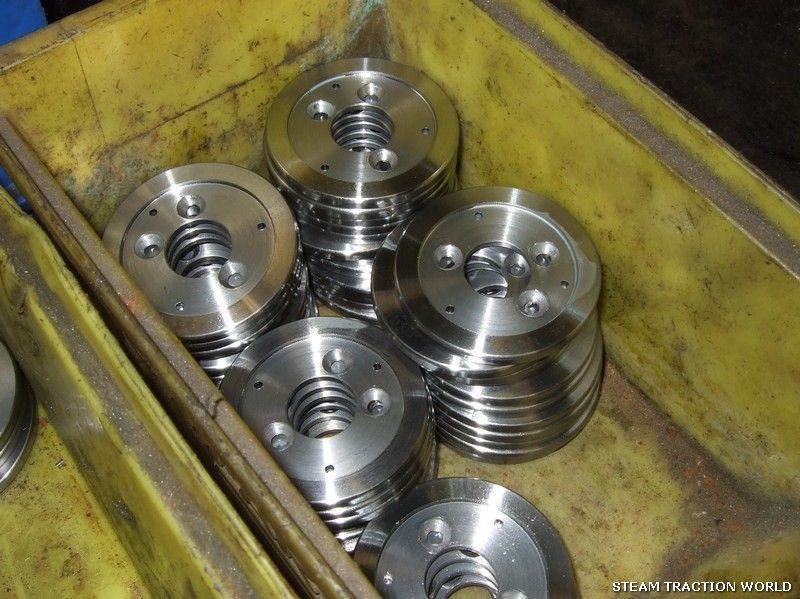

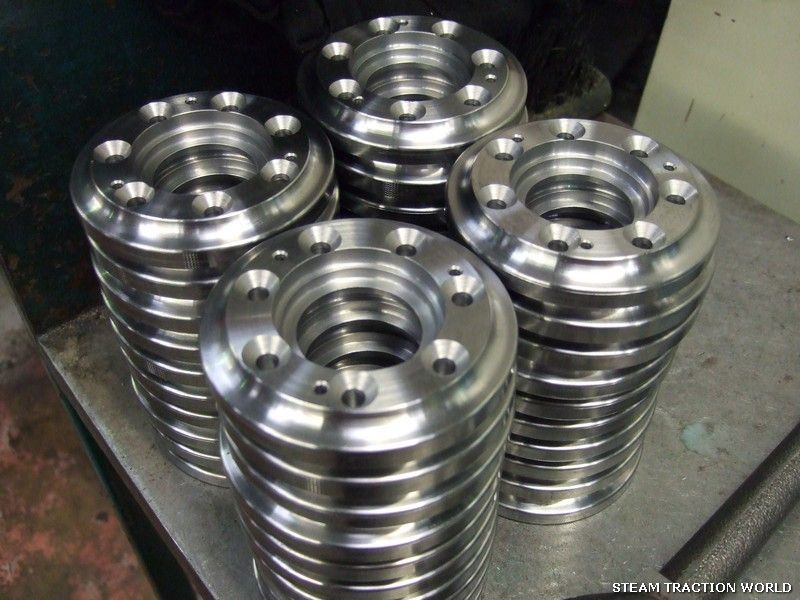

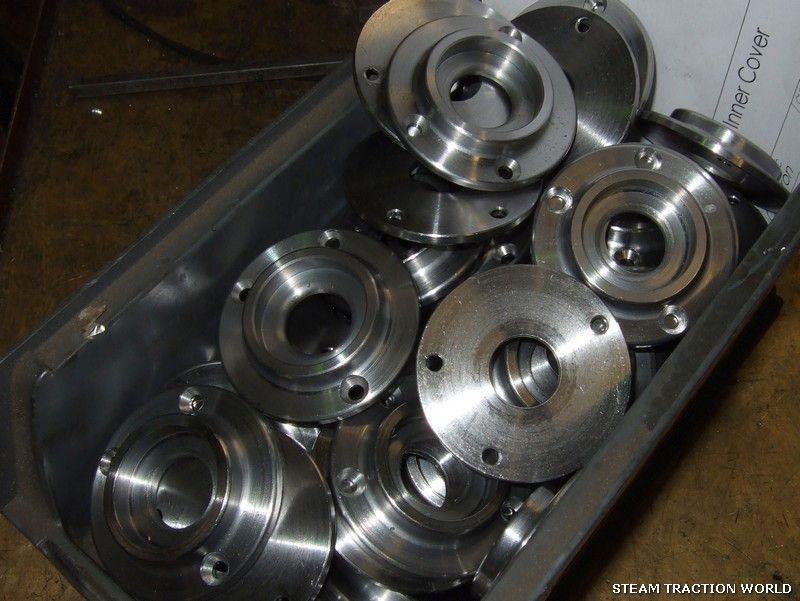

and the inner



and outer covers...

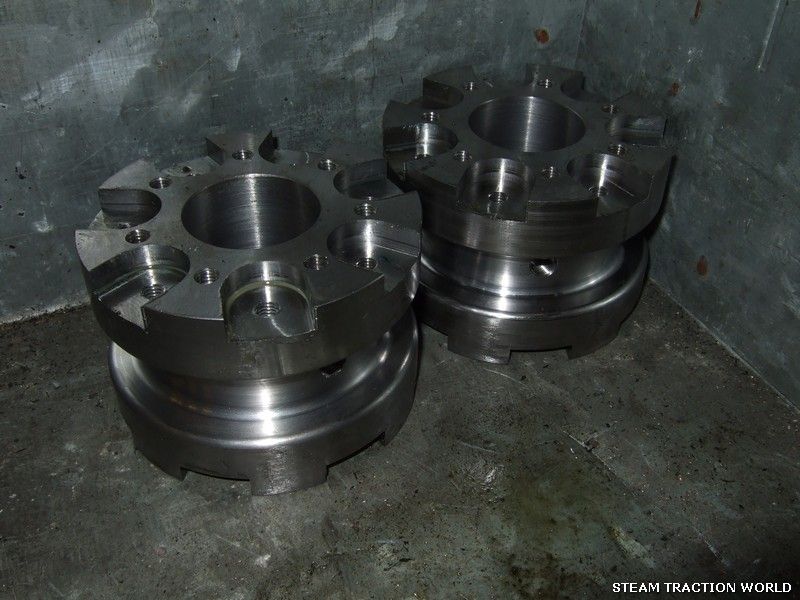

and we are just starting on the showman's front wheel hubs...




craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  craig@STW on Sat 17 Jan 2015, 5:02 am

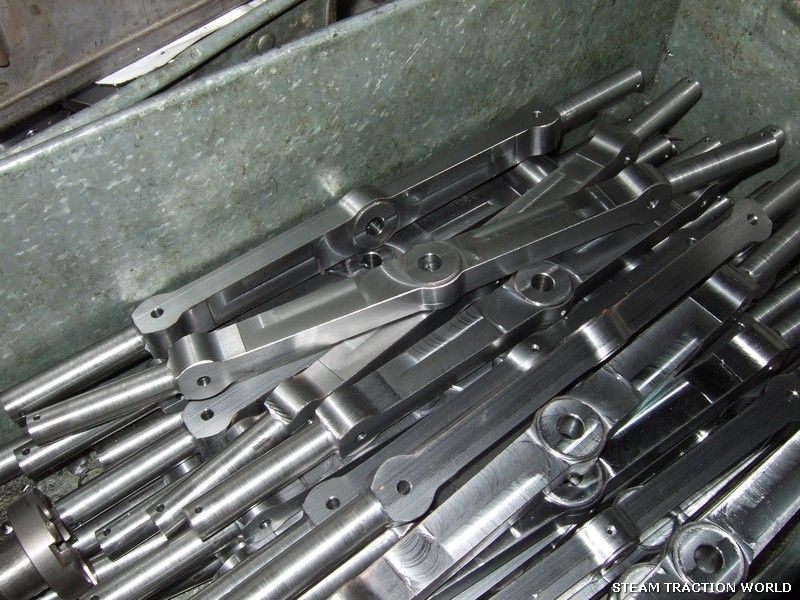

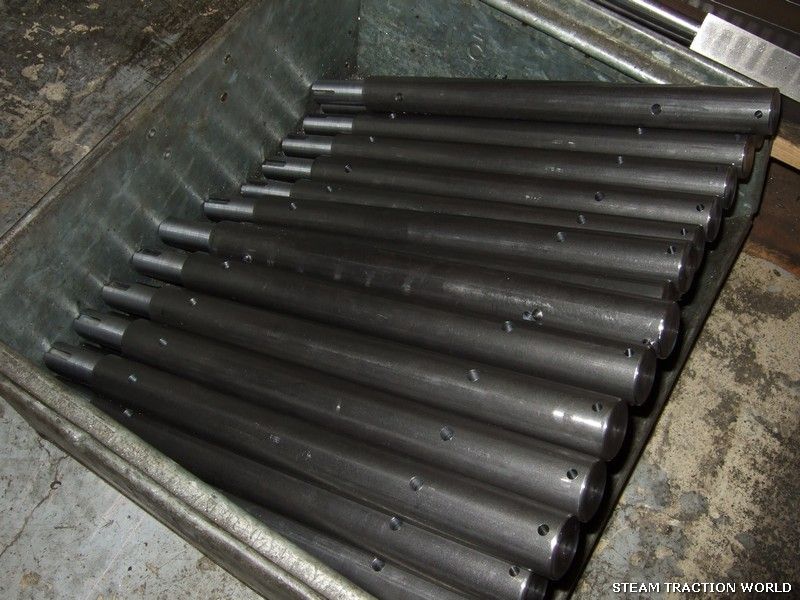

also done some showman's chain shafts...

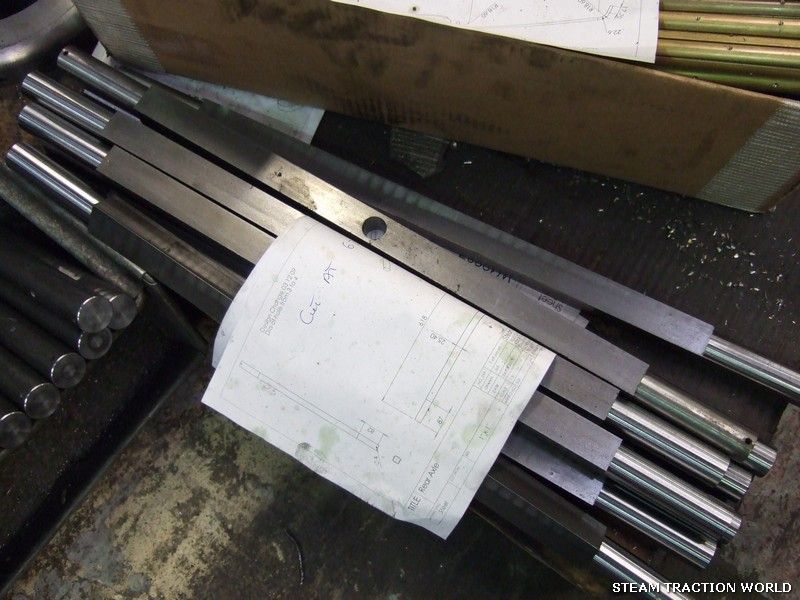

and some wagon axles...



showman's cylinder block being pressure tested...

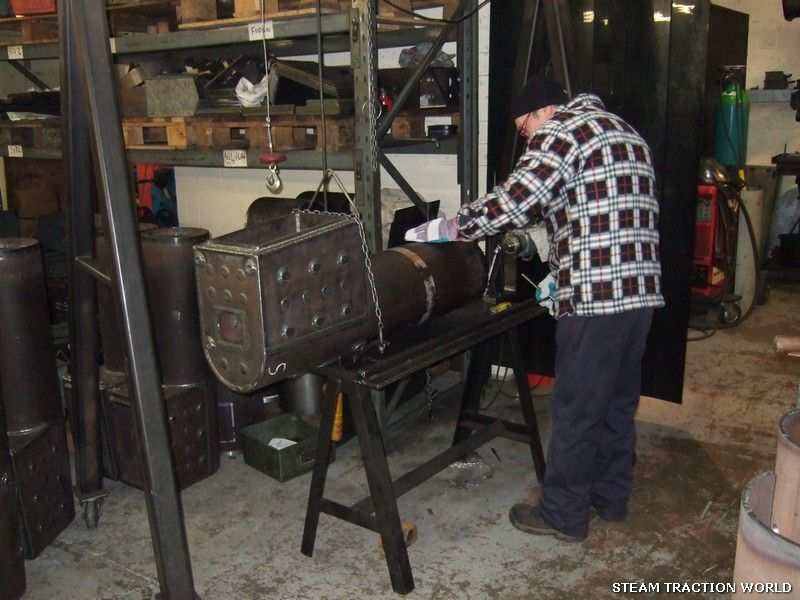

and a sneaky look at a boiler being tubed... (can't get too close to Lee cos I'd scare him away, it's a bit like taking photos of wildlife)


craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  craig@STW on Sat 17 Jan 2015, 5:05 am

OK, the steam car pics...

as a hint as to what is to come over the next few weeks, here is one of the cars being moved out for a boiler test this weekend...












craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  craig@STW on Sat 17 Jan 2015, 5:08 am

Tony King wrote:Hi Craig,

... & I'm sure there are a few builders out there who don't fully understand what Steve & STW are capable of, when it comes to producing incredible steam machines!!

Tony

and for what its worth tony, i totally agree with you on this one. and its all the more impressive when it happens overnight. just like the elves and the shoemaker !!! Very Happy

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  Capricorn1 on Sun 18 Jan 2015, 2:22 pm

Well I'm sorry but I can't get excited about the steam cars despite the amount of work that has gone into them, simply because as a 4" DCC Road Loco builder there were FIVE months last year when no kits were delivered, we're now half way through January and that is looking doubtful too, and the cylinder blocks are facing a delay of at least SIX months.
There are only a limited number of times you can play the "supplier lets us down" card.
As customer I have certain expectations, I'll gladly join the STW fan club once you get production back on track.

Capricorn1

Number of posts : 46
Location : West Yorkshire.
Registration date : 2013-07-22

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  Tony King on Mon 19 Jan 2015, 2:07 am

That's a tough one, but it is better to have the kits delivered complete & up to standard & in some kind of order, or you end up with stuff all over the place. Bits can then go missing. Also STW can't test production bits on the test model they build with every run. All I'd say is be patient, it will be worth the wait when it is finished! Also STW have a habbit of catching up with more kits later, which may not suit everybody, but usually means the final finish date isn't too delayed!!

Regards,
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  Steam Traction World on Mon 19 Jan 2015, 3:46 am

Hi Capricorn (sorry you didn't put your name),

A letter has been printed and will be leaving for the DCC customers tomorrow giving you guys an update.

All i can do is apologise about the delays. As much as you don't like to hear it we are actually victims of our own success. Many of the parts for your engine are in stock (in fact i could probably supply you with 75% of your engine from stock) however we lost count of how many engines we'd actually sold so on some on the long lead time items we've come up short. We don't believe in sending kits with items missing hence the delays and it's too confusing giving some one a kit 10 and someone else a kit 11 for example so we leave everyone in the same boat.

Believe me we are doing everything we can to pull it back with the first batch of boilers well under way (hoping to have some sent out in February) and a kit should certainly be going out this month.

Just so you are aware. All the work Steve does on the cars is done during his own time (normally up until midnight each day and all weekend) so has no detrimental affect on production or the ability to order and get the kits out on time.

If you would like to call to discuss things further with me then please do not hesitate to give me a ring.

Regards

Dean

Steam Traction World

Number of posts : 886
Location : Daventry UK
Registration date : 2008-06-18

View user profile http://www.steamtractionworld.co.uk

Back to top Go down

Re: January/February/March 2015 production photos

Post  gasman on Fri 23 Jan 2015, 4:58 am

All I can say is keep up the good work guys. We know delays are inevitable but I for one am pleased that a British engineering company is being successful.

I have to say from my own experience when speaking to Steve or Dean they have always been upfront and explained the situation and not made excuses.

Regards
Michael

gasman

Number of posts : 13
Age : 61
Location : North Suffolk
Registration date : 2011-06-30

View user profile http://www.domgas.co.uk

Back to top Go down

Re: January/February/March 2015 production photos

Post  craig@STW on Sun 25 Jan 2015, 1:19 pm

this weeks photos...

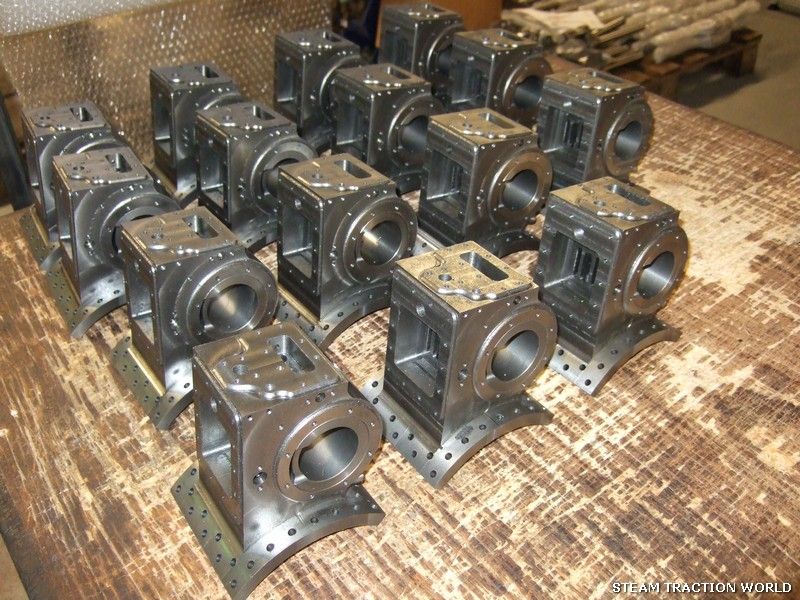

the 2inch cylinder blocks are all done and in packing...





a problem with our large lathe means things have been slow on the showman's front wheel hubs...

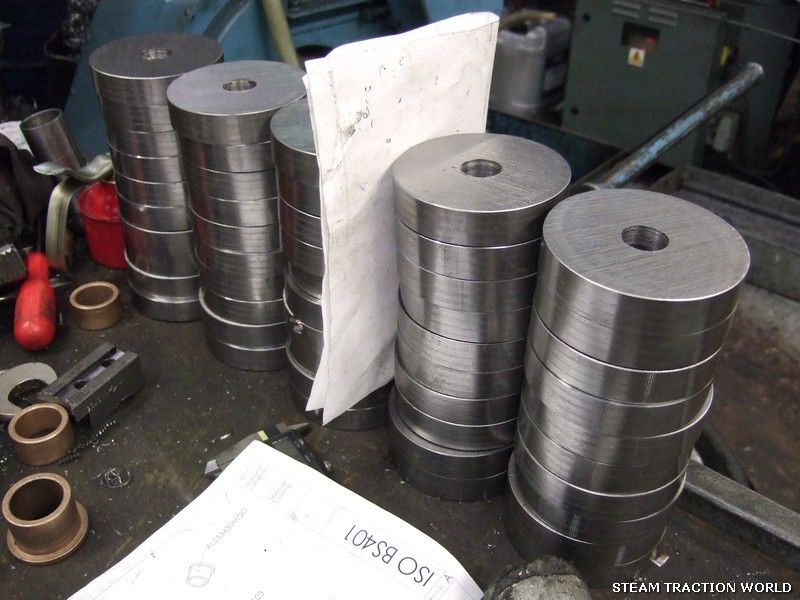

now on the inner and outer covers...

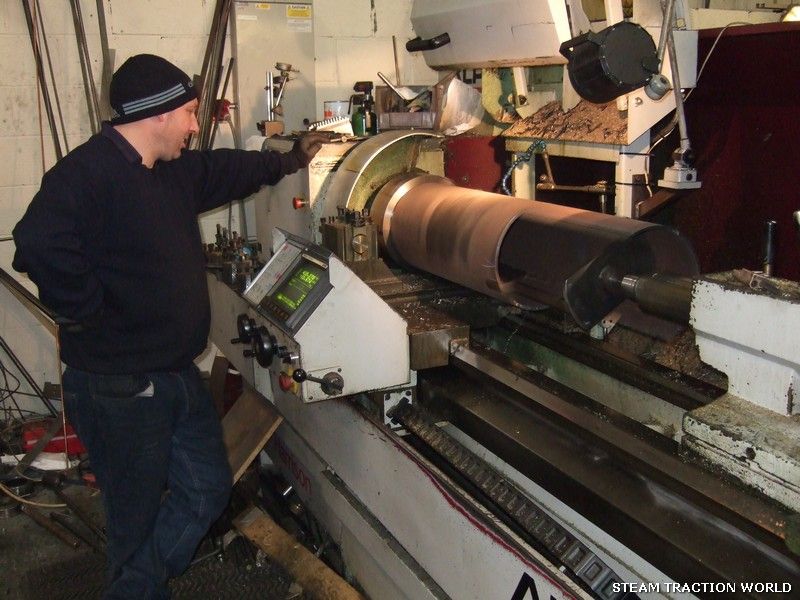

and the same lathe problem means that mark is turning boiler barrels on Steve's lathe...



6inch foden water pump straps...



and I'm just starting on one of my favorite jobs Rolling Eyes showman's crank bearings !!!!!




craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  Tony King on Mon 26 Jan 2015, 1:43 am

I just love those itty bitty 2" cylinder blocks!! From solid cast iron block to finished item.. Bloody marvellous!!

Thanks Craig!!.................... Did Stanley Steam Cars get their boilers pressure tested?

Regards,
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  Sick of brasso on Mon 26 Jan 2015, 5:29 am

1st batch of 6inch foden bits anywhere?

Jamie

Sick of brasso

Number of posts : 23
Location : stotfold
Registration date : 2014-12-15

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  Ian on Mon 26 Jan 2015, 6:47 am

6" Foden kit 26 Cab Laser cuts for the cab sides are in, (need bending excetra) waiting an awful lot of wood for the roof to arrive. lot of fabrication in this one.

Ian

Number of posts : 74
Age : 60
Location : Daventry
Registration date : 2008-06-30

View user profile

Back to top Go down

Re: January/February/March 2015 production photos

Post  storey on Mon 26 Jan 2015, 7:03 am

Hi Ian,

Any word on the next kit for the 4" SCC Road Locos ?

Paul

storey

Number of posts : 46
Location : Hampshire, 4" SCC builder
Registration date : 2013-07-08

View user profile

Back to top Go down

Re: January/February/March 2015 production photos
