Re: Mikes Road loco

Post  Road loco on Thu 14 Jan 2016, 10:10 am

Thanx for havin her Lynn, long way from home but for a good reason

Road loco

Number of posts : 133
Location : Somerset
Registration date : 2014-08-04

View user profile

Back to top Go down

Re: Mikes Road loco

Post  lynnr on Fri 15 Jan 2016, 3:58 am

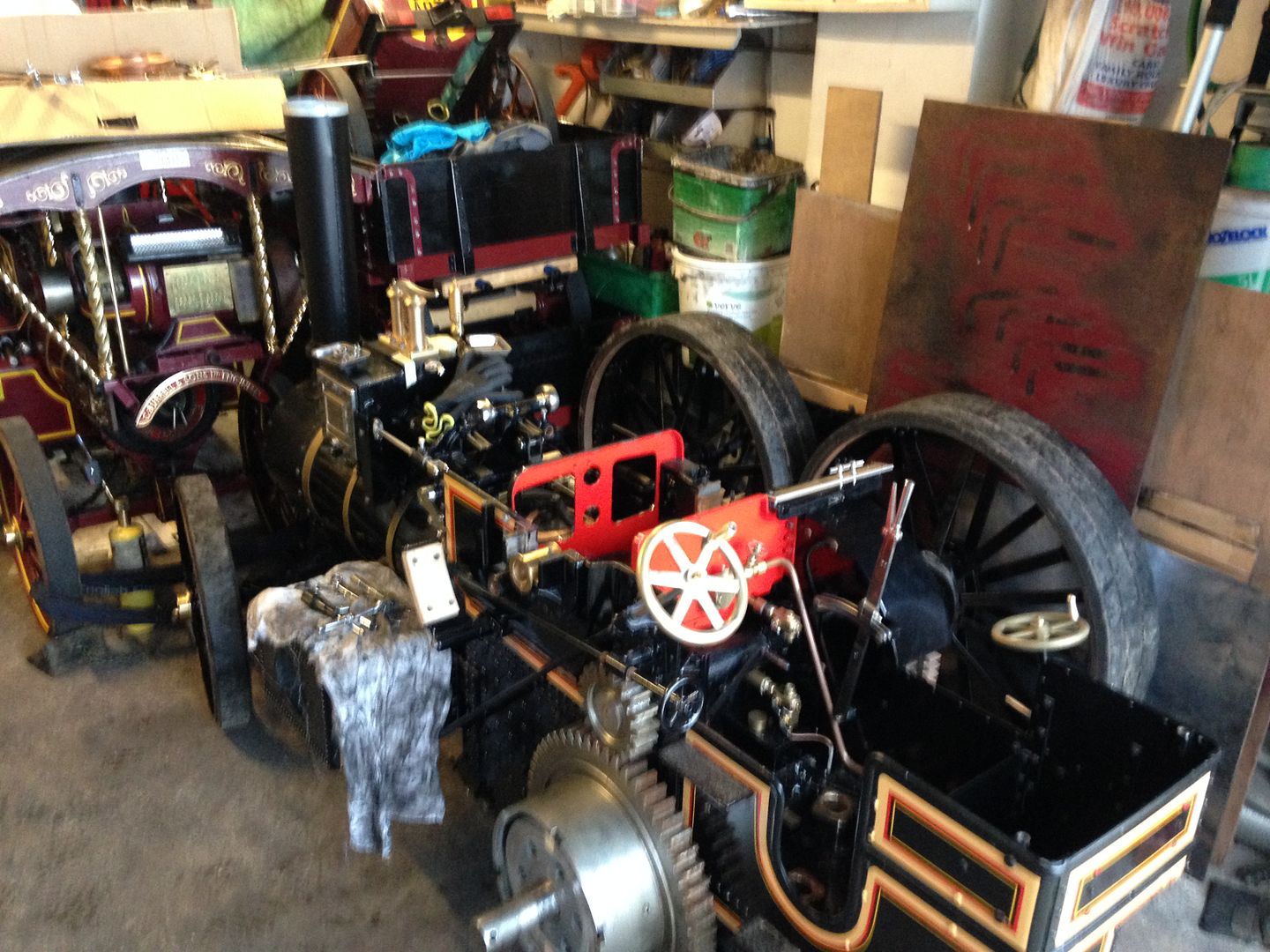

Made a start on Priscilla.

Wheels and flywheel off.



Crank out.



To be taken inside, warmed up and all bearings lapped in.



Valve gear will all be coming off next



Been fishing as well. Spare/awol nuts



It might look scary now Mike but she will get better shortly.



Warming up


lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Mikes Road loco

Post  Road loco on Fri 15 Jan 2016, 6:00 am

She's at a good place for very good reasons, good to see the pictures of the engine what will hopefully be up and running one day😃👍, thanx again Lynn

Road loco

Number of posts : 133
Location : Somerset
Registration date : 2014-08-04

View user profile

Back to top Go down

Re: Mikes Road loco

Post  Tony King on Fri 15 Jan 2016, 6:02 am

Nice to see some "real action" on the forum!!..Been too quiet of late!!

Regards,
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: Mikes Road loco

Post  Road loco on Fri 15 Jan 2016, 6:14 am

Hi tony due to being to busy at work and having lots of problems with putting the engine together(me not very brainy if I should say😃), I've sent the engine to Lynn for them to work on which I appreciate loads and I no it wil get done properly, I no if it was to stil be here it would never get finished which would be a shame, so hopefully there wil be lots of pictures of the problems I've made or what Lynn is working on so it can make the forum exciting for a bit lol 😃

Road loco

Number of posts : 133
Location : Somerset
Registration date : 2014-08-04

View user profile

Back to top Go down

Re: Mikes Road loco

Post  lynnr on Fri 15 Jan 2016, 7:21 am

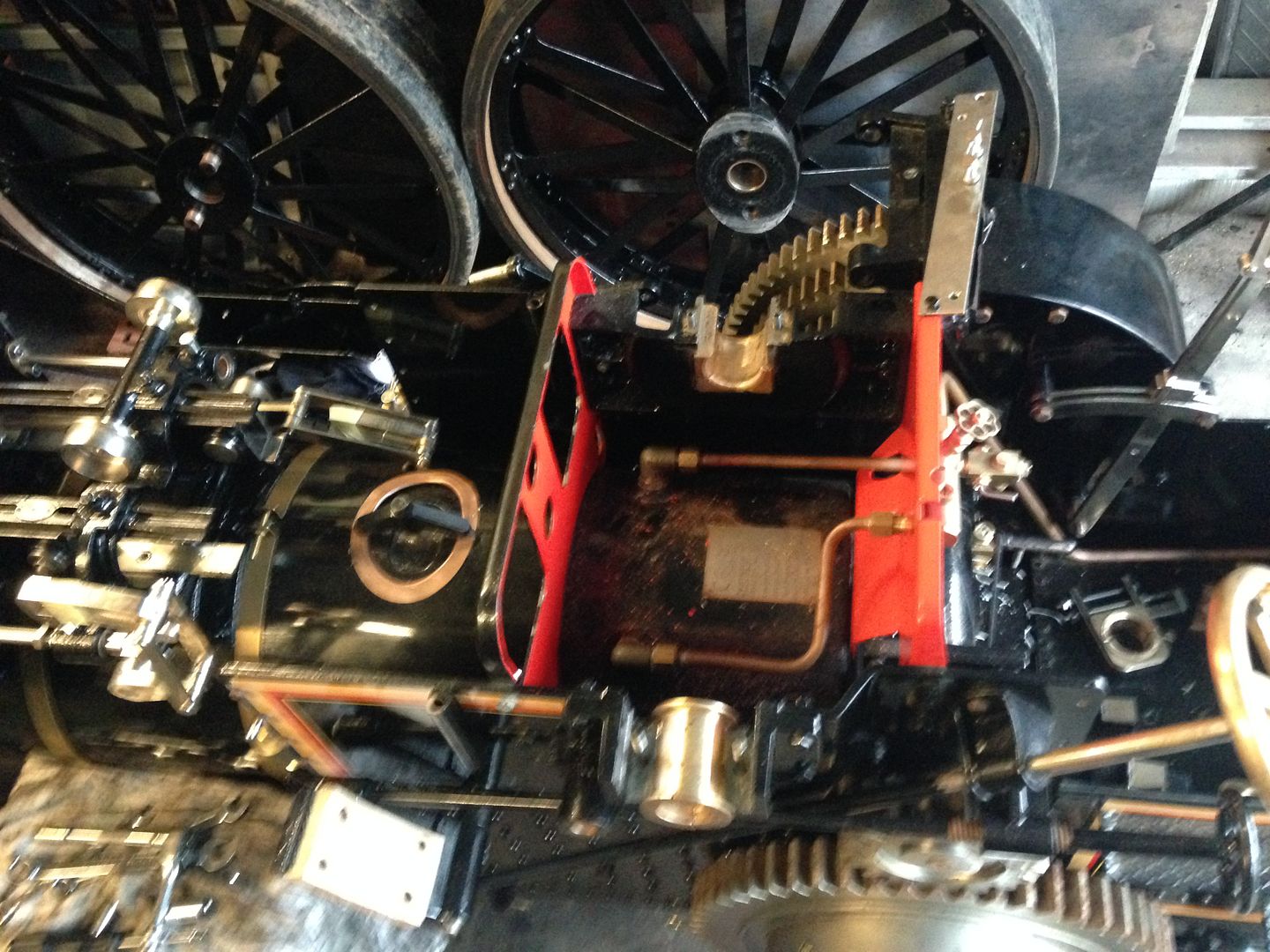

More parts removed.

Differential off

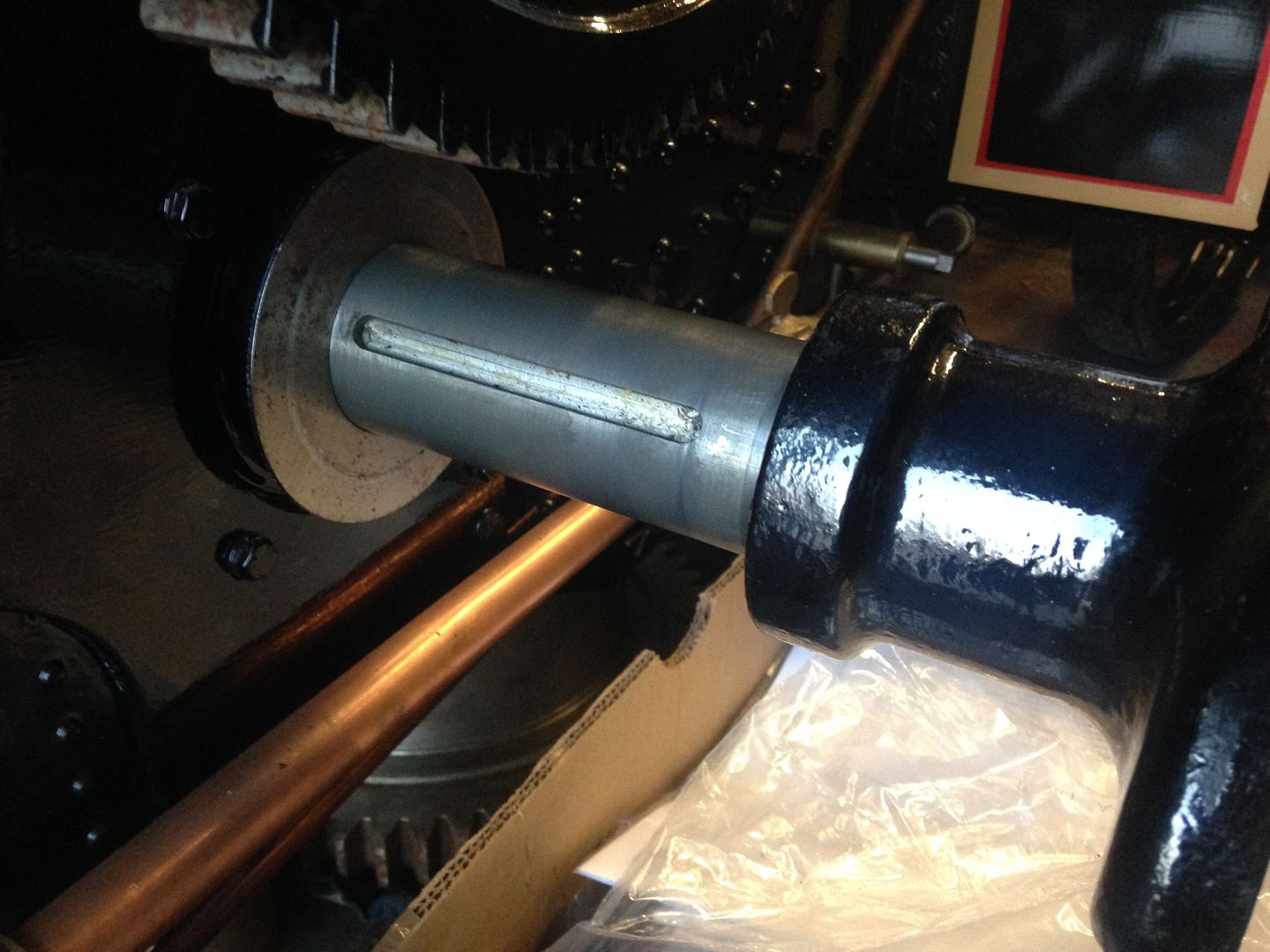

Drive flange off. Oops no keys installed



Flywheel brake shaft joint not thread locked

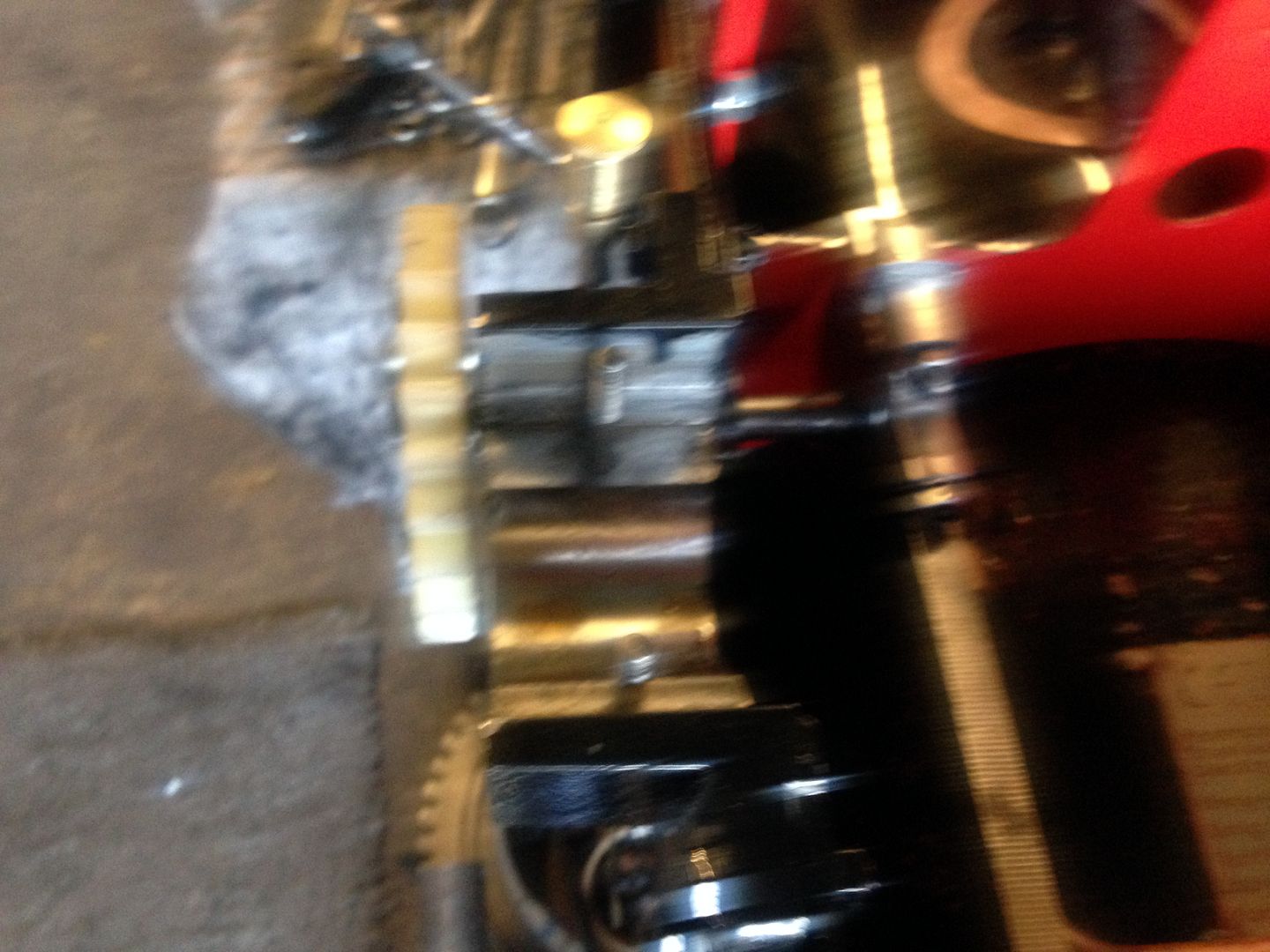

Gear cluster removed from 2nd shaft.



2nd Shaft bearing loose in housing



Also oil hole not drilled through the bearing.



Valve assemblies coming apart. Collets on order from STW to modify the valve stems





Valve bushes not "glued" in and have not been drilled for the oil hole clearance.




Also removed the main axial to check its bearings etc.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Mikes Road loco

Post  Road loco on Fri 15 Jan 2016, 9:34 am

Doing well then Lynn 👍

Road loco

Number of posts : 133
Location : Somerset
Registration date : 2014-08-04

View user profile

Back to top Go down

Re: Mikes Road loco

Post  lynnr on Fri 15 Jan 2016, 2:08 pm

Yes. Coming apart quickly. Hope to get on with main bearings and eccentrics tomorrow.

When you got things plated you forgot to make sure the bushes were blanked off or greased up to stop them being plated.

The little end bushes might be keput. The cross pins were forced through the bearings due to the plating. But I will try and recover them or get new ones to press in.

Big end bearings are over tight on the saddle straps as they were not let out to account for the added plate thickness. Easily solved. That's why the jack posts would not go in very far.

Cross head slide bars need shimmed up a bit to remove play. Easily solved.

Varous bearing oil holes need creating. Most are easily solved. Only difficult ones are the 2nd shaft due to space constraints.

Eccentric reach rods were on, well, randomly would be best description. Most of the bending induced has relaxed out so looking good there. Easily solved.

Valve slide on the LP side was too tight on the rod so would not make correct contact. Solved. Need to replace the brass slot head screws with the steel bolts, Steam Traction World modification.

Valve rod collet modification, parts requested from Steam Traction World. Easily solved.

Steam head pipe work loose and no thread seal applied. Easily solved now the crank is out.

Steam injector pipe work too loose and not water or steam tight. Easily solved.

Loose nuts, bolts and missing locking nuts prevalent all over. Severe lack of thread lock. Easily solved.

Brackets for the drain cock pipe work not installed behind cleading. So will need to take belly tank off and forward cleading. Easily solved.

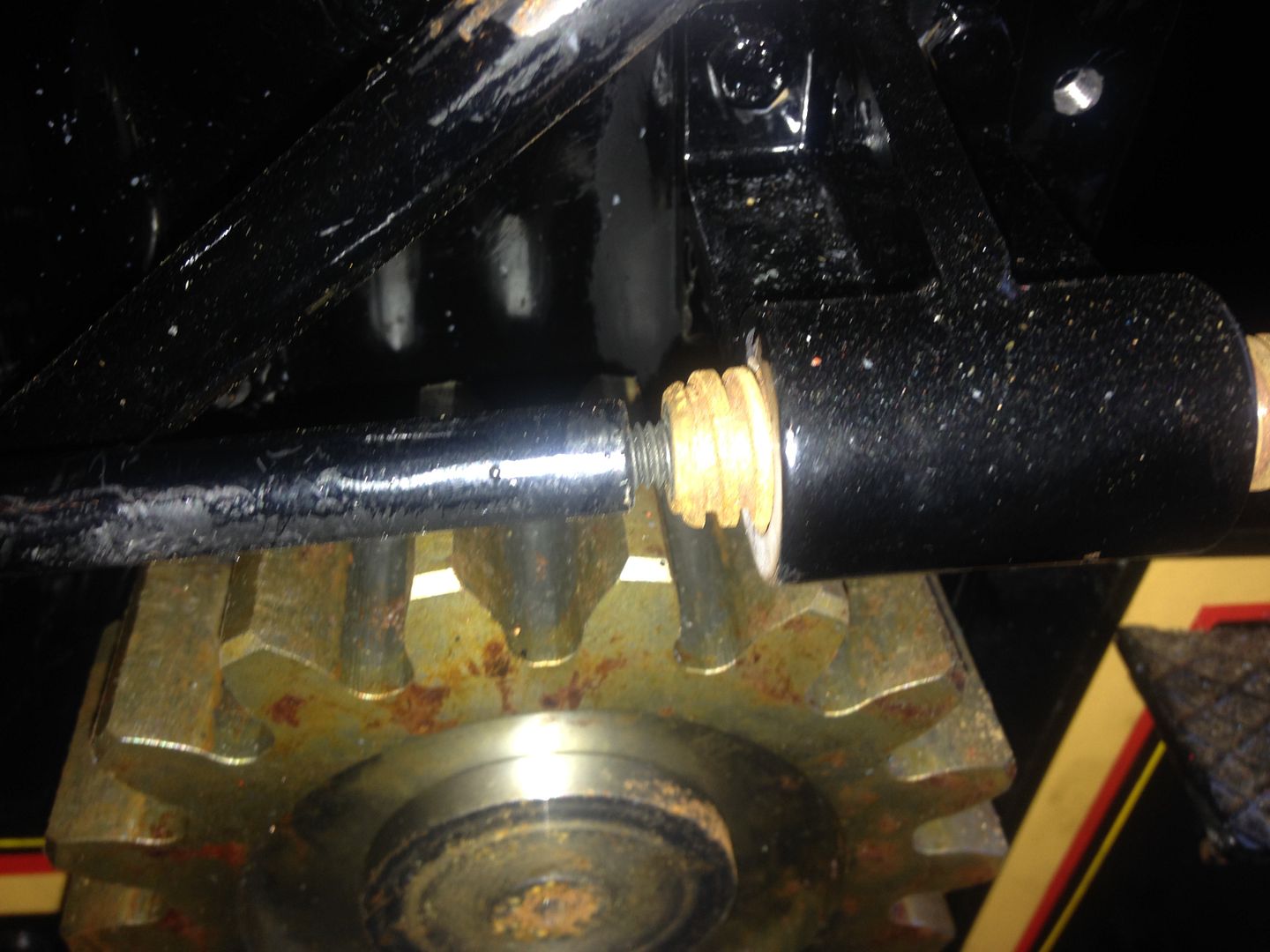

Steering chain bar too tight requiring two handed steering. Will shim bearings when belly tank is off.

Gear change levers pivot points plated through making pivots and bushes over tight. Easily solved.

Think that is enough for day 1.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Mikes Road loco

Post  Road loco on Sat 16 Jan 2016, 5:03 am

Sorry bout al the problems Lynn I hope u can sort them and it's not to much trouble

Road loco

Number of posts : 133
Location : Somerset
Registration date : 2014-08-04

View user profile

Back to top Go down

Re: Mikes Road loco

Post  lynnr on Sat 16 Jan 2016, 5:42 am

No problem Mike

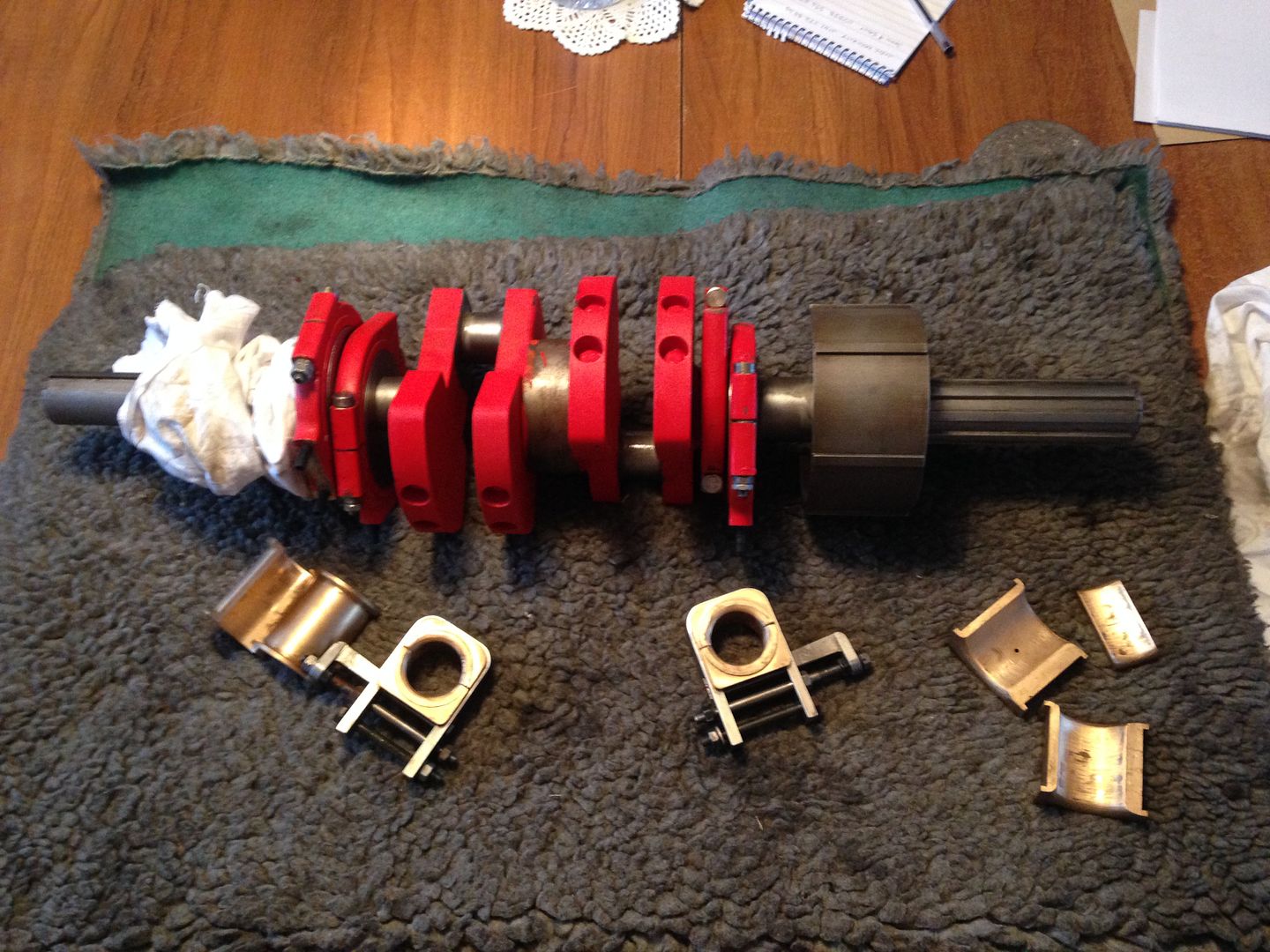

Been working on the eccentrics today. Got 3 of them swinging nicely. One is being a right pain.



Surface starting to become even.





Once they are done it is on to the big ends.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Mikes Road loco

Post  lynnr on Sat 16 Jan 2016, 7:24 am

More filing and honing

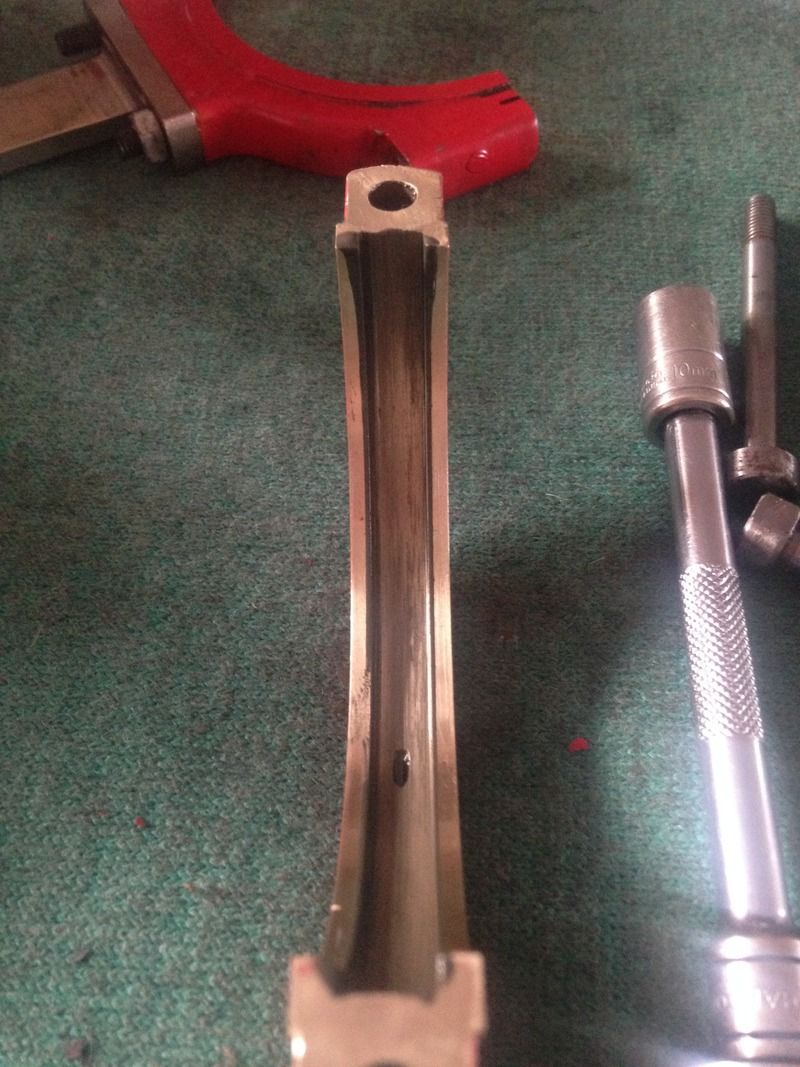

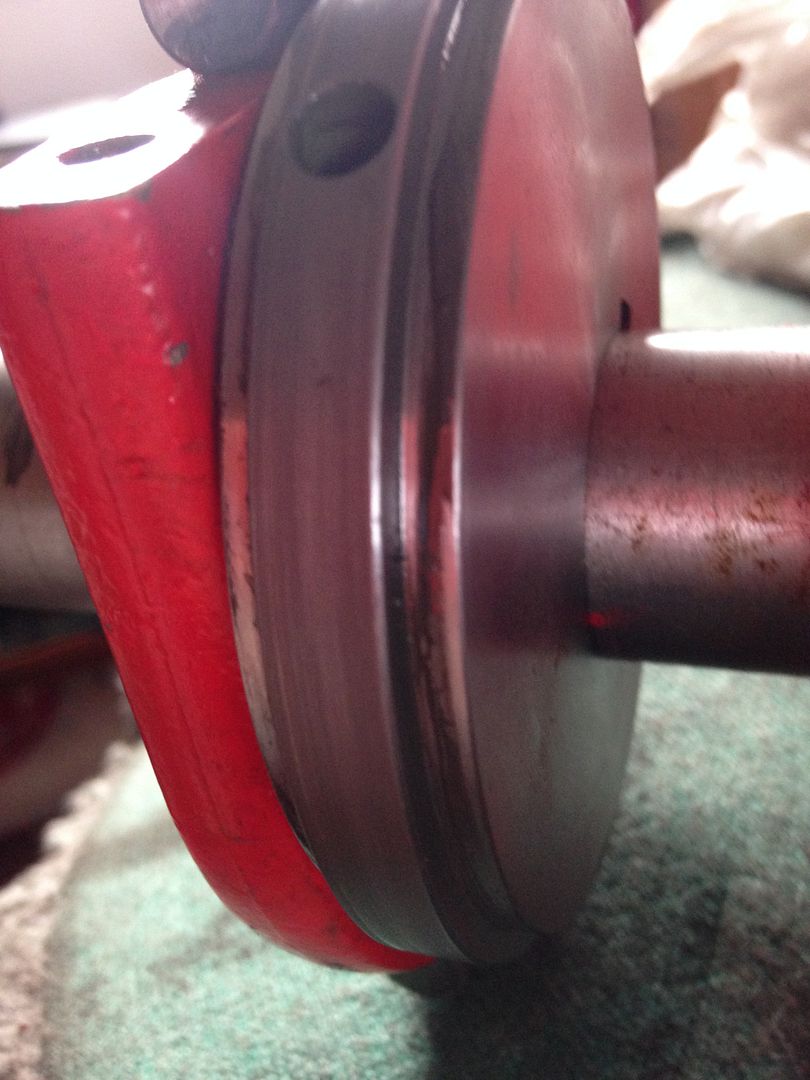

Eccentrics are all good now. 6 hours of work later. One needs a very thin shim at one end for good smooth function. So not worried about them anymore.



Reduced the flywheel crank bearing to make it fit again

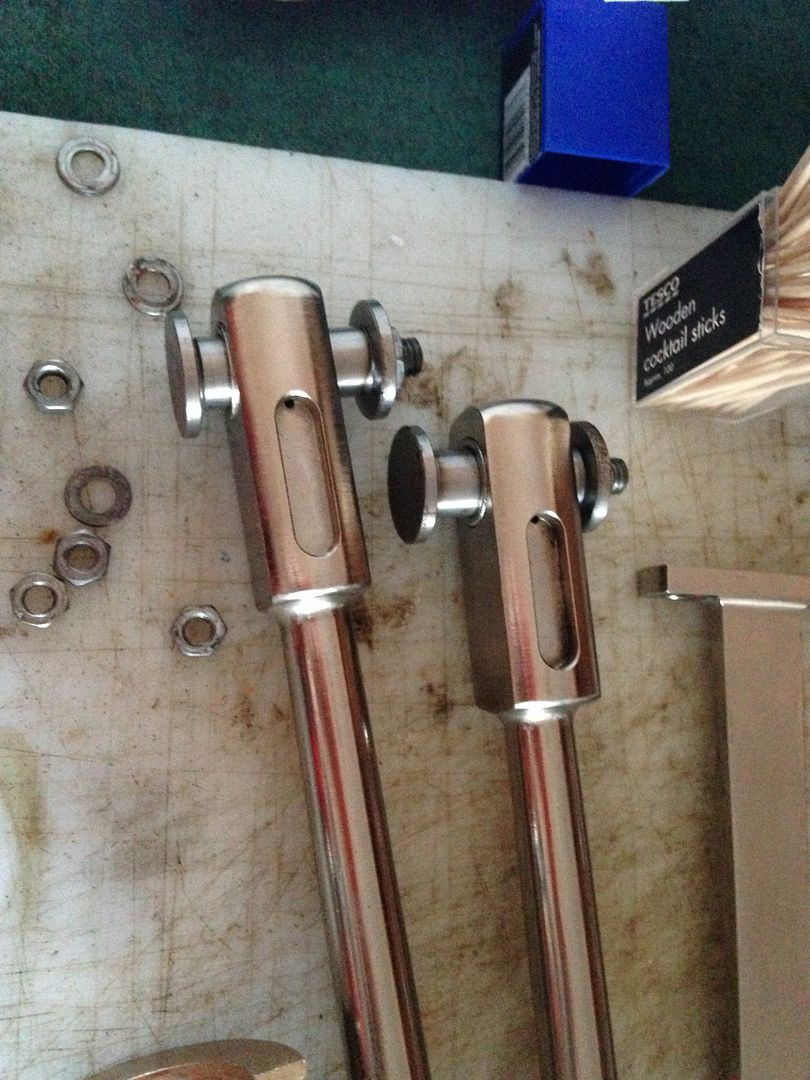

Not sure on the little ends. I have removed all the visible plating but unsure if the sub structure of the bush is clogged up. At least the bearing now rotates smoothly.


lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Mikes Road loco

Post  gwr1475 on Sat 16 Jan 2016, 9:10 am

Great pictures lynnr!!!! Its fantastic to see someone building again. Please keep them coming.

The oil holes that needed to be drilled is that something you have to do while building the kits? Or was it just missed by STW. Not that its a big deal just wondering.

For the eccentrics are you using time saver to lap them in and turning them by hand?

All the best

Mark

gwr1475

Number of posts : 33
Location : canada
Registration date : 2012-11-18

View user profile

Back to top Go down

Re: Mikes Road loco

Post  lynnr on Sat 16 Jan 2016, 9:15 am

Hi

The bushes for the valve rods partially occlude the oil holes. The 2nd shaft also partially occlude the hole. I drill in once the bushes are set just to make sure oil gets to the face. On the 2nd shaft it has now created an oil bath so the shaft is protected the whole length.

Yes I am using Timesaver. 40, 60, 80, 120

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Mikes Road loco

Post  gwr1475 on Sat 16 Jan 2016, 9:29 am

Thanks lynnr, you never know this might be the start of you building engines for people. Best of luck

Mark

gwr1475

Number of posts : 33
Location : canada
Registration date : 2012-11-18

View user profile

Back to top Go down

Re: Mikes Road loco

Post  lynnr on Sat 16 Jan 2016, 10:15 am

To be a business it would need 4 or 5 engines at a time and kits every month.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Mikes Road loco

Post  Tony King on Sat 16 Jan 2016, 10:39 am

You're making excellent progress there Lynn, well done... & thanks for taking time to put it all on the forum, I'm sure that a few builders will appreciate the knowledge You're imparting!!

Reagrds,
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: Mikes Road loco

Post  Road loco on Sat 16 Jan 2016, 10:53 am

I'm so glad the engine is getting done and thank Lynn so much for what is getting done, 😃

Road loco

Number of posts : 133
Location : Somerset
Registration date : 2014-08-04

View user profile

Back to top Go down

Re: Mikes Road loco

Post  lynnr on Sat 16 Jan 2016, 11:36 am

Few more bits to take off and rectify then I should be able to start putting bit on.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Mikes Road loco

Post  lynnr on Sun 17 Jan 2016, 3:58 am

Took more bits of this morning. But it was to make putting the mechanical water pump on easier.

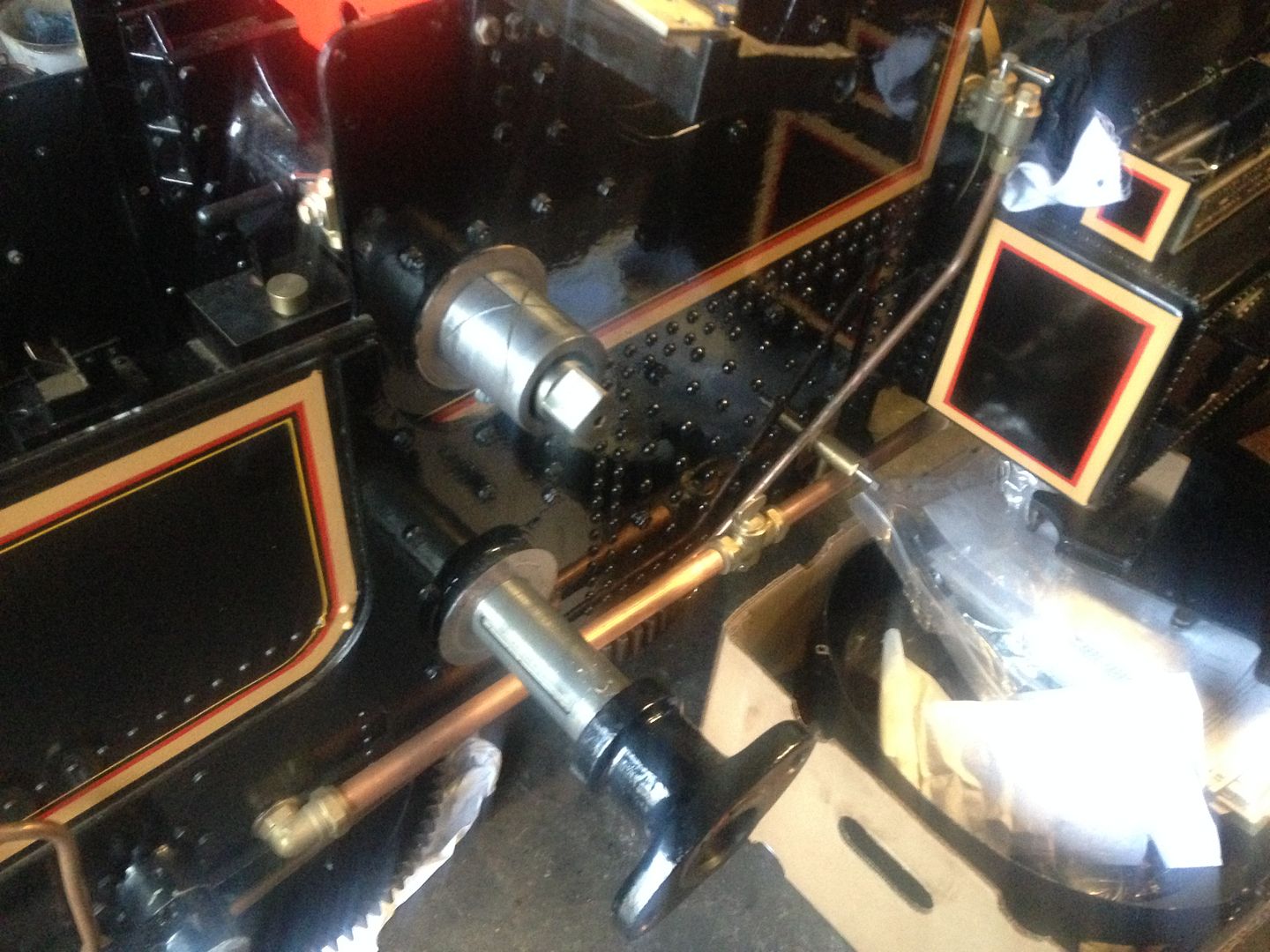

Flywheel brake and steering removed.




Make sure the hole in the end of the water pump piston has plenty instant gasket. Otherwise it WILL leak past.




Fitted the steam head while waiting for the instant gasket to set off a bit.




3 turns of packing installed. Make sure they are cut as individual and have the cuts opposite. This makes them seat better and no voids.

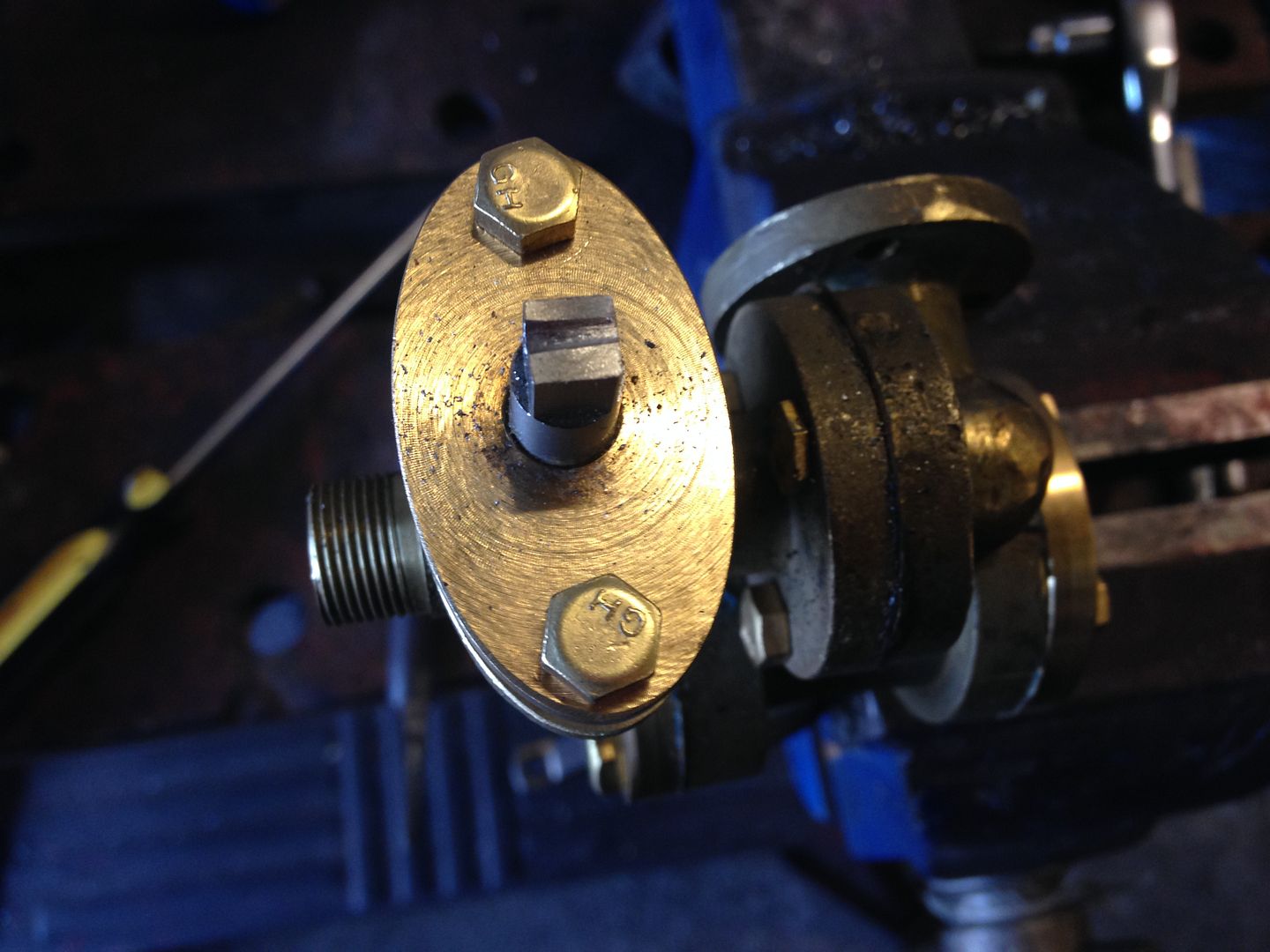

Make sure you mark the bypass valve spindle for "water flow". Makes life easier later.



Piston put through the backhead.



Toes getting cold in the -8 so off in for lunch. Working boots and double socks needed for next session.


Last edited by lynnr on Mon 18 Jan 2016, 5:12 am; edited 1 time in total

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Mikes Road loco

Post  Road loco on Sun 17 Jan 2016, 4:37 am

-8 I thought it was cold here this morning, doing well Lynn, working on a Sunday 👍😃

Road loco

Number of posts : 133
Location : Somerset
Registration date : 2014-08-04

View user profile

Back to top Go down

Re: Mikes Road loco

Post  lynnr on Sun 17 Jan 2016, 8:30 am

It warmed up to -7 then dropped to -10 at 1530

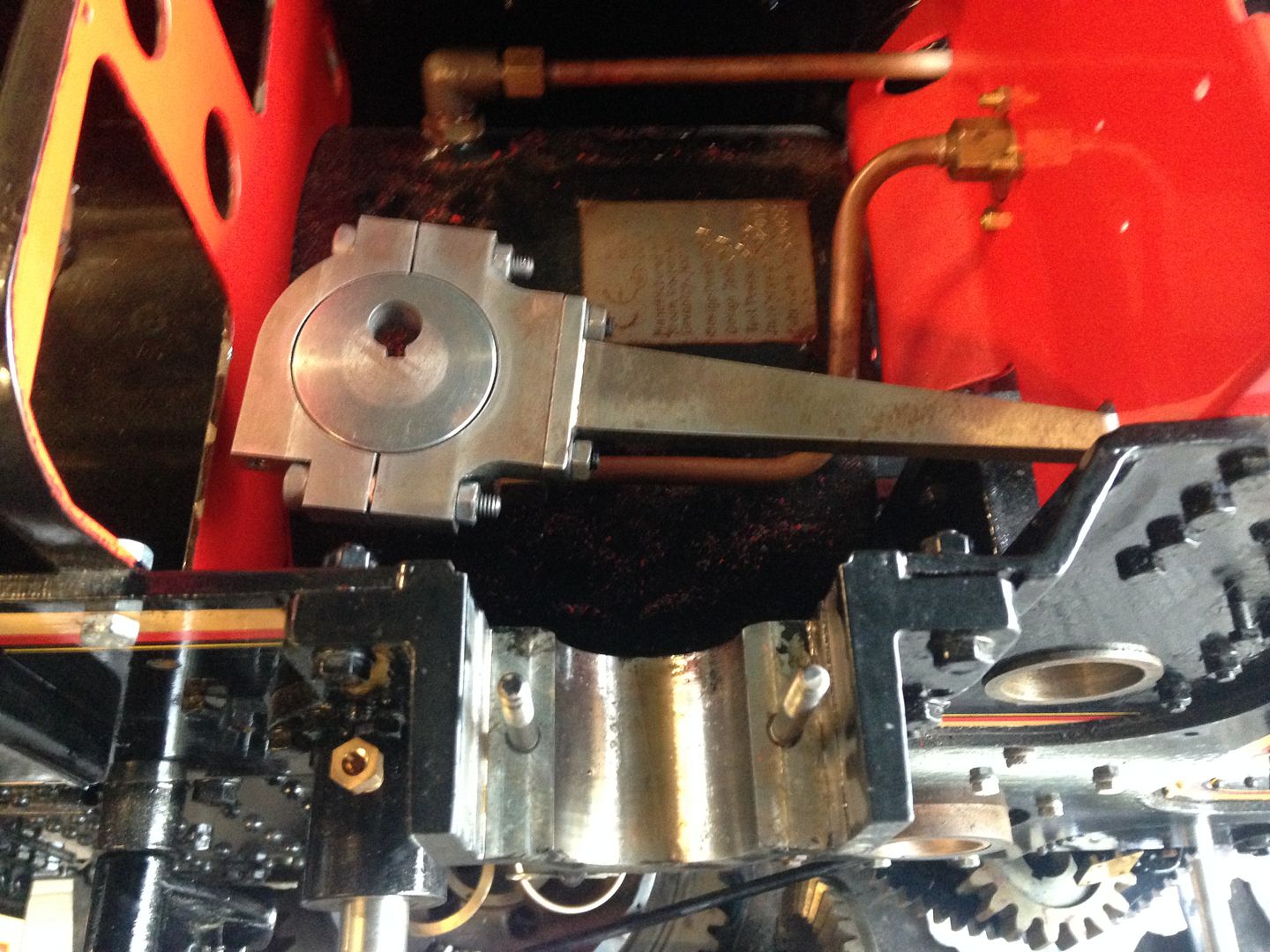

More work done on the water pump. Eccentric grinding and lapping.

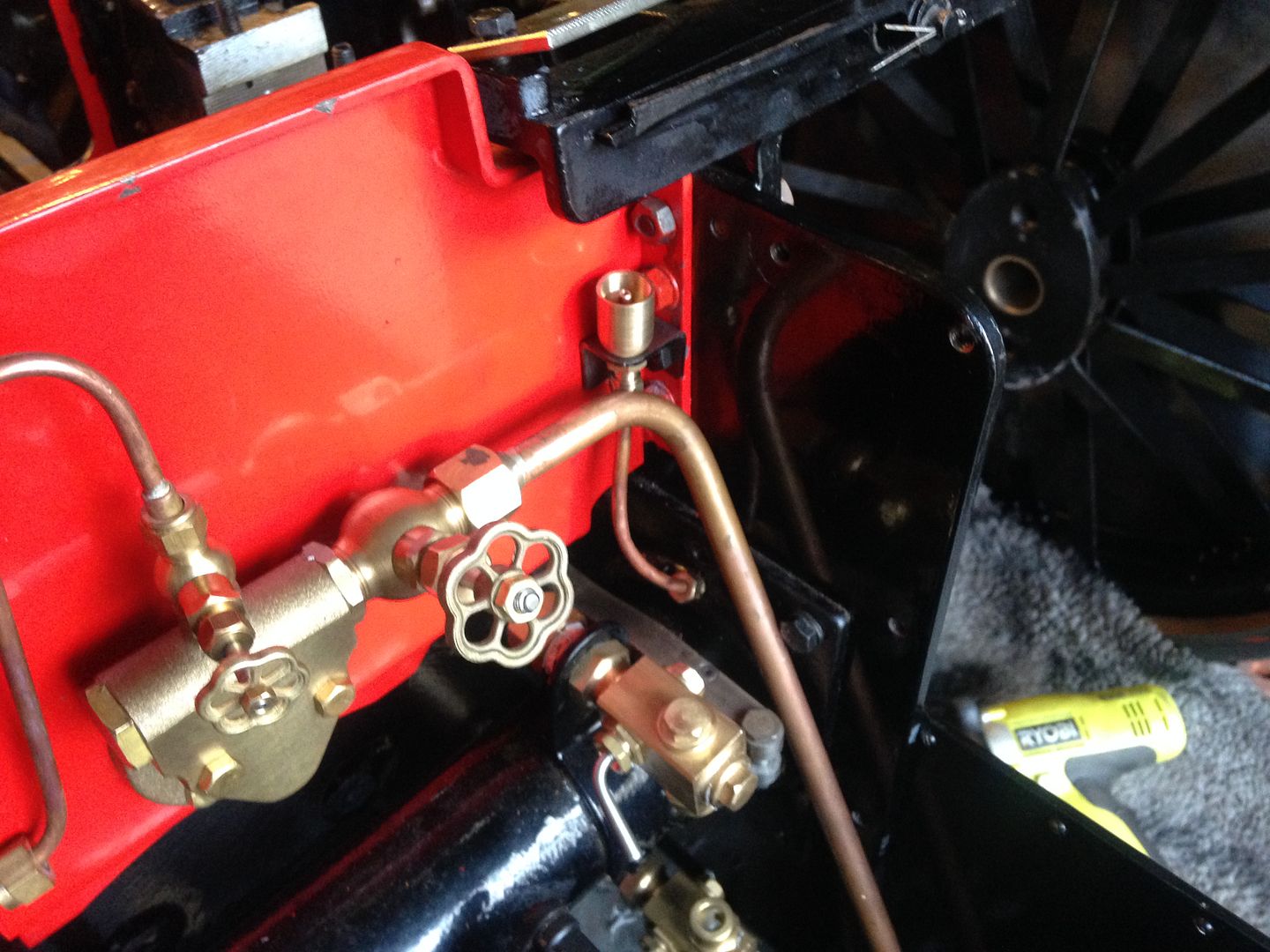

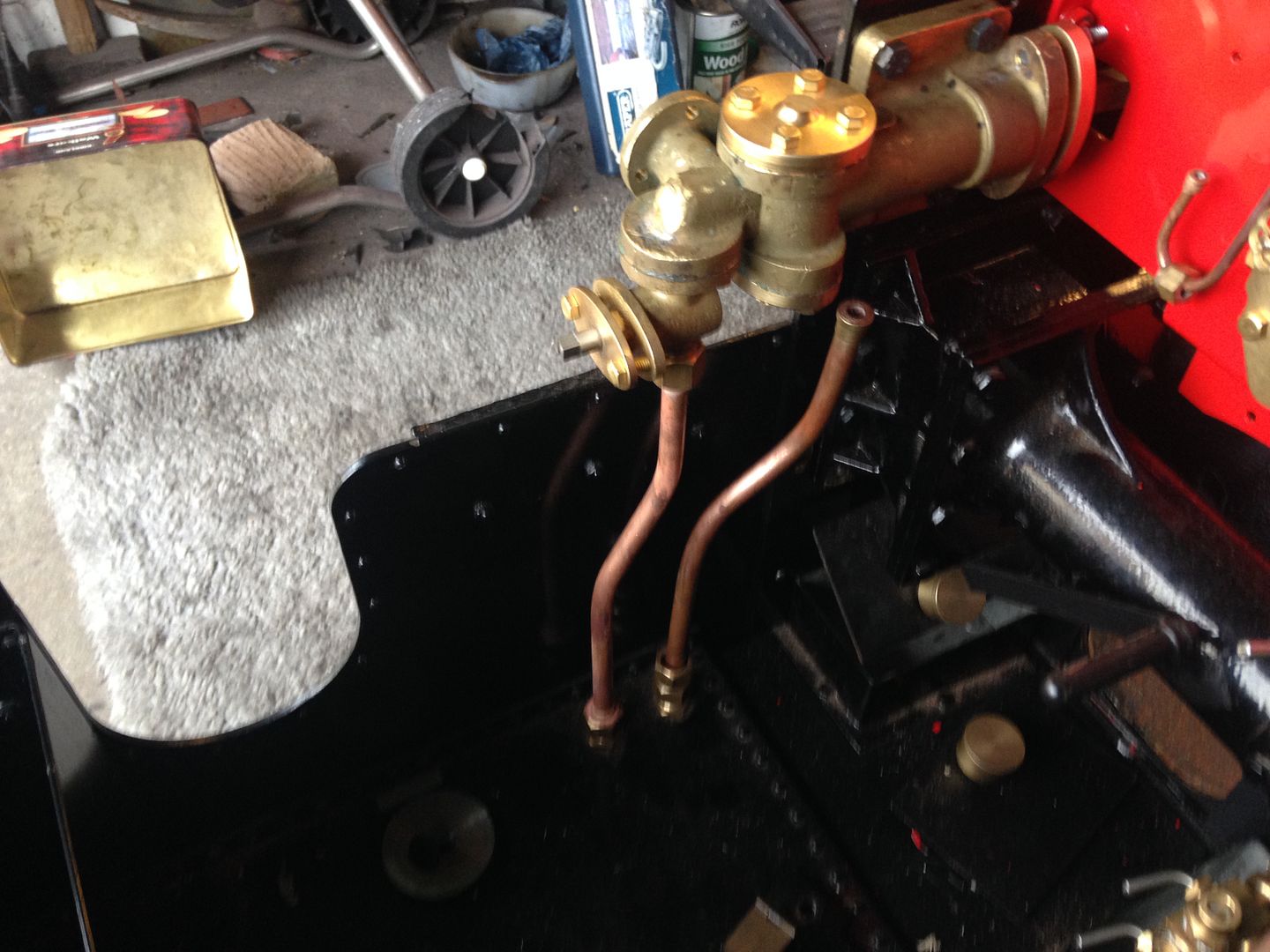

Trial fit of the water pump
One pipe will need modification as too long. Will not even work by changing the bends.



This is why it is best to do the water pump without the crank.

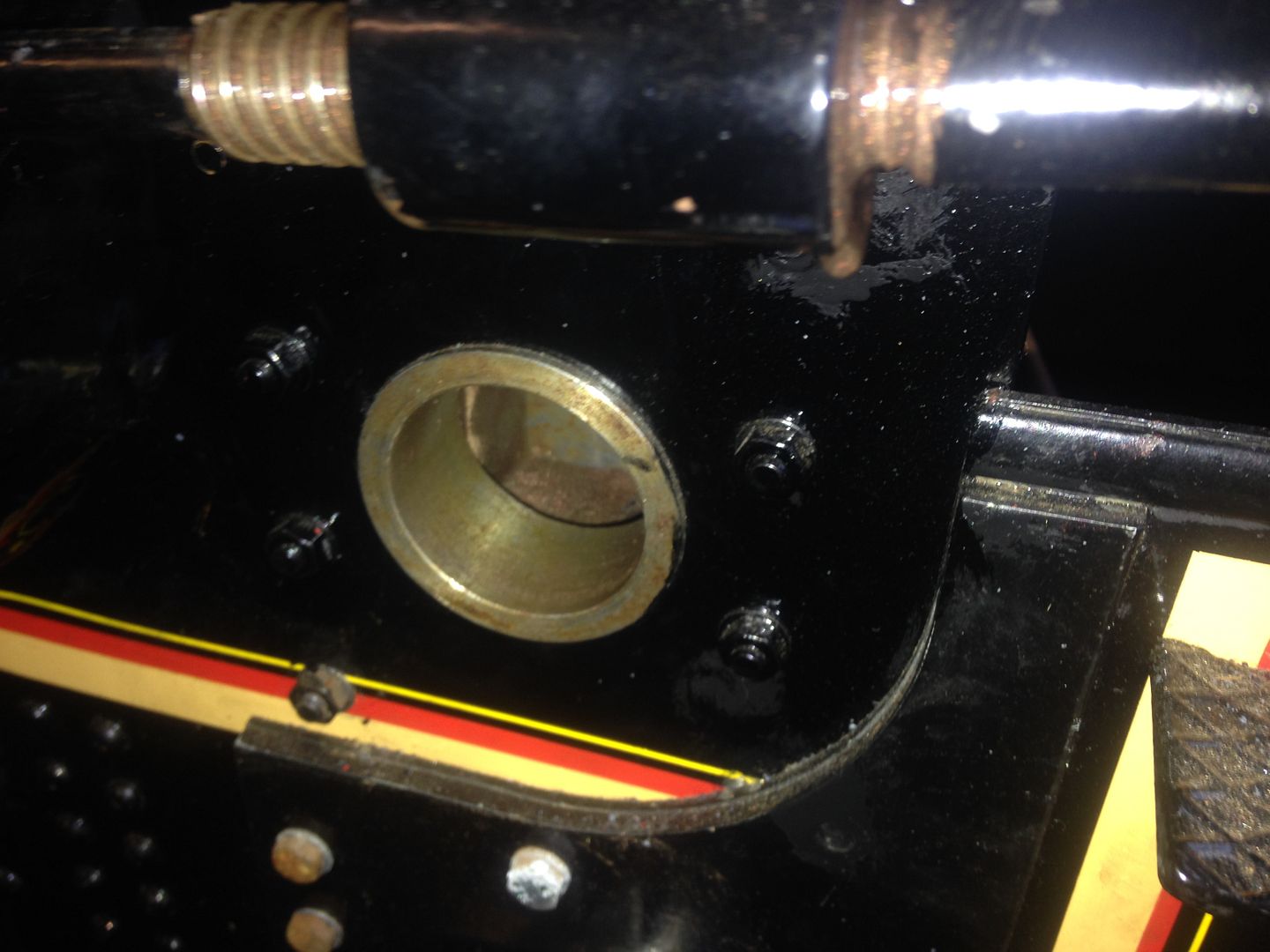

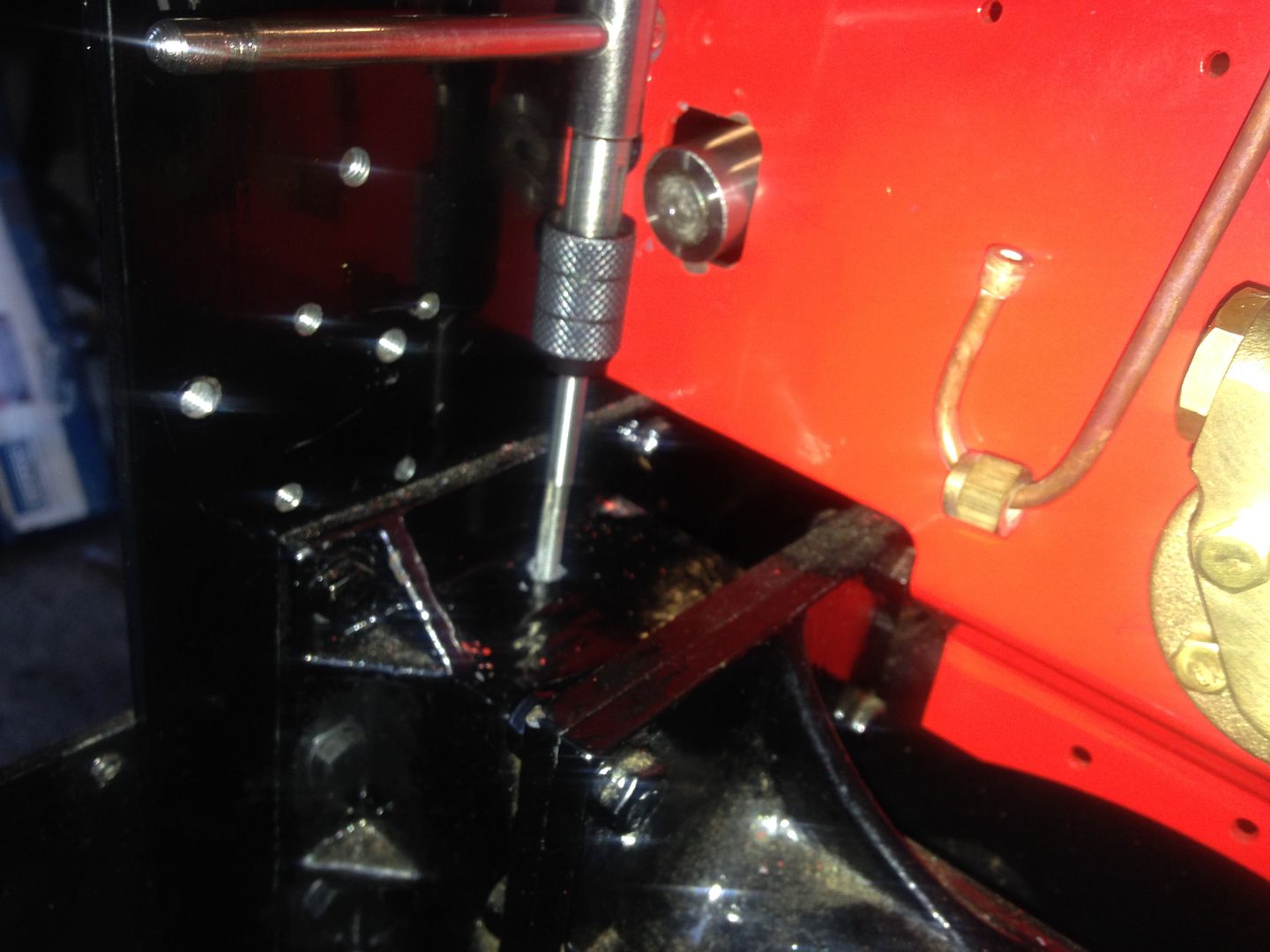

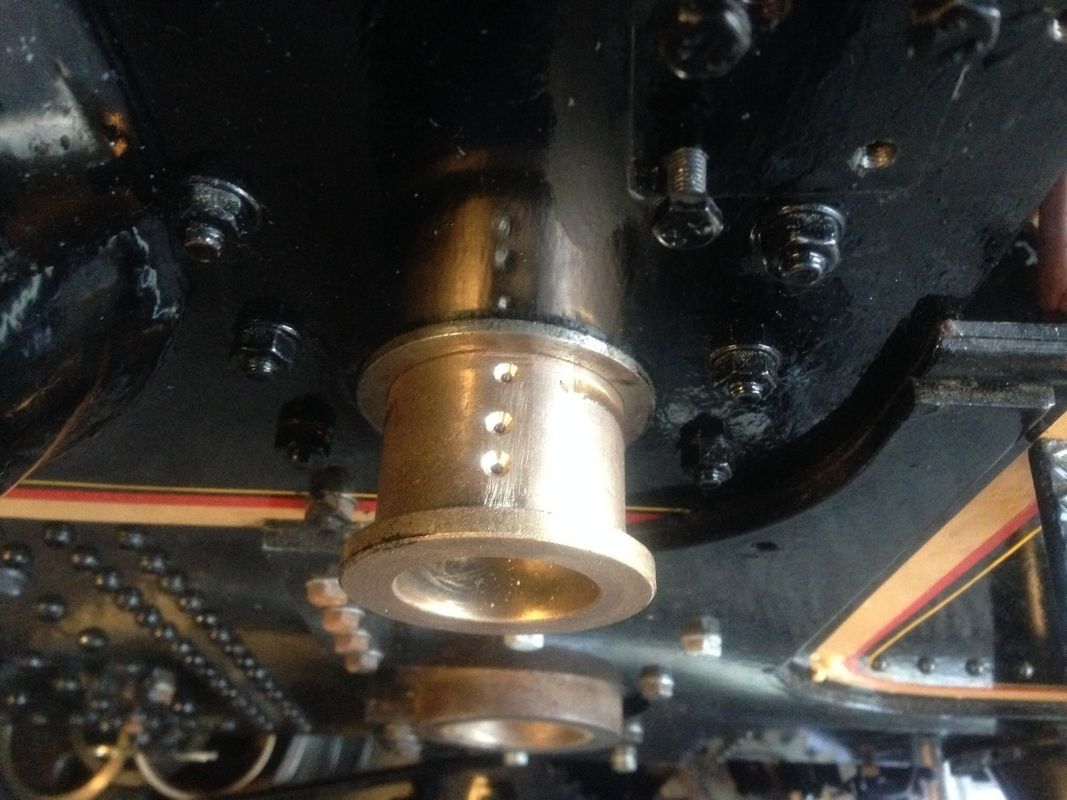

2nd shaft oil hole. 30 minutes to remove the paint in the threads. Adapter now fitted.



Sorry bout the smudge on the phone camera lens.

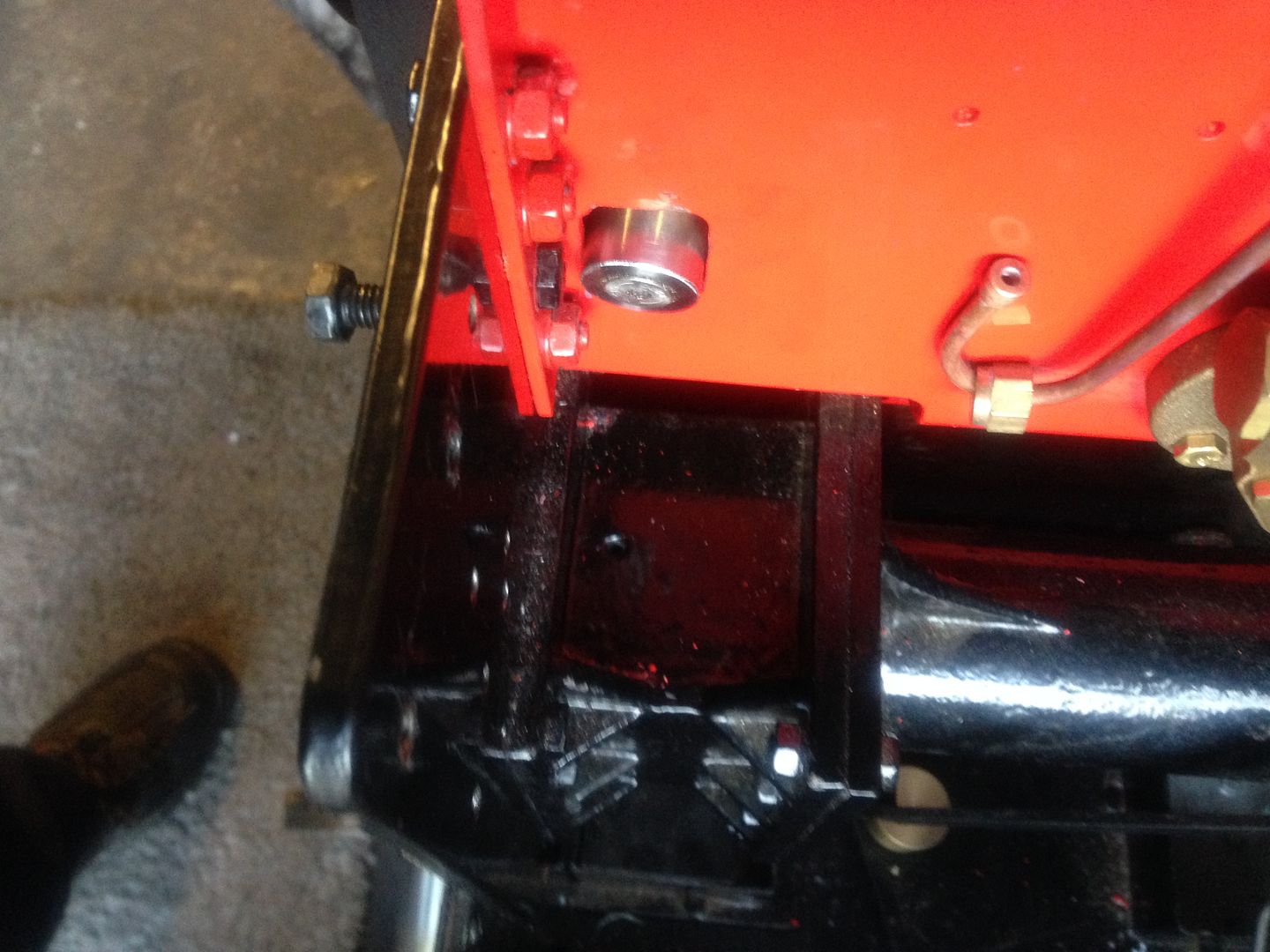

Here we go again! Bit easier for getting the tap in as through hole.
Also turn one of the bolts round as the protruding threads foul the water pump ram.

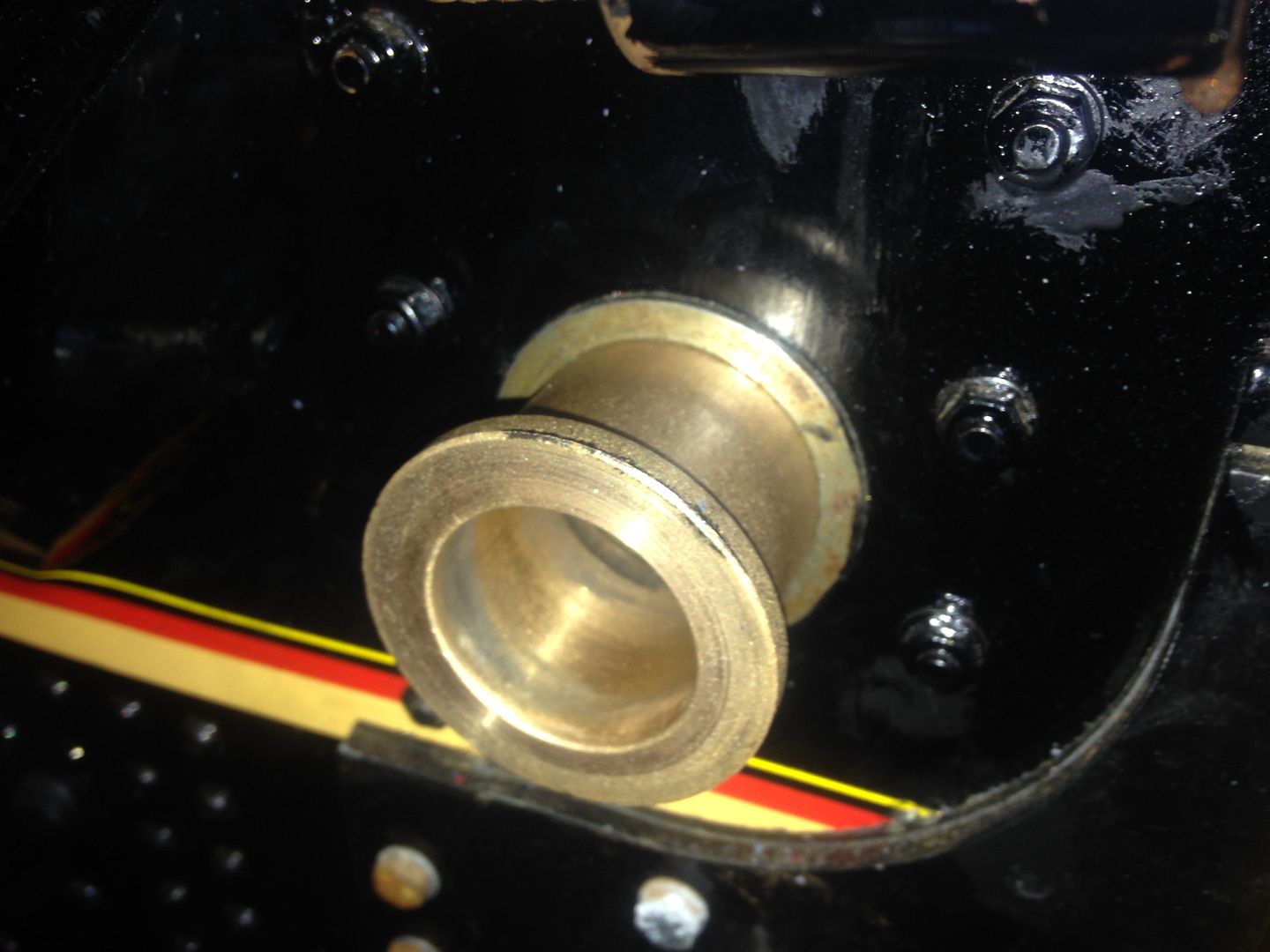

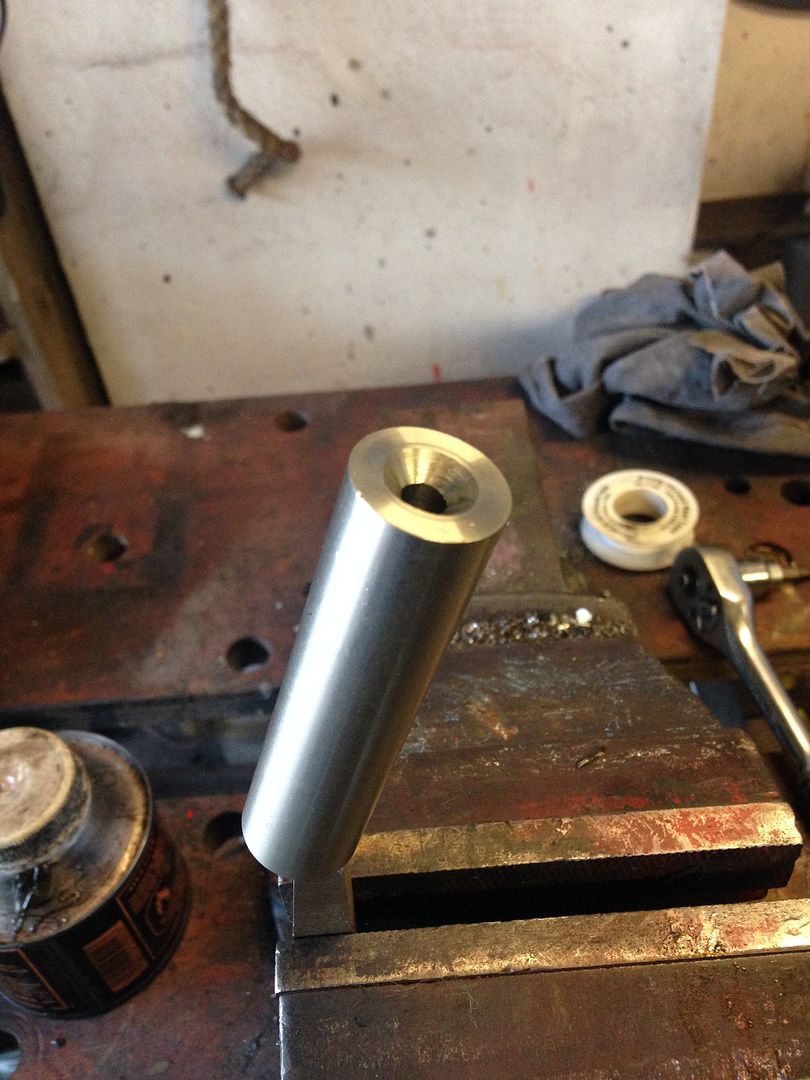

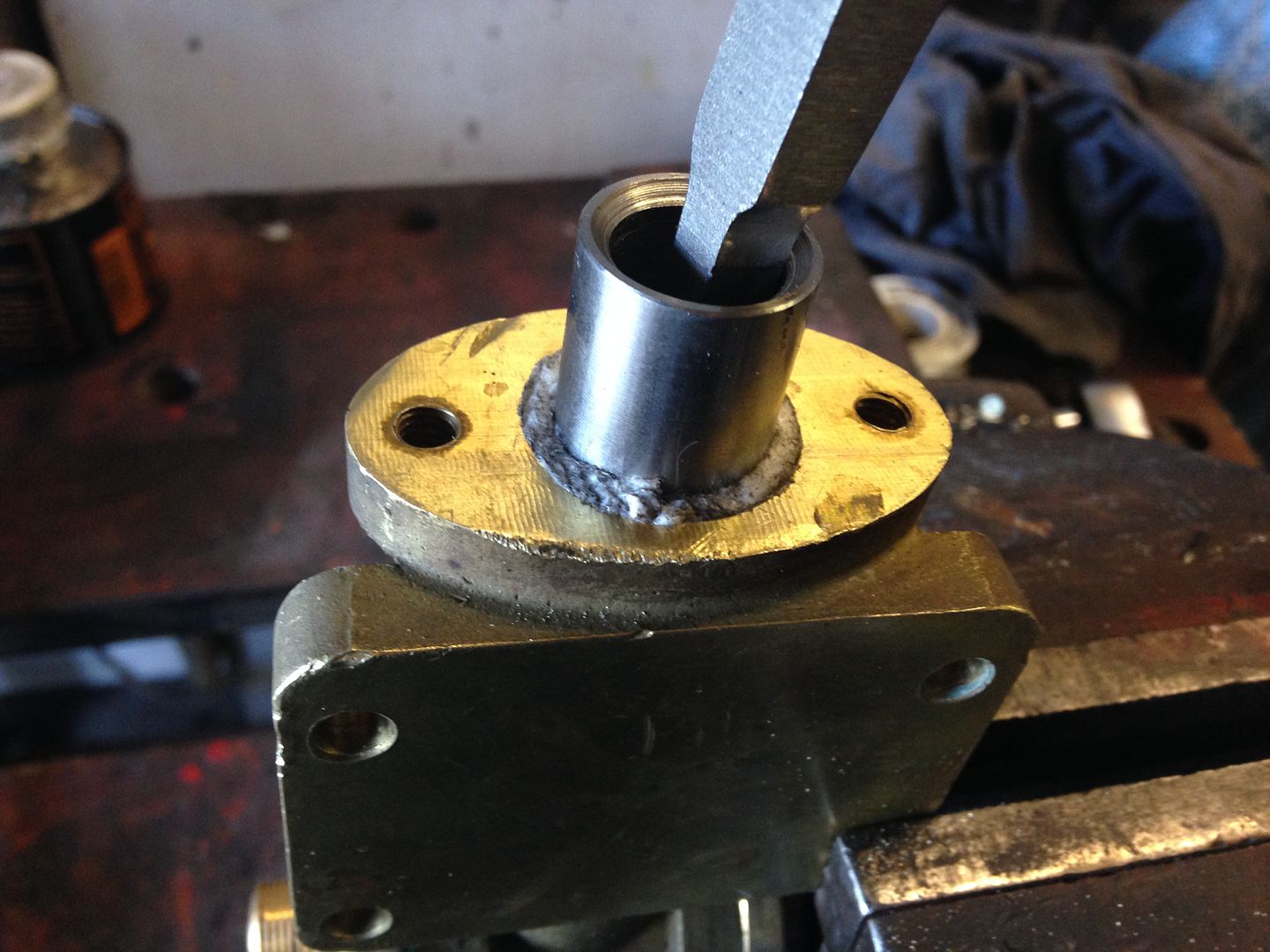

2nd shaft bush modified and locking compound added.


lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Mikes Road loco

Post  Road loco on Sun 17 Jan 2016, 10:07 am

Good to see today's progress Lynn, the water pump was one job I wouldn't of got right so glad your doing that 👍,

Road loco

Number of posts : 133
Location : Somerset
Registration date : 2014-08-04

View user profile

Back to top Go down

Re: Mikes Road loco

Post  lynnr on Mon 18 Jan 2016, 3:59 am

Hi All

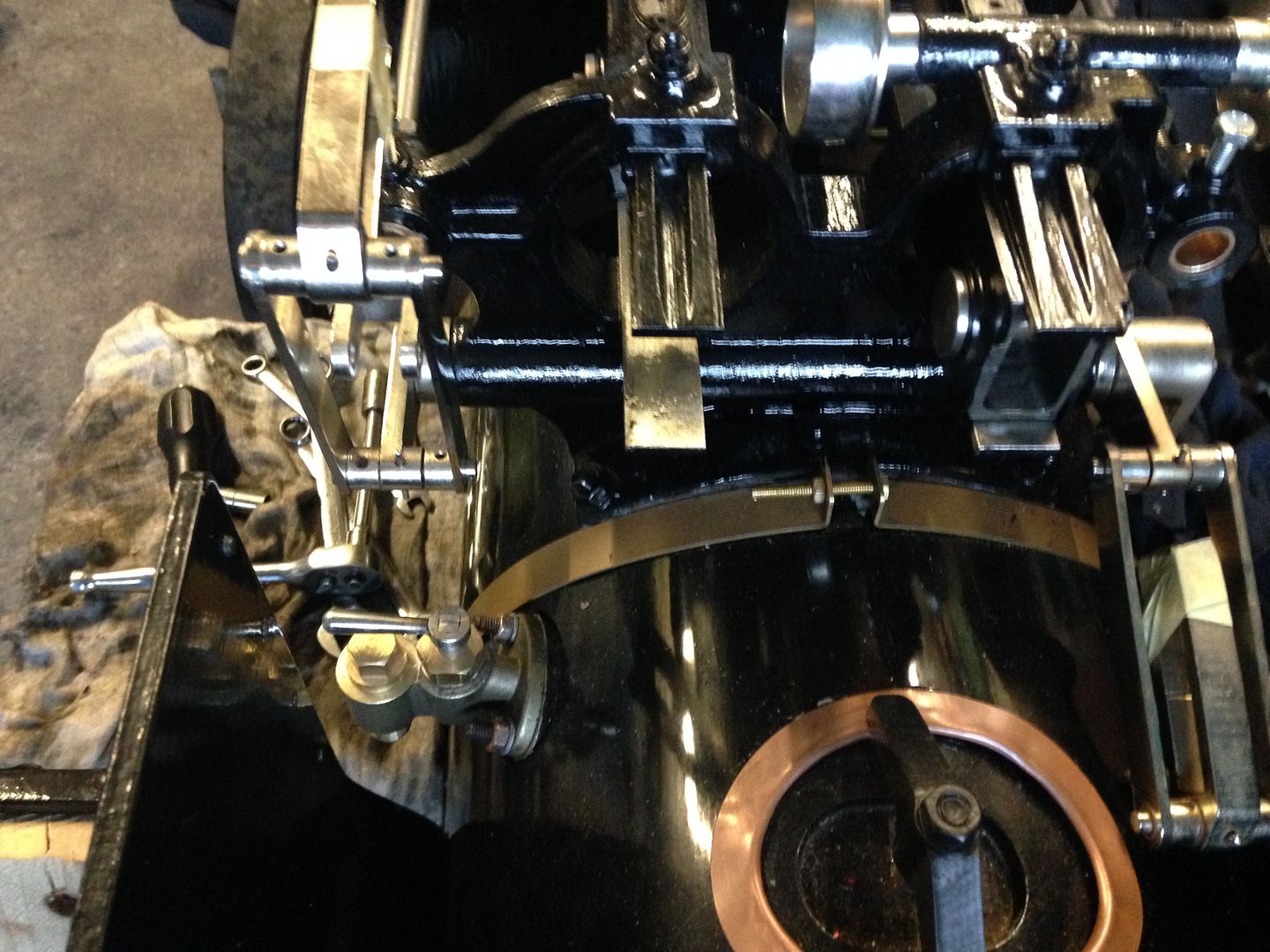

This mornings progress. Does not look a lot but all fiddly bits. So much easier to do without waterpump and expansion link in the way.

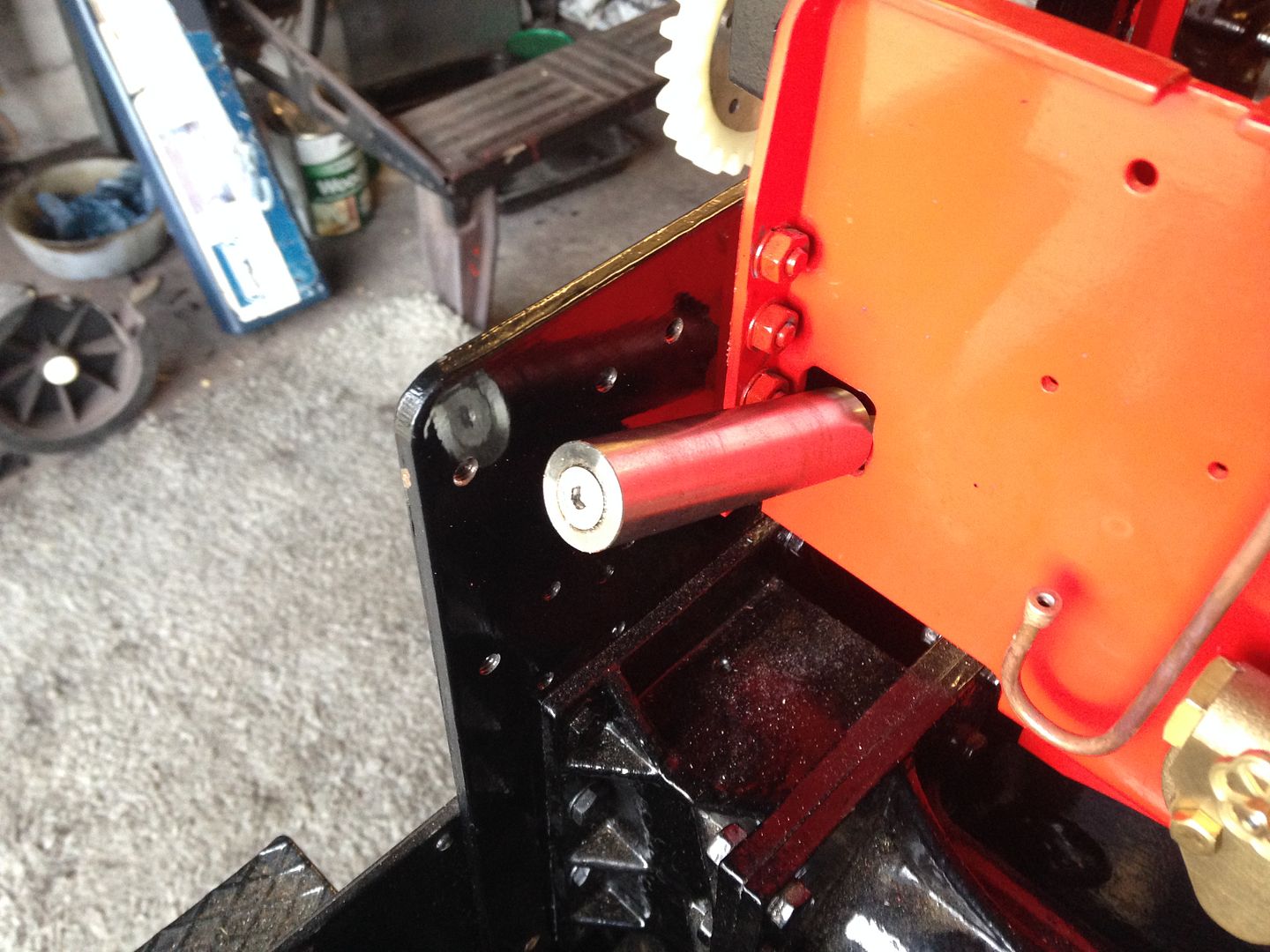

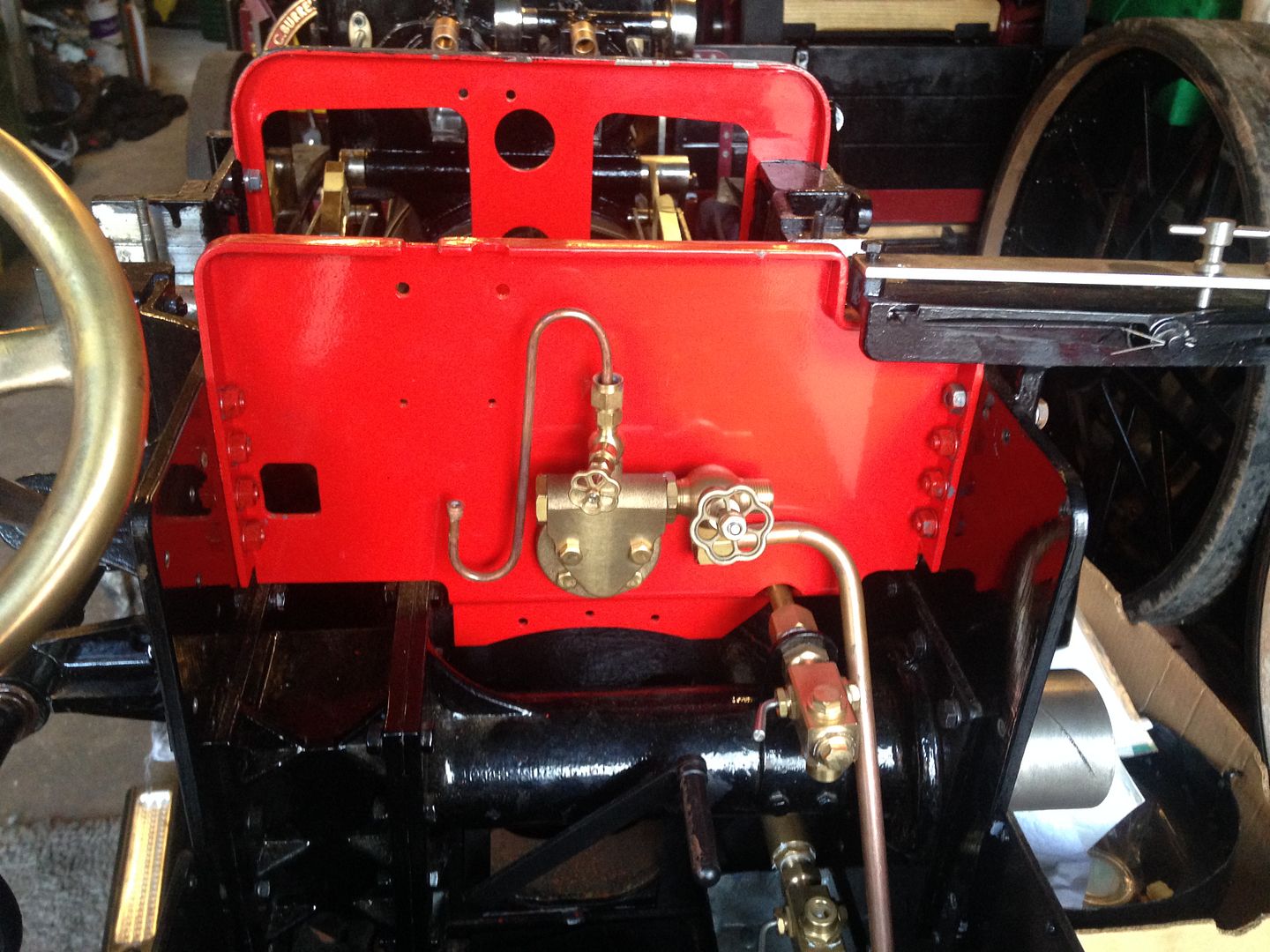

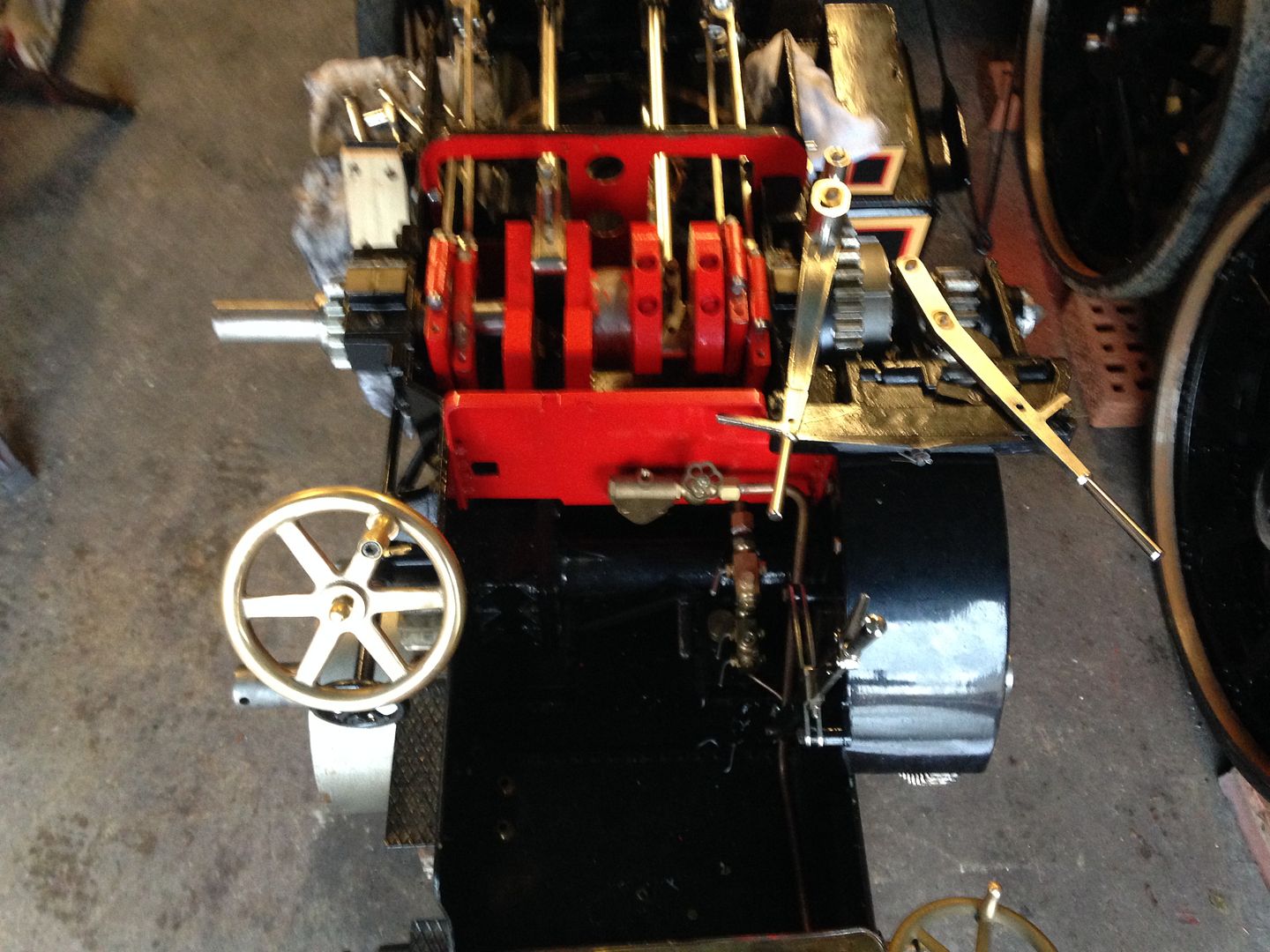

LH 2nd shaft oil pot installed.

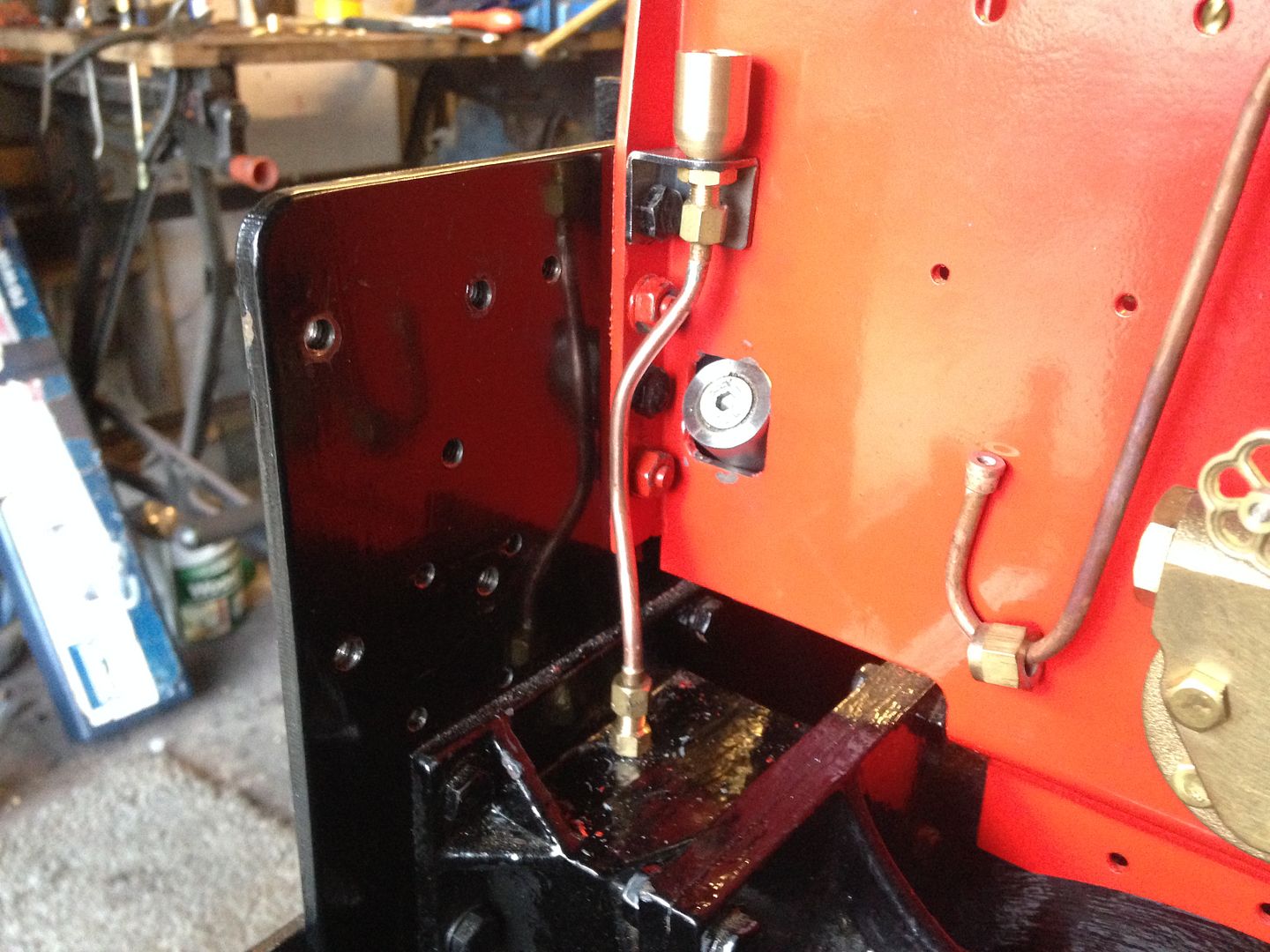

RH 2nd shaft oil pot modified, lowered and installed.

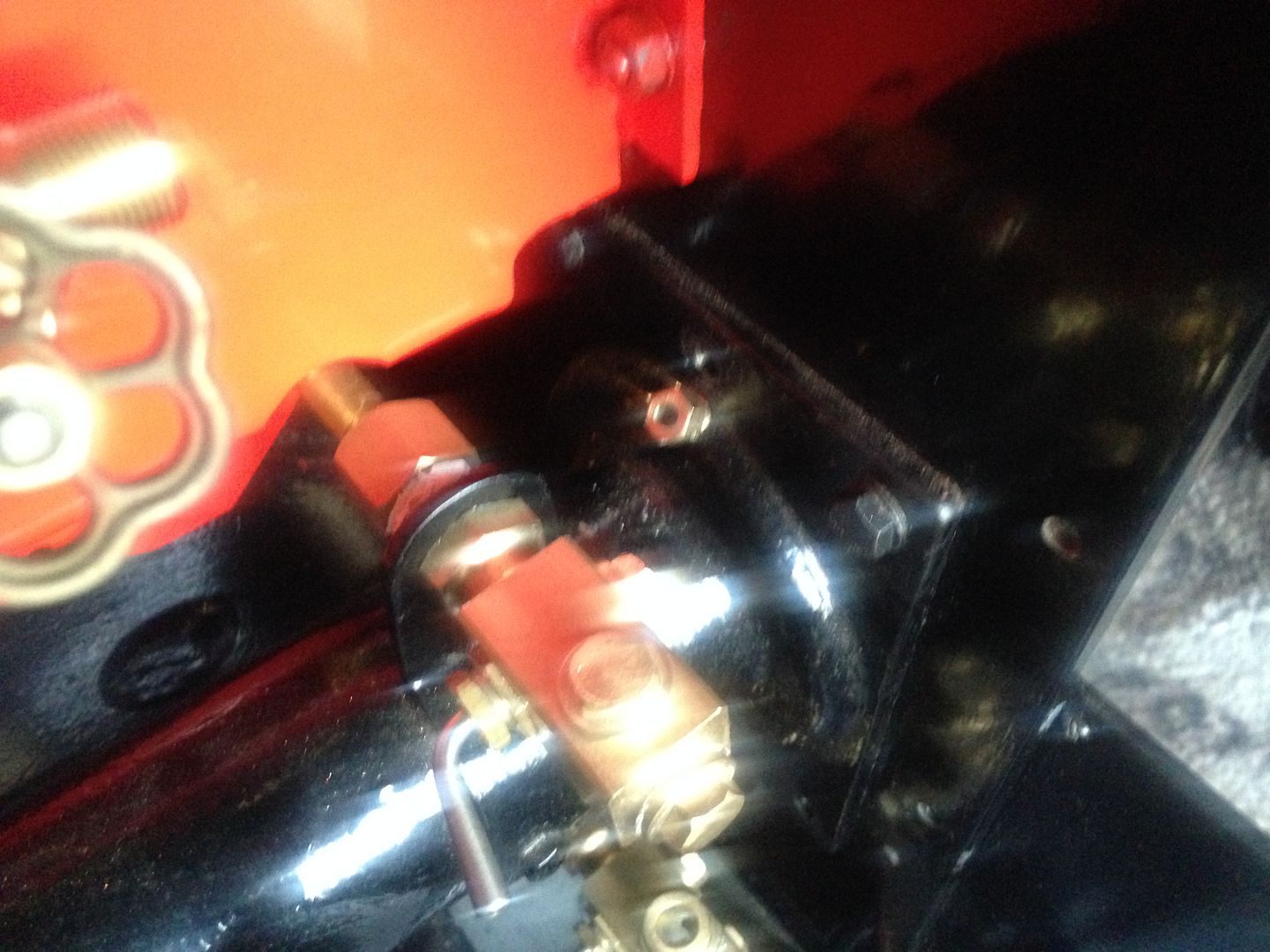

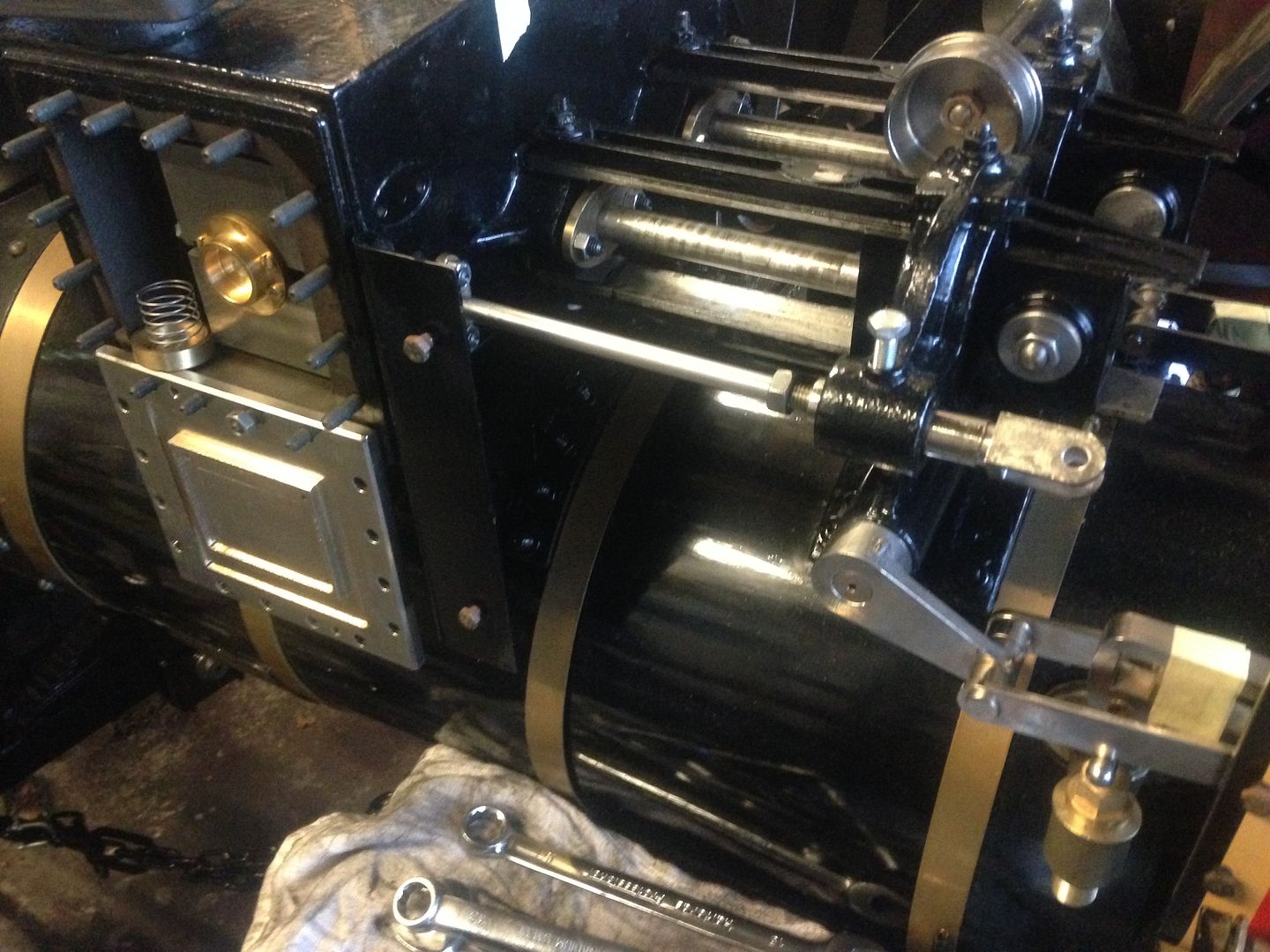

Water pump installed to test. Runs smooth but slightly tight which should loosen out.

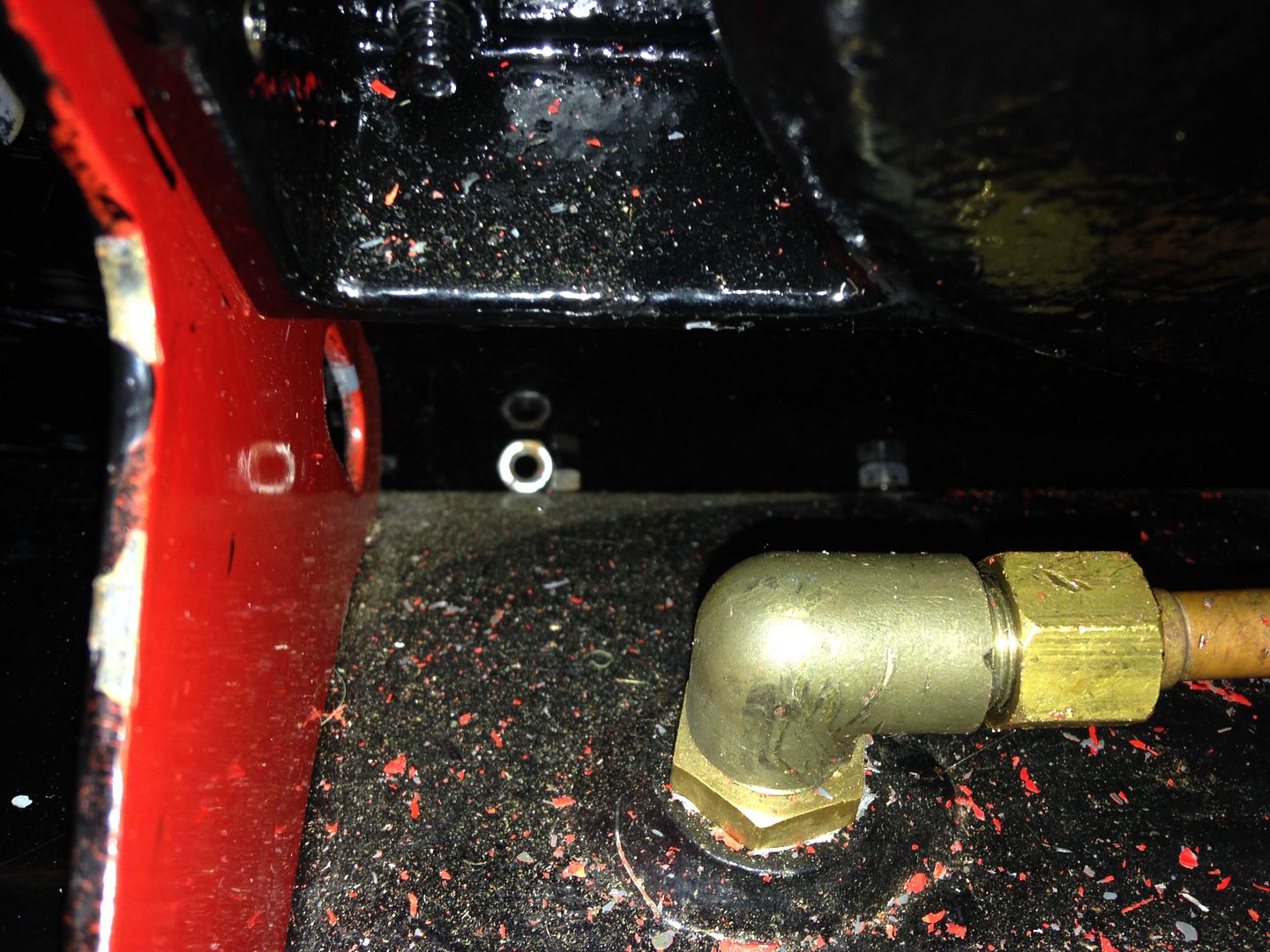

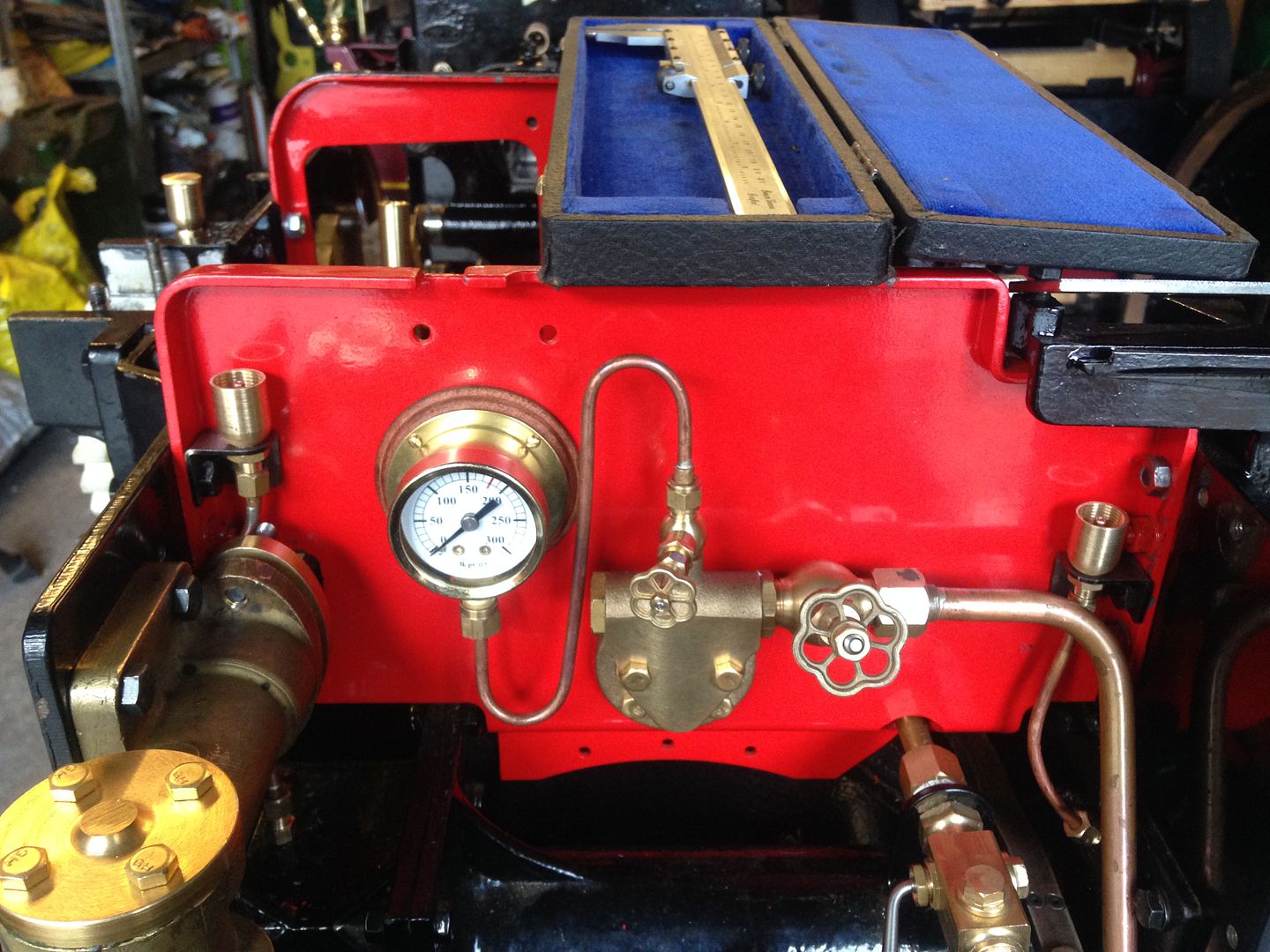

Pressure gauge installed but only loosely tightened as will come off during cold inspection for testing.

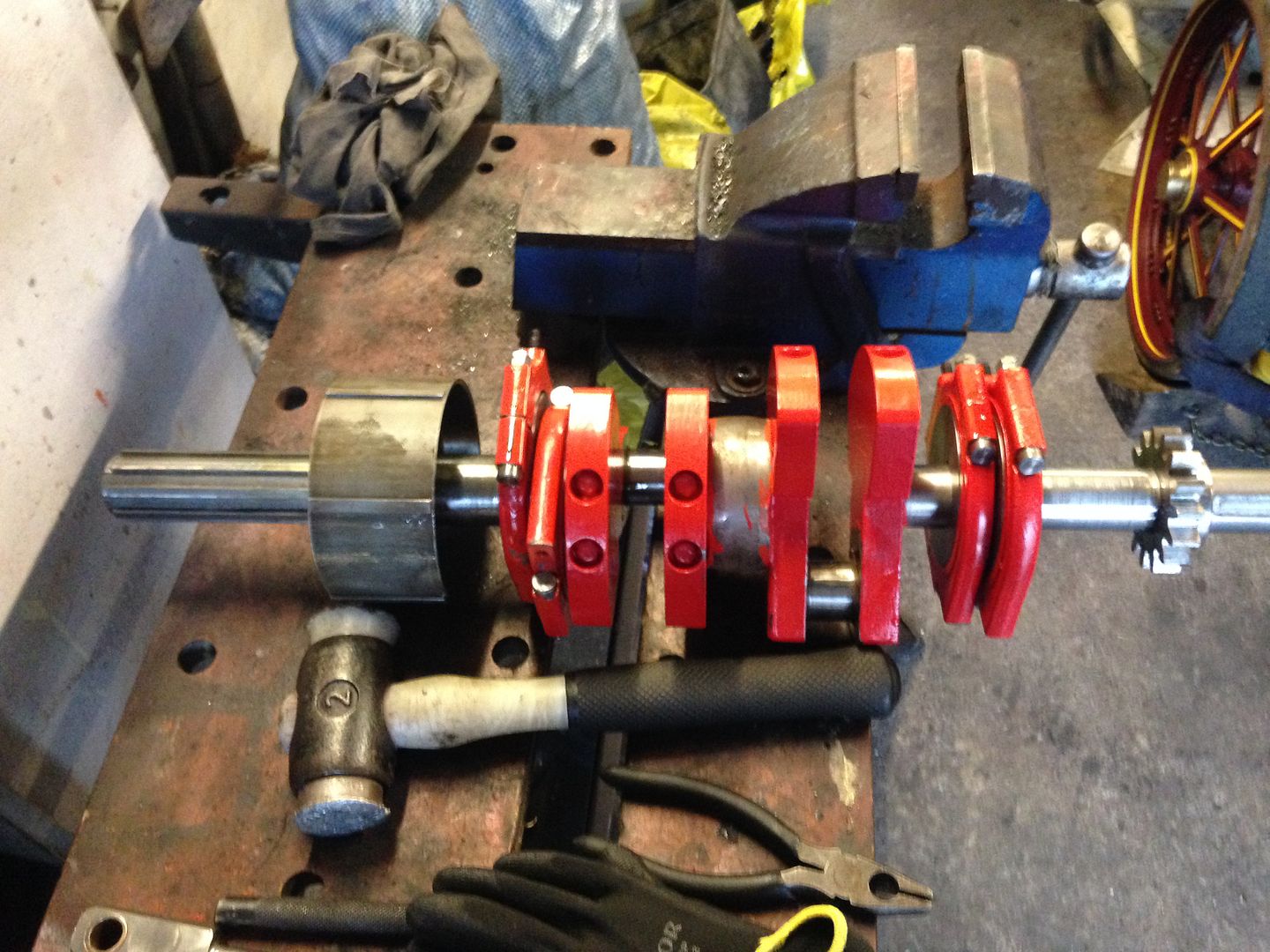

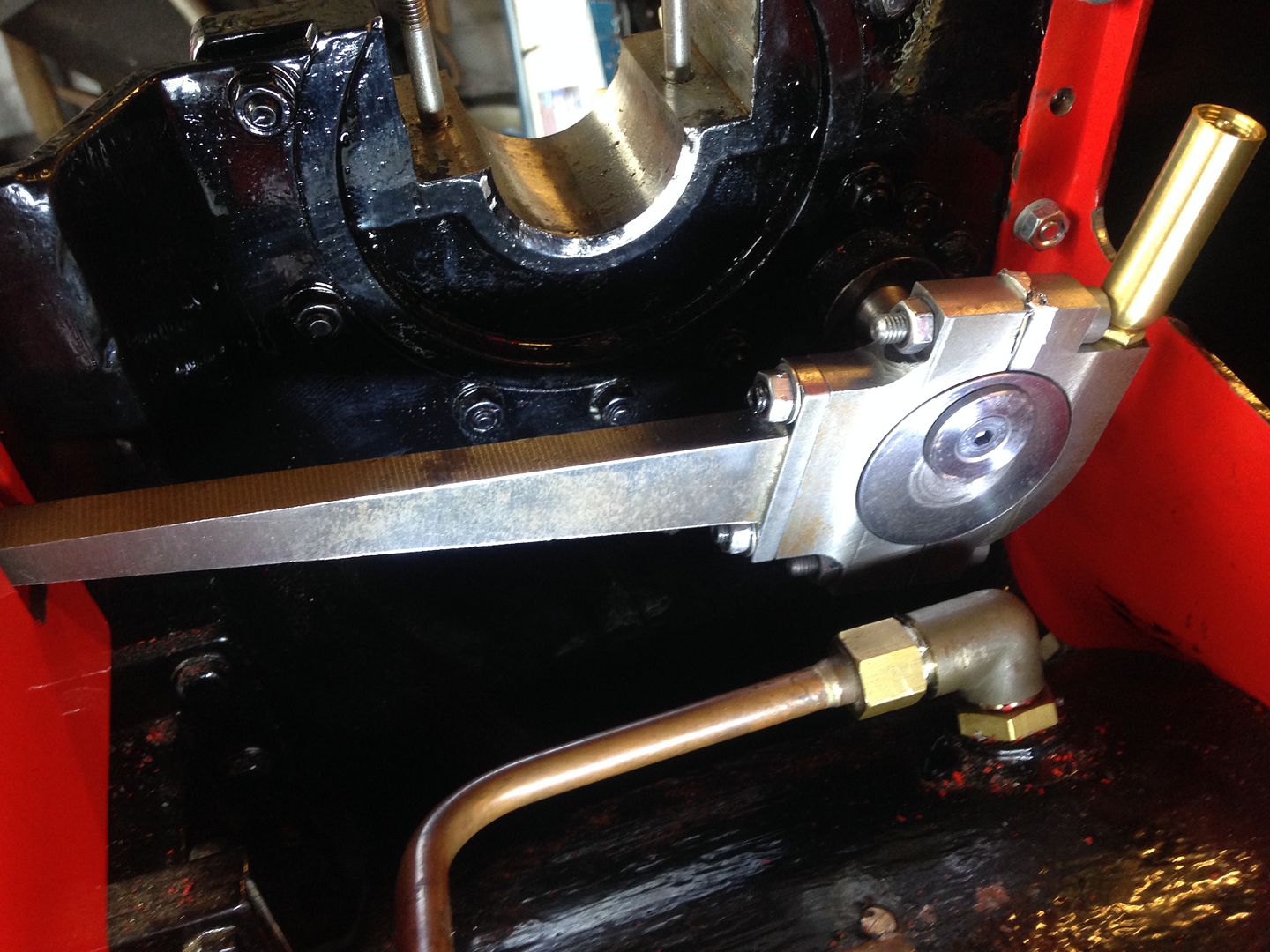

Water pump eccentric. Remember to loctite the retaining bolt as it is very very difficult and hot to fish it out and put it back on when the engine is in steam. Been there.

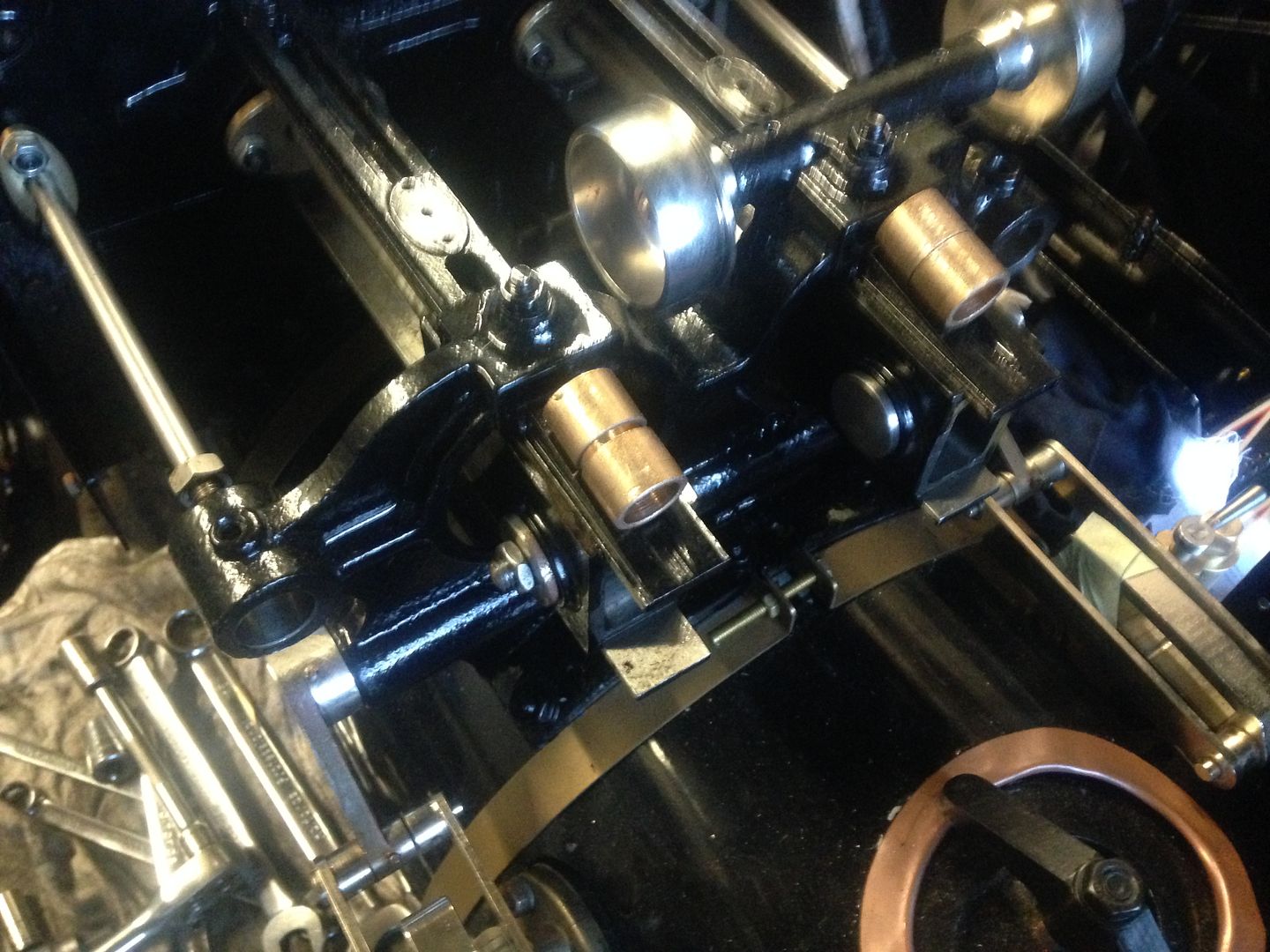

Not painted the rod or that as it is low down in the crank pit and will turn a shade of black quickly enough.

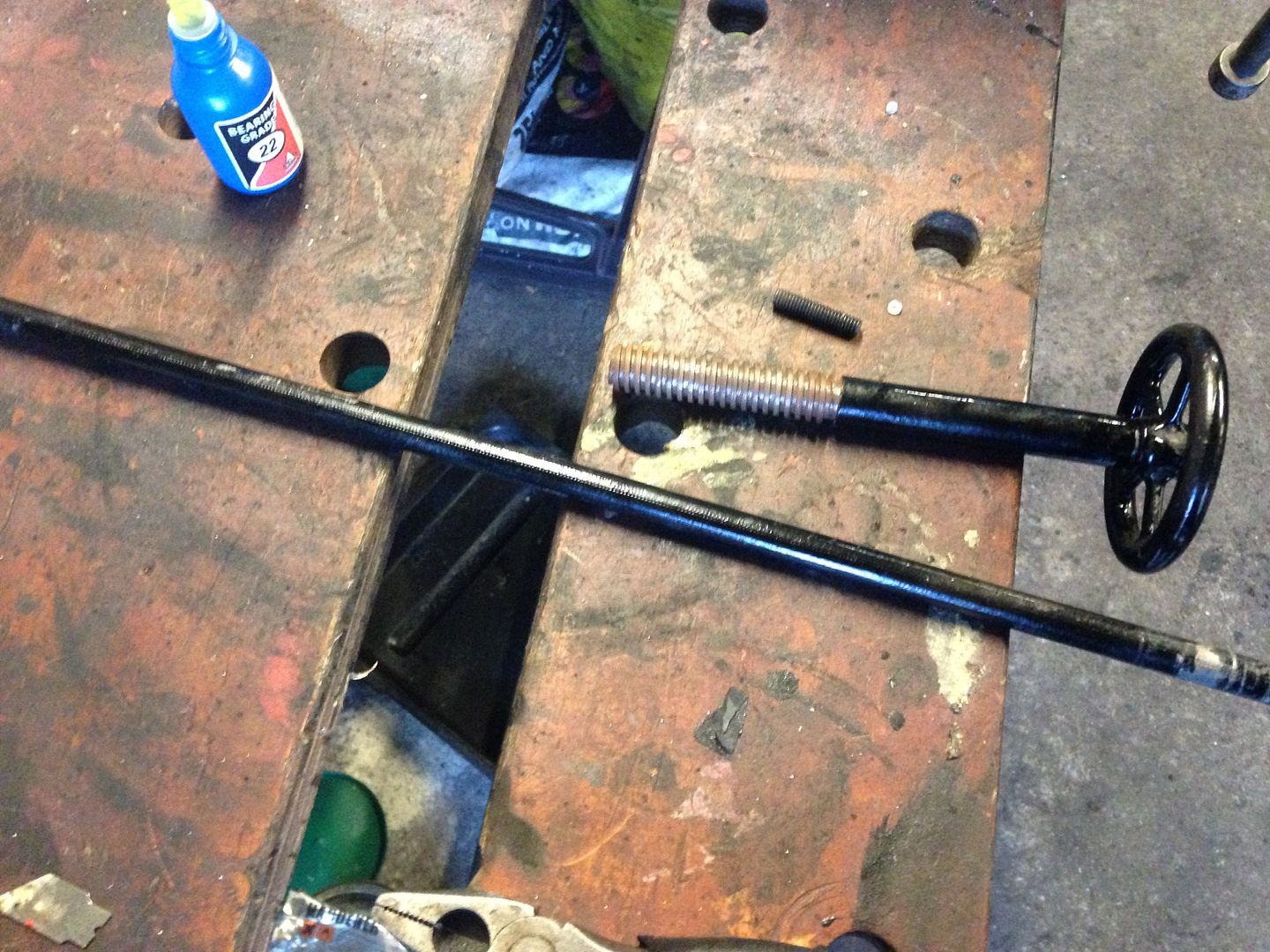

Regulator modification kit requested from Steam Traction World.

So good progress had this morning. There is other sub assemblies being done when I am raking through the parts box for something else. Spot a part and think. AH get that fitted together now. Save some time later.

Hope you all are enjoying the fast track build.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Mikes Road loco

Post  lynnr on Mon 18 Jan 2016, 5:13 am

Need to search through all the bolts and find the modified bolt for the damper rod latching against.

lynnr

Number of posts : 2689
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Mikes Road loco

Post  Road loco on Mon 18 Jan 2016, 8:24 am

Lynn little progress is good progress which is more than what would of got done here with me so well done Lynn, love all the pictures so far 😃👍

Road loco

Number of posts : 133
Location : Somerset
Registration date : 2014-08-04

View user profile

Back to top Go down

Re: Mikes Road loco

Post  Sponsored content Today at 11:40 am


Sponsored content


Back to top Go down

Page 3 of 11 Previous  1, 2, 3, 4 ... 9, 10, 11  Next

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
