GENERAL PRODUCTION UPDATE: April 2013

Post  craig@STW on Sat 06 Apr 2013, 5:30 am

lots of "finishing stuff" to do this week. final work was done on the rest of the foden 6inch steering kits and then priority turned on to the next showmans traction wagon kit, the main chassis.

the next foden 4inch kit is the rear wheels and hubs. just waiting on some large bar for the wheel spacers and then this is nearly done.

also been working on some 2inch burrell rear wheel kits and the showmans dynamo housing castings.

Mark has spent most of the week on the latest batch of boilers and will soon be moving on to the next 10 showmans cylinders.

so lots and lots of different bits done but not a great deal to show until it all starts to come together next week.

heres a few photos...

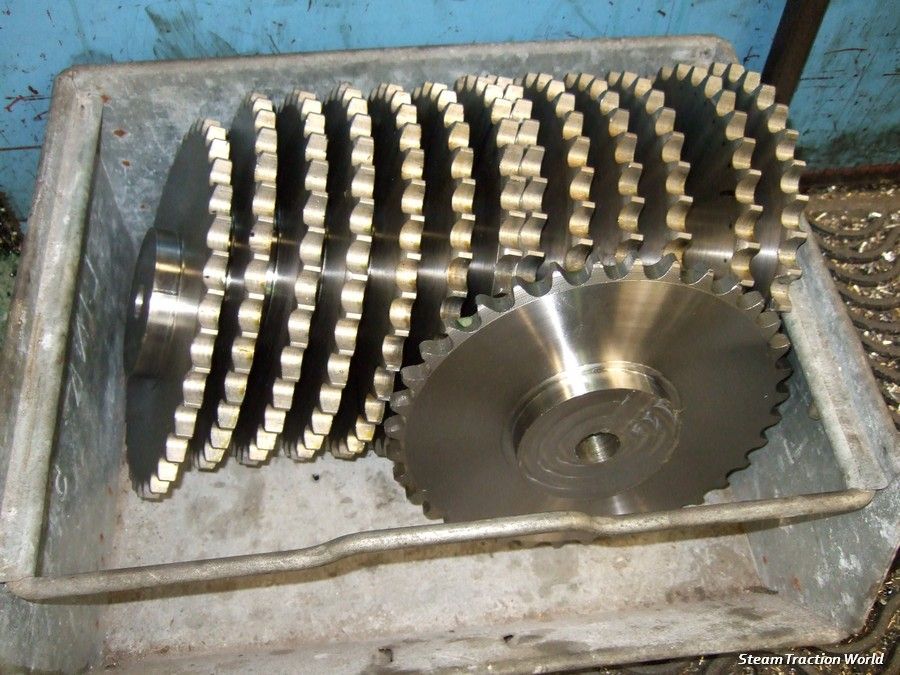

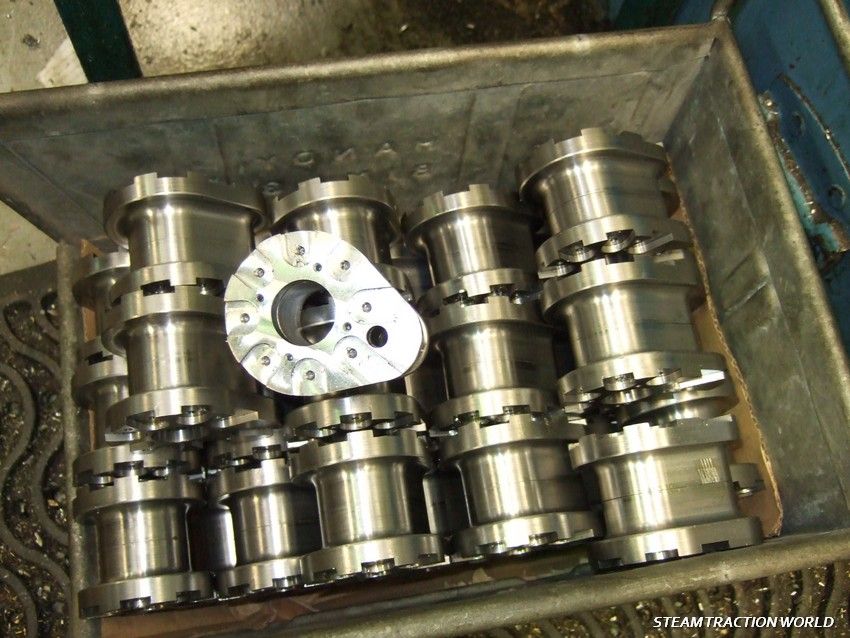

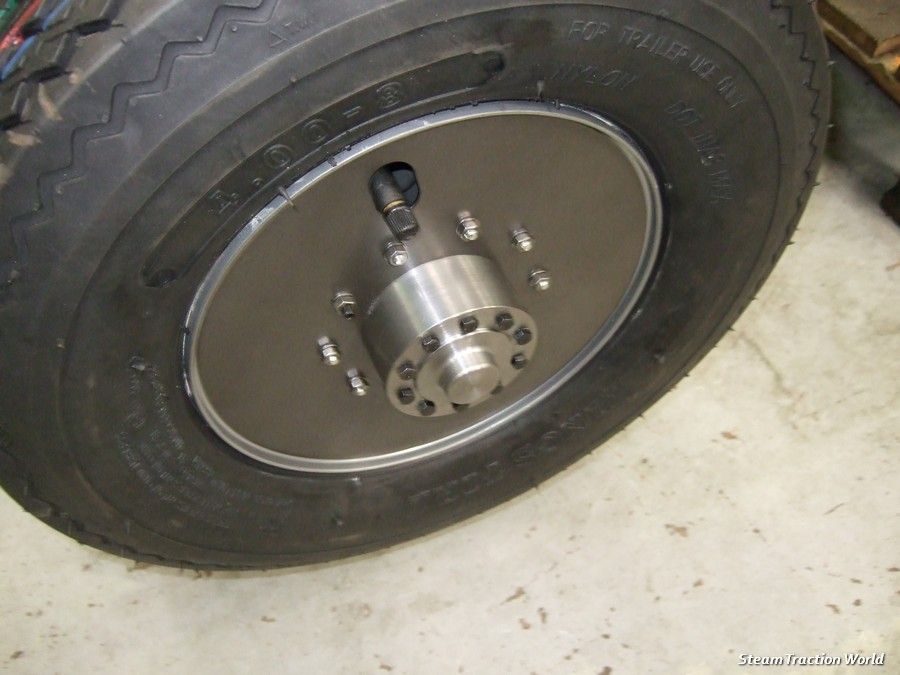

foden 4" rear hub centers...

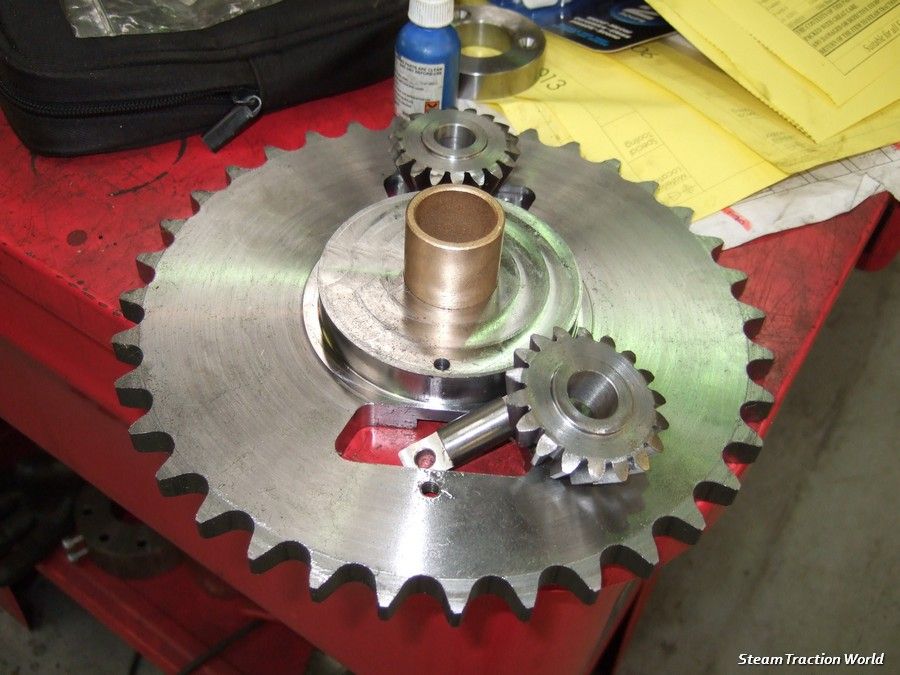

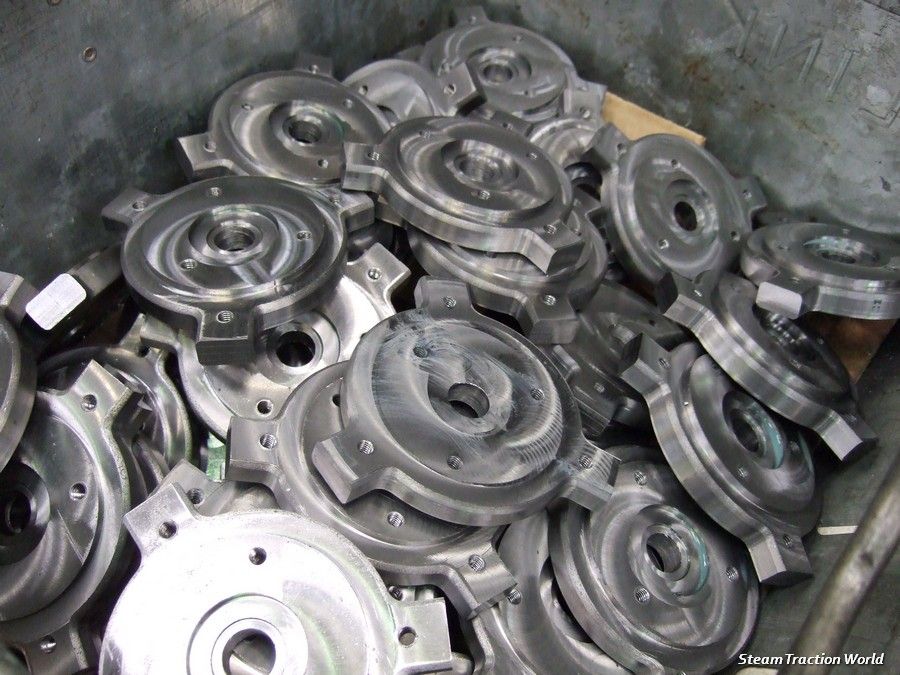

2" burrell rear hubs...

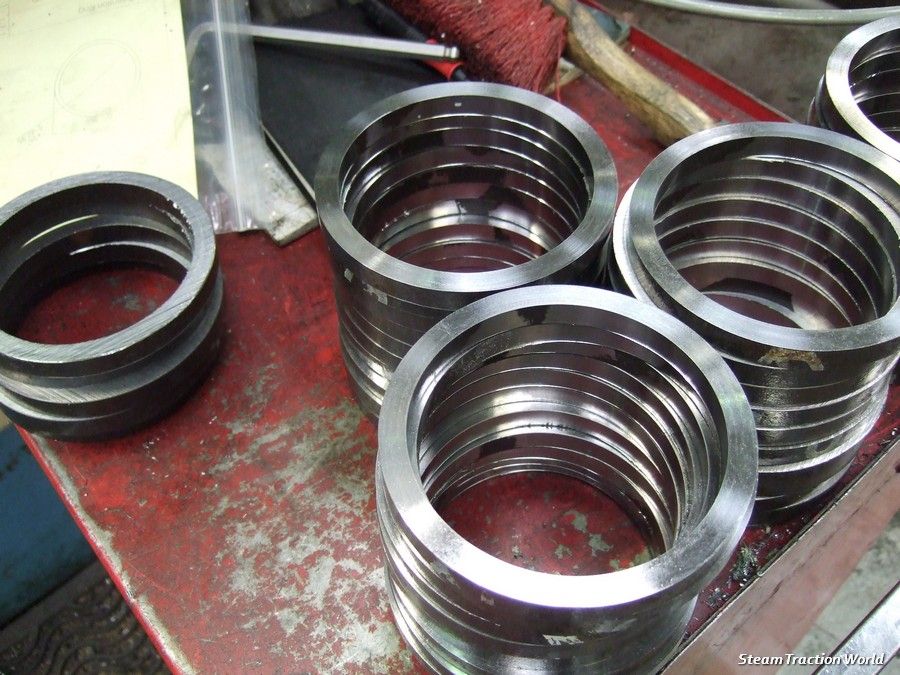

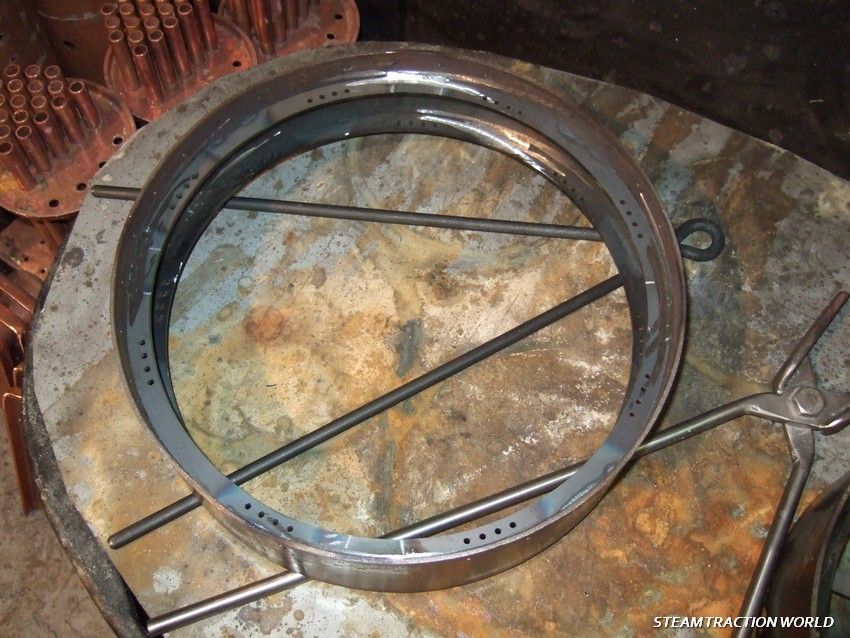

and rear wheel rims...



the "V" shaped bar under the wheel rim is actually part of the tow bar for the traction wagon. this is the cross brace...

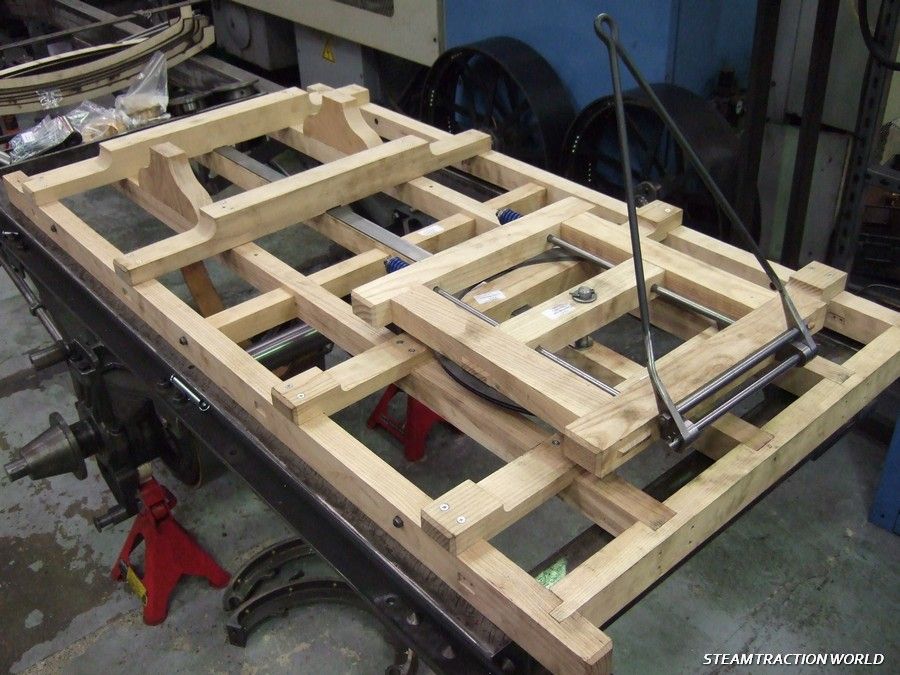

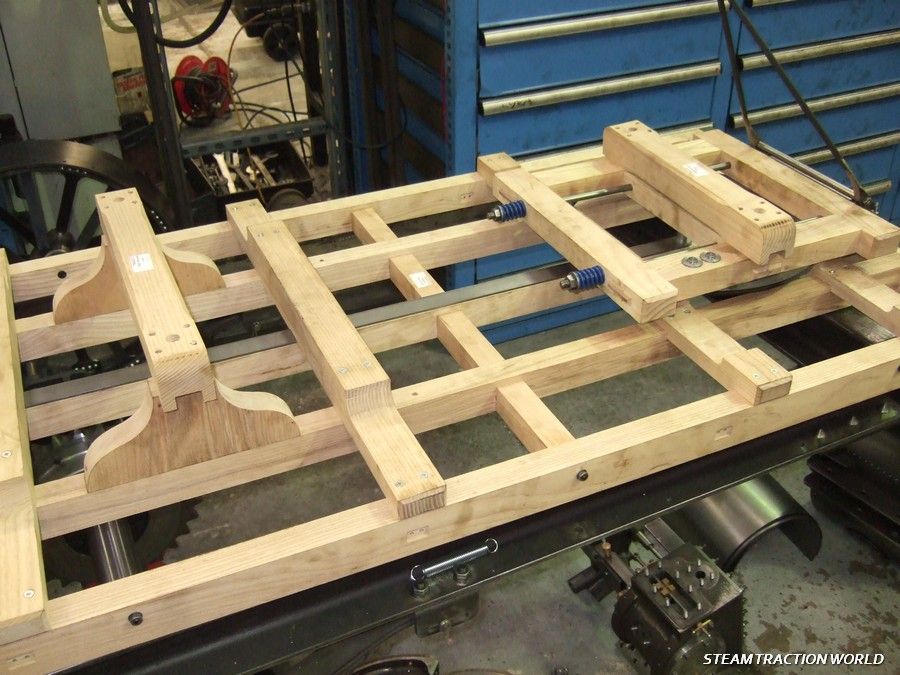

and this is the main chassis ready to go together...

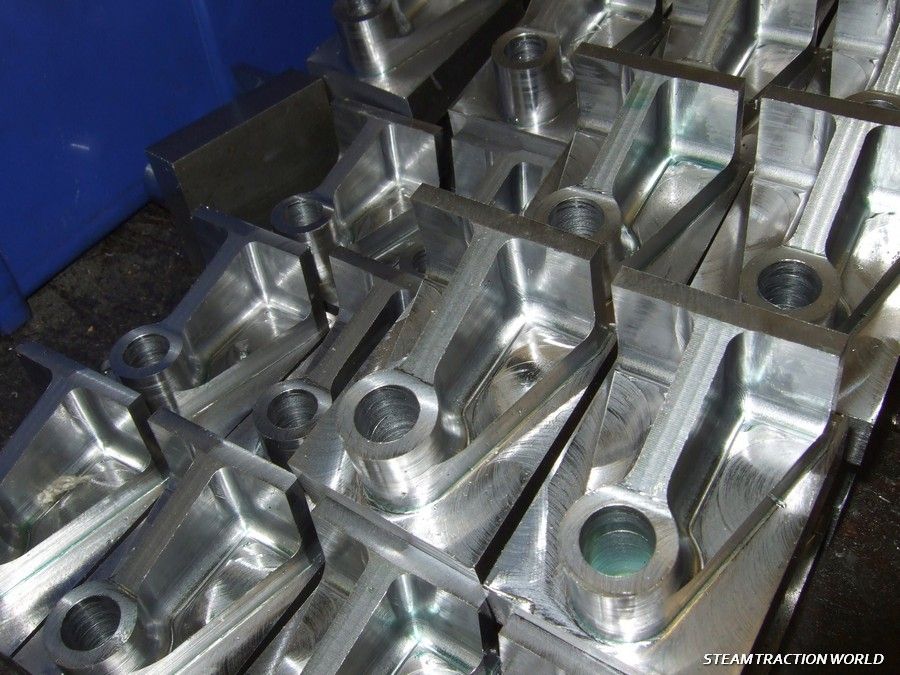

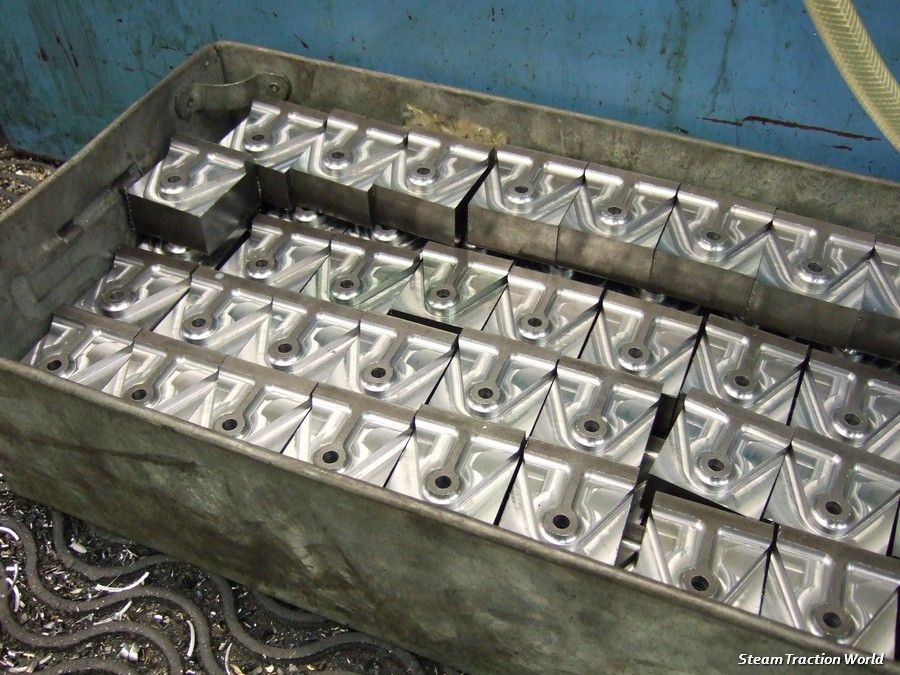

mounting brackets for the showmans Dynamo...

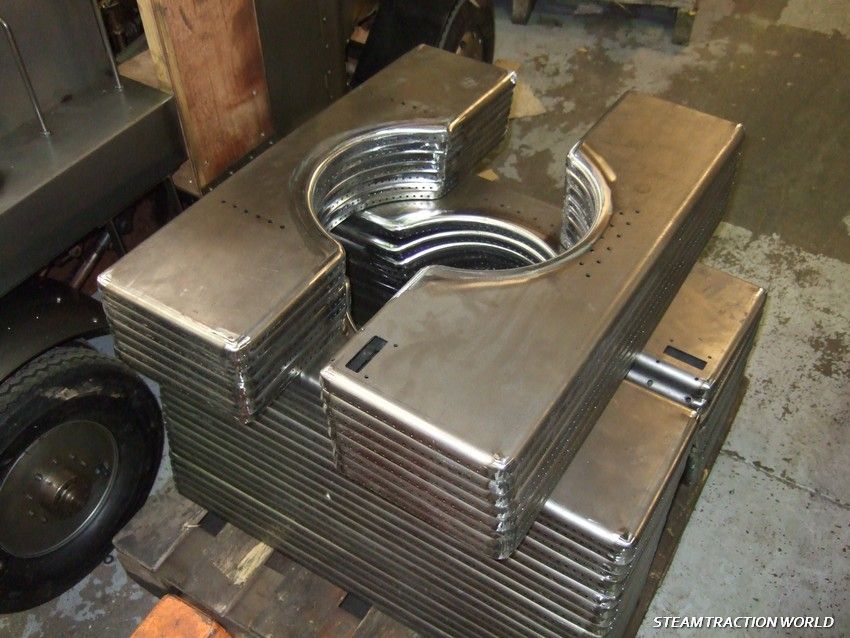

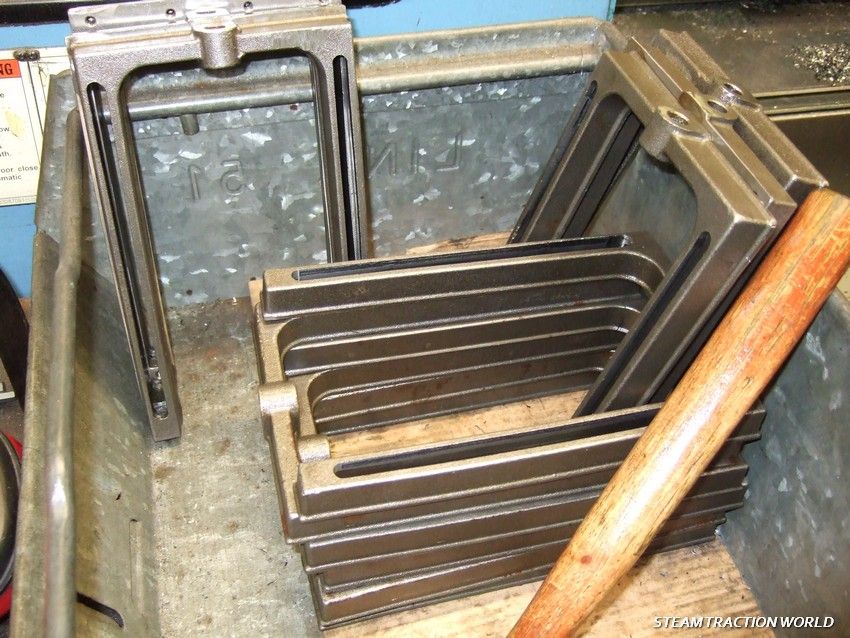

and some belly tank sides to top up the stock...



hopefully more to show next week Cool






craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: GENERAL PRODUCTION UPDATE: April 2013

Post  craig@STW on Sat 13 Apr 2013, 6:55 am

quick update on the stuff we've been doing over the last week...

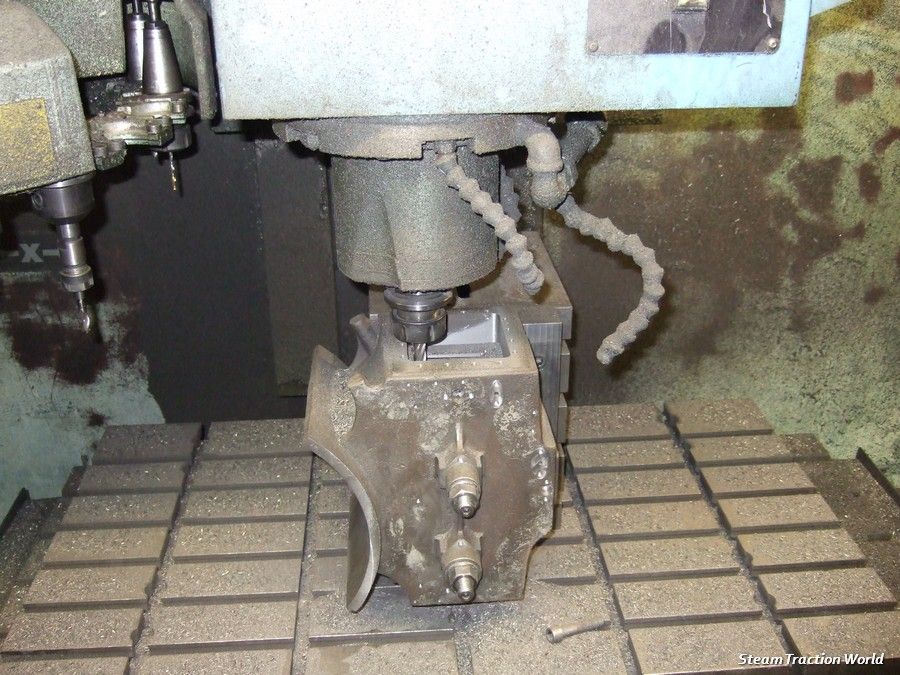

the good new for a few people is that work has started on the next batch of Showman's cylinder blocks. Mark is concentrating on these, i'll get more photos as the work progresses...

.

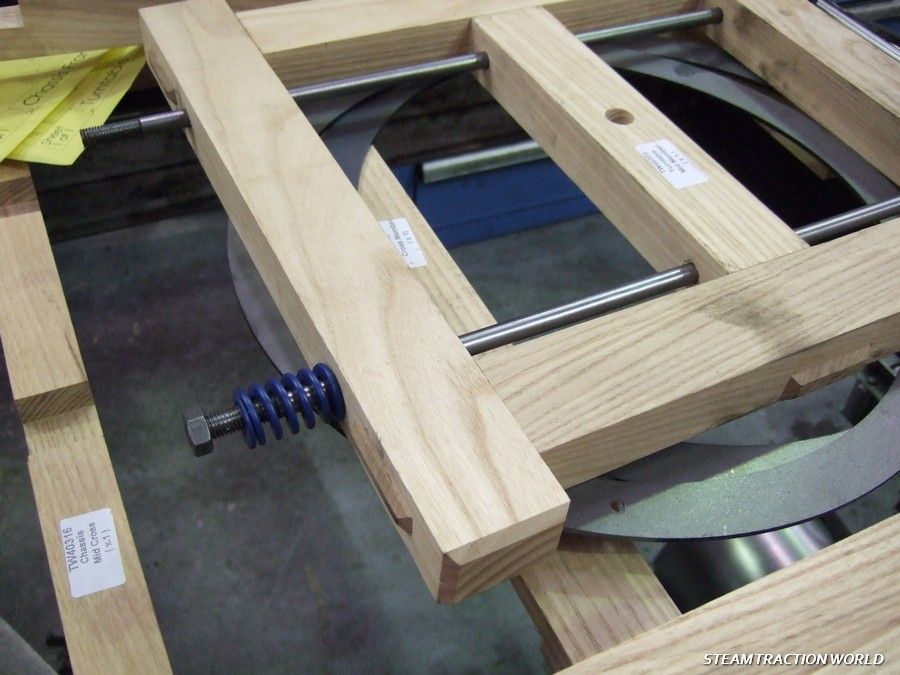

The Traction Wagon chassis has had a good bit of progress this week. the last time i checked we were just waiting on some screws to arrive...














craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: GENERAL PRODUCTION UPDATE: April 2013

Post  craig@STW on Sat 13 Apr 2013, 6:59 am

and the next Foden 4inch kit (rear wheels) is just a couple of days away from going out.

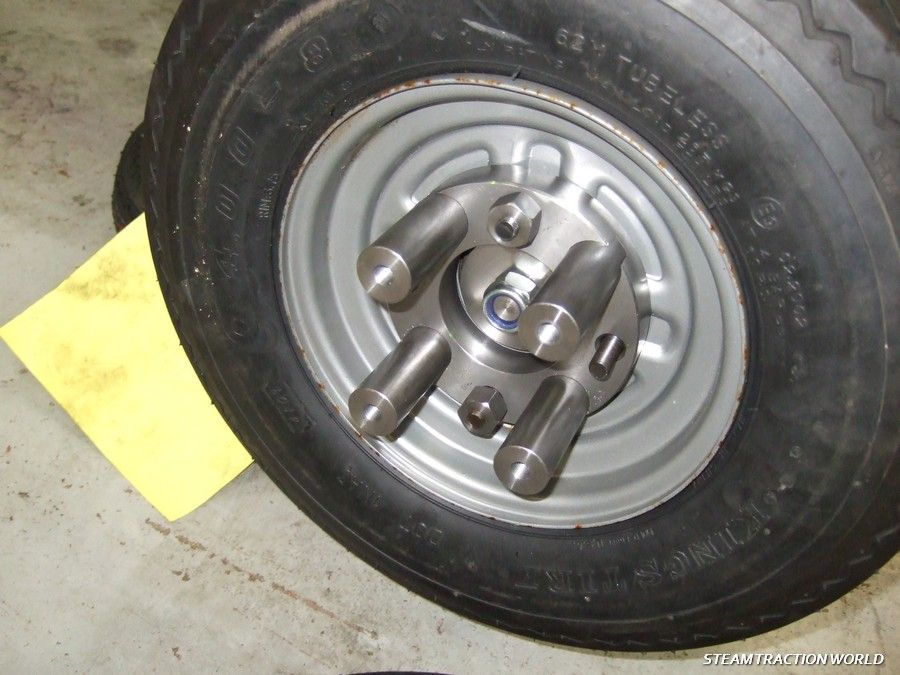

the rear wheels mounting spacers before machining...



and after...



just need to finish the rear hub-caps on this Cool

also started on some brackets for the next traction wagon kit. quite complex and loads to do...




craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: GENERAL PRODUCTION UPDATE: April 2013

Post  craig@STW on Sat 13 Apr 2013, 7:04 am

also can confirm that the next foden 6inch kit is the water tanks. the folder has been issued and preparation work has started Cool

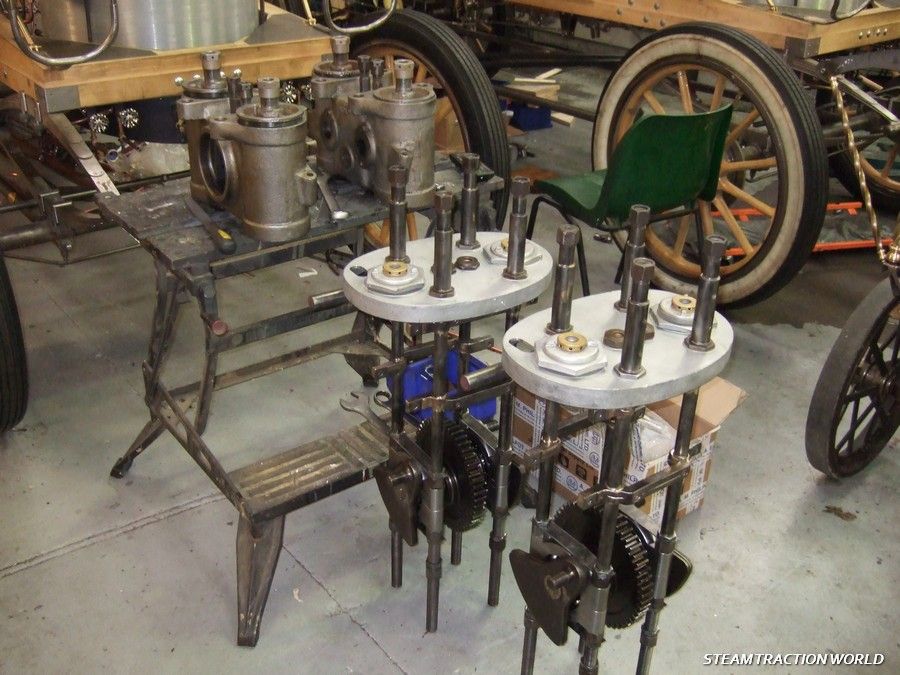

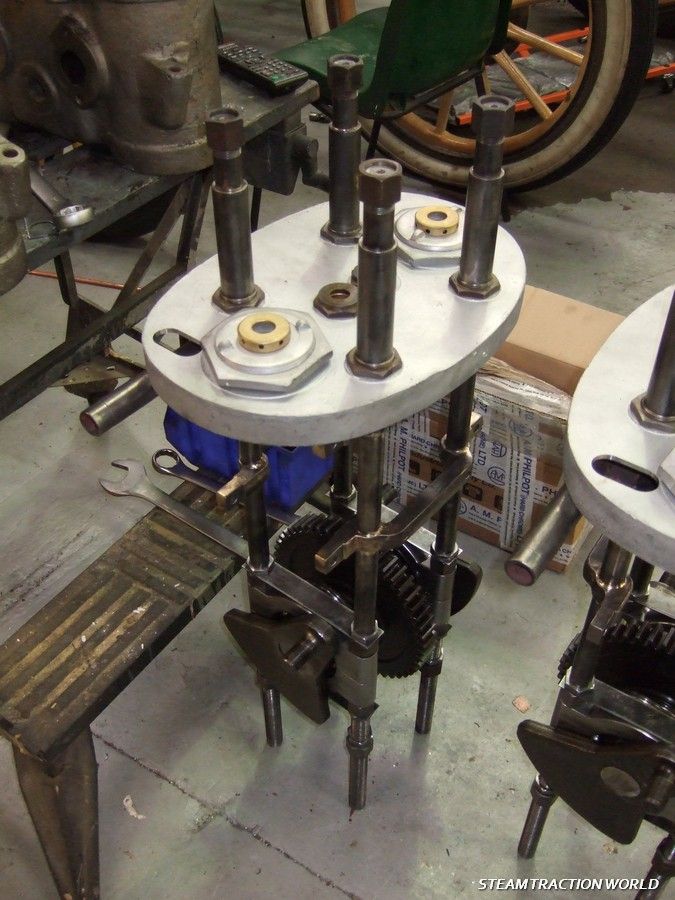

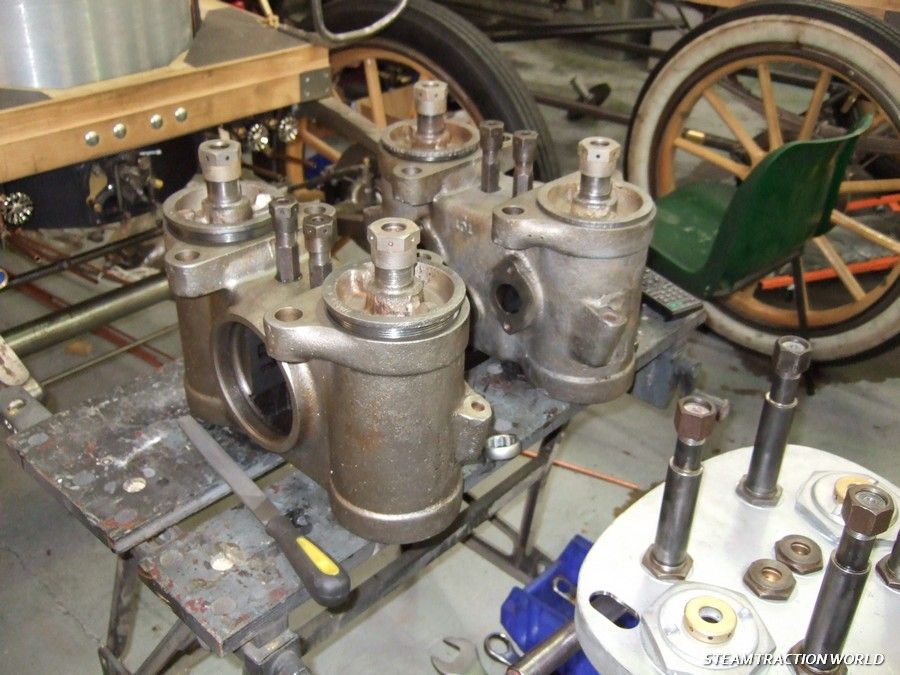

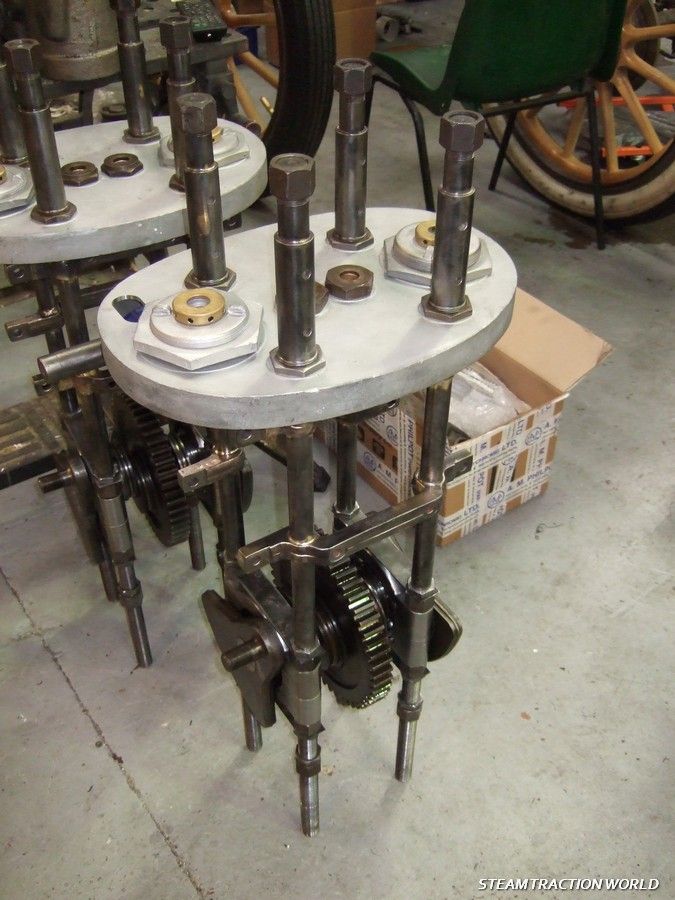

also a quick look at "those strange things hanging around in the back of the recent Showman's control model photos". not gonna pretend i know anything about them Embarassed but basically they are the engine assemblies for Steve's steam cars...










craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: GENERAL PRODUCTION UPDATE: April 2013

Post  Tony King on Sun 14 Apr 2013, 2:25 am

Hi Craig,
Just to say these weekly updates are very much appreciated & it's great to see photos of "stuff" being produced in STW factory Very Happy
Is there no end to Steve's talent for producing amazing vehicles!!!!! Those cylinder castings (I presume) are impressive & machining on only two must have taken "for ever"!! I also presume that these will be the only two "new" Stanley steam cars in existence on the planet!!
AWSOME!!
Regards,
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: GENERAL PRODUCTION UPDATE: April 2013

Post  Steam Traction World on Sun 14 Apr 2013, 3:58 am

Hi Tony.
I wouldn't want to take cedit where its not due. Most of the engine bits are original Stanley items and are over 100 years old. I had to get the bores and the valve faces re-machined as we don't have the necessary equipment for me to do them. I'll ask Craig to put a few more photos on as more bits go on the engines.

Regards

Steve

Steam Traction World

Number of posts : 886
Location : Daventry UK
Registration date : 2008-06-18

View user profile http://www.steamtractionworld.co.uk

Back to top Go down

Re: GENERAL PRODUCTION UPDATE: April 2013

Post  Tim Watson on Sun 14 Apr 2013, 4:13 am

And there was me thinking you would have a nice new shiny 'Q' plate on your steamers!

Tim

Tim Watson

Number of posts : 533
Location : Herts
Registration date : 2008-07-02

View user profile

Back to top Go down

Re: GENERAL PRODUCTION UPDATE: April 2013

Post  craig@STW on Sat 20 Apr 2013, 7:59 am

quick update on this weeks work....

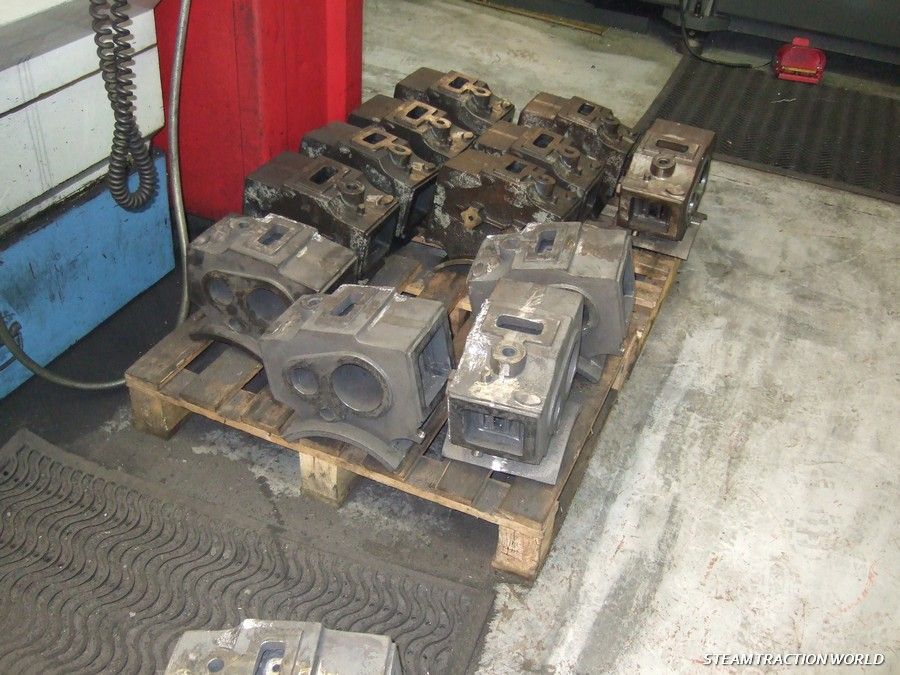

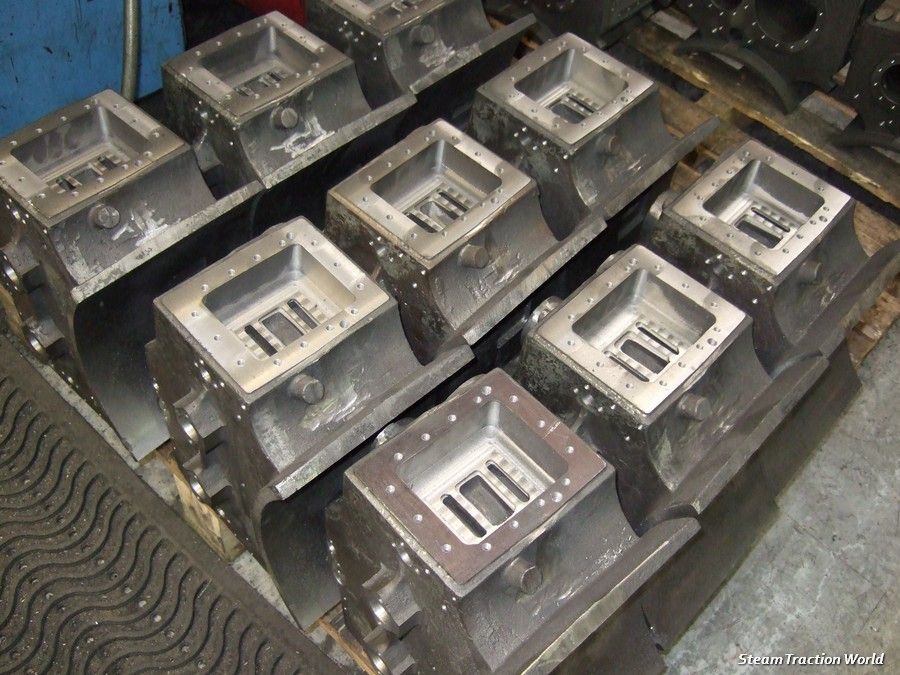

good news for the people waiting for the DCC cylinders. work is progressing as planned...



and the foden 4inch rear wheel kit was finished off...

.

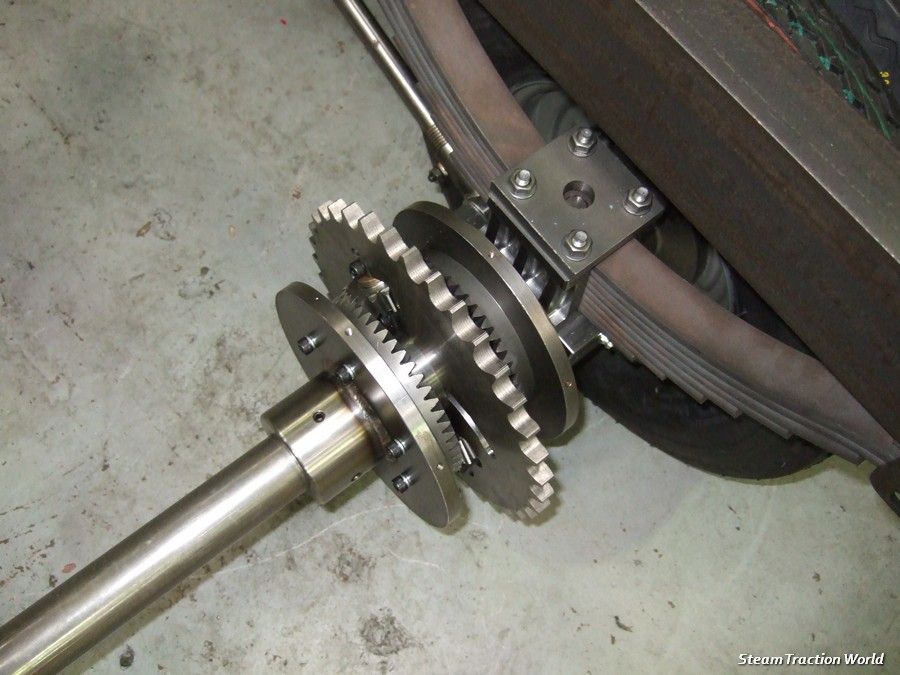

now working on the foden 4inch differentials...

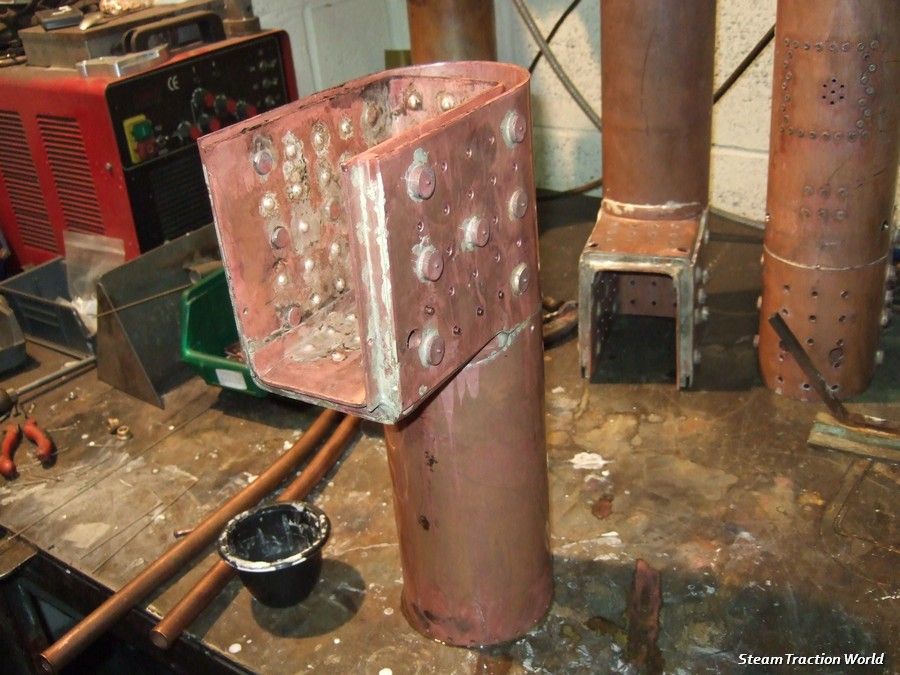

showman's chimney extension rings have been done...

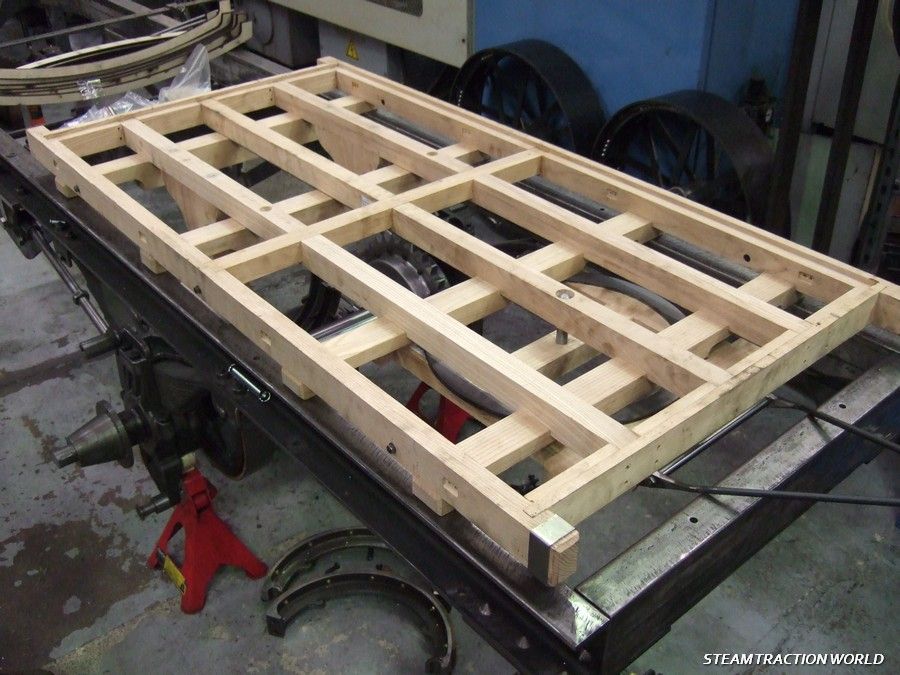

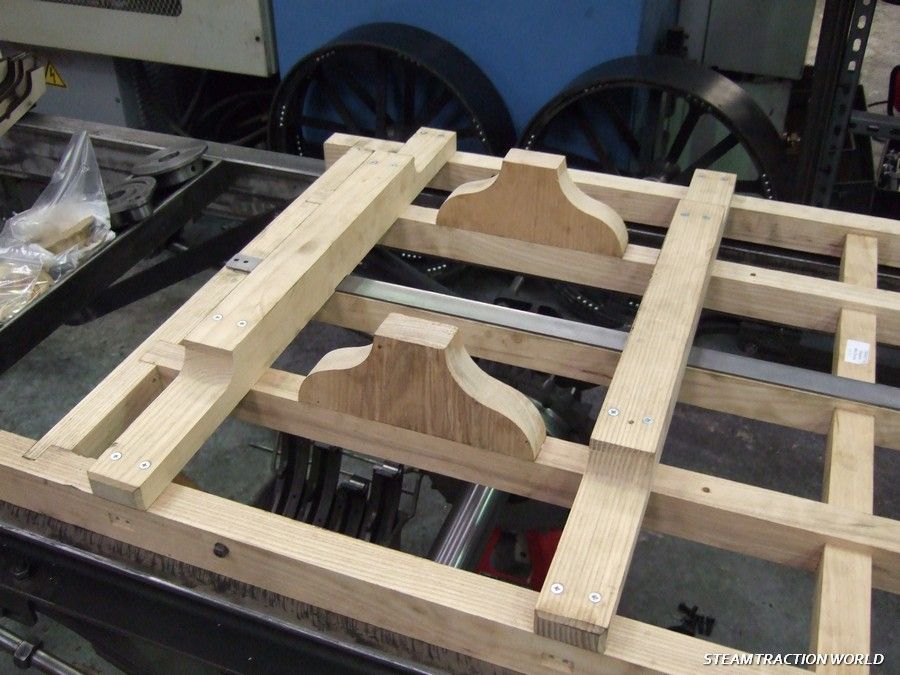

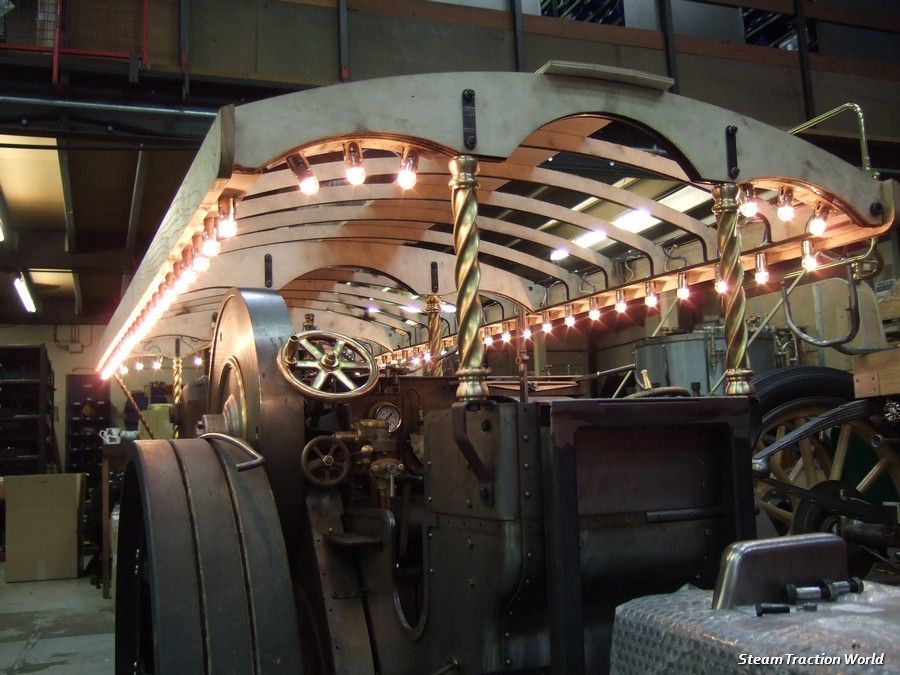

along with the mounting brackets for the roof (yes,we know its in the wrong place Razz )...

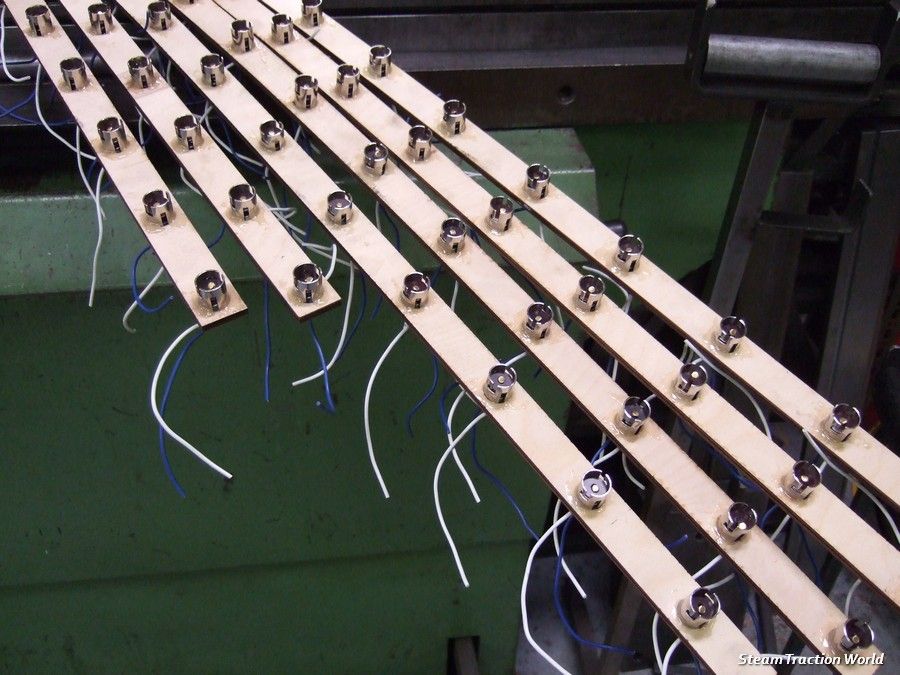

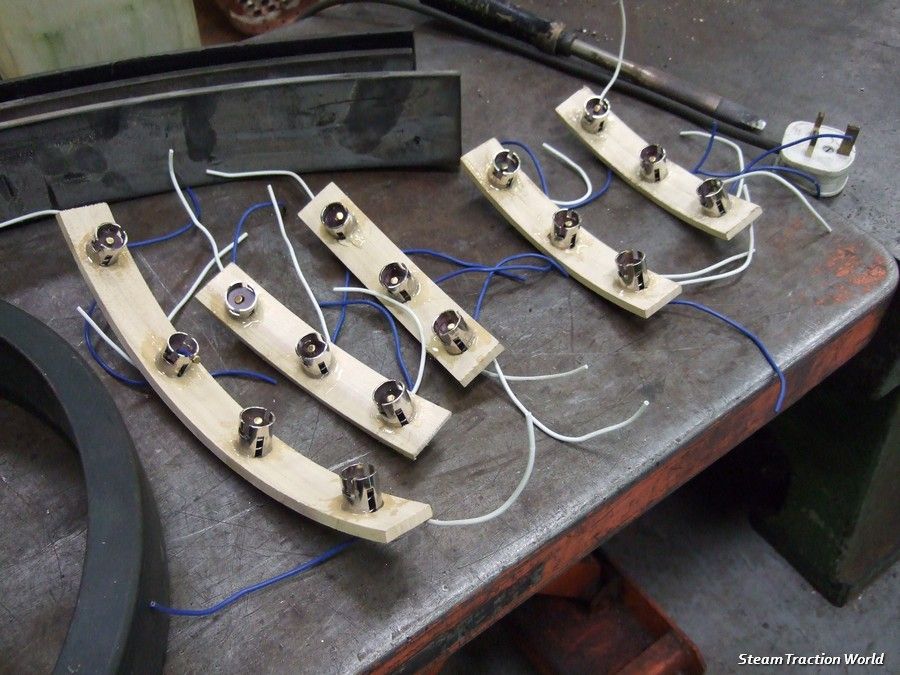

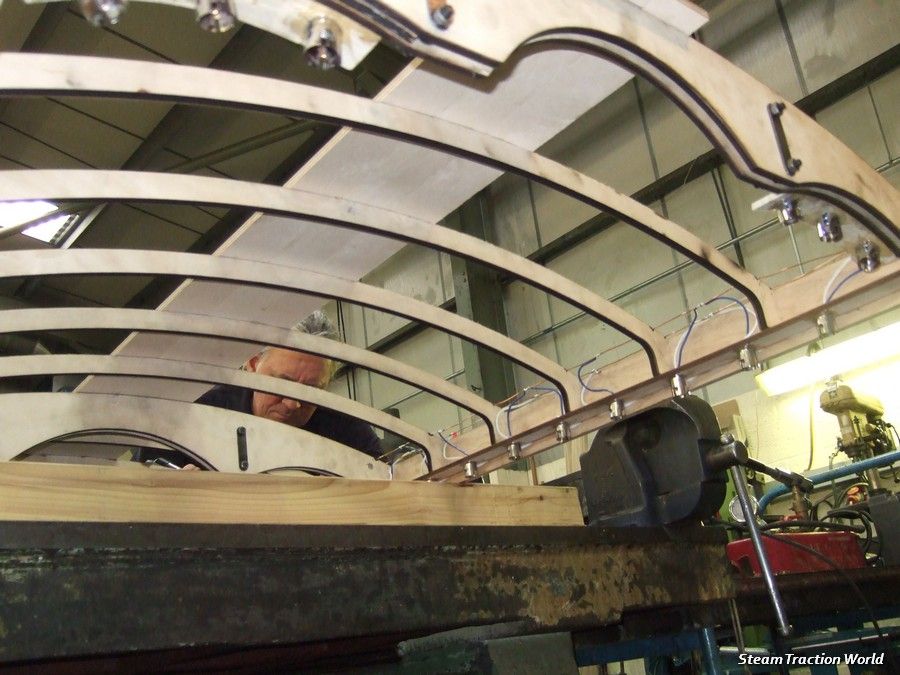

but the reason the roof struts are missing is so we can fit these...





connecting them all up...



and yes... it looks very smart...






craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: GENERAL PRODUCTION UPDATE: April 2013

Post  craig@STW on Sat 20 Apr 2013, 8:03 am

think most of you will of had this stuff by now, or will be getting it very soon.

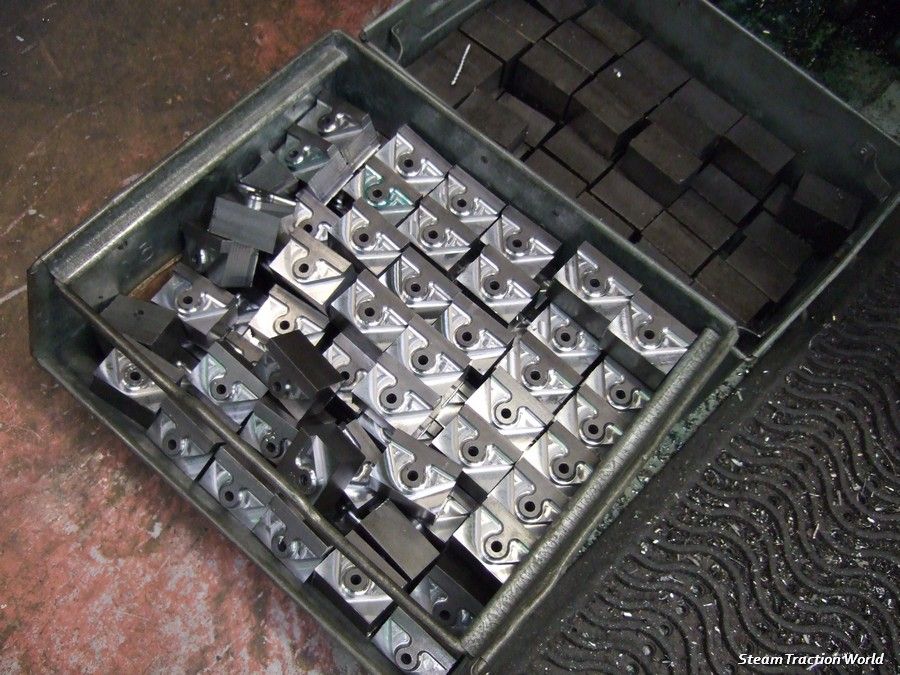

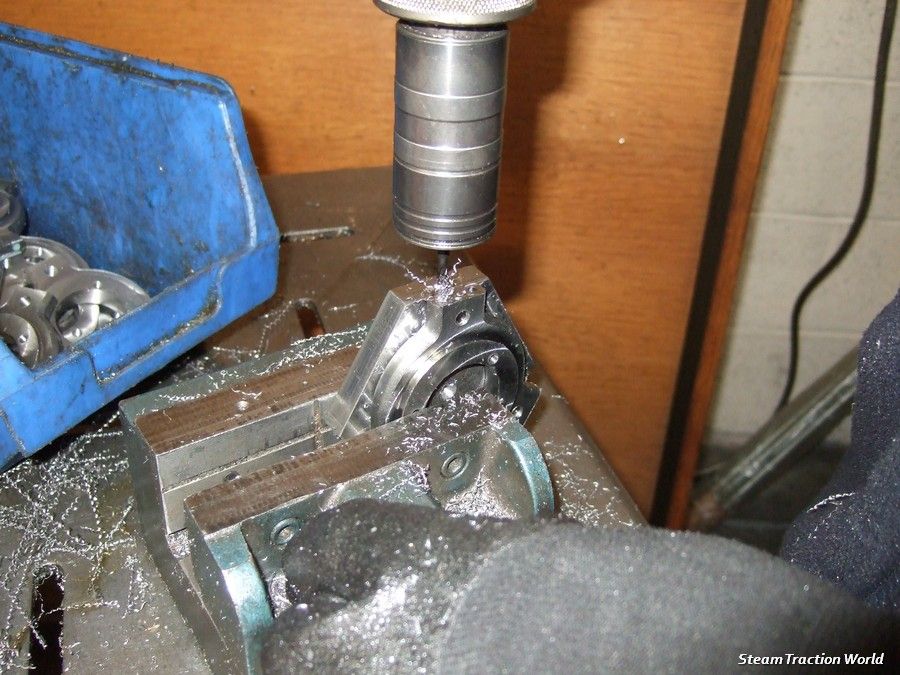

also been working on parts for the showman's Dynamo kit, these are brush holders...






more next week Cool

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: GENERAL PRODUCTION UPDATE: April 2013

Post  SSGR on Sat 20 Apr 2013, 8:10 am

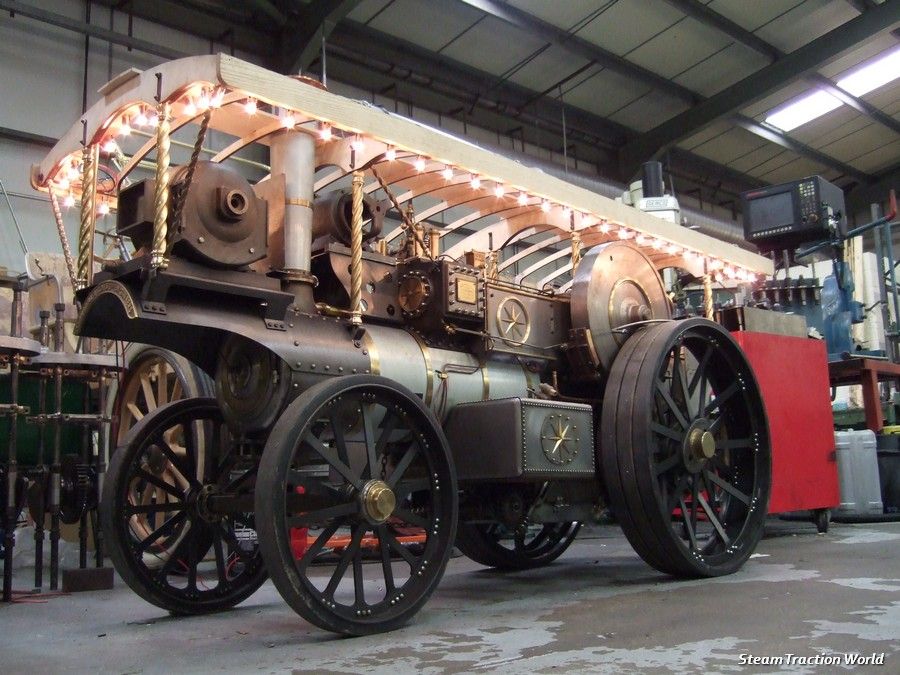

Looking forward to recieving the next foden 4.5" kit. The Showman with lights looks fantastic.

Thanks for the updates Craig, it is appreciated.

John

SSGR

Number of posts : 87
Age : 51
Location : North Essex
Registration date : 2012-05-14

View user profile

Back to top Go down

Re: GENERAL PRODUCTION UPDATE: April 2013

Post  craig@STW on Sun 28 Apr 2013, 6:08 am

last update of the month...

again, another week with not much to see as all sections are working on long running jobs.

Mark is busy on the DCC cylinder blocks and has made good progress. they will be going onto the 4th Axis early next week.

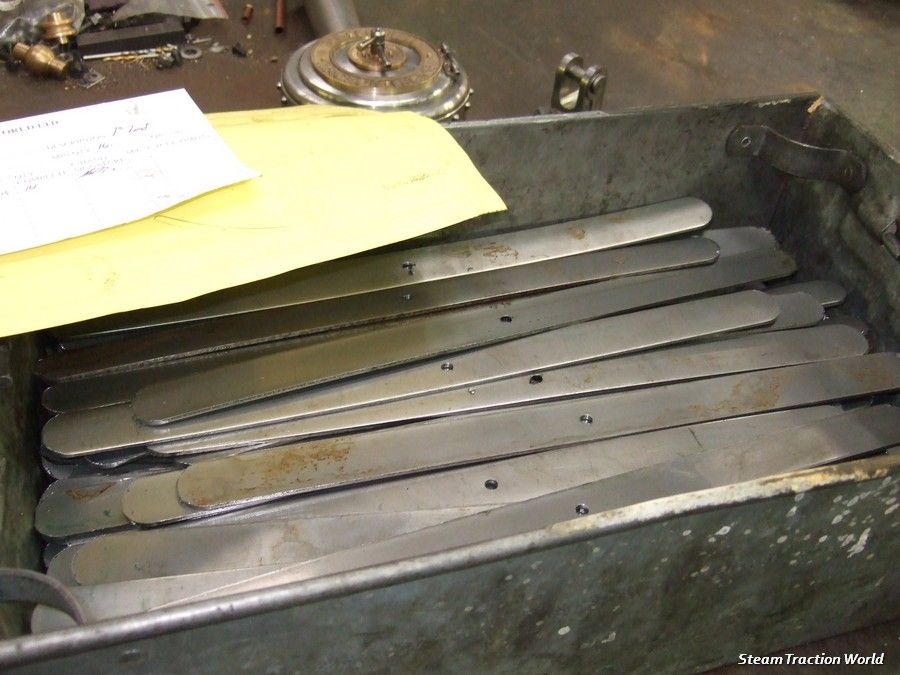

the rest of the CNC section is working on the traction wagon kit 4 springs and mounting brackets and loads of them.

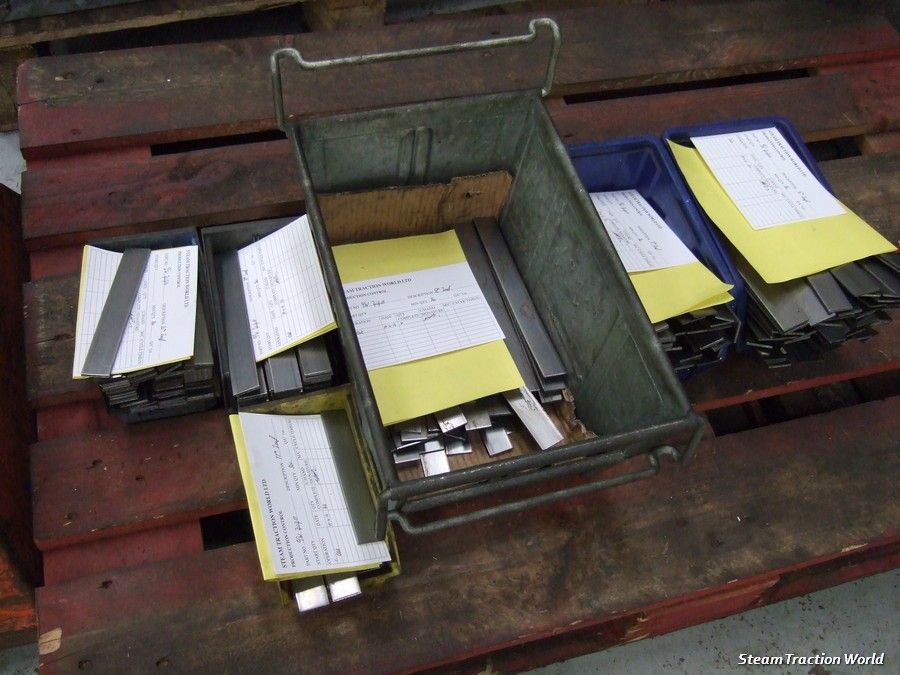

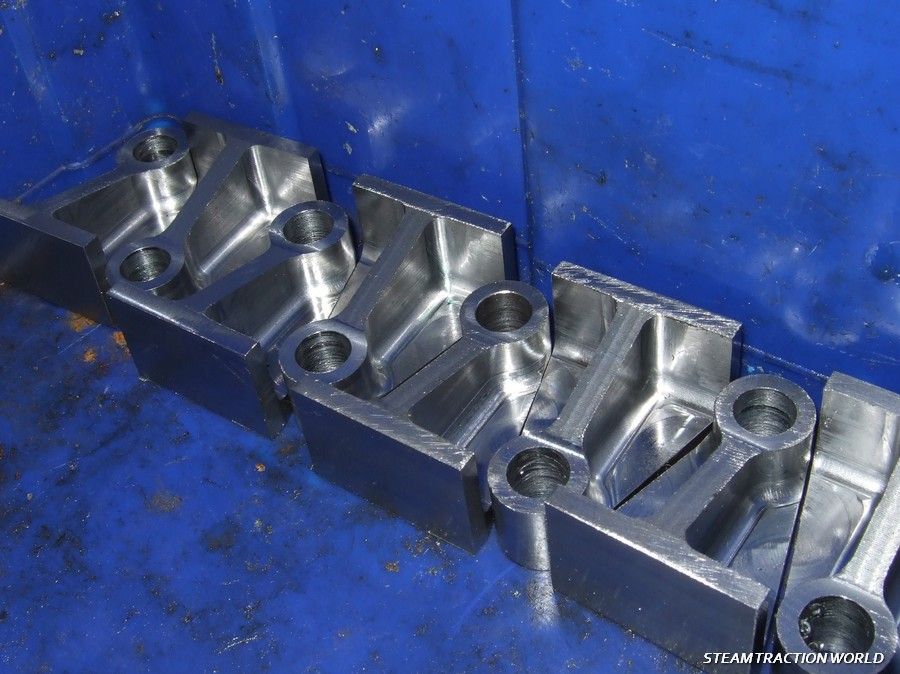

around 400 brackets to make and unlike the other wagons we make, they are a little bit fancy...





and 100's of springs need shaping and drilling...





also finished off the 4inch foden diff...



Ian has been working on the 2inch boilers...

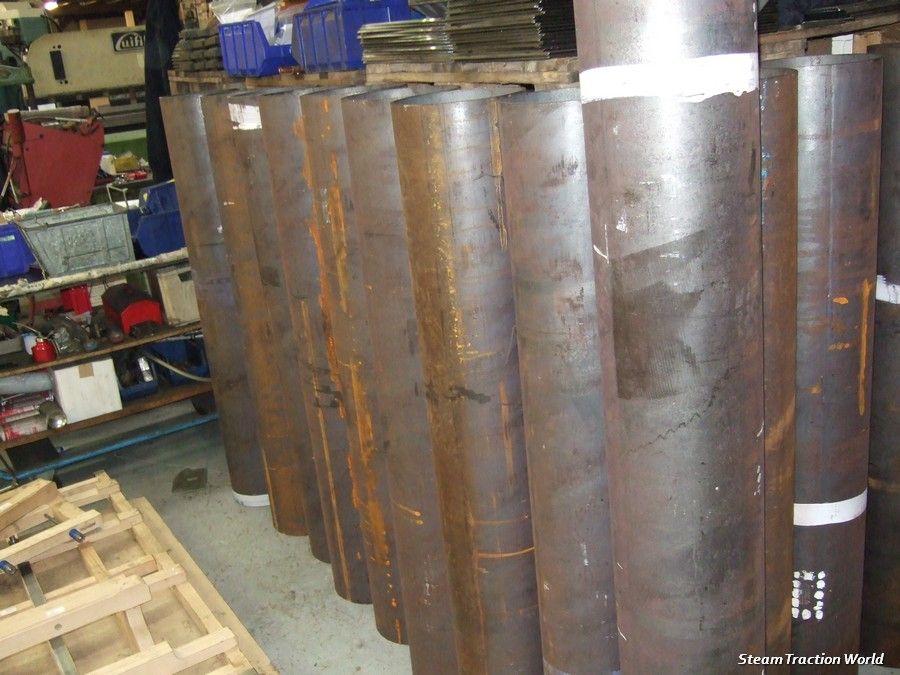

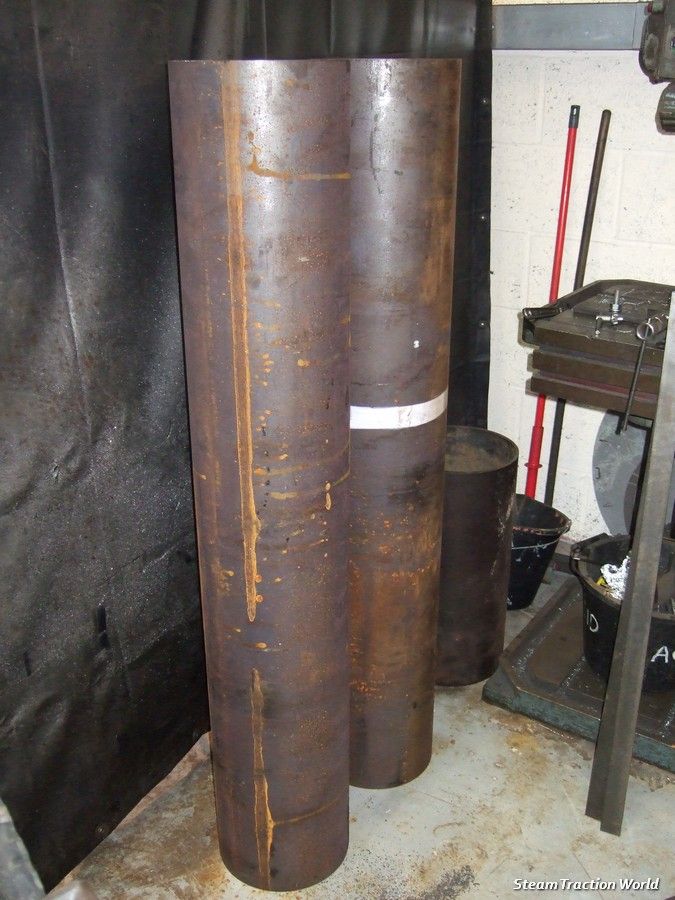

and the new boiler tube has arrived for the next load of 4inch Burrell boilers...
