Re: Regulator

Post  lynnr on Fri 04 Oct 2013, 11:22 am

Hi Kevin

Excellent!

I was thinking of getting a small diamond grit honing block to run over the. Regulator block surface to get a better flat. This was after chatting with Steve aswell.

lynnr

Number of posts : 2688
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Regulator

Post  highpressure on Fri 04 Oct 2013, 2:06 pm

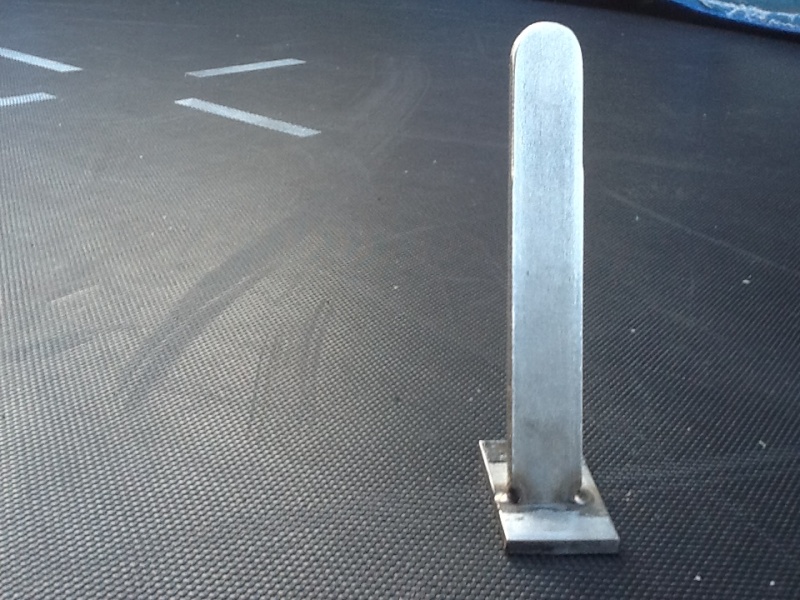

This is the tool we used, a simple flat plate with a handle, the wet and dry held on by double sided tape.





This is Andys bedplate after cleaning, mine isnt quite a clean possibly due to use, it will be interesting to see how this looks after 12 months use or how mine looks in a few months time.


highpressure

Number of posts : 1096
Age : 49
Location : West Sussex, 4" DCC Road Loco
Registration date : 2008-06-18

View user profile http://www.simplydigitalaerials.com

Back to top Go down

Re: Regulator

Post  lynnr on Sun 06 Oct 2013, 10:08 am

My tool was not as elegant but after 8 hours I now have a very flat surface as well. Testing times tomorrow.

lynnr

Number of posts : 2688
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down

Re: Regulator

Post  mikero on Mon 07 Oct 2013, 6:00 am

I have done my Foden regulator in the same way, using a surface ground steel cube of about 30mm, there being much more space for fingers in the casting than on the Burrels. I had intended to glue different grades of paper on different faces but once the spray mount was on it was easier to just peel the paper off and put a new one on each time.

Mike


mikero

Number of posts : 228
Location : Brighton
Registration date : 2011-07-19

View user profile

Back to top Go down

Re: Regulator

Post  highpressure on Mon 07 Oct 2013, 10:12 am

We had a quite a deep "shadow" on the outline of the puck which we didnt quite get rid of completly but my concern is how that "shadow" occurred and clearly if it returns this will all need to be done again. The lack of lubrication lets the plate sit with water on it after a run, I have considered squirting WD40 or similar after a run to stop it happening but the idea of taking the safety valve off each time is a bit of a chore and will eventually cause the ( expensive ) gasket to fail. Not sure how else to take preventative measures.

highpressure

Number of posts : 1096
Age : 49
Location : West Sussex, 4" DCC Road Loco
Registration date : 2008-06-18

View user profile http://www.simplydigitalaerials.com

Back to top Go down

Re: Regulator

Post  Tim Watson on Mon 07 Oct 2013, 12:06 pm

On Madeline, I drilled and tapped a small bolt hole (with an o ring to seal it) at the base of the safety valves over the regulator.  The idea was to undo the bolt (when cold) and squirt a drop of steam oil onto the regulator puck.  Trouble was I always forgot to do it: she still leaked by.

The current stainless steel mod on Frederick shouldn't have a corrosion problem, but might - long term - have issues with the retention / seal of the steel sole plate.

As my father used to say, "those that live longest will see the most..."

Tim

Tim Watson

Number of posts : 531
Location : Herts
Registration date : 2008-07-02

View user profile

Back to top Go down

Re: Regulator

Post  Steam Traction World on Mon 28 Oct 2013, 9:29 am

The next time we place an order with our Laser Cutter we’ll order some parts to make up the tool described by Kevin in his post. We’ll also order some stainless steel plates that can be ‘permanently’ attached to the cylinder as per Tims post.

I have a few concerns, firstly, I don’t understand why the regulator face is deteriorating and doing so quite quickly. May be this has something to do with inadequate initial preparation but I don’t know. We will get some answers from Kevin on how his regulator performs during next season. The second concern is that I’m not sure how long the JB Weld that Tim used will stand up to the expansion and contraction of the block. If it does go however, then I guess it only needs to be re-stuck. Even if that’s an annual event then I don’t suppose that would be too bad. The last concern is about how to attach the Regulator Plate. Would everyone who wants to fit a plate be confident about drilling and threading (probably M5) their block?

Regards

Steve

Steam Traction World

Number of posts : 884
Location : Daventry UK
Registration date : 2008-06-18

View user profile http://www.steamtractionworld.co.uk

Back to top Go down

Re: Regulator

Post  Kevster on Mon 28 Oct 2013, 9:54 am

Could a drilling and tapping guide be provided to ensure the holes turn out all nice and true and in the right spot?

maybe use the safety valve studs to hold it tightly in place

just a thought

Kev

Kevster

Number of posts : 385
Location : Hertfordshire 4 inch; DCC road loco
Registration date : 2011-01-27

View user profile

Back to top Go down

Regulator valve.

Post  Capricorn1 on Tue 29 Oct 2013, 6:28 am

The regulator port face on the top of the cylinder block ought to be lapped in during build with a hardened steel or cast iron plate - as I have not started my build yet I don't know what to expect. What material are you using for the valve - can we call it a valve and not a "puck" please?

A good surface finish and suitable material should not give any problems, if the valve is bronze then perhaps you need a harder grade?

At blowing off presure the load on the valve will be considerble and a poor surface finish will cause friction as well as allowing steam through to the valve chest causing the engine to run with the regulator shut.

Chris.

Capricorn1

Number of posts : 42
Location : West Yorkshire.
Registration date : 2013-07-22

View user profile

Back to top Go down

Re: Regulator

Post  highpressure on Tue 29 Oct 2013, 11:30 am

Hindsight is a great tool to help learn or adapt. Those of us at the very front of the build have discovered lots of things which has aided those running behind, sadly not all of us have in depth knowledge of fitting techniques and even being told that certain things need to be done we dont nesseccarily know how to carry that out. I for one am not ashamed to say I would question how one "laps" something and to what level using what tools or additives?
These engines are sold to a great variation of builders some of which are very accomplished model engineers who simply dont have the time or patience to carry out all the machining to those of us that struggle to recognise one end of a screwdriver from the other.

I think in an ideal world the best solution would be to have a stainless plate let in to the cylinder plate but that involves removing the cylinder. I am fairly sure that Steve would have specified a correct grade for the valve, but as I have found the surface of the block can deteriorate as there is no steam oil to protect it after each run especially if there is any moisture present. I have spent a reasonable length of time "smoothing" out the block face so far but I wont know for some time how effective that will be long term and also I dont know how much more I should do to the block face? Do I continue with ever decreasing grades of wet and dry to get a polished finish or should I not have used wet and dry at all?? To be fair this is a case of trial and error to resolve this.

highpressure

Number of posts : 1096
Age : 49
Location : West Sussex, 4" DCC Road Loco
Registration date : 2008-06-18

View user profile http://www.simplydigitalaerials.com

Back to top Go down

Re: Regulator

Post  showman shane on Tue 29 Oct 2013, 6:43 pm

I am not an engineer and would be the most unqualified person here to make suggestions on this matter however my two bits worth- The common thread running through the various comments appears to be that the lack of lubrication is causing the difficulty in moving the "puck" and damage to the cast iron surface. I'm not sure that the extra attention to lapping the two surfaces will be entirely successful as if there is no lubricant between the mating surfaces particularly with high use and high pressure the cast iron surface will still be damaged. I wonder if the steam oil could be introduced into the regulator cavity from the oil pump in some way in conjunction with the existing entry point .If not feasible would it be worth trying a cast iron puck as it is my understanding that cast iron has a high carbon content which is a natural lubricant? Would be good to have sorted for us tail end builders!

showman shane

Number of posts : 142
Location : Mount Maunganui New Zealand
Registration date : 2013-07-26

View user profile

Back to top Go down

Regulator.

Post  Capricorn1 on Wed 30 Oct 2013, 4:55 am

Adding oil into the steam space around the regulator valve will lead to problems with the boiler such as priming and sludge blocking up the water gauge glass. What works on full size engines ought to work on minatures, using boiler treatment fluid will help to control corrosion but a good surface finish and a suitable valve material will go a long way to curing the problem. Opening up the holes in the gland followers will help so long as you don't go to far oversize and allow the gland packing to be squeezed out.

Capricorn1

Number of posts : 42
Location : West Yorkshire.
Registration date : 2013-07-22

View user profile

Back to top Go down

Re: Regulator

Post  Julia on Wed 30 Oct 2013, 5:12 am

I got the T-shirt on this one with my 4" ag.  I was a real nightmare controlling the engine with a leaking regulator. At the time I believed like many here that the problem could be solved by polishing the regulator with every finer grades of wet and dry and lubrication of the regulator face.  Both these proved to be false - I wasted over a year believing that polishing and was a solution.  As pointed out by some codependents the regulator port face needs to be flat.  Flat is not he same thing as shiny.  A shiny polished surface can be flat but it is no guarantee. I could see my face in the port face on the 4" Ag but after many attempts at improving the seal it ended up dished.  Because of the restricted access more material tends to get removed around the hole than around the edges (no matter how careful you are).  The solution was a pig of a job on the 4" Ag.  The surface has to be scraped flat.  Scarping involves using a flat block covered with blue to identify the high spots and then using a miniature scraper to remove some of the high spots, then retesting with the block and blue.  This took me many hours to get right as only small amounts are taken off at a time.  For a scraper I used a old needle file with its end ground to form a miniature scraper.


Partway though the scraping - By the looks of the picture I don't thing I am using proper blue
(Could be felt tip on port - high spots polished by dry flat block)
The eventual result looked ugly but was fairly flat (but not perfect)

The good news was it solved the problem.  No need for oil, no need to polish.  (Having a go with wet and dry to make it look nice can send you backwards.

6" Gold medal

I have learnt more scratch building my GMT.   It is far better to get a good machined finish than try to improve a bad one with lapping compounds or wet & dry.  Scraping a port flat works but it is a right pain especial when it is down in a pit.

The 6 GMT is designed with a removable bronze regulator port - oversized flanged bush.  It is a stiff fit in the block and sealed with Folaic.  Provides a good distortion fee seal and is removable.  Like many of the 4" DCC I have had trouble with valve scoring.  I assume this is casting sand breaking free.  I have had to reface my valve seat twice but it was not painful.   Since the port insert is sealed with Folaic I use a puller I devised to pull it out of the block.  Having the port face out makes life so mush easier.  The design of the face allows it to be set up in my lathe and given a light facing cut.  I am paranoid over sharpening and polishing the tool and use a light cut with very fine power cross feed.  I return the port face insert without further polishing.



6" Gold Medal Tractor
High regulator force

It is inevitable that the regulator will require some force to be moved when operating at full boiler pressure. There is a lot of force on the puck aka presure x area but what area?  Is the area the outside area of the puck or the cross section of the hole going onward to the valve chest?  If your regulator is dished it will certainly be the outside diameter of the puck. Worse still all that force will be on the edges of the puck.  With a flat valve face the situation will be better.


PS
I would be nervous drilling and tapping for little screws in the block.  Removing a broken tap would be a nightmare.  Even if tapping went smoothly there is a chance that the force from the screws distorts the plate taking you back to square 1.  Something along the lines used on the 6GMT would be better - oversize bush stiff fit on the regulator hole sealed with Folaic.

Julia

Number of posts : 71
Location : South East England
Registration date : 2008-06-17

View user profile

Back to top Go down

Re: Regulator

Post  Tony King on Wed 30 Oct 2013, 6:15 am

Good post Julia, makes sence to me....... I think you may have provided a possible solution!!
Regards,
Tony

Tony King

Number of posts : 856
Age : 61
Location : scotland
Registration date : 2008-10-31

View user profile

Back to top Go down

Re: Regulator

Post  highpressure on Wed 30 Oct 2013, 6:45 am

Well the news isnt good from me. Due to the weather at the weekend the Littlehampton Bonfire night was cancelled and just as well, I dodged a bullet there. Having just finished a test steam to check my work two things have resulted. Firstly although the last attempt to "flatten" the surface seemed somewhat successful this latest round has left a regulator worse than before. I have no flat surface or blue to test anything so cant say how dished or uneven the block maybe but clearly this wasnt an improvement.

Secondly and worse due to my poor knowledge and skills the leftovers of the wet and dry made their way first into the HP cylinder and then the LP. Having run for over a year with silence I knew within seconds that something was not right as it slowly turned over after getting to 50, once giving it a quick blast the same scrapey unpleasant noise started in the LP. I realised pretty quick what it was and stopped running and have been extremely fortunate to have been able to remove both pistons without damaging the rings to enable them to be cleaned. Didnt really want toi get into this but it hasnt been too much of a problem and its quite nice to see how the bores are etc.

I donlike the idea of the stainless plate tapped to the block whihc is why I havent gone down this route so far, I do however like the idea from Julia of a removebale unit wedged into the block. In our case it will still result in modification of the face insitu to accomodate the port block. I am wondering weather the in the New Year it is worth removing the cylinder block altogether and having a stainless plate let in to the port face. This is a real ball ache at the moment and doesnt seem to have an end.

Be warned, dont try my fix wait until someone has a better proven solution.

highpressure

Number of posts : 1096
Age : 49
Location : West Sussex, 4" DCC Road Loco
Registration date : 2008-06-18

View user profile http://www.simplydigitalaerials.com

Back to top Go down

Re: Regulator

Post  Tim Watson on Wed 30 Oct 2013, 11:22 am

Julia is dead right about polishing not equating with flatness. It is a major advantage to be able to flatten the plate away from the cylinder and the use of a figure of eight grinding motion will produce a flat surface (assuming that the carborundum paper is also held on a flat surface).

It is not that difficult to drill the cylinder head with a Dremel type drill, using the plate as a guide (see page 9 of the Frederick thread). In the stainless steel plate the two locating holes were originally drilled to tapping size and used as a jig to drill the cylinder to that size (4BA). They were then opened up to clearance for the bolts and the plate re-ground to remove any distortions. The two bolts to hold the plate are a very passive fit and are not screwed down tight: using more bolts might increase the risk of distortions and also prevent any differential expansion of the plate. As Steve has mentioned it will rely on the good will of the JB Weld, so we'll see how it goes.

The stop valve (that is the 'correct' name for the regulator) worked very well at Old Warden. It's next trial will be at the Portsmouth Historic Dockyard at the end of November. Mark (Chop) has had his modified assembly at work all season, so maybe he could comment?

Tim

Tim Watson

Number of posts : 531
Location : Herts
Registration date : 2008-07-02

View user profile

Back to top Go down

Re: Regulator

Post  MrStationHouse on Thu 31 Oct 2013, 1:31 am

As someone who is still a little way from steaming I have been following the thread with interest. Still not completely sure how to play it. However to add my three pennorth using old fashioned engineers blue does seem the way to check the face. You can get it on eBay for under £5 delivered.

The other thing I would think is that a mirror finish would not be ideal as it wouldn't leave any minute areas to provide lubricant.

I really like Julia's removable port, great idea.

Julia- did you scrape the Ag block in sittue in which case how did you keep the scrapings out of the steam way?

Best wishes
Simon

MrStationHouse

Number of posts : 296
Location : Malmesbury
Registration date : 2011-04-26

View user profile

Back to top Go down

Re: Regulator

Post  bjwlancashire on Thu 31 Oct 2013, 2:34 am

Just to add a point unique to the DCC regulators, the underside is hollowed out leaving just a narrow wall of material to seal to the block, 3-4mm at most. This regulator seems to be the one with the most issues unless I am mistaken. On Mikes post within this thread his Foden regulator valve seems to have a solid piece of metal for a regulator turned from round stock. Some DCC builders have made new regulator valves which I am assuming to be solid across the sealing face. Can anyone who has this type of regulator please comment in whether it is staying sealed longer?? I think Dwain has changed his regulator valve as well as having made a tool to easily "polish" (I use the word loosely) the surface the valve runs on. Dwain, is your new regulator valve a round one?

I may try a round, solid regulator valve, the curve will also provide a reasonably steady opening and I think the full size regulator valves I have seen were also round - thought please.

I will remove mine at the weekend and take photos of both valve and cylinder block faces to show the condition of mine for comparison.

Brian

bjwlancashire

Number of posts : 934
Location : Mellor, Lancashire
Registration date : 2010-09-07

View user profile

Back to top Go down

Re: Regulator

Post  Julia on Thu 31 Oct 2013, 3:17 am

Julia- did you scrape the Ag block in sittue in which case how did you keep the scrapings out of the steam way?

Yes - If you look in the photo you will see three plugs that are a snug fit in the 2 risers and onward passage. The plugs a pushed slightly below the surface.  Each is has a taped hole to enable a bolt to be inserted to give something to pull on to get them out.

I believe the DCC block is similar to the GMT in that it has cast in passage ways.  As a result it will not be possible to  block the passage back to the boiler.  I would not be overly concerned at not being able to prevent crap going back into the boiler but it would be worthwhile to block the onward passage.  The reason I am not overly concerned regarding the boiler it that it will inevitably be full of much nastier stuff and it would be a good excuse to give the boiler and riser another good pressure wash after scrapping.  Also bear in mind that on a scale of 1 to 10 of nasty things, scraping are near the 1 end of the scale.

I have proper engineers blue but I found it did not work too well on the 4" Ag.  The idea is that you build a fine film of blue on your fat surface and then rub the blued flat surface on the port face. The high spots pick up the blue the low spots stay metal colour. You then lightly scrap the blue away and repeat.   Problem was that the restricted movement down the "pit" did not allow the blue to transfer properly.

A dodge that worked better for me was to lightly cover the port face with permanent marker pen (any colour!) and allow this to dry.  Then rubbing a clean flat block, across the face to reveal the high spots where the marker is being rubbed away. (The exact opposite to conventional method with engineers blue).  If you look carefully in the picture you will see I cut a moat around the side of the pit since it is impossible to work this area.

I guess with the cast in passageways access to the DCC port may be better and the port face may already be an  island.  In which case I would give engineers blue a try preferably with a flat block larger than the port face.


This shows the 6" GMT insert - to fit the 4 DCC it will need redesigning

As you can see the 6 GMT insert fits into a 7/8 hole in the block.  This is much bigger than the existing hole in the DCC block.  However I would not recommend attempting to enlarge the hole on the DCC block whilst fitted to the engine (and I would not dream of removing it either!).  The hole in the block needs to have a nice bore so that the insert is griped when pushed in.  If anyone wants to try this I would suggest reducing the 7/8 to what it needs to be and making the through hole as big a reasonably possible. Make the insert a push fit and seal with folac. Slightly undercut the bush where it changes diameter so that it goes home snugly into the block without the need to relieve the existing hole in the block.  That way if it is a disaster the inserter can be removed and you can get back to a standard engine.

Julia

Number of posts : 71
Location : South East England
Registration date : 2008-06-17

View user profile

Back to top Go down

Re: Regulator

Post  mikero on Thu 31 Oct 2013, 3:28 am

So if the pressure on the puck is being passed on to only, say, 20% of its surface area no wonder it is difficult to move. Without lubrication the 'bite' against the block would become huge once everything got warmed up and increase the tendency to score the block surface. Someone with more knowledge will probably argue with my logic though.

Mike

mikero

Number of posts : 228
Location : Brighton
Registration date : 2011-07-19

View user profile

Back to top Go down

Regulator valve.

Post  Capricorn1 on Thu 31 Oct 2013, 5:13 am

If the regulator valve is 1" square then at full boiler pressure there will be 170lbs of force on it - the pressure acts on the whole surface area.

Road engines run with saturated steam which contains droplets of water which will act as a lubricant.

The port face on top of the block must be flat and have a good finish, perhaps a removable seat may be one answer if there is room to allow one to be fitted, or if the underside of the valve was recessed a PTFE insert could be used, this may take up any small imperfections on the port face and would slide very easily making the regulator easier to operate and it could of course be easily replaced.

The working pressure of these engines is quite high compared to other minatures, but providing the materials used are similar to those used on full size engines there shouldn't be any problems.

Is there anyone who has NOT had any issues with their regulator?

Capricorn1

Number of posts : 42
Location : West Yorkshire.
Registration date : 2013-07-22

View user profile

Back to top Go down

Re: Regulator

Post  highpressure on Thu 31 Oct 2013, 9:46 am

Capricorn1 wrote:
Is there anyone who has NOT had any issues with their regulator?
Only those not in steam or so it would seem Smile Laughing Laughing , even those who started earlier seem to have developed this as the season has worn on, Blackbeard and myself probably being the highest mileage, and not forgetting the couple who have altered theirs already.

This afternoon I have removed the safeties to reveal a clean block face still but some considerable scoring in the valve itself, I am intending to find a pen or blue to check the block against the valve this weekend and continue with my wet and dry clean out debarcle...... Shocked Embarassed Embarassed At least the valves can be checked and the covers repolished for the new year. Might get to be able to light up on Sunday and see if the inlet port in the HP valve chest shows letting by, should show up quite quickly. Havent lost the will to live yet as we are in the "closed" season. Julias adea is great but we only have at best a 12mm hole and in the instructions it says it is 10mm and not nesseccarily round and true so we need attention to get it to take the insert which with the block insitu is going to be a challenge!!! PTFE insert in the valve base might be an answer.

highpressure

Number of posts : 1096
Age : 49
Location : West Sussex, 4" DCC Road Loco
Registration date : 2008-06-18

View user profile http://www.simplydigitalaerials.com

Back to top Go down

Re: Regulator

Post  Flasback on Thu 31 Oct 2013, 10:54 am

Hi All,

To Answer Brian's question I have stopped using the STW valve and have a round one (need to find a drawing of it but the overall ID is twice that of the port hole), I did the same as Julian, which is on page 2 of this thread. I spent several hours making sure the tool was flat prior to starting on the face in the cylinder block. Once I got the block flat I mated the regulator face to the surface of the cylinder using engineering blue to ensure no high spots (not too thick). A good point is the lapping process, don't do a linear motion, I did a figure of 8 and cycle motions to stop a concave profile occurring (and also the boredom). I used various grades of cutting compound and went finer as I went along. It is import to seal off the ports in the cylinder block to ensure you don't get cutting compound in places you don't want as Kev has mentioned. I used paper towels and washed down regular with WD40 also replacing the paper towel in the ports so I knew they were dry.

As I believe the cause of the passing is coming from more than one area I have also blanked off my starting valve as I believe the ball assembly is causing the steam to pass at that point also. Brian M was steaming at the weekend and his engine ran on, however when the starter valve was blanked off the engine did not run on or build pressure in the cylinder block to the same extent. I will put my starter valve assembly back on this weekend to see what its like but if I get run on I will blank it off again.

I have a number of issues with the engine I need to fix but the regulator is now running well and people who drive the engine always comment on the smoothness of the regulator control. I can't take credit for the design as it is one of Clive's H design.

Right off to scare a few kids.Evil or Very Mad Evil or Very Mad




Flasback

Number of posts : 184
Location : Cheshire
Registration date : 2011-01-29

View user profile

Back to top Go down

Re: Regulator

Post  highpressure on Thu 31 Oct 2013, 11:15 am

My starter valve has a stronger spring than supplied ( as I dropped the actual one in long grass in August Embarassed Embarassed ) It is easy to see if it leaks by taking off the LP valve cover and see if the port is allowing steam in. This was an inital headache but has been sorted on my engine and is a godsend for pulling away, if you havent tried using one of ours with a start valve you'll see what I mean when you do.

Dont know how you can get a figure of 8 motion in the reg chamber!! I can barely get a straight back and forth!!! Will block the input port next time though for crud prevention. Evil or Very Mad Evil or Very Mad

highpressure

Number of posts : 1096
Age : 49
Location : West Sussex, 4" DCC Road Loco
Registration date : 2008-06-18

View user profile http://www.simplydigitalaerials.com

Back to top Go down

Re: Regulator

Post  lynnr on Thu 31 Oct 2013, 11:18 am

Hi Kevin

Remember to take the governor off and clean in there. There could be a puddle load of grits.

lynnr

Number of posts : 2688
Age : 48
Location : Highland, 4inch showman
Registration date : 2010-08-06

View user profile http://www.pbase.com/uisge

Back to top Go down
