6inch Foden kit progress....

Post  craig@STW on Thu 06 Sep 2012, 2:01 pm

a quick update on the next kit for the 6" foden. this will include the front axle and cradle.

the cradles were done a while back so are already finished...

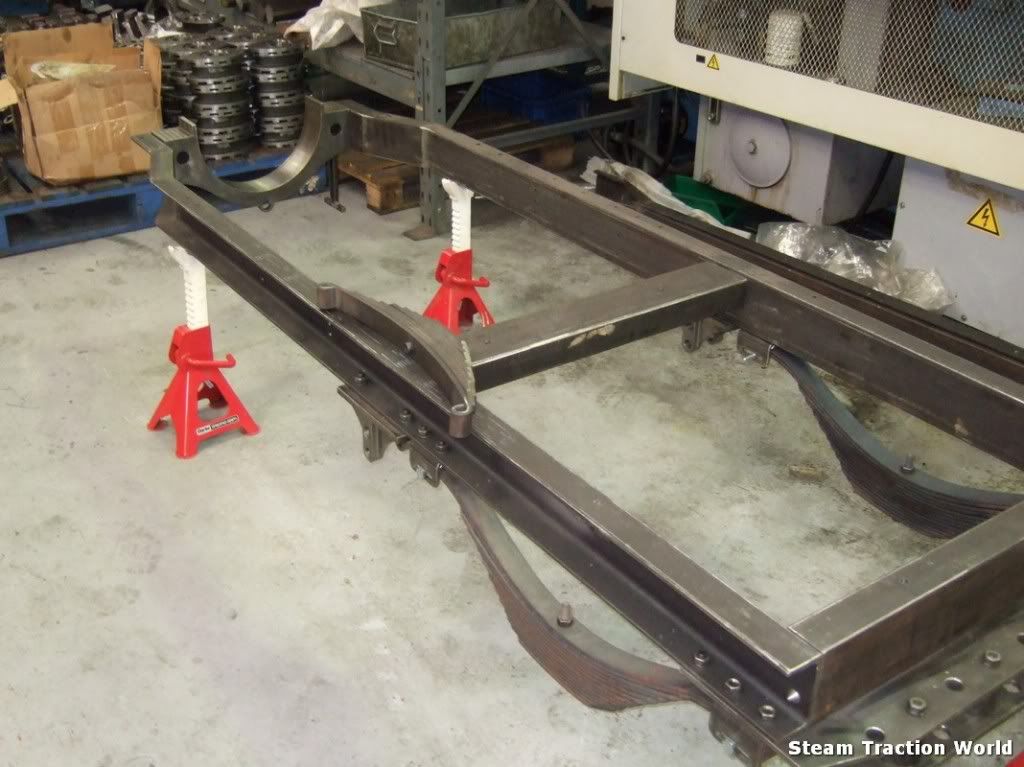

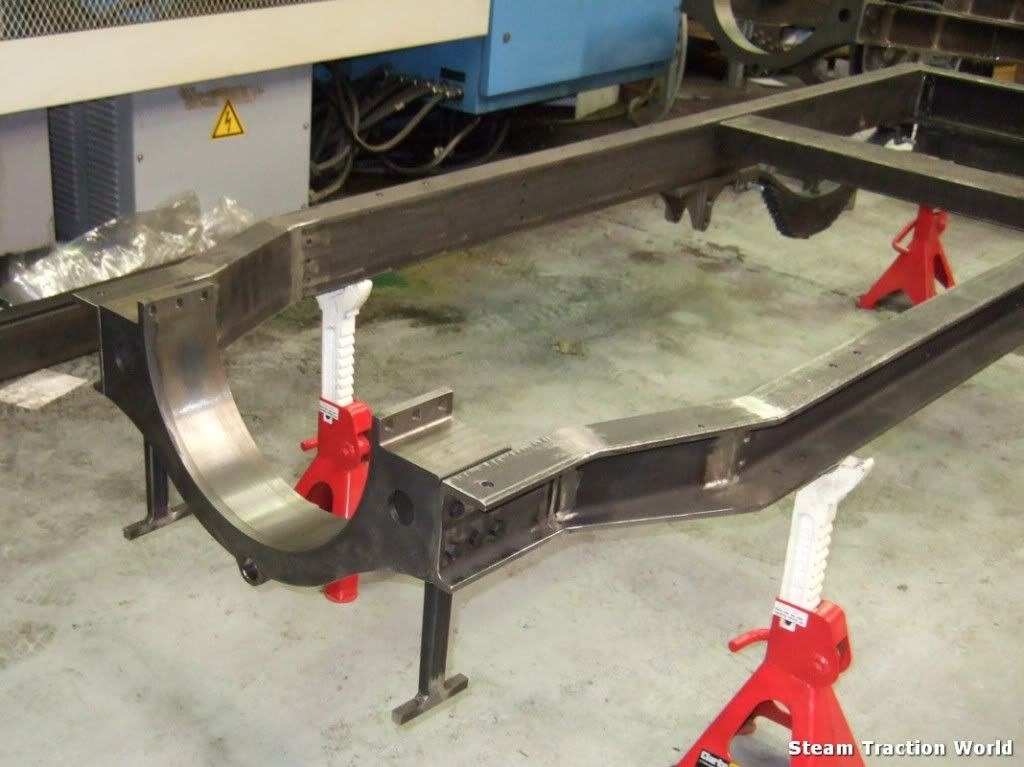

this is the current state of the SWB control model...



also featuring the front spring bump-stops...

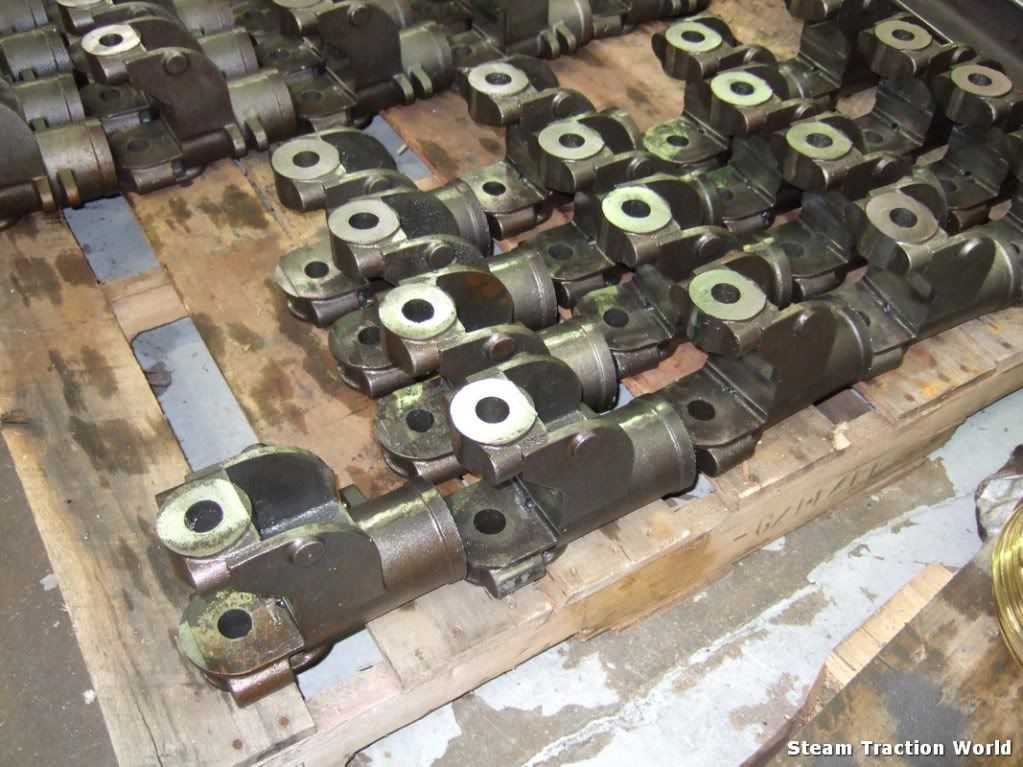

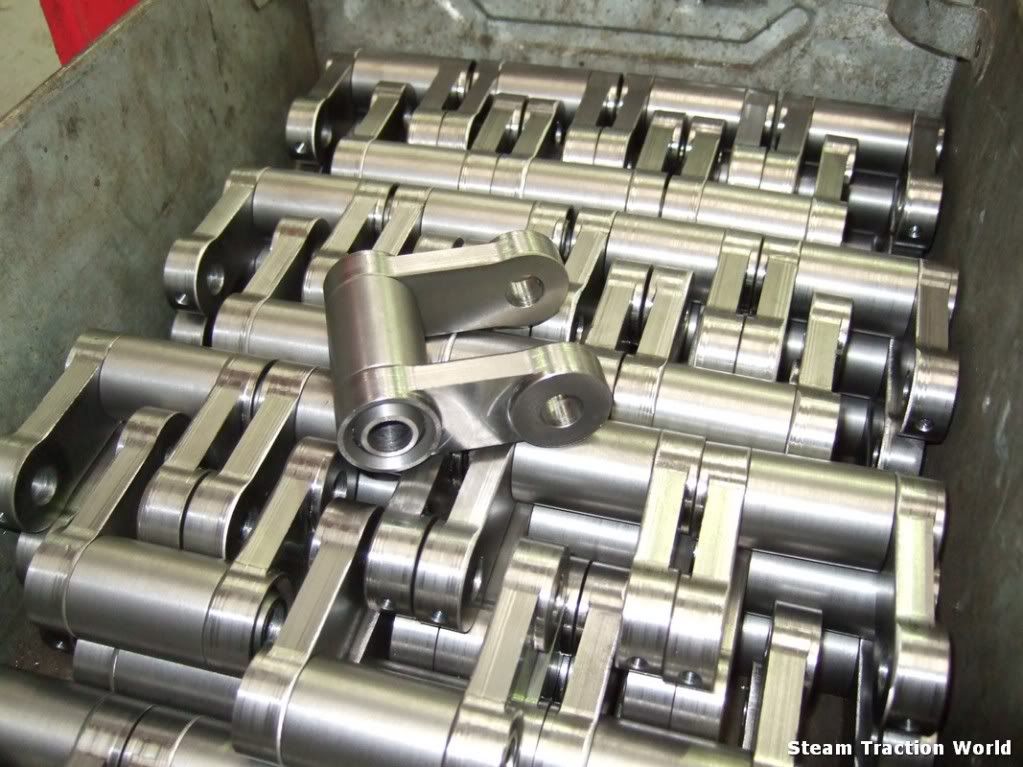

the spring shackles are all ready for welding...

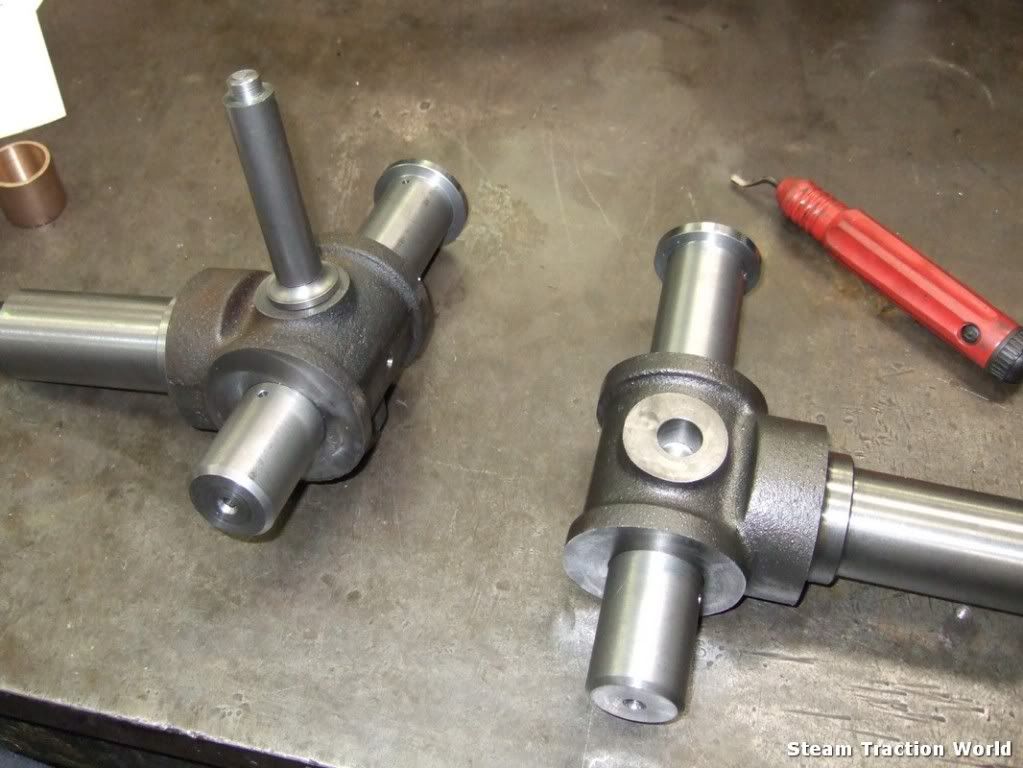

the stubs axles are being fitted up to the king pins and track rods...

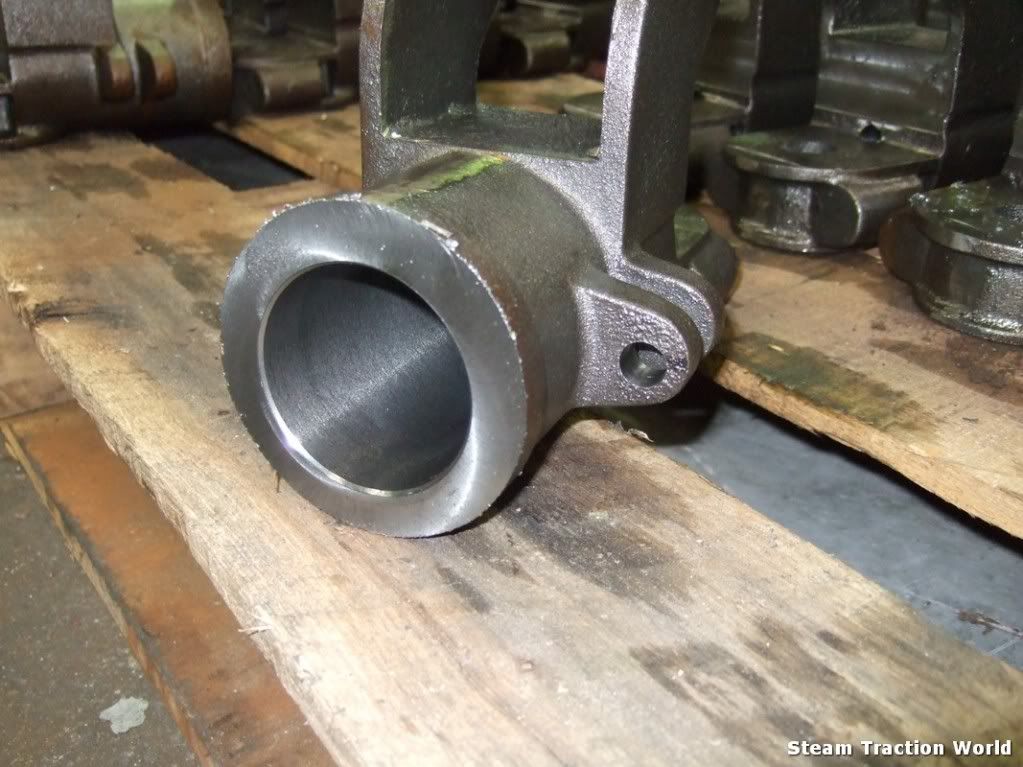

these are the main axle jaws...



and the axles tube bore holes...

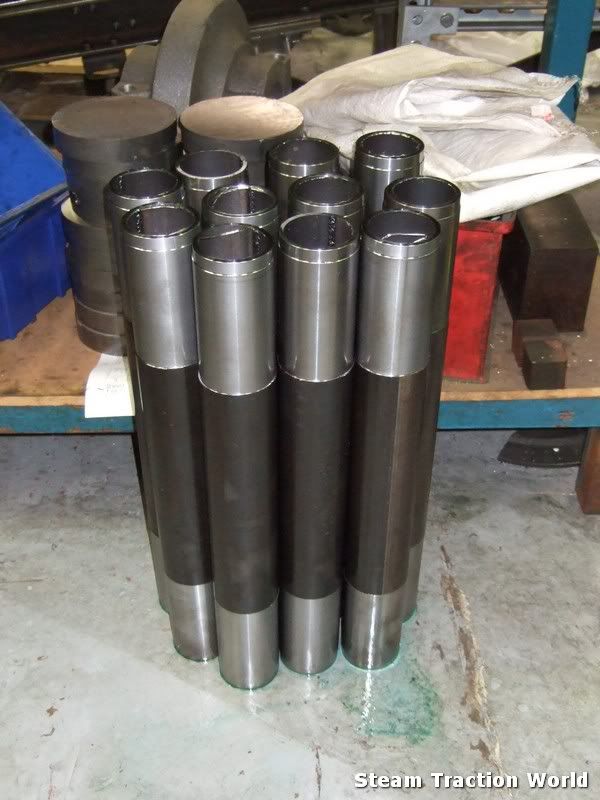

axle tubes fresh from the lathe...



Last edited by craig@STW on Thu 06 Sep 2012, 2:06 pm; edited 1 time in total

craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: 6inch Foden kit progress....

Post  craig@STW on Thu 06 Sep 2012, 2:05 pm

also, im sure i posted these some place else, but just to re-cap...

we are currently receiving loads of castings for future kits. i need to check if there are anymore to photograph but for now, these are the main rear axle boxes...



and their caps....



and the rear brake wheel castings...
