Post  craig@STW on Wed 21 Dec 2011, 9:56 am

i guess most of you have this now, but here's a few pics from production...

chimney laser cuts...

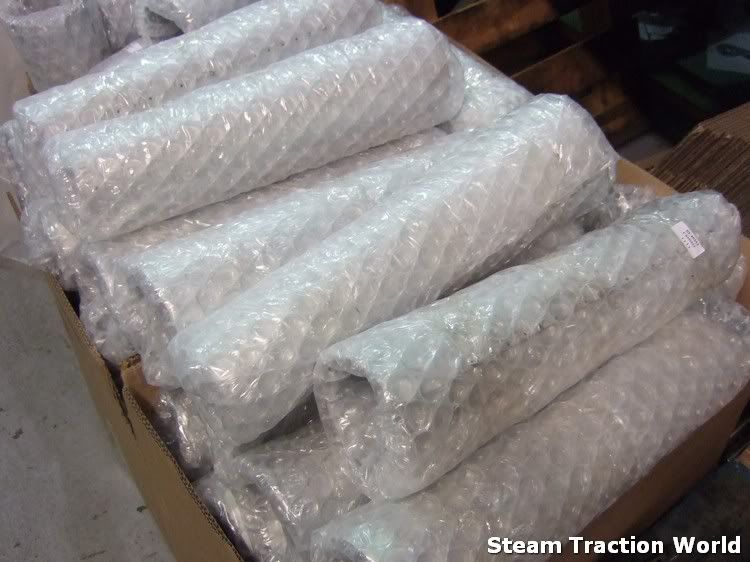

rolled and packed...

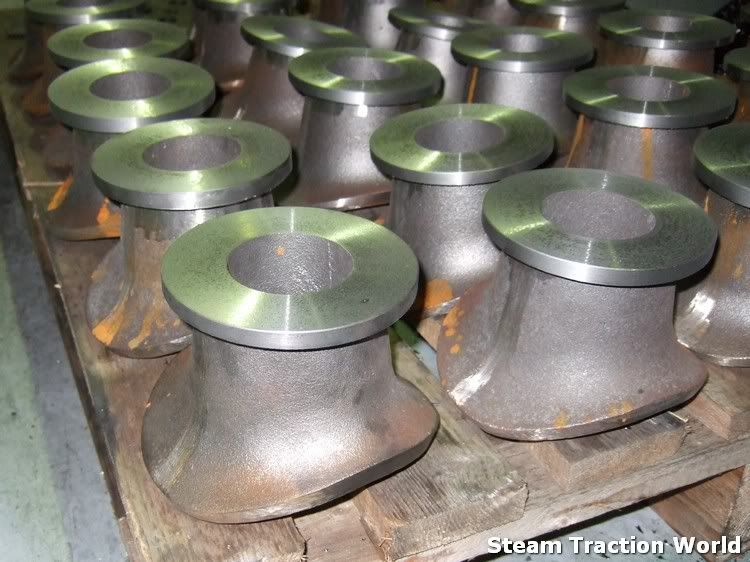

chimney base castings...

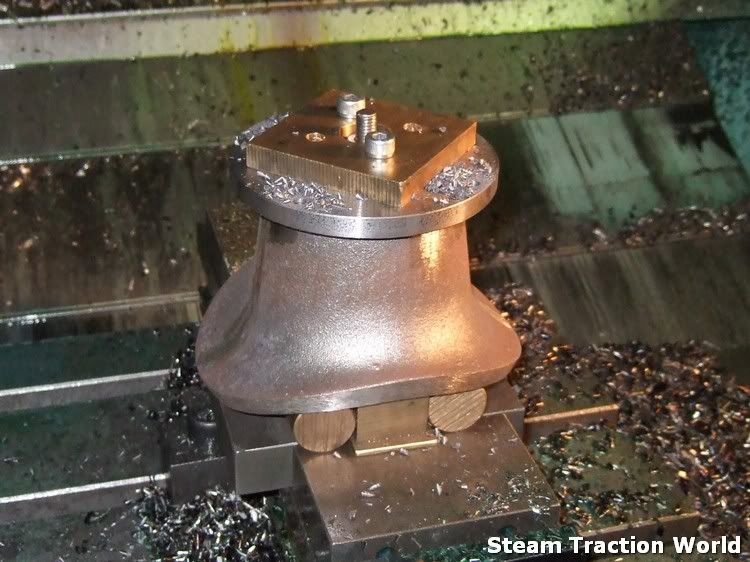

after first op...



drilling chimney base ring mounting holes...

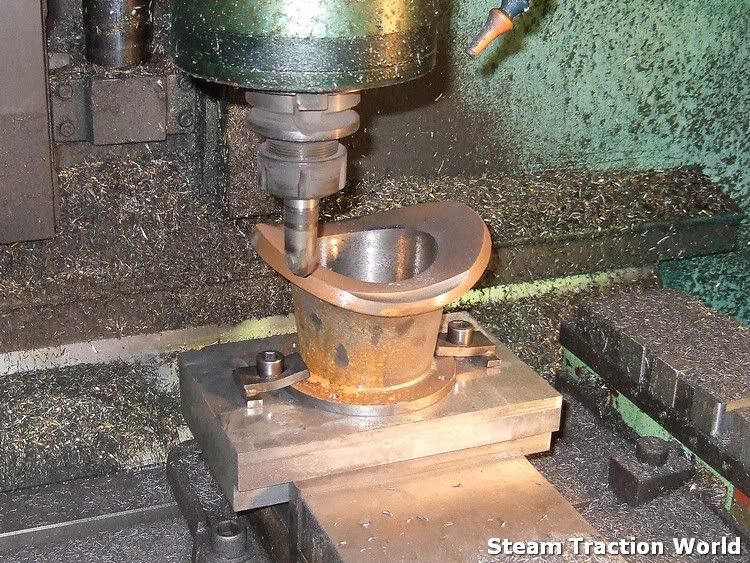

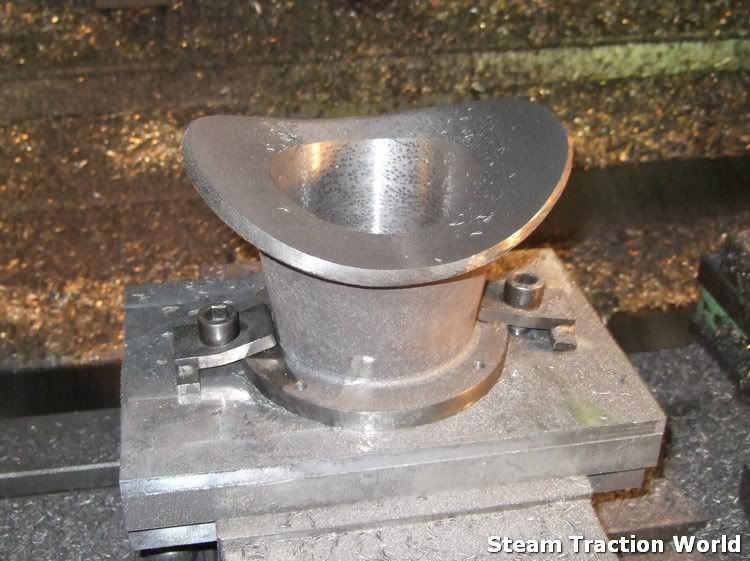

and scooping out the "saddle"...

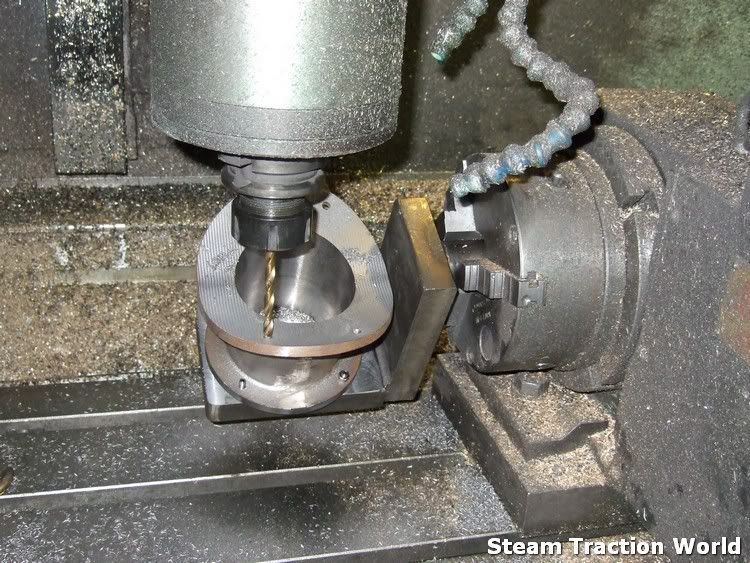

and finally the base to smoke-box mounting holes...






craig@STW

Number of posts : 1194
Location : location Location
Registration date : 2010-05-06

View user profile

Back to top Go down

Re: Burrell 4inch (new batch) kit 3

Post  craig@STW on Wed 21 Dec 2011, 10:02 am

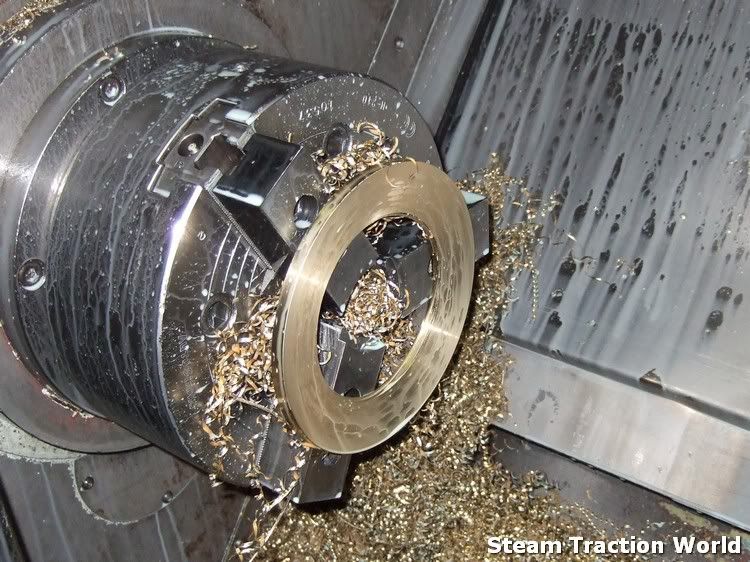

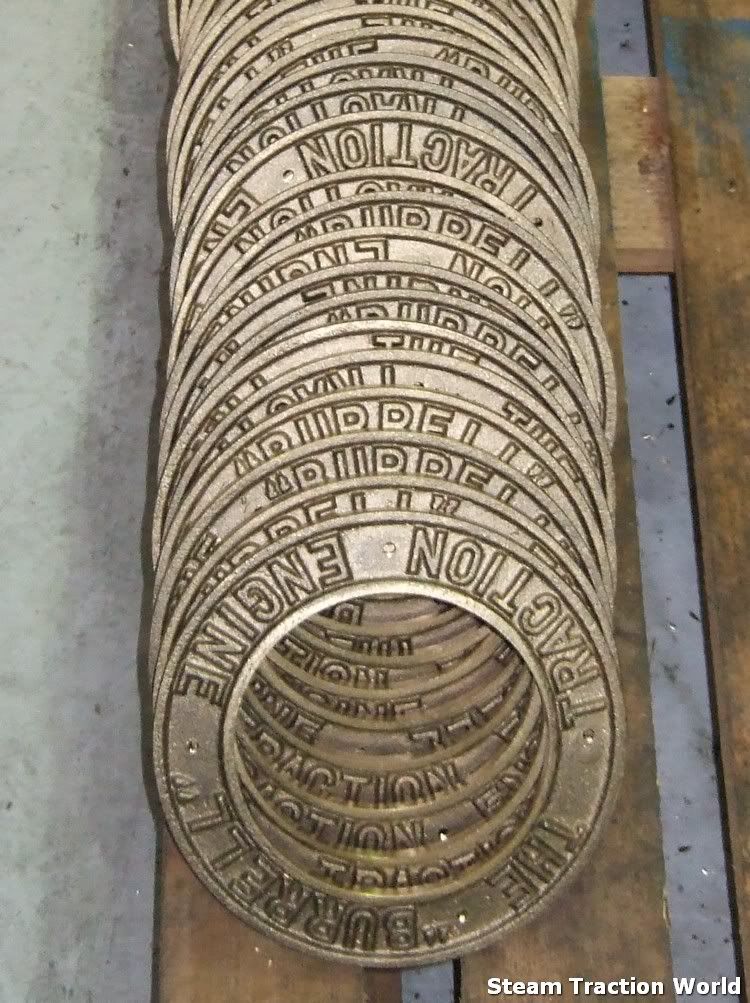

large name rings on the lathe...

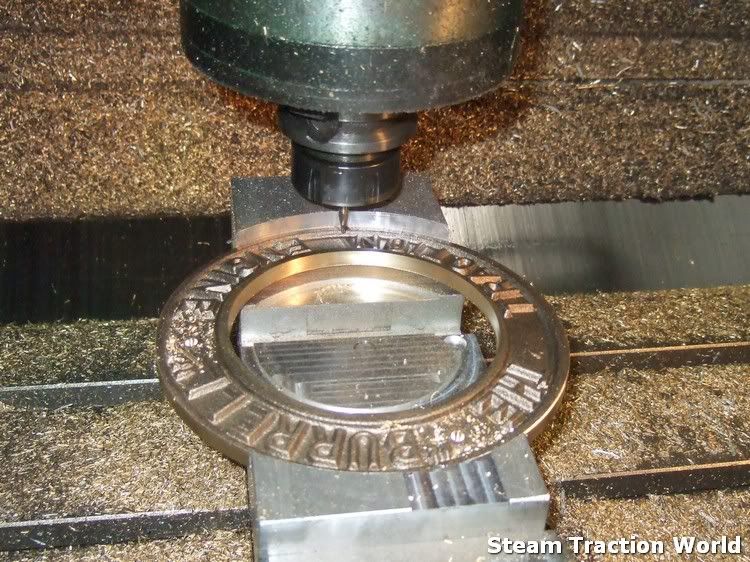

and drilling the mounting holes...

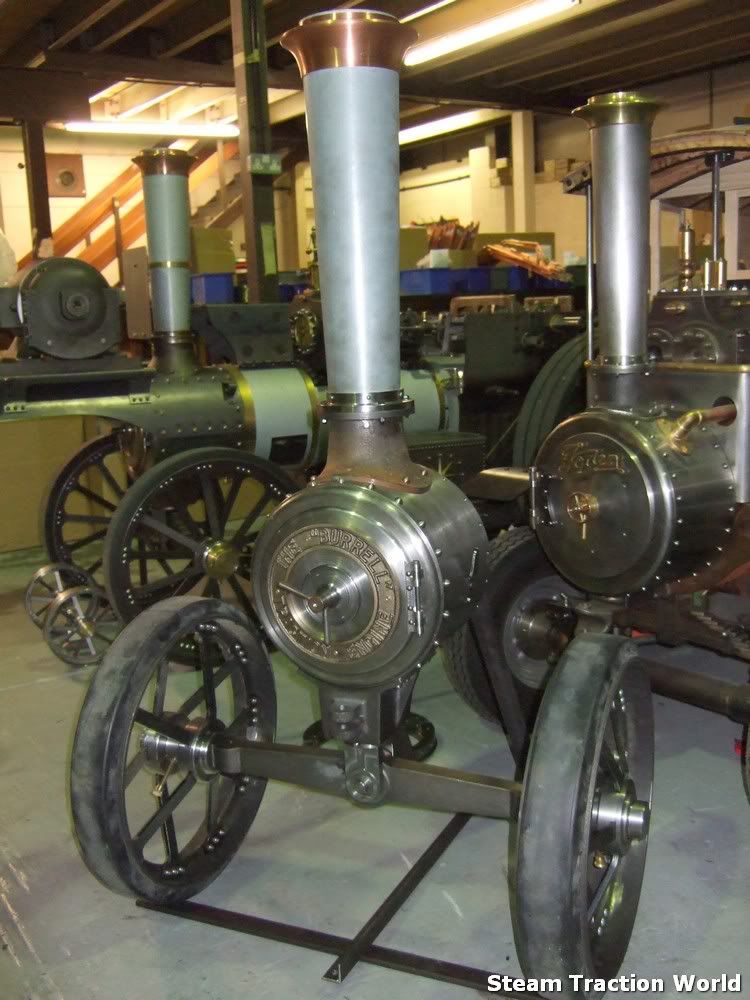

and the control model all put together...



Please note. at this point the model becomes very heavy and very unstable. as you can see we have fabricated a basic stand to keep it all upright. please be careful when handling things at this stage. things can twist in any number of ways and its easy to damage something or yourself. probably best to store the parts separate for now Cool
