Post  craig@STW on Thu 17 Nov 2011, 10:59 am

a few pics from kit 2 production.

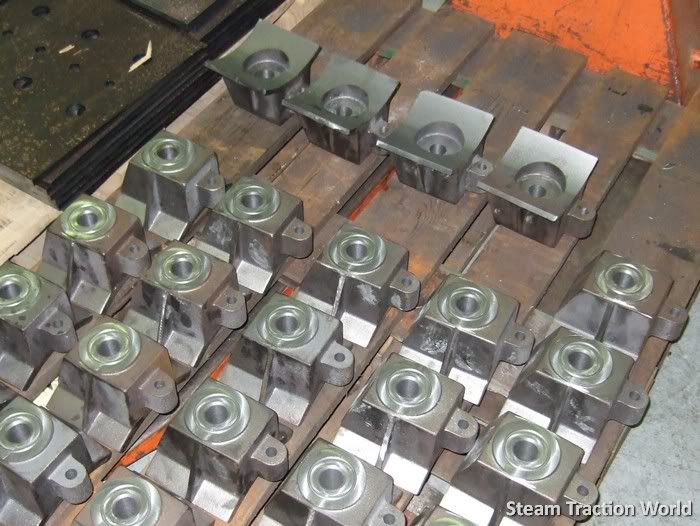

first off was the perch. first opp done on the ones at the front and the ones at the rear have been through the second opp...

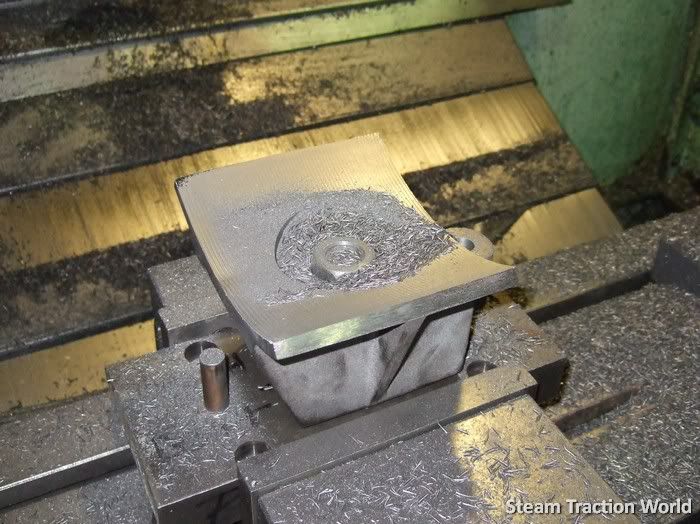

2nd op on the machine, scooping out the "saddle"...

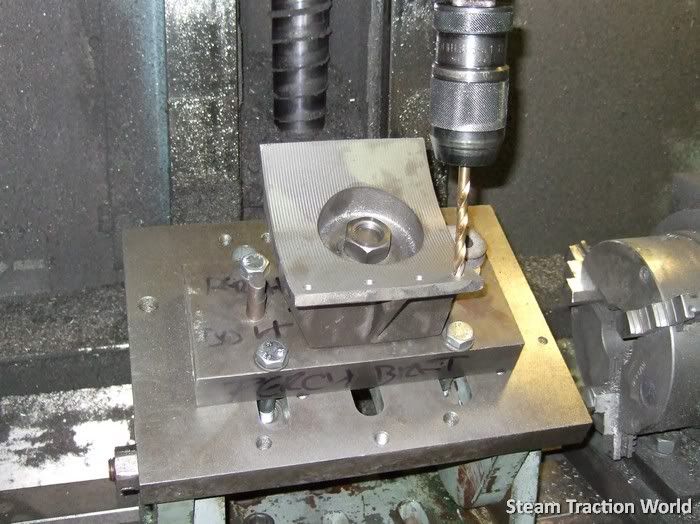

then up onto the angle plate for all the holes...

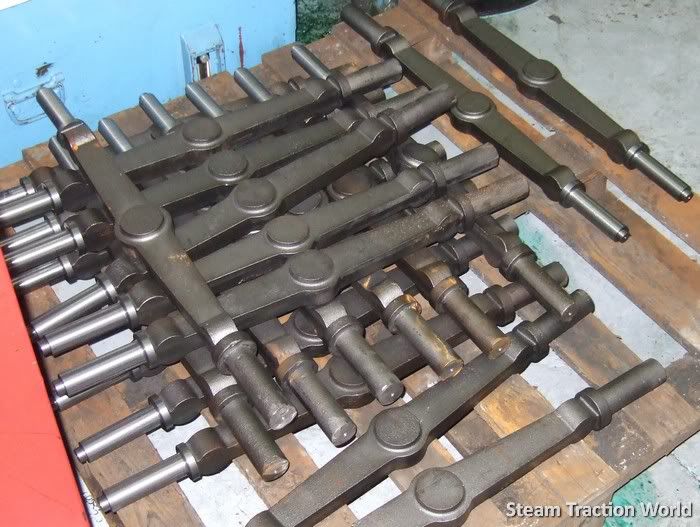

axles next. here the castings have had one end turned.

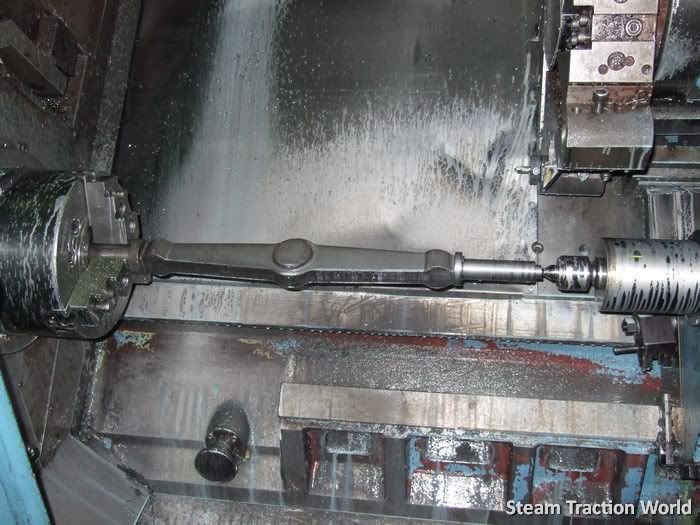

on the lathe...

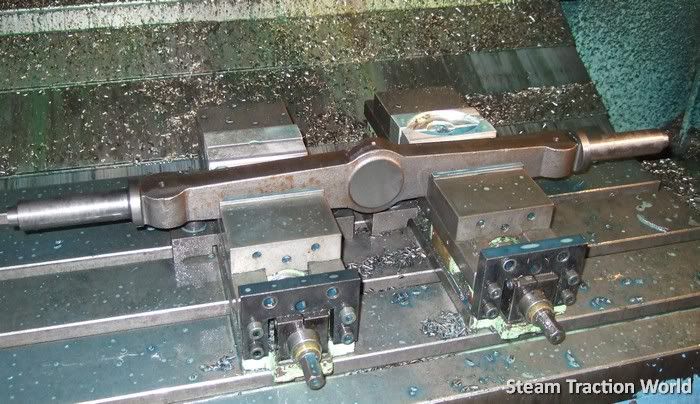

after the ends are turned the rest of the work is done on the mill...

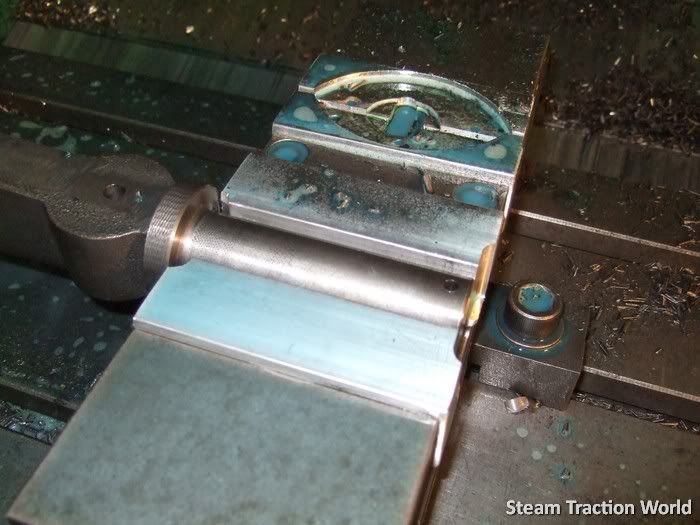

the wheel retaining pin is drilled in relation to the lug on the Axel. very important...

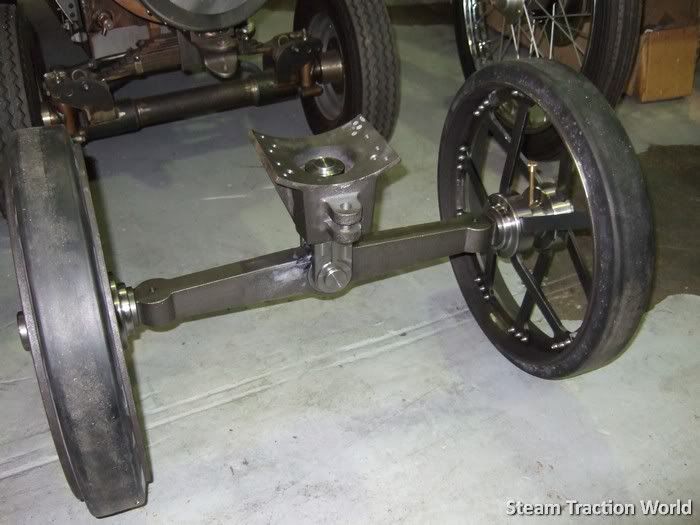

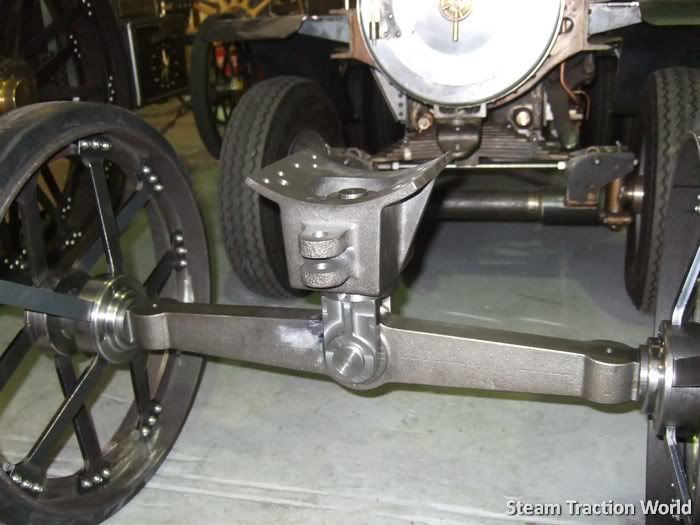

the "control" kit...
